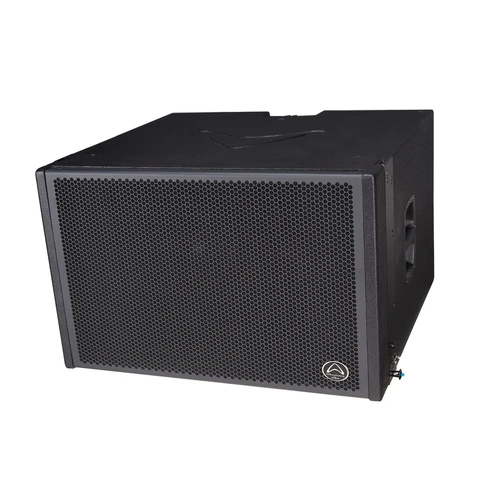

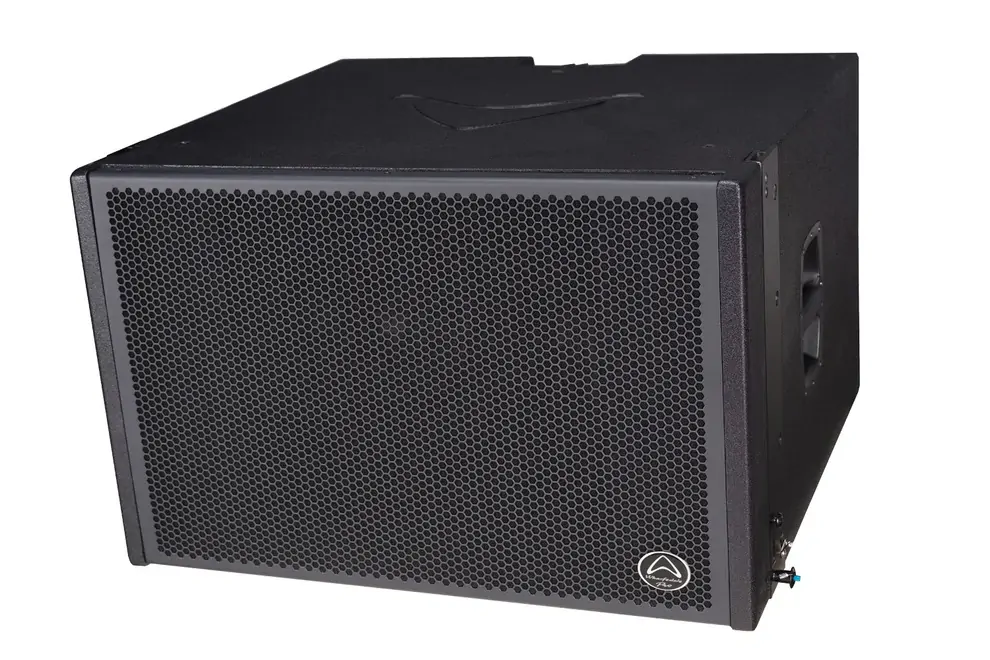

Wharfedale Pro WLA-210SUBA - active line array subwoofer
SHIPPED FROM SUPPLIER TO CUSTOMER DIRECTLY
$2,499.00
In Stock
Dual 15″ active subwoofer with internal DSP and presets
Dual 15″ LF drivers with 4.0″ voice coils
145 dB Max SPL @ 1 meter
15 mm / 18 mm Birch plywood construction
Integral rigging system
2000 watts Continuous
4000 watts Peak
8 x DSP presets
| Specification | Value |
|---|---|
| Active or Passive | Active |
| System Type | Subwoofer |
| Configuration | Bass-reflex |
| System Continuous Power | 2000 W |
| System Peak Power | 4000 W |
| Max SPL @ 1m | 145 dB (Half Space) |
| Freq Range (-10 dB) | 35 Hz - 163 KHz |
| Freq Response (+/-3 dB) | 39 Hz-125 Hz |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 2 x 15" |
| LF Magnet Material | Ferrite |
| LF Frame Material | Aluminium |
| LF Voice Coil Size | 4″ |
| Input Connector | Balanced Socket XLR |
| Enclosure Material | Birch Plywood |
| Grille Material and Finish | Steel |
| Finish | Black Tough-Tone |
| Handles | Yes |
| Deployment | Ground, Flying |
| Pole Mount | None |
| Rigging | Yes |
| Sensitivity 2.83v / 1m | 108 dB |
| Crossover Frequency | Preset Dependent |
| Recommended HPF = BW 18 dB/OCT. | 35 Hz |
| Amplifier design | Class D |
| Driver Protection | RMS, Peak Limiters and DC |
| Thermal Protection | Amplifier Shut Down. Auto Reset |
| DC and Short Protection | Yes |
| Signal Processing | DSP Based, 8 FIR Presets |
| Power On Protection | Power switch on/off mute |
| Low Line Voltage Shut Down | 60% Nominal Line Voltage |
| DC and Short Protection | Yes |
| Limiter Indicator | Red LED |
| Signal Indicator | Green LED |
| Power/Active Indicator | White LED |
| Find Function Indicator | Blue LED |
| Active loudspeaker Input Impedance | Balanced: 10 KΩ |
| Link Connector | Balanced Pin XLR |
| Input sensitivity | +4 dBu |
| Max input level | +18 dBu |
| Update | USB Type B |
| Network (RS485) | RJ45 |
| AC Input Connector | powerCON |
| AC Loop Through Connector | powerCON |
| Main Power | AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic |
| Power Supply | High Efficiency Switching Mode Power Supply |
| Included Accessory | User Manual |
| Unpacked - Front Height (mm) | 485 |
| Unpacked - Rear Height (mm) | 485 |
| Unpacked - Width Front (mm) | 760 |
| Unpacked - Width Rear (mm) | 760 |
| Unpacked - Depth (mm) | 775 |
| Packed - Height (mm) | 575 |
| Packed - Width Front (mm) | 850 |
| Packed - Width Rear (mm) | 850 |
| Packed - Depth (mm) | 865 |
| Weight - Net (kg) | 68 |
| Weight - Gross (kg) | 72.5 |
(WLA-210SUB-ACTIVE)
| SKU | WLA-210SUB-ACTIVE |
| Brand | Wharfedale |
