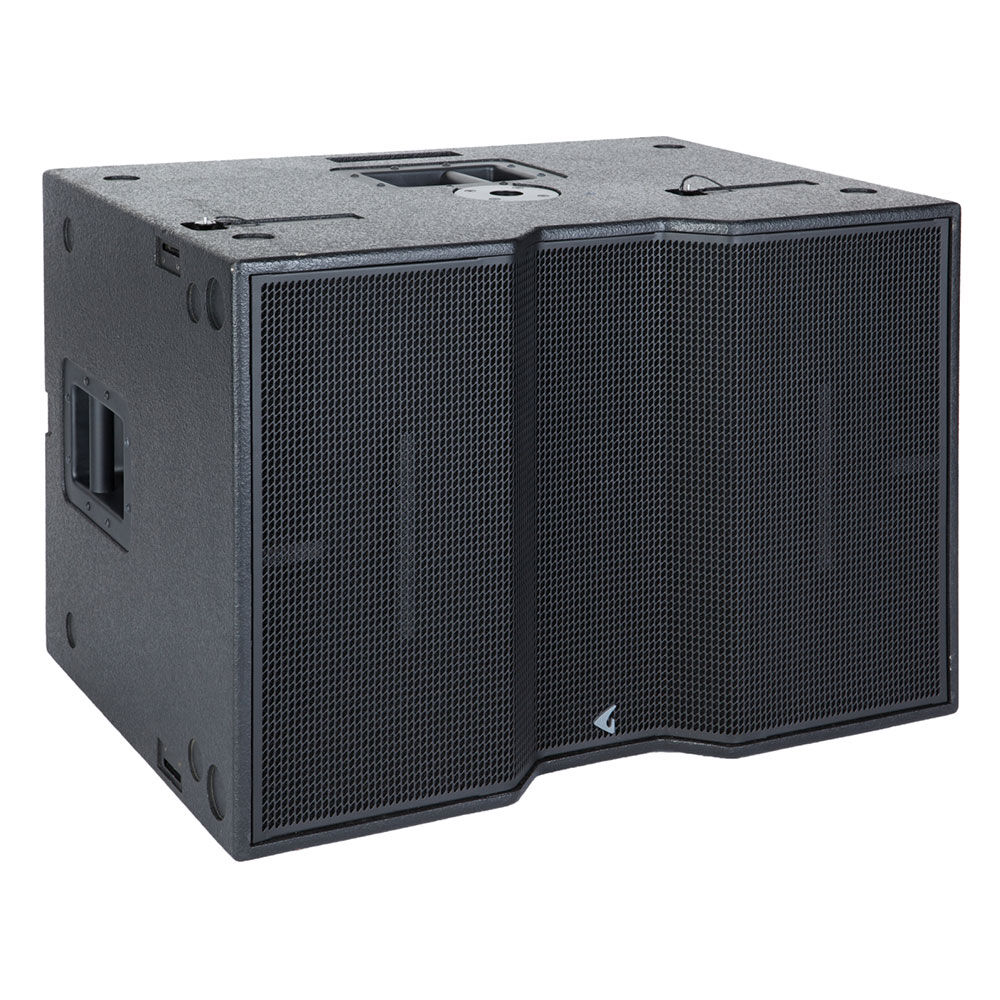

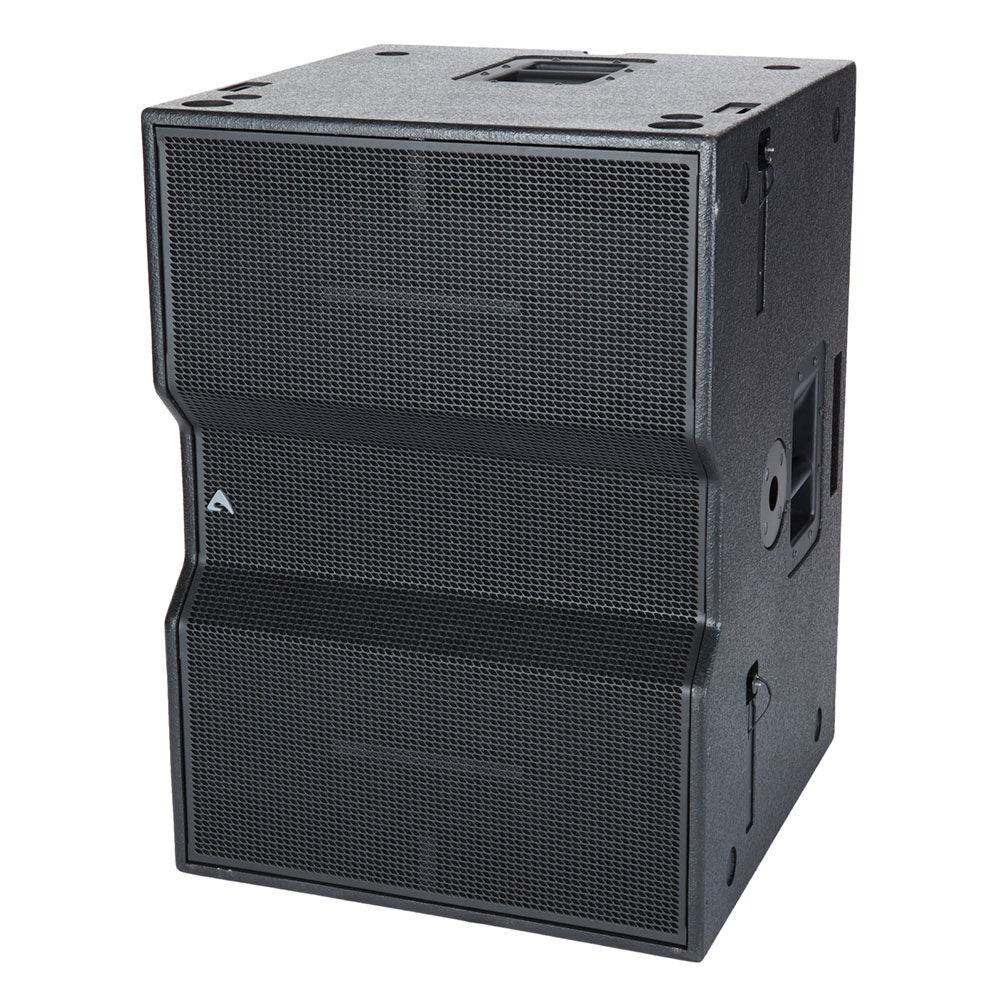

Axiom SW215FA Dual 15″ Powered Flyable Subwoofer
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$8,499.00
Sold Out - Backorder Available
Key Features:
- Compact high-output dual 15″ dubwoofer
- Manifolded Band Pass configuration for a high output in a compact size
- Flexible setup options to suit almost any application
- Flyable with optional fly bar
- Perfectly matched for the AX2065 line array elements
- High-strength, water repellent cones
- Advanced CORE processing with Sharc DSP and PRONET PA management
- Digitally controlled Class D amplifier module with SMPS
- Designed and made in Italy.
Technical Data
| System’s Acoustic Principle | Manifolded Band Pass |
|---|---|
| Frequency Response (±3dB) | 39 Hz – 100 Hz (Processed) |
| Maximum Peak SPL @ 1m | 139 dB |
| Type | Two 15” (380mm) woofer, neodymium magnet, 3” (75 mm) VC |
| Cone | High stiffness, water repellent |
| Voicecoil Type | Flux Demodulating Ring, with Double centering spider suspension |
| Input Impedance | 20 kΩ balanced, 10 kΩ unbalanced |
| Input Sensitivity | +4dBu / 1.25 V |
| Signal Processing | CORE processing, 96kHz / 40bit floating point SHARC DSP, 24 bit AD/DA converters |
| Direct access Controls | 4 Presets (2 x AX16CL / 4 x AX16Cl / 1 x AX16CL), Network Termination, GND Link |
| Remote Controls | PRONET control software |
| Network protocol | CANBUS |
| Amplifier Type | Class D with SMPS, Variable Switching Frequency |
| Output Power | 1000W + 1000W |
| Mains Voltage Range | 230V ±15% – 115 ±15% 50/60Hz (internally selectable) |
| IN / OUT Connectors | Neutrik XLR-M / XLR-F |
| IN / OUT Network Connectors | ETHERCON®(NE8FAV) |
| Mains Connectors | PowerCon® TRUE 1 (NAC3PXTOP) |
| Cooling | Variable speed DC fan |
| Dimensions (W x H x D) | 571 mm x 800 mm x 582 mm (710 mm including wheels) |
| Enclosure Material | 15 mm, reinforced phenolic birch |
| Paint | High resistance, water based paint |
| Suspension System | Side: High Strength Steel with ¼ Fast Pin Rear: High Strength Steel with ¼ Fast Pin |

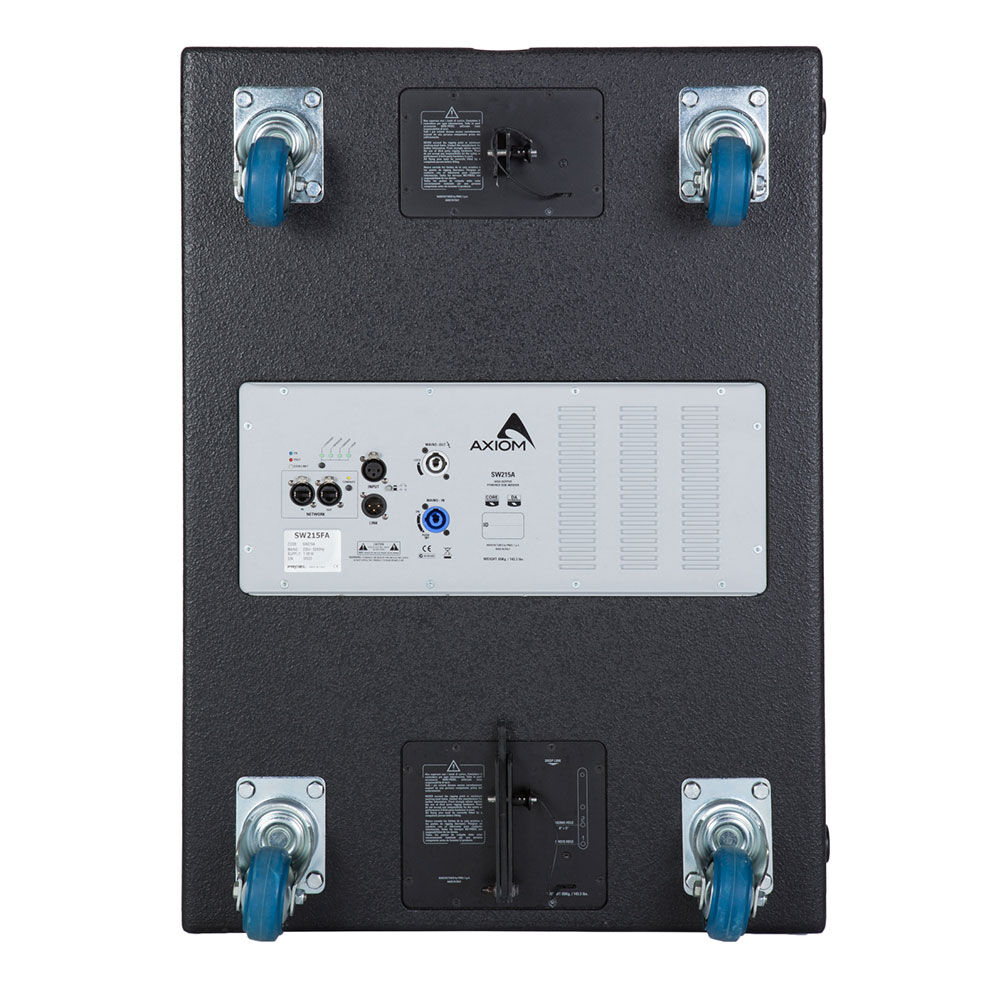

| Transport | 4 heavy duty 100 mm (4″) castors, 4 handles |
| Net Weight | 68.5 Kg |
(AXIOM-SW215FA)
| SKU | AXIOM-SW215FA |
| Brand | AXIOM |
