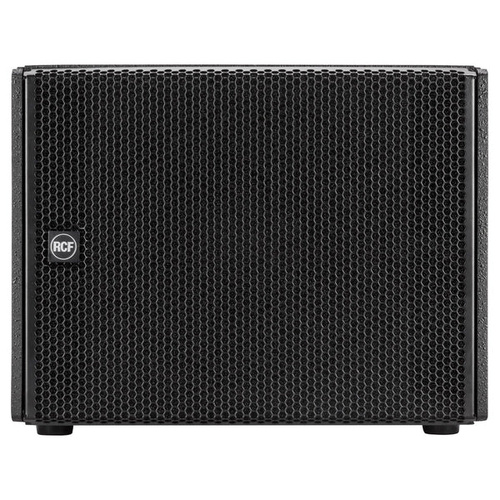

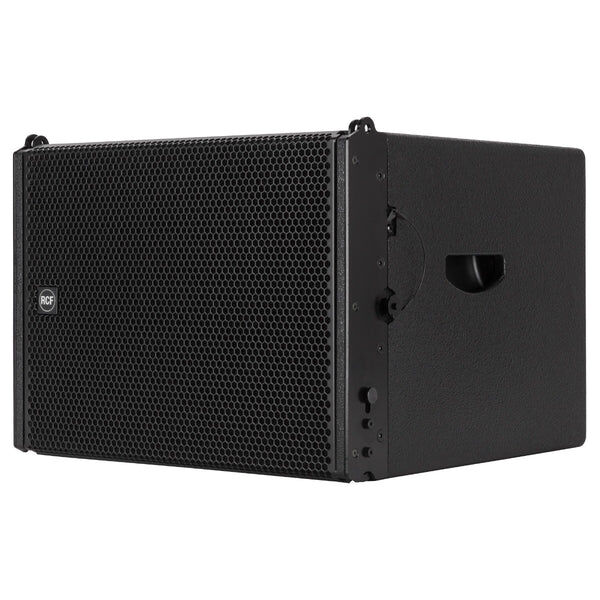

RCF HDL 12-AS ACTIVE FLYABLE HIGH POWER SUBWOOFER

The HDL 12-AS is the companion subwoofer for HDL 6-A. Housing a 12” woofer, the HDL 12-AS, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to create flown HDL 6-A clusters with outstanding performance. It features a built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the HDL 6-A line array module or a satellite. The integrated mechanics are both fast and reliable. The heavy-duty front grille is power coated. A special transparent-to-sound foam backing inside helps the further protection of the transducers from dust.

• 1400 Watt Peak power - 700 Watt RMS
• 131 dB max SPL
• 40 Hz - 120 Hz frequency response
• 1 x 12" Woofer
• Stereo crossover
• Switchable crossover frequencies
• Designed to compliment the HDL 6-A speaker system
• Polarity reverse switch.

SPECIFICATIONS

Acoustical specifications



FREQUENCY RESPONSE: 40 Hz ÷ 120 Hz



MAX SPL @ 1M: 131 dB



Transducers

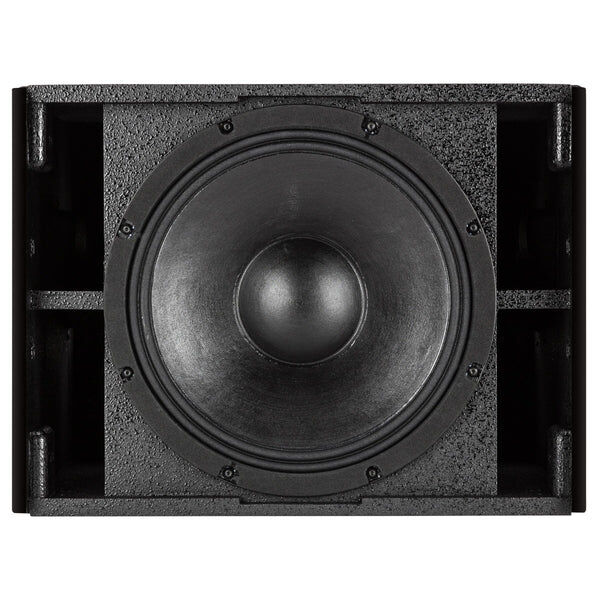

WOOFER: 12'', 3.0'' v.c

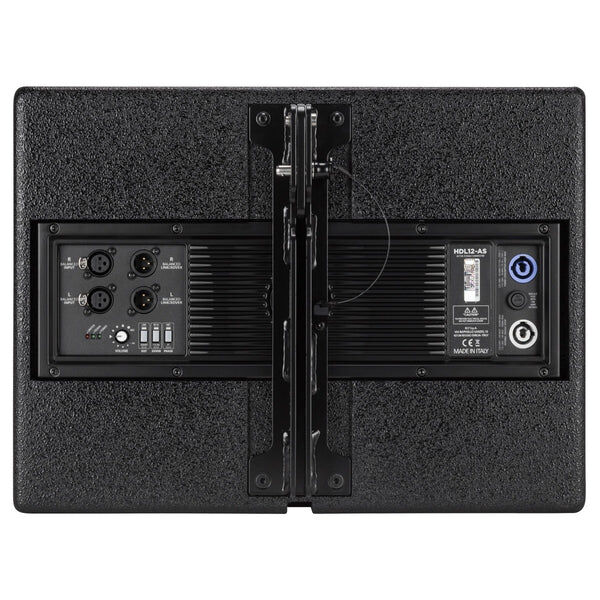

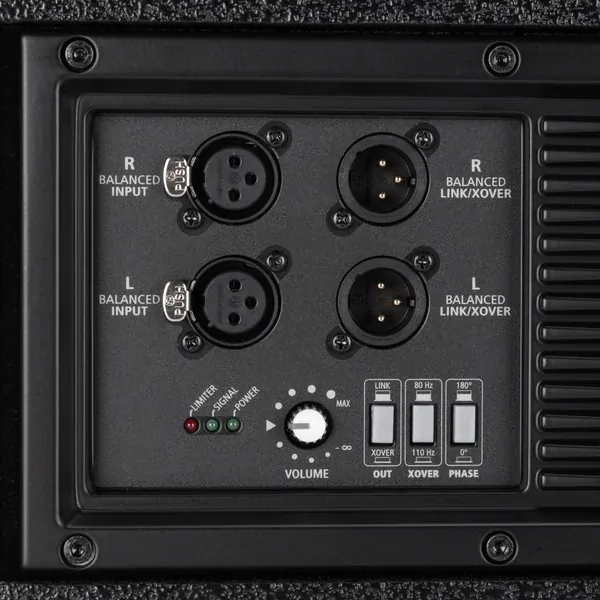

Input/Output section



INPUT SIGNAL: bal/unbal



INPUT CONNECTORS: XLR



OUTPUT CONNECTORS: XLR



INPUT SENSITIVITY: -2 dBu/+4 dBu



Processor section



HI-PASS FREQUENCIES: 40Hz



LOW-PASS FREQUENCIES: 80Hz, 110Hz



PROTECTIONS: Thermal, RMS



LIMITER: Soft Limiter



CONTROLS: Volume, EQ, Phase, Xover



Power section



TOTAL POWER: 1400 W Peak, 700 W RMS



LOW FREQUENCIES: 1400 W Peak, 700 W RMS



COOLING: Convection



CONNECTIONS: Powercon IN/OUT



CABINET/CASE MATERIAL: Baltic birch plywood



HARDWARE: Array fittings, pole



HANDLES: 2 side



GRILLE: Steel



COLOR: Black



Size



HEIGHT: 379 mm / 14.92 inches



WIDTH: 470 mm / 18.5 inches



DEPTH: 508 mm / 20 inches



WEIGHT: 25 kg / 55.12 lbs



Shipping information



PACKAGE HEIGHT: 435 mm / 17.13 inches



PACKAGE WIDTH: 560 mm / 22.05 inches



PACKAGE DEPTH: 520 mm / 20.47 inches



PACKAGE WEIGHT: 28 kg / 61.73 lb
