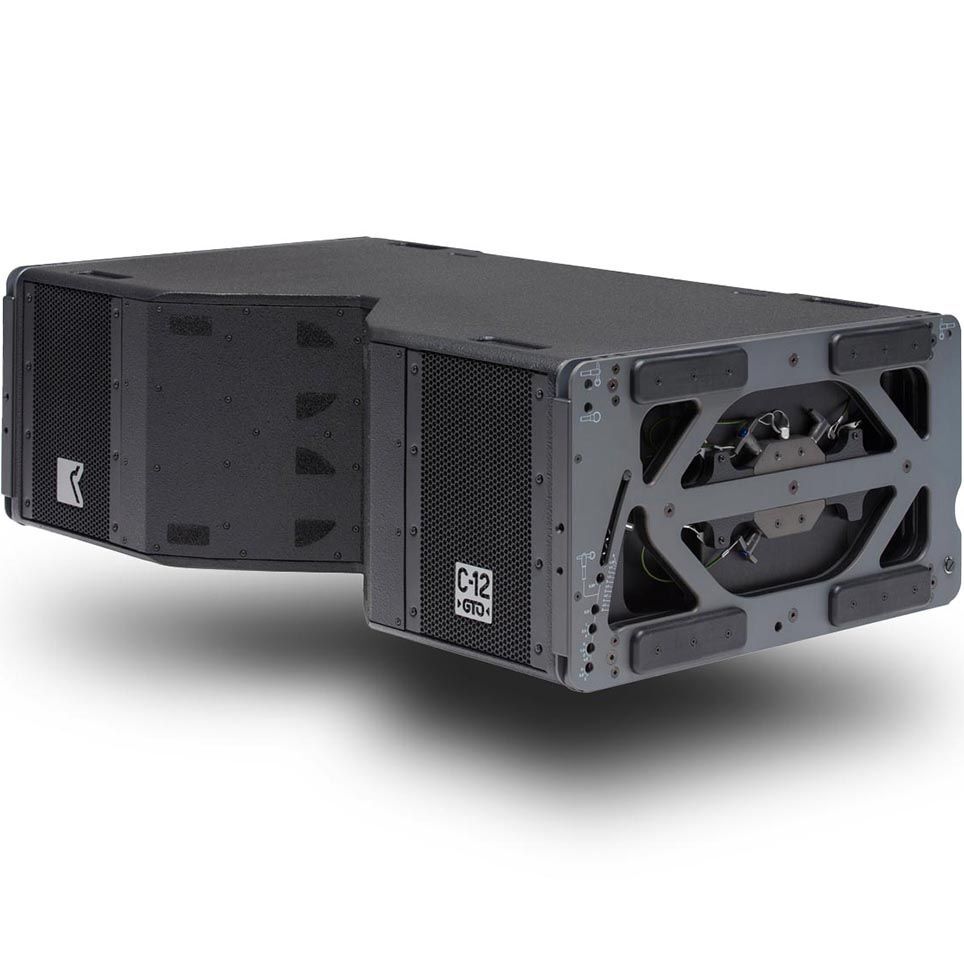

Outline GTO C-12 3-Way DPRWG Line-Array Enclosure
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$22,999.00
Sold Out - Backorder Available
Key Features:
- Compact 3-way enclosure with 2×12″ LF, 4×6.5″ MF and 2×3″ HF drivers on a DPRWG waveguide
- Delivers up to 147.5 dB SPL peak with a wide 45 Hz–18 kHz response for full-range reinforcement
- 21.6 % smaller and 30 % lighter than the original GTO for easier trucking and rigging
- 12-point integrated rigging allows precise inter-cabinet angles for superior coverage control
- Fully compatible with GTO, GTO-SUB, GTO-LOW, GTO-DF, DBS & LAB21 modules and presets.
Technical Data
| Frequency Response (-10 dB): | 45 Hz – 18 kHz |
|---|---|
| Max SPL: | 147.5 dB @ 1 m |
| Dispersion: | 90° horizontal, variable vertical |
| Power Handling: | 3200 W LF + 2400 W MF + 1000 W HF peak |
| Impedance: | 2 × 8 Ω LF, 8 Ω MF, 16 Ω HF |
| Drivers: | 2×12″ LF, 4×6.5″ MF, 2×3″ HF compression drivers |
| Dimensions (H × W × D): | 363 × 1126 × 655 mm |
| Net Weight: | 72.5 kg |
| Shipping Dimensions: | 363 × 1126 × 655 mm |
| Shipping Weight: | 72.5 kg |
(OUTLINE-GTO-C12)
| SKU | OUTLINE-GTO-C12 |
| Brand | OUTLINE |
