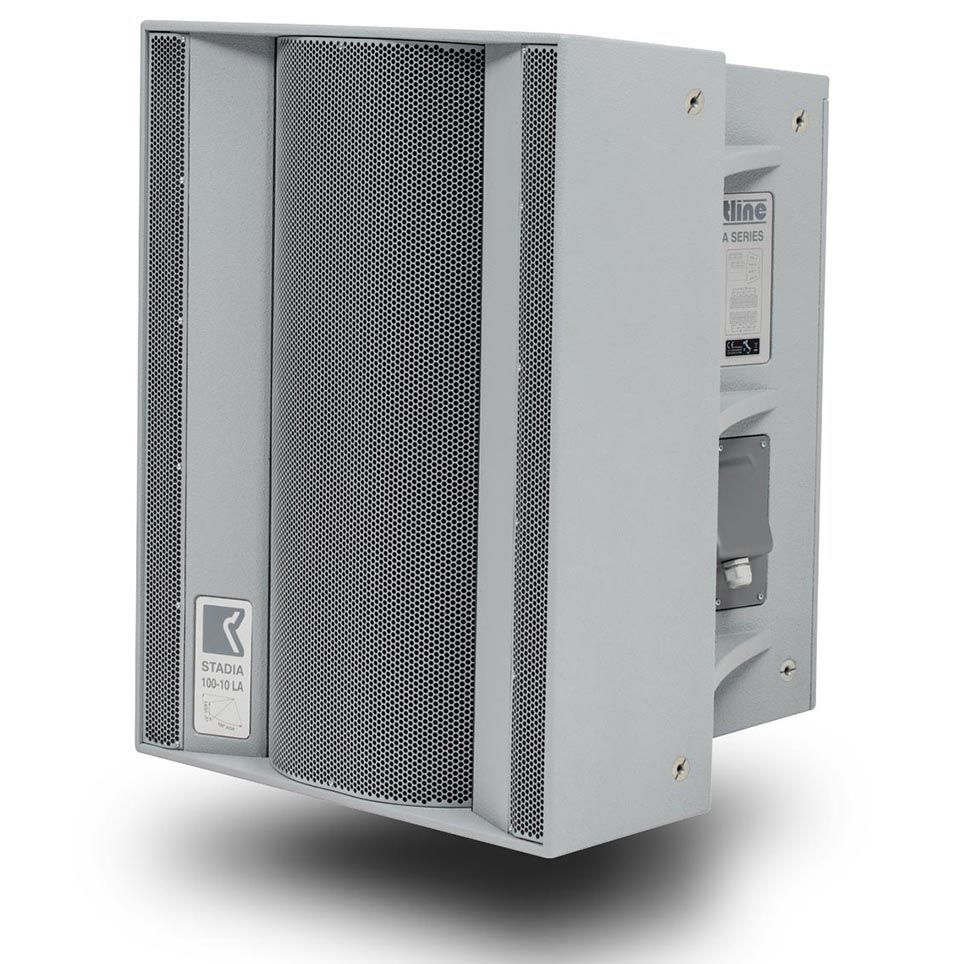

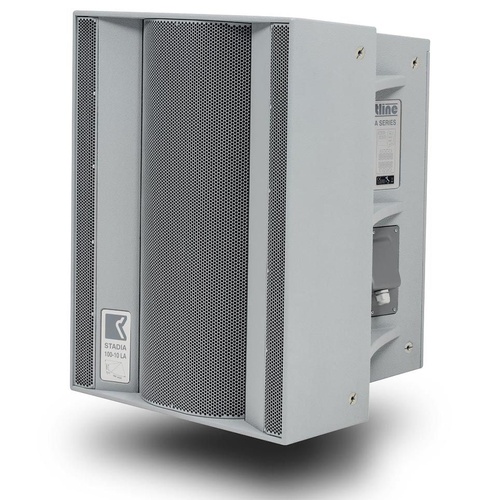

Outline STADIA100-10 2-Way DPRWG Constant-Curvature Array Enclosure
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$18,999.00
Sold Out - Backorder Available
Key Features:
- Dedicated 10° vertical constant-curvature element with consistent 100° horizontal coverage
- 8 × 8″ woofers and 4 × 3″ DPRWG-loaded compression drivers deliver up to 151 dB peak SPL
- Handles more than 8 kW peak input power in bi-amplified mode for uncompromised headroom
- Coherent response from 65 Hz to 19 kHz with directional control maintained down to 300 Hz
- ‘outSIDE’ elastoplastic coating, epoxy-powder grille and waterproof backing ensure true all-weather durability
- Eight M10 rigging points, 6 handles and barrier-strip connectors simplify permanent installation.
Technical Data
| Frequency Response (-10 dB): | 65 Hz – 19 kHz |
|---|---|
| Vertical Dispersion: | 10° |
| Horizontal Directivity: | 100° |
| Operating Configuration: | Bi-amplified |
| Peak Power Handling (Mid/High): | 6400 W / 1920 W |
| Impedance (Mid): | 4 Ω (nom) |
| Impedance (High): | 8 Ω (nom) |
| Maximum SPL: | 151 dB |
| Drivers: | 8 × 8″ band-pass woofers, 4 × 3″ compression drivers |
| Cabinet Material & Finish: | Baltic birch plywood with ‘outSIDE’ coating |
| Rigging Points: | 8 × M10 threaded (Ergal) |
| Connectors: | 8-pole paralleled barrier strip |
| Shipping Dimensions (H × W × D): | 1030 × 780 × 690 mm |
| Net Weight: | 73 kg |
(OUTLINE-STADIA100-10)
| SKU | OUTLINE-STADIA100-10 |
| Brand | OUTLINE |
