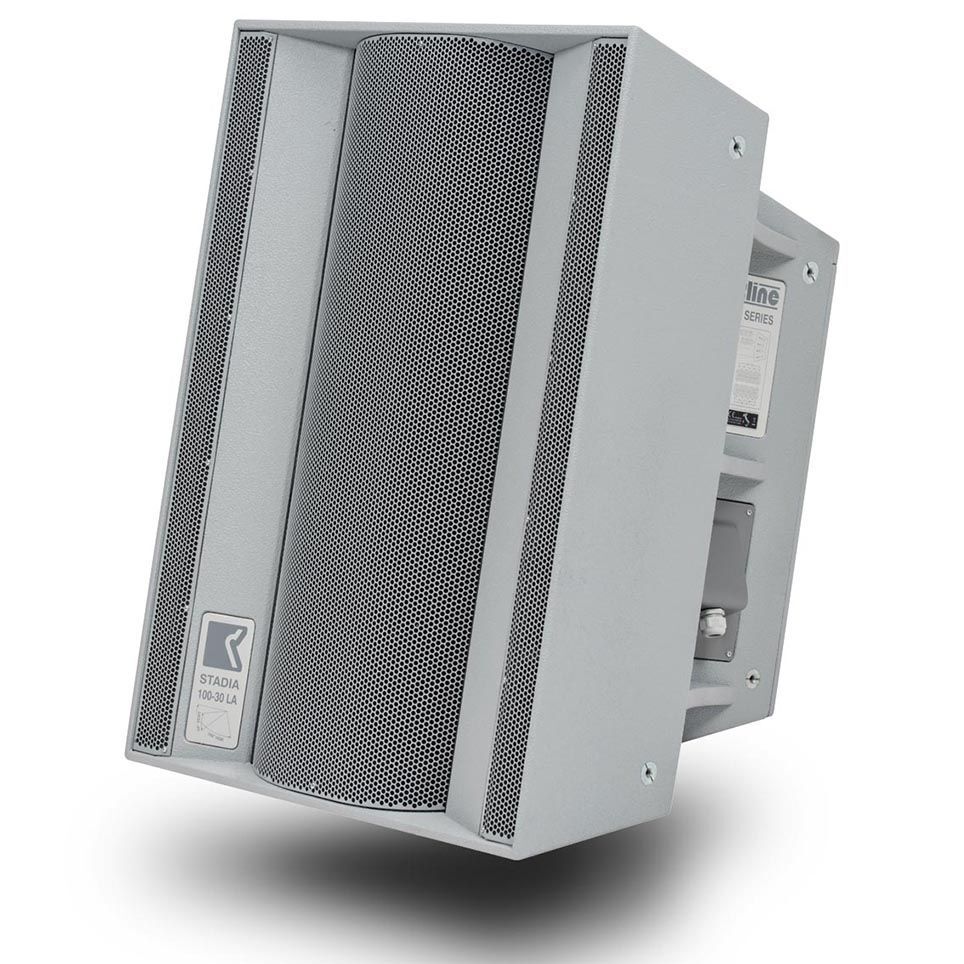

Outline STADIA100-30 2-Way DPRWG Constant-Curvature Array Enclosure (30° Vertical)
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$19,999.00
Sold Out - Backorder Available
Key Features:
- 30° constant-curvature vertical dispersion for pinpoint long-throw coverage
- Eight 8″ woofers + four 3″ DPRWG compression drivers generate up to 151 dB peak SPL
- Handles in excess of 8 kW peak input power for unrivalled headroom
- ‘outSIDE’ elastoplastic coating and sealed grille ensure full weather resistance
- Eight M10 rigging points and six handles simplify permanent installation.
Technical Data
| Vertical Dispersion: | 30° |
|---|---|
| Frequency Response (-10 dB): | 65 Hz – 19 kHz |
| Operating Configuration: | Bi-amplified |
| Maximum Peak SPL: | 151 dB |
| Peak Input Power Handling: | >8 kW |
| Impedance Midrange (Nom/Min): | 4 Ω / 3.2 Ω |
| Impedance High (Nom/Min): | 8 Ω / 8.1 Ω |
| Components Midrange: | 8 × 8″ band-pass loaded woofers |
| Components High: | 4 × 3″ compression drivers, DPRWG loaded |
| Cabinet Material: | Baltic birch plywood with ‘outSIDE’ coating |
| Installation Points: | 8 × M10 threaded points |
| Weight: | 73 kg (161 lb) |
| Shipping Dimensions (H × W × D): | 1030 × 780 × 690 mm |
| Shipping Weight: | 79 kg |
(OUTLINE-STADIA100-30)
| SKU | OUTLINE-STADIA100-30 |
| Brand | OUTLINE |
