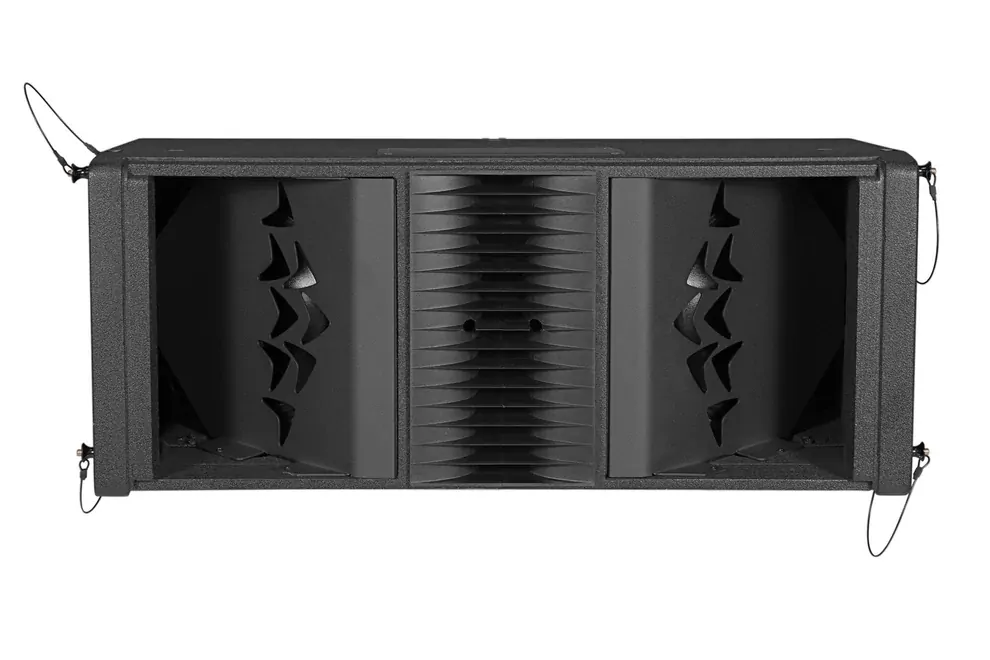

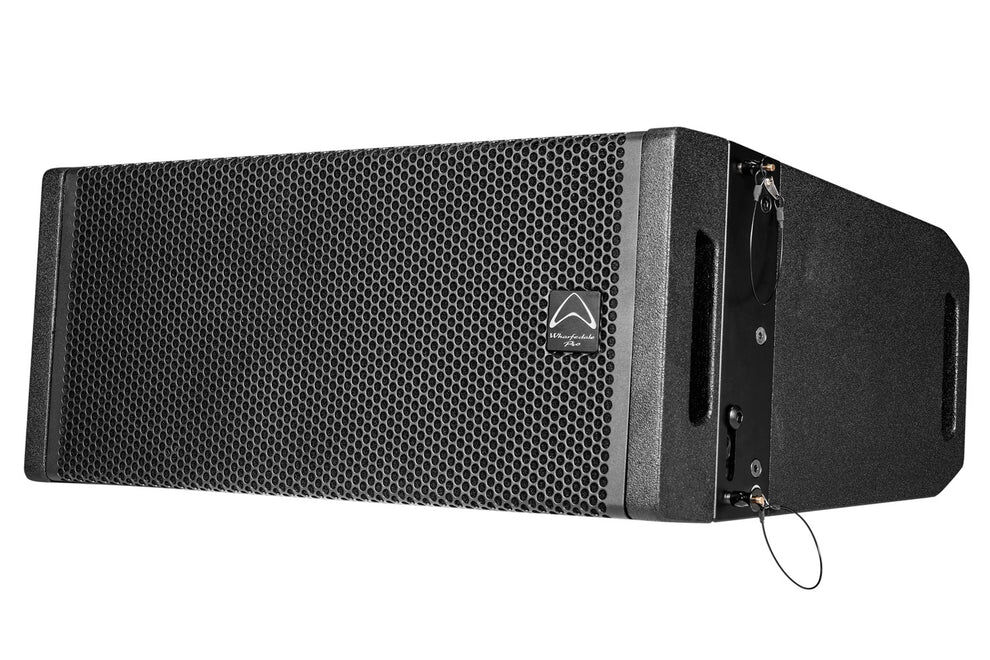

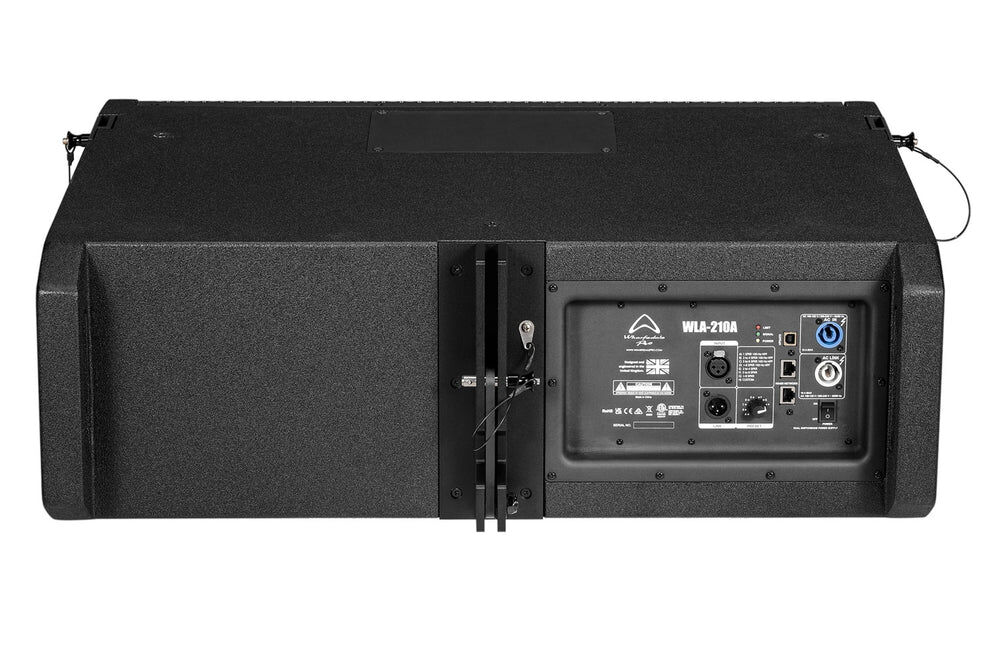

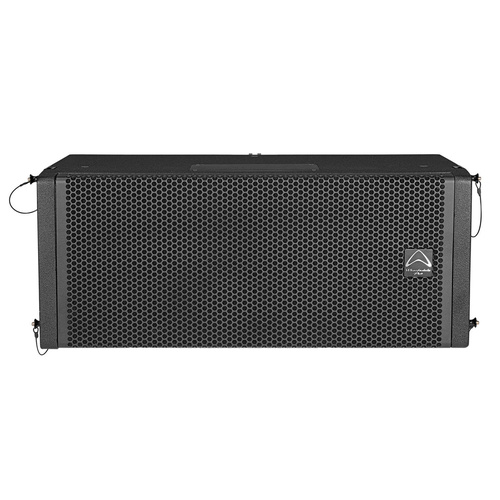

Wharfedale Pro WLA-210A - active line array element
SHIPPED FROM SUPPLIER TO CUSTOMER DIRECTLY
$2,199.00
In Stock
Dual 10" active line array element with EVO-Fold
Dual 10″ active
133 dB Max SPL @ 1 meter
15 mm / 18 mm Birch plywood construction
100° x 10° dispersion
700 W LF + 100 W HF Continuous
1400 W LF + 200 W HF Peak
8 x DSP presets including FIR
| Specification | Value |
|---|---|
| Active or Passive | Active |
| System Type | Array Element |
| Configuration | 2-way |
| System Continuous Power | LF: 700 W / HF: 100 W |
| System Peak Power | LF: 1400 W / HF: 200 W |
| Max SPL @ 1m | 133 dB |
| Freq Range (-10 dB) | 50 Hz – 20 KHz |
| Freq Response (+/-3 dB) | 55 Hz – 20 KHz |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 2 x 10" |
| LF Magnet Material | Ferrite |
| LF Frame Material | Aluminium |
| LF Voice Coil Size | 2.5” |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 3” |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1.4″ |
| HF Power (RE:AES2-2012) | 90 W |
| HF Rated Impedance | 8 Ω |
| HF Nominal Coverage (H x V) | 100° x 10° |
| Input Connector | Balanced Socket XLR |
| Waveguide Type | EVO-Fold |
| Enclosure Material | Birch Plywood |
| Grille Material and Finish | Steel |
| Finish | Black Tough-Tone |
| Handles | 4 |
| Deployment | Flying, Ground |
| Pole Mount | None |
| Brackets Included | Yes |
| Rigging | Yes |
| Integral Rigging | 3 Points |
| Sensitivity 2.83v / 1m | 101 dB |
| Crossover Frequency | 1.5 KHz |
| Recommended HPF = BW 18 dB/OCT. | 50 Hz |
| Amplifier design | Class D |
| Driver Protection | Independent LF/ HF RMS, Peak Limiters and DC |
| Thermal Protection | Amplifier Shut Down. Auto Reset |
| DC and Short Protection | Yes |
| Signal Processing | DSP Based, 8 FIR Presets |
| Power On Protection | Power switch on/off mute |
| Low Line Voltage Shut Down | 60% Nominal Line Voltage |
| DC and Short Protection | Yes |
| Limiter Indicator | Red LED |
| Signal Indicator | Green LED |
| Power/Active Indicator | White LED |
| Find Function Indicator | Blue LED |
| Active loudspeaker Input Impedance | Balanced: 10 KΩ |
| Link Connector | Balanced Pin XLR |
| Input sensitivity | +4 dBu |
| Max input level | +18 dBu |
| Update | USB Type B |
| Network (RS485) | RJ45 |
| AC Input Connector | powerCON |
| AC Loop Through Connector | powerCON |
| Main Power | AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic |
| Power Supply | High Efficiency Switching Mode Power Supply |
| Included Accessory | User Manual |
| Unpacked - Front Height (mm) | 314 |
| Unpacked - Rear Height (mm) | 190 |
| Unpacked - Width Front (mm) | 760 |
| Unpacked - Width Rear (mm) | 760 |
| Unpacked - Depth (mm) | 503 |
| Packed - Height (mm) | 404 |
| Packed - Width Front (mm) | 855 |
| Packed - Width Rear (mm) | 855 |
| Packed - Depth (mm) | 594 |
| Weight - Net (kg) | 39.5 |
| Weight - Gross (kg) | 42.5 |
(WLA-210A)
| SKU | WLA-210A |
| Brand | Wharfedale |
