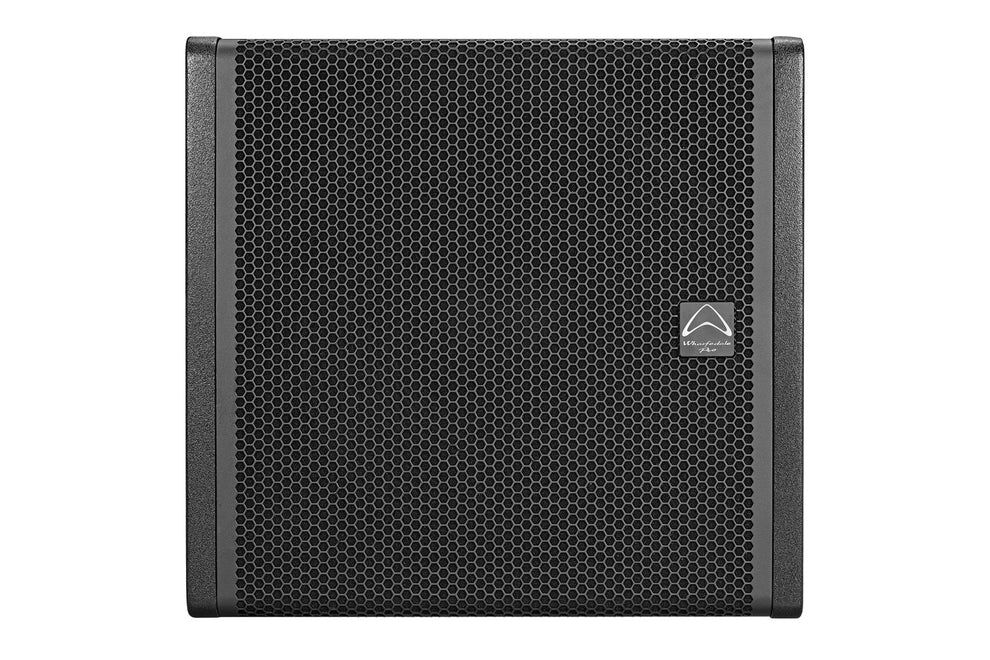

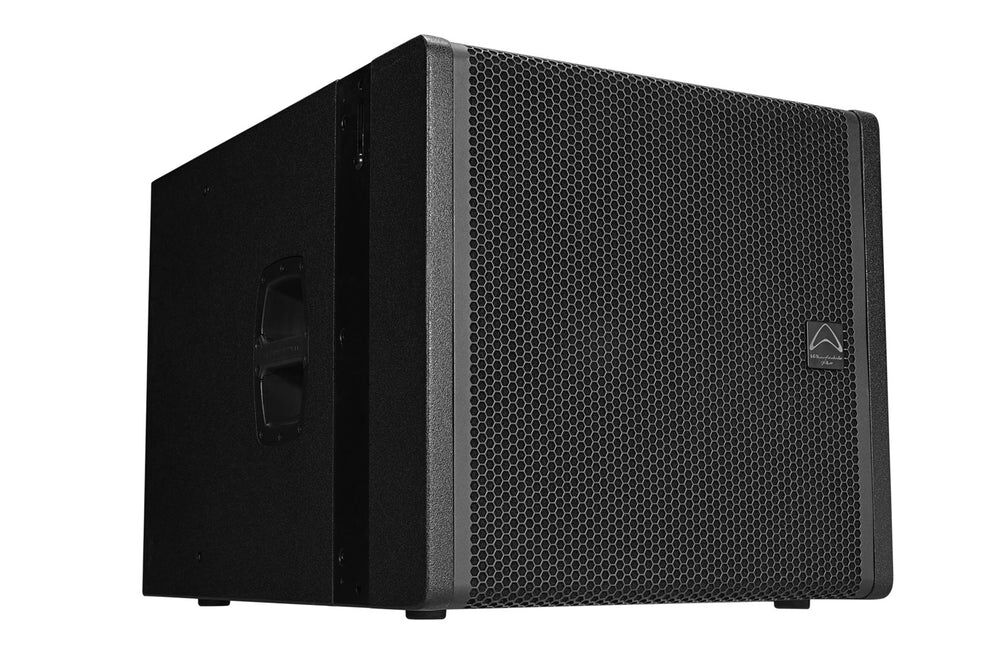

Wharfedale Pro WLA-118SUBA - 18" active subwoofer
SHIPPED FROM SUPPLIER TO CUSTOMER DIRECTLY
18" active Hybrid Curvature array flyable subwoofer
WLA-118SUBA is an 18″ active subwoofer from our WLA-1A System, built to deliver exceptional low-frequency power and precision through integrated Class-D amplification and advanced DSP control.
At its core lies a custom Beyma 18″ driver with a 4.0″ Duo voice coil, engineered to produce deep, controlled bass with outstanding definition and efficiency. Internal DSP makes it effortless to deploy within any WLA-1A array system.
Handling 2200 W continuous (up to 4400 W peak) and delivering a maximum SPL of 136 dB @ 1 m, WLA-118SUBA delivers tight, impactful low-end performance. Designed for flexibility, it can be flown, pole-mounted or ground-stacked alongside WLA-1A full-range elements, forming a powerful and versatile foundation for professional touring or installation setups.
| Specification | Value |
|---|---|
| Active or Passive | Active |
| System Type | Subwoofer |
| Configuration | Bass-reflex |
| System Continuous Power | 2200 W |
| System Peak Power | 4400 W |
| Max SPL @ 1m | 136 dB (Half Space) |
| Freq Range (-10 dB) | 28 Hz – 160 Hz |
| Freq Response (+/-3 dB) | 35 Hz – 125 Hz |
| IP Certification | None |
| Driver Brand | Beyma |
| LF Driver Size | 18" |
| LF Magnet Material | Ferrite |
| LF Frame Material | Aluminium |
| LF Voice Coil Size | 4" |
| Input Connector | Balanced Socket XLR |
| Cabinet Type | Rectangle |
| Enclosure Material | Birch Plywood |
| Grille Material and Finish | Powder Coated Perforated Steel |
| Finish | Black Tough-Tone |
| Handles | 1 side（2 pcs) |
| Deployment | Flying, Ground |
| Pole Mount | M20 |
| Rigging | Yes |
| Integral Rigging | 3 Points |
| Sensitivity 2.83v / 1m | 103 dB |
| Crossover Frequency | Preset Dependent |
| Recommended HPF = BW 18 dB/OCT. | 30 Hz |
| Amplifier design | Class D |
| Driver Protection | RMS, Peak Limiters and DC |
| Thermal Protection | Amplifier Shut Down. Auto Reset |
| DC and Short Protection | Yes |
| Clip Limiter | Yes |
| Signal Processing | DSP Based, 8 FIR Presets |
| Low Line Voltage Shut Down | 60% Nominal Line Voltage |
| DC and Short Protection | Yes |
| Limiter Indicator | Red LED |
| Signal Indicator | Green LED |
| Power/Active Indicator | White LED |
| Find Function Indicator | Blue LED |
| Active loudspeaker Input Impedance | Balanced: 10 KΩ |
| Link Connector | Balanced Socket XLR |
| Input sensitivity | +4 dBu |
| Max input level | +18 dBu |
| Update | USB Type B |

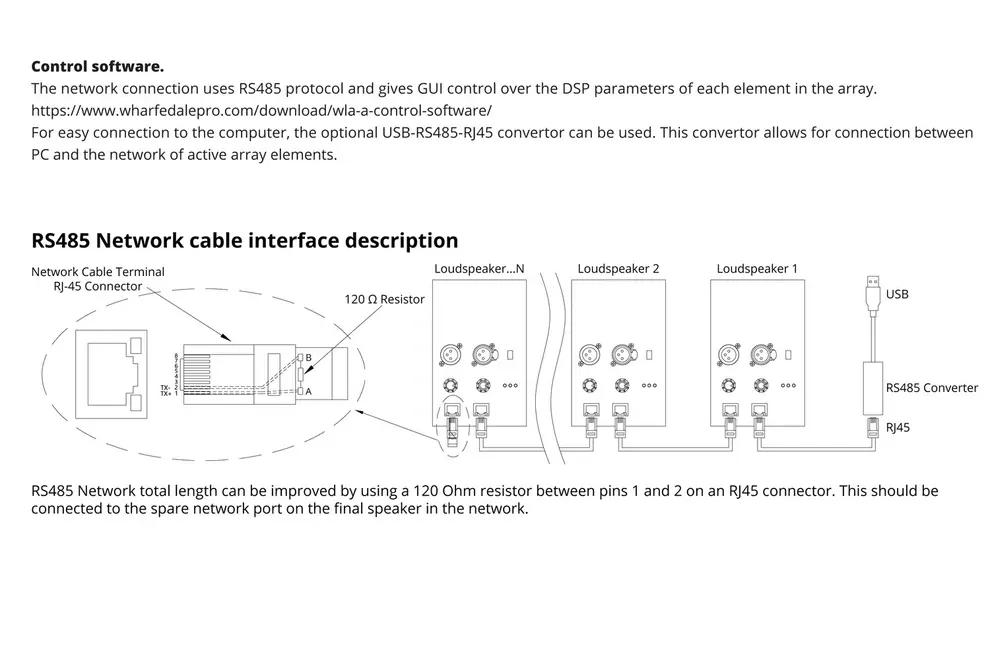

| Network (RS485) | RJ45 |
| Main Power | AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic |
| Power Supply | High Efficiency Dual Switching Mode Power Supply |
| Included Accessory | User Manual |

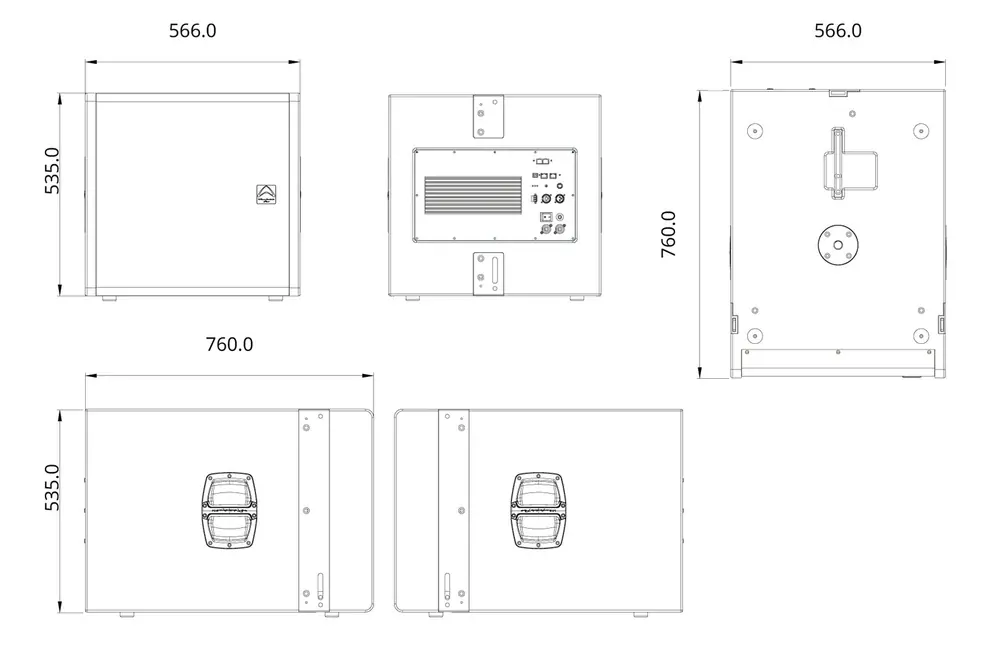

| Unpacked - Front Height (mm) | 535 |
| Unpacked - Rear Height (mm) | 535 |
| Unpacked - Width Front (mm) | 566 |
| Unpacked - Width Rear (mm) | 566 |
| Unpacked - Depth (mm) | 760 |
| Packed - Height (mm) | 630 |
| Packed - Width Front (mm) | 656 |
| Packed - Width Rear (mm) | 656 |
| Packed - Depth (mm) | 850 |
| Weight - Net (kg) | 59.8 |
| Weight - Gross (kg) | 68 |
(WLA-118SUBA-ACTICE)
| SKU | WLA-118SUBA-ACTICE |
| Brand | Wharfedale |
