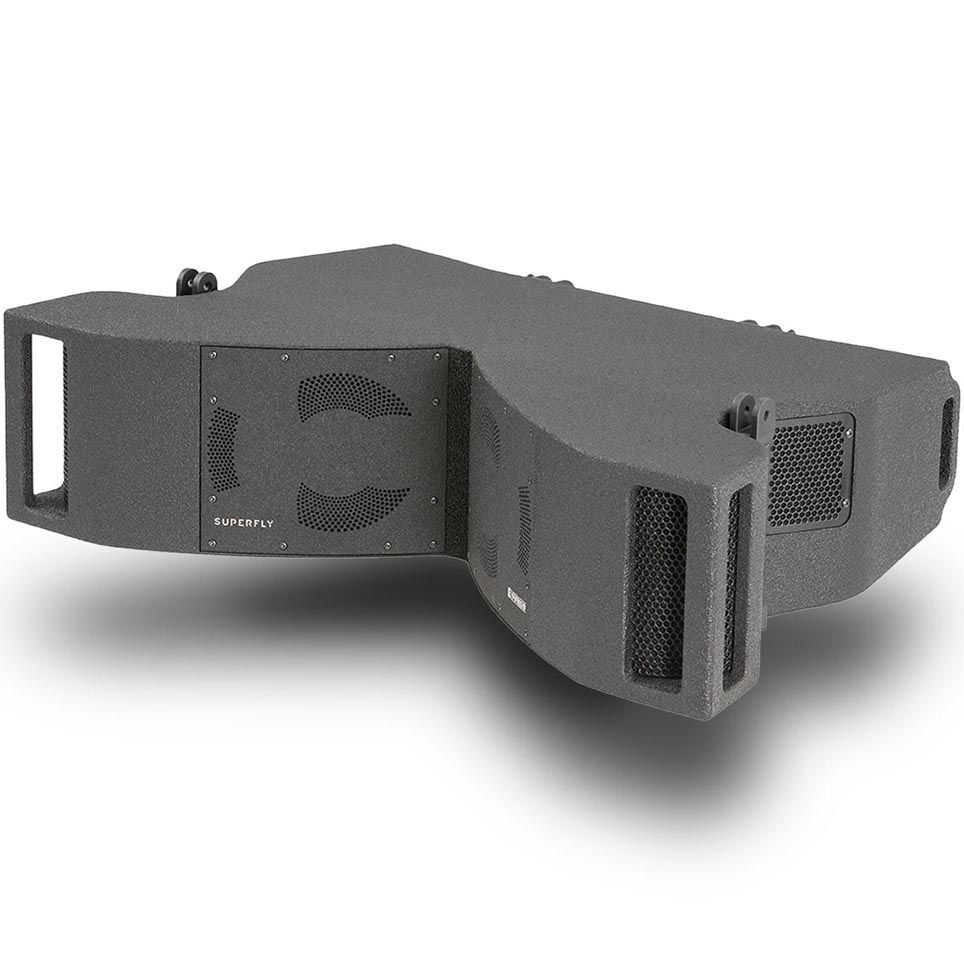

Outline SUPERFLY 3-way DPRWG Line-Array Enclosure
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$13,499.00
Sold Out - Backorder Available
Key Features:
- Three-way, quad-amplified design with DPRWG technology
- 155 dB peak SPL (four boxes) and 143 dB per cabinet
- 90° horizontal dispersion reduces need for fill speakers
- Lightweight 38 kg Baltic birch enclosure with integrated rigging
- Individually powered dual 10″ LF drivers for enhanced low-frequency punch
- Ultra-wide 50 Hz–20 kHz bandwidth eliminates subwoofer dependency
- Seamless compatibility with Outline Mantas 28 and GTA DSP amplifiers
- Compact shipping: two enclosures per 79 kg carton (690×1020×590 mm).
Technical Data
| Frequency Response (-10 dB): | 50 Hz – 20 kHz |
|---|---|
| Horizontal Dispersion: | 90° |
| Vertical Dispersion: | Array design dependent |
| Splay Angles: | 0°–7.5° in 0.5° steps (plus 0.25° position) |
| Operating Configuration: | Quad-amplified |
| Components: | 2×10″ LF, 2×8″ MF, 1×3″ HF compression driver |
| Maximum SPL (1 box): | 143 dB |
| Maximum SPL (4 boxes): | 155 dB |
| Weight: | 38 kg (83.8 lb) |
| Dimensions (H×W×D): | 239×909×636 mm |
| Impedance (LF): | 2×16 Ω |
| Impedance (MF): | 16 Ω |
| Impedance (HF): | 16 Ω |
| Power Handling LF (Cont/Peak): | 2×450 W / 2×1800 W |
| Power Handling MF (Cont/Peak): | 400 W / 1600 W |
| Power Handling HF (Cont/Peak): | 120 W / 480 W |
| Cabinet Material: | Baltic birch plywood |
| Finish: | Black polyurea coating |
| Connectors: | 2×LKI8 (8-pin) in parallel |
| Rigging: | Integrated high-load aluminium hardware |
| Shipping Dimensions (2 units): | 690×1020×590 mm |
| Shipping Weight (2 units): | 79 kg |
(OUTLINE-SUPERFLY)
| SKU | OUTLINE-SUPERFLY |
| Brand | OUTLINE |
