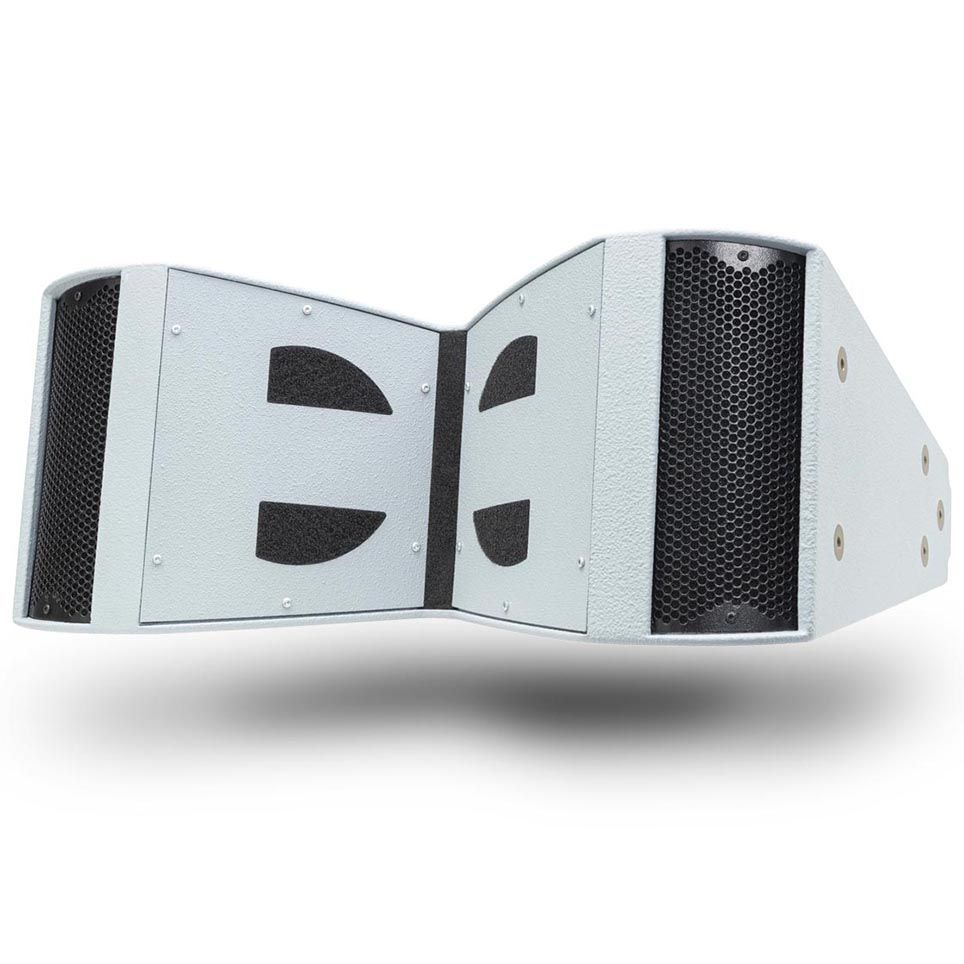

Outline STADIA 28 Constant Curvature Array Enclosure
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$7,499.00
Sold Out - Backorder Available
Key Features:
- Medium-throw constant-curvature array delivering stadium-level clarity
- 139 dB peak SPL from a 21 kg enclosure
- 90° x 22.5° dispersion; 135° coverage with six cabinets
- Bi-amped design with 500 W mid & 120 W HF AES continuous power
- IP55 ‘OutSIDE’ coating ensures long-term weather resistance
- Vertical or horizontal rigging via 10 x M10 corrosion-resistant points.
Technical Data
| Frequency Response (-10 dB): | 65 Hz – 20 kHz |
|---|---|
| Horizontal Dispersion: | 90° |
| Vertical Dispersion: | 22.5° |
| Maximum Peak SPL: | 139 dB |
| Operating Configuration: | Bi-amplified |
| Power Handling Midrange (AES): | 500 W continuous / 2000 W peak |
| Power Handling High (AES): | 120 W continuous / 480 W peak |
| Impedance Midrange: | 8 Ω |
| Impedance High: | 8 Ω |
| Components: | 2 x 8″ NdFeB mid-woofers, 1 x 3″ NdFeB compression driver |
| Connectors: | 4-pole barrier strip |
| Cabinet Material: | Baltic birch plywood with ‘OutSIDE’ coating |
| Rigging Points: | 10 x M10 |
| Dimensions (H x W x D): | 309 x 700 x 500 mm |
| Weight: | 21.5 kg |
(OUTLINE-STADIA-28)
| SKU | OUTLINE-STADIA-28 |
| Brand | OUTLINE |
