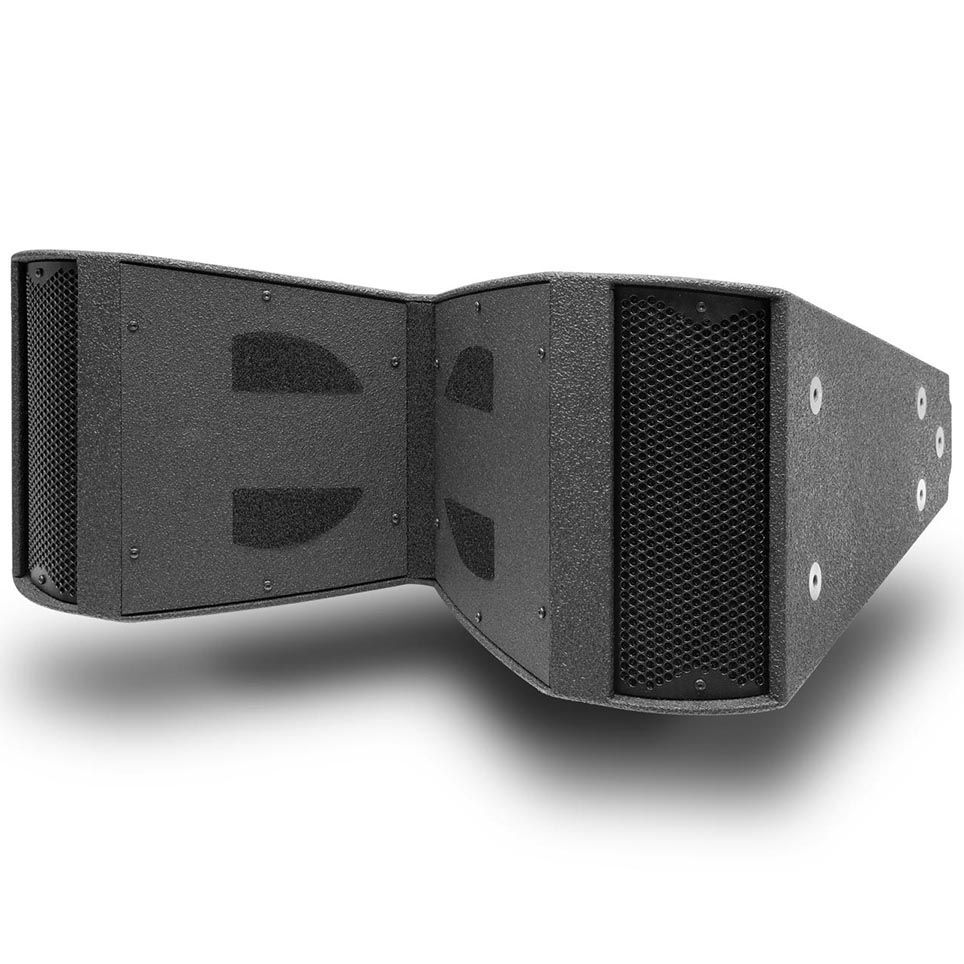

Outline SCALA 90 2-Way Constant Curvature Array Enclosure
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$7,199.00
Sold Out - Backorder Available
Key Features:
- Medium-throw constant curvature array delivering 139 dB peak SPL
- 90° x 22.5° dispersion per cabinet; 135° coverage with just six modules
- Vertical or horizontal deployment for unmatched installation flexibility
- Dual 8″ neodymium mid-woofers and 3″ HF diaphragm on proprietary waveguide
- Lightweight 21 kg birch plywood enclosure with black polyurea finish
- Ten M10 rigging points and unobtrusive suspension hardware
- Bi-amped design handles 500 W + 120 W AES continuous power.
Technical Data
| Frequency Response (-10 dB): | 65 Hz – 20 kHz |
|---|---|
| Horizontal Dispersion: | 90° |
| Vertical Dispersion: | 22.5° |
| Maximum Peak SPL: | 139 dB SPL |
| Operating Configuration: | Bi-Amplified |
| Impedance (Mid): | 8 Ω |
| Impedance (High): | 8 Ω |
| Power Handling Mid (AES): | 500 W continuous / 2000 W peak |
| Power Handling High (AES): | 120 W continuous / 480 W peak |
| Components: | 2 × 8″ NdFeB mid-woofers, 1 × 3″ diaphragm NdFeB compression driver |
| Connectors: | 2 × NL4 in parallel |
| Cabinet Material: | Baltic birch plywood |
| Cabinet Finish: | Black polyurea coating |
| Grill: | Epoxy powder-coated steel |
| Rigging Points: | 10 × M10 threaded (Ergal) |
| Dimensions (H × W × D): | 309 mm × 700 mm × 500 mm |
| Weight: | 21.5 kg |
| Shipping Dimensions (per 2 pcs): | 750 mm × 610 mm × 710 mm |
| Shipping Weight (per 2 pcs): | 50.5 kg |
(OUTLINE-SCALA-90)
| SKU | OUTLINE-SCALA-90 |
| Brand | OUTLINE |
