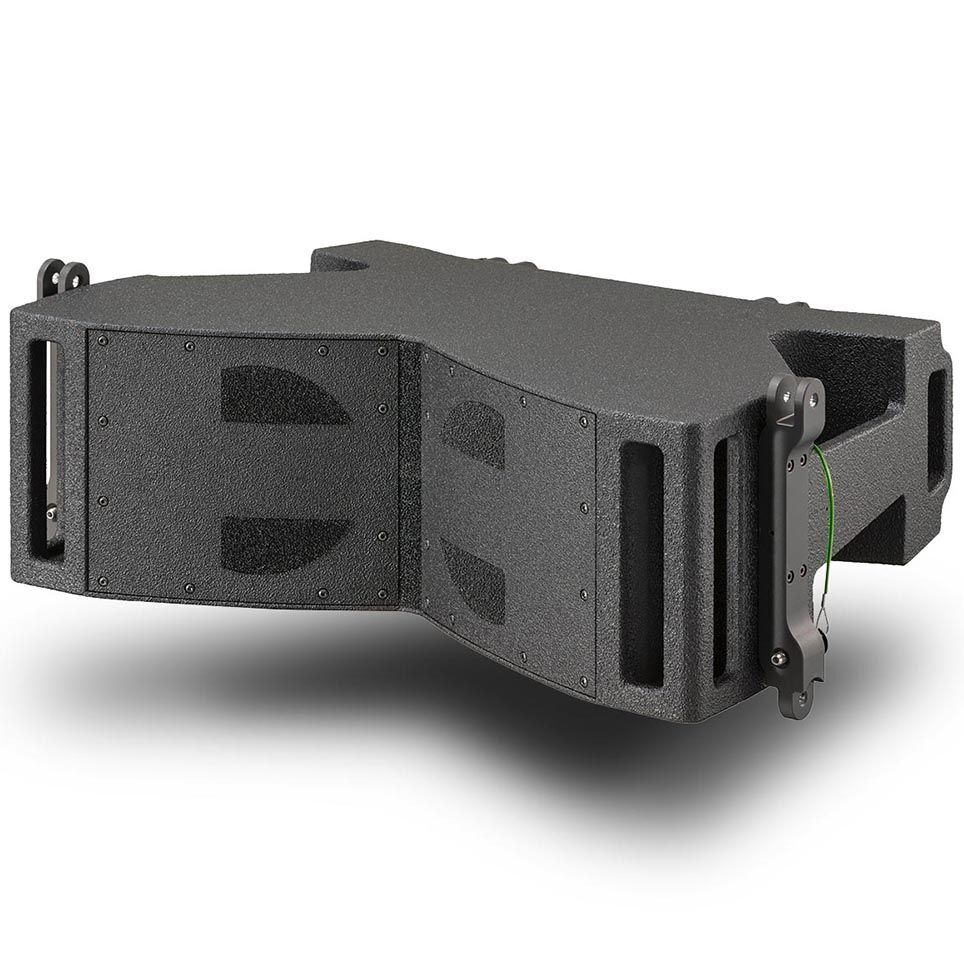

Outline MANTAS 28 2-Way DPRWG Line-Array Enclosure
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$7,999.00
In Stock
Key Features:
- Ultra-compact 2-way vertical line array with two 8″ Neodymium mid-woofers and a 3″ DPRWG-loaded HF driver
- Delivers up to 139 dB SPL per cabinet and 151 dB SPL in a four-box array for powerful medium-throw coverage
- Wide 120° horizontal dispersion and adjustable 0°–7.5° splay angles in 0.5° steps for precise array design
- Lightweight 24 kg Baltic birch plywood cabinet with integrated aluminium rigging for fast, safe deployment
- Bi-amplified operation with 400 W mid and 110 W HF AES power handling for maximum headroom and reliability
- Fully compatible with Outline Superfly, GTO and C-12 systems for side-fill, down-fill or delay applications.
Technical Data
| Frequency Response (-10 dB): | 90 Hz – 18 kHz |
|---|---|
| Maximum SPL (1 m, Free Field): | 139 dB per cabinet / 151 dB four cabinets |
| Horizontal Dispersion: | 120° |
| Vertical Splay Angles: | 0°–7.5° in 0.5° steps (+0.25° position) |
| Operating Configuration: | Bi-amplified |
| Impedance Mid: | 8 Ω (min 6.4 Ω) |
| Impedance High: | 8 Ω (min 8.4 Ω) |
| Power Handling Mid: | 400 W AES continuous / 1600 W peak |
| Power Handling High: | 110 W AES continuous / 440 W peak |
| Components: | 2 × 8″ NdFeB mid-woofers, 1 × 3″ NdFeB compression driver |
| Cabinet Material: | Baltic birch plywood, black polyurea finish |
| Rigging: | Integrated high-load aluminium hardware |
| Connectors: | 2 × NL4 parallel |
| Dimensions (H × W × D): | 278 mm × 756 mm × 518 mm |
| Weight: | 24 kg |
| Shipping Dimensions (2 pcs): | 560 mm × 810 mm × 580 mm |
| Shipping Weight (2 pcs): | 55 kg |
(OUTLINE-MANTAS-28)
| SKU | OUTLINE-MANTAS-28 |
| Brand | OUTLINE |
