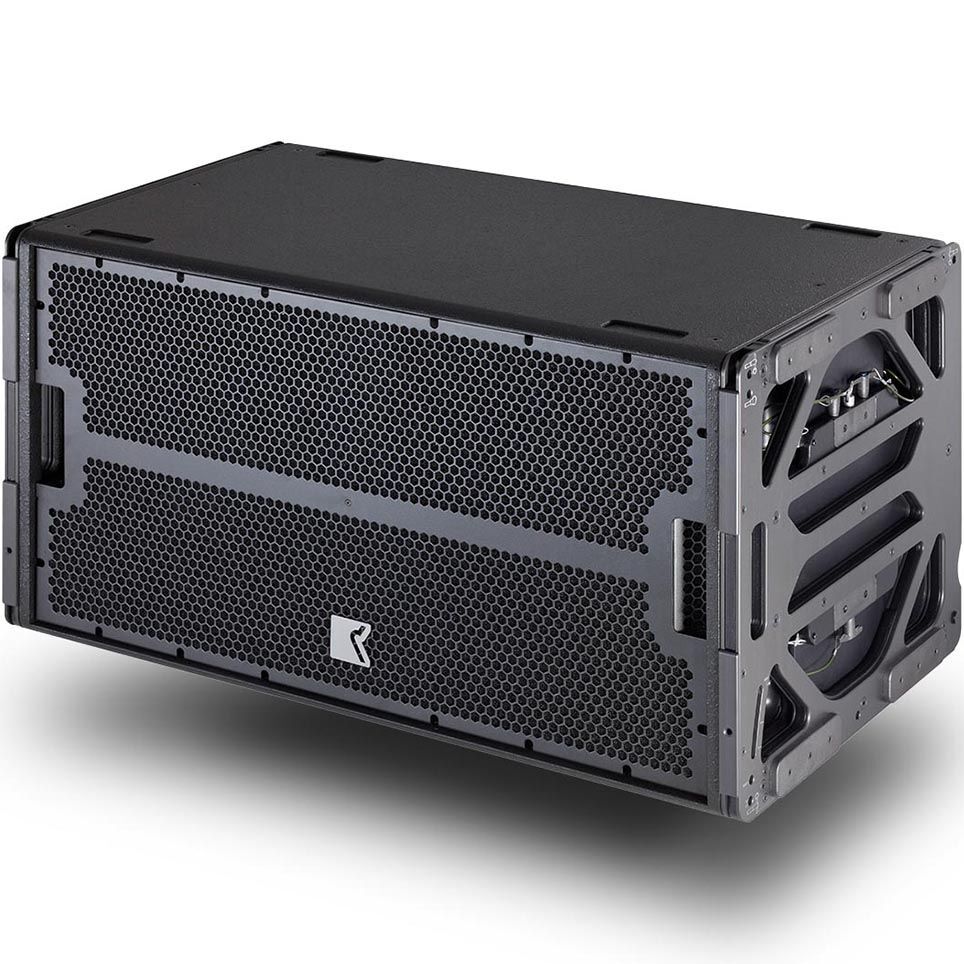

Outline GTO-SUB High Power Flyable Subwoofer 2 x 18″
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$18,999.00
Sold Out - Backorder Available
Key Features:
- Ultra-low frequency extension down to 28 Hz for thunderous, musical bass
- Dual 18″ hybrid band-pass woofers with 9600 W peak power handling
- Integral GTO rigging system flies up to 16 cabinets with selectable 3° splay
- Long low-turbulence port ensures clean, high-definition output
- Identical footprint to all GTO elements for seamless turnkey arrays
- Parallel NL4 and LKI-8 connectors for flexible signal routing
- 18 mm Baltic birch cabinet with waterproof coating and steel grille.
Technical Data
| Taric / HS Code: | 8518.22.00 |
|---|---|
| Frequency Response (-10 dB): | 28 Hz – 160 Hz |
| Sensitivity (1 W @ 1 m): | 97 dB free-field / 103 dB half-space |
| Max SPL Peak @ 1 m: | 147 dB half-space |
| Power Handling (AES): | 2 × 1200 W RMS (2 × 4800 W peak) |
| Impedance: | 2 × 8 Ω (min 2 × 6.2 Ω) |
| Drivers: | 2 × 18″ hybrid band-pass woofers |
| Dispersion: | Quasi-omnidirectional (array dependent) |
| Connectors: | 2 × NL4 + 2 × LKI-8 (all parallel) |
| Rigging Capacity: | Up to 16 cabinets flown vertically |
| Dimensions (H × W × D): | 600 × 1126 × 655 mm |
| Weight: | 102 kg |
| Enclosure: | 18 mm Baltic birch plywood, black waterproof finish |
(OUTLINE-GTO-SUB)
| SKU | OUTLINE-GTO-SUB |
| Brand | OUTLINE |
