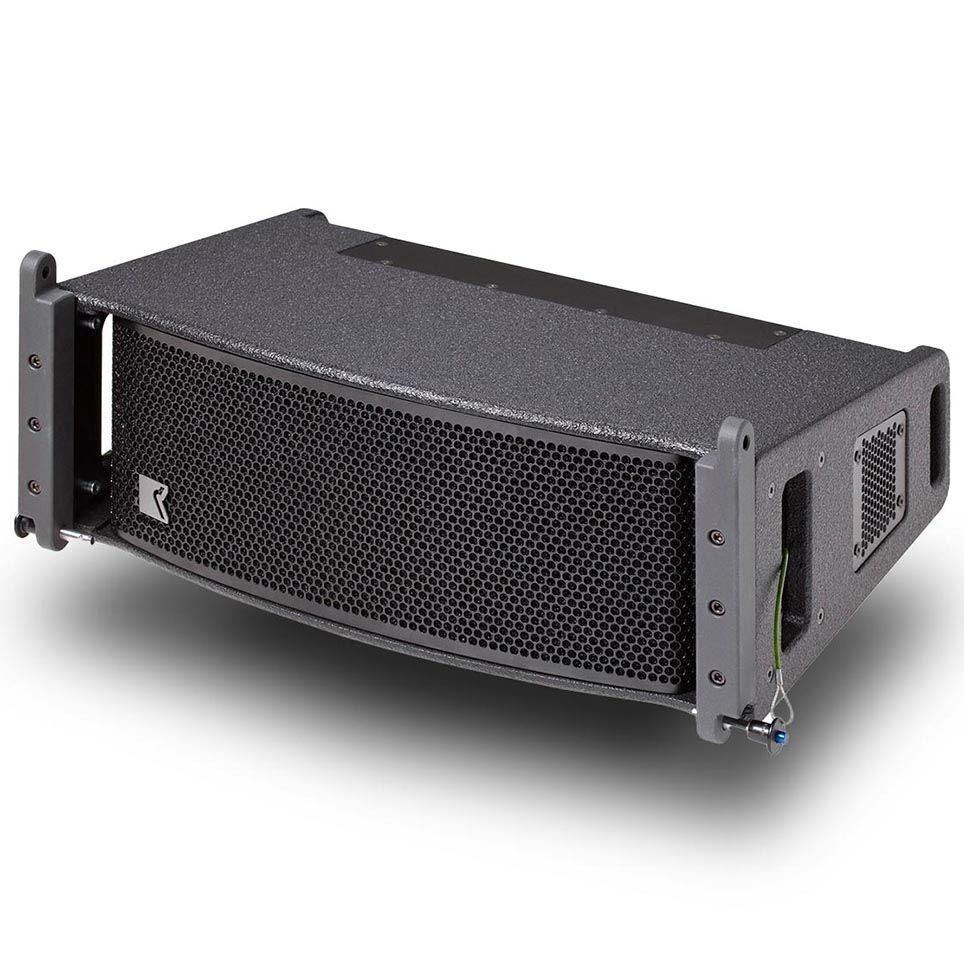

Outline EIDOS 265 LA 2-Way Line-Array Enclosure
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$5,799.00
Sold Out - Backorder Available
Key Features:
- Compact 2-way passive line-array element covering 63 Hz–20 kHz
- 2 × 6.5″ mid-woofers plus 2.5″ diaphragm HF driver on precision waveguide
- Delivers up to 132 dB SPL with 100° symmetrical horizontal dispersion
- Internal passive crossover allows single-channel amplification (up to 4 cabinets per channel)
- Lightweight aluminium rigging angles 0°–10°; fly or stack up to 16 enclosures
- Birch-ply cabinet with rugged steel grille, recessed handles and NL4 connectors
- Seamless integration with Outline FLYSUB 15 for extended LF.
Technical Data
| Frequency Response (-10 dB): | 63 Hz – 20 kHz |
|---|---|
| Horizontal Dispersion: | 100° |
| Vertical Dispersion: | Array dependent (0°–10° per enclosure) |
| Impedance: | 8 Ω (min 6.1 Ω) |
| Power Handling AES: | 500 W (2000 W peak) |
| Maximum SPL @1 m: | 132 dB SPL |
| Drivers: | 2 × 6.5″ woofers, 1 × 2.5″ diaphragm compression driver |
| Dimensions (H×W×D): | 234 × 550 × 418 mm |
| Weight: | 21 kg |
| Connectivity: | 2 × NL4 parallel |
(OUTLINE-EIDOS)
| SKU | OUTLINE-EIDOS |
| Brand | OUTLINE |
