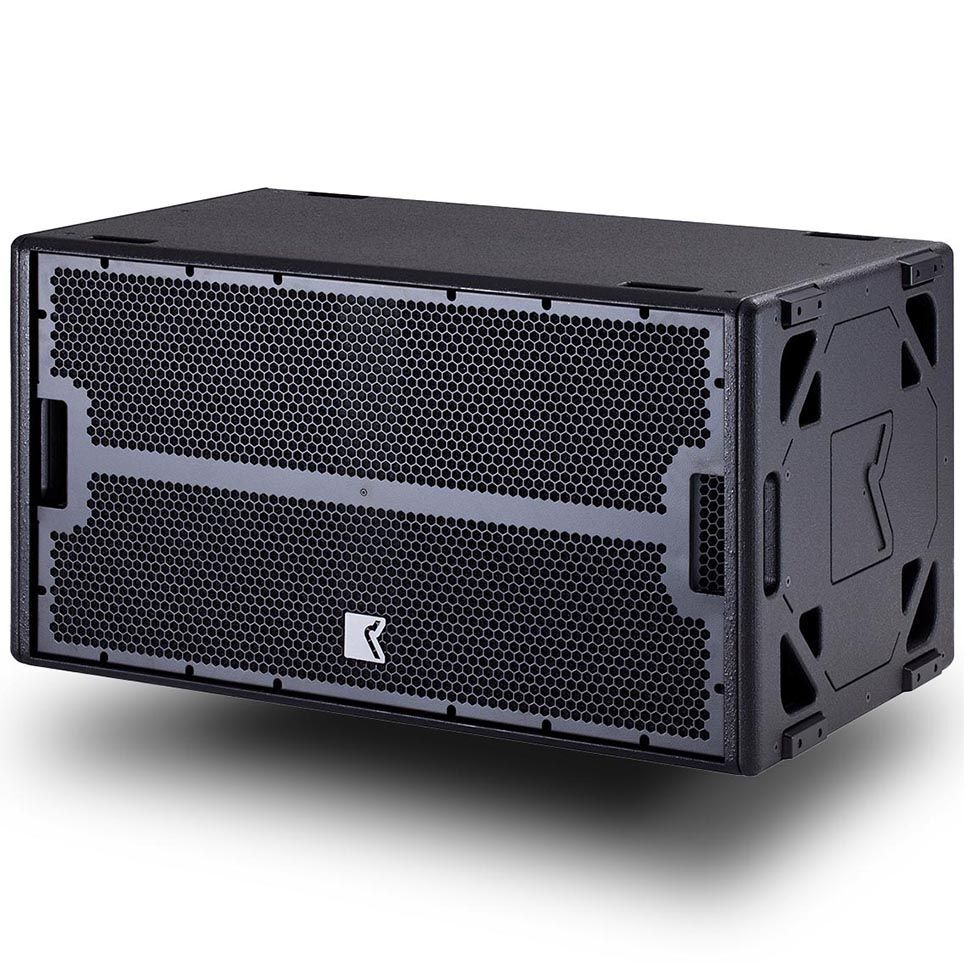

Outline DBS18-2 High Power Ground-Stackable Subwoofer: 2 × 18″
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$11,999.00
In Stock
Key Features:
- Dual 18″ long-excursion drivers deliver seismic low-frequency extension to 28 Hz
- Decoupled Baffle Subwoofer architecture minimises turbulence and resonance for pristine bass clarity
- Massive 9600 W AES peak power handling and up to 147 dB SPL peak in half-space
- Ground-stackable design with rugged feet and 24 flying points for flexible deployment
- 18 mm Baltic-birch cabinet with waterproof paint and anti-resonant steel grille
- Speakon NL4 connectivity allows independent powering of each transducer.
Technical Data
| Frequency Response (-10 dB): | 28 Hz – 160 Hz |
|---|---|
| Usable Response (±3 dB): | 34 Hz – 107 Hz |
| Impedance: | 2 × 8 Ω (min 2 × 6.2 Ω) |
| Power Handling (AES): | 2 × 1200 W continuous / 2 × 4800 W peak |
| Peak Power Handling: | 9600 W AES peak |
| Maximum SPL @1 m: | 147 dB peak (half-space) |
| Average Dispersion: | Quasi-omnidirectional |
| Loudspeaker Configuration: | 2 × 18″ hybrid band-pass woofers |
| Cabinet Construction: | 18 mm phenolic-glued Baltic-birch plywood |
| Dimensions (H×W×D): | 605 × 1124 × 650 mm |
| Shipping Dimensions (H×W×D): | 750 × 1170 × 680 mm |
| Net Weight: | 93.5 kg |
| Shipping Weight: | 100 kg |
| Connector: | 1 × Speakon NL4 (pin-to-driver mapped) |
(OUTLINE-DBS18)
| SKU | OUTLINE-DBS18 |
| Brand | OUTLINE |
