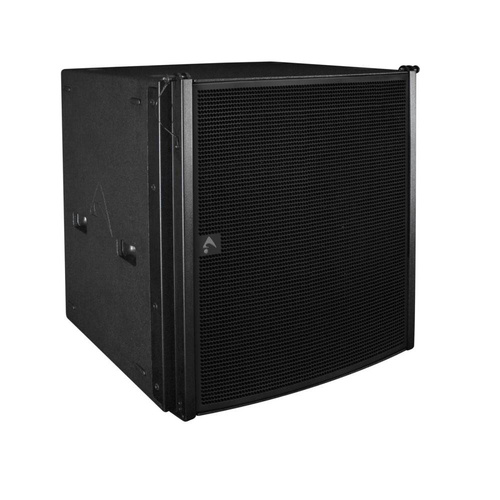

Axiom SW36XFP Dual 18″ Passive Flyable Subwoofer
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$7,999.00
Sold Out - Backorder Available
Key Features:
- Ultra compact high-output dual 18″ dubwoofer
- Manifolded Band Pass configuration for a high output in a small form factor
- Woofers feature tetracoil dual voice coils for improved performance
- Flexible setup options to suit almost any application
- Flyable with optional fly bar
- Perfectly matched for the AX2010 line array elements
- High-strength, water repellent cones
- Digitally controlled Class D amplifier module with SMPS
- Designed and made in Italy.
Technical Data
| System’s Acoustic Principle | Manifolded Band Pass |
|---|---|
| Frequency Response (±3dB) | 36 Hz – 100 Hz (Processed) |
| Nominal Impedance | 8 Ω + 8 Ω |
| Maximum Peak SPL @ 1m | 143 dB |
| Type | Two 18” (460mm) woofer, neodymium magnet, 4” (100 mm) VC |
| Cone | High stiffness, water repellent |
| Voicecoil Type | 4″ (100mm) Tetracoil dual voice coil, equivalent to a single coil diameter larger than 152mm (>6in), with ultra linear suspension behavior |
| Input Type | Neutrik® Speakon® NL4 x 2 |
| Input Wiring: | LF1 = Pin 1+/-; LF2 = Pin 2+/- |
| Continuous AES Pink Noise Power | 1800W + 1800W |
| Program Power | 3600W + 3600W |
| Peak Power | 7000W + 7000W |
| Power Compression | @ -10dB Power: 0.6dB @ -3dB Power: 2.0dB @ 0dB Power: 3.4dB |
| Dimensions (W x H x D) | 745 mm x 825 mm x 600 mm (725 mm including wheels) |
| Enclosure Material | 15 mm, reinforced phenolic birch |
| Paint | High resistance, water based paint |
| Suspension System | Side: High Strength Steel with ¼ Fast Pin Rear: High Strength Steel with ¼ Fast Pin |
| Transport | 4 heavy duty 100 mm (4″) castors, 4 handles |
| Net Weight | 87.4 dg (without wheels) |
(AXIOM-SW36XFP)
| SKU | AXIOM-SW36XFP |
| Brand | AXIOM |
