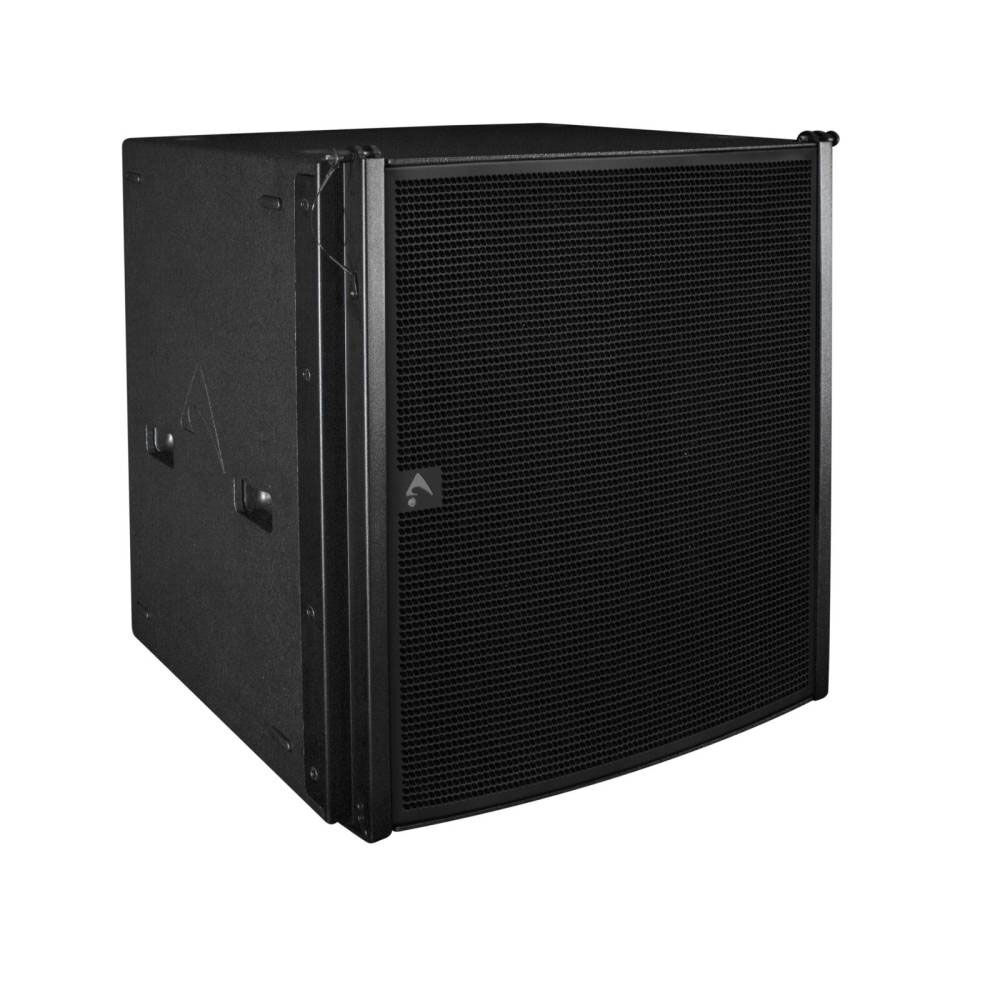

Axiom SW36XFA Dual 18″ Powered Flyable Subwoofer
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$11,999.00
Sold Out - Backorder Available
Key Features:
- Ultra compact high-output dual 18″ dubwoofer
- Manifolded Band Pass configuration for a high output in a small form factor
- Woofers feature tetracoil dual voice coils for improved performance
- Flexible setup options to suit almost any application
- Flyable with optional fly bar
- Perfectly matched for the AX2010 line array elements
- High-strength, water repellent cones
- Advanced CORE processing with Sharc DSP and PRONET PA management
- Digitally controlled Class D amplifier module with SMPS
- Designed and made in Italy.
Technical Data
| System’s Acoustic Principle | Manifolded Band Pass |
|---|---|
| Frequency Response (±3dB) | 36 Hz – 100 Hz (Processed) |
| Maximum Peak SPL @ 1m | 143 dB |
| Type | Two 18” (460mm) woofer, neodymium magnet, 4” (100 mm) VC |
| Cone | High stiffness, water repellent |
| Voicecoil Type | 4″ (100mm) Tetracoil dual voice coil, equivalent to a single coil diameter larger than 152mm (>6in), with ultra linear suspension behavior |
| Input Impedance | 20 kΩ balanced, 10 kΩ unbalanced |
| Input Sensitivity | +4dBu / 1.25 V |
| Signal Processing | CORE processing, 96kHz / 40bit floating point SHARC DSP, 24 bit AD/DA converters |
| Direct access Controls | 4 Presets (2 x AX16CL / 4 x AX16Cl / 1 x AX16CL), Network Termination, GND Link |
| Remote Controls | PRONET control software |
| Network protocol | CANBUS |
| Amplifier Type | Class D with SMPS, Variable Switching Frequency |
| Output Power | 4000W |
| Mains Voltage Range | 90 – 260V 50/60Hz |
| IN / OUT Connectors | Neutrik XLR-M / XLR-F |
| IN / OUT Network Connectors | ETHERCON®(NE8FAV) |
| Mains Connectors | PowerCon® TRUE 1 (NAC3PXTOP) |
| Cooling | Variable speed DC fan |
| Dimensions (W x H x D) | 745 mm x 825 mm x 600 mm (725 mm including wheels) |
| Enclosure Material | 15 mm, reinforced phenolic birch |
| Paint | High resistance, water based paint |
| Suspension System | Side: High Strength Steel with ¼ Fast Pin Rear: High Strength Steel with ¼ Fast Pin |
| Transport | 4 heavy duty 100 mm (4″) castors, 4 handles |
| Net Weight | 91.2 Kg (without wheels) |
(AXIOM-SW36XFA)
| SKU | AXIOM-SW36XFA |
| Brand | AXIOM |
