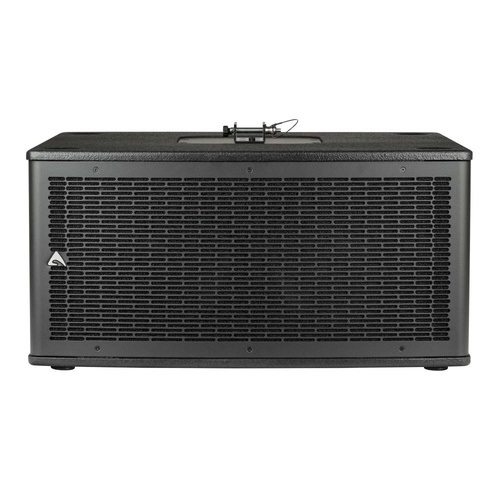

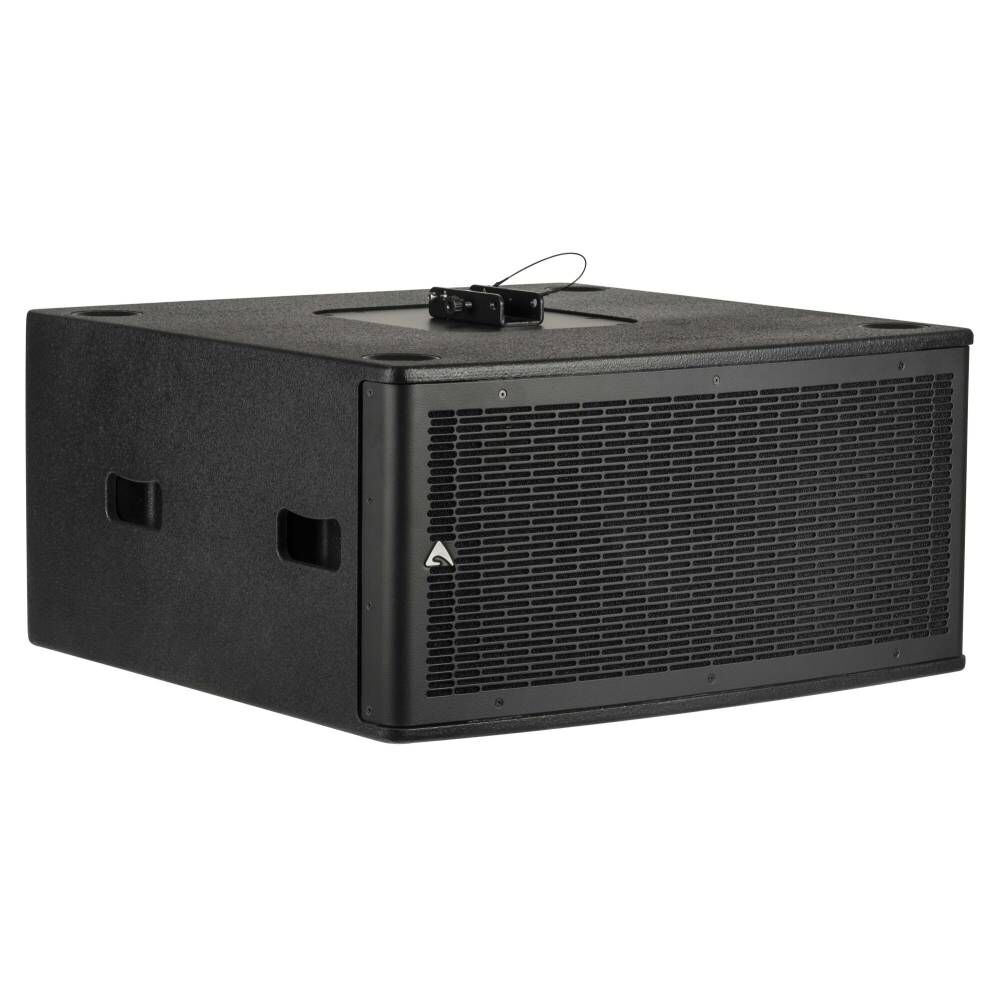

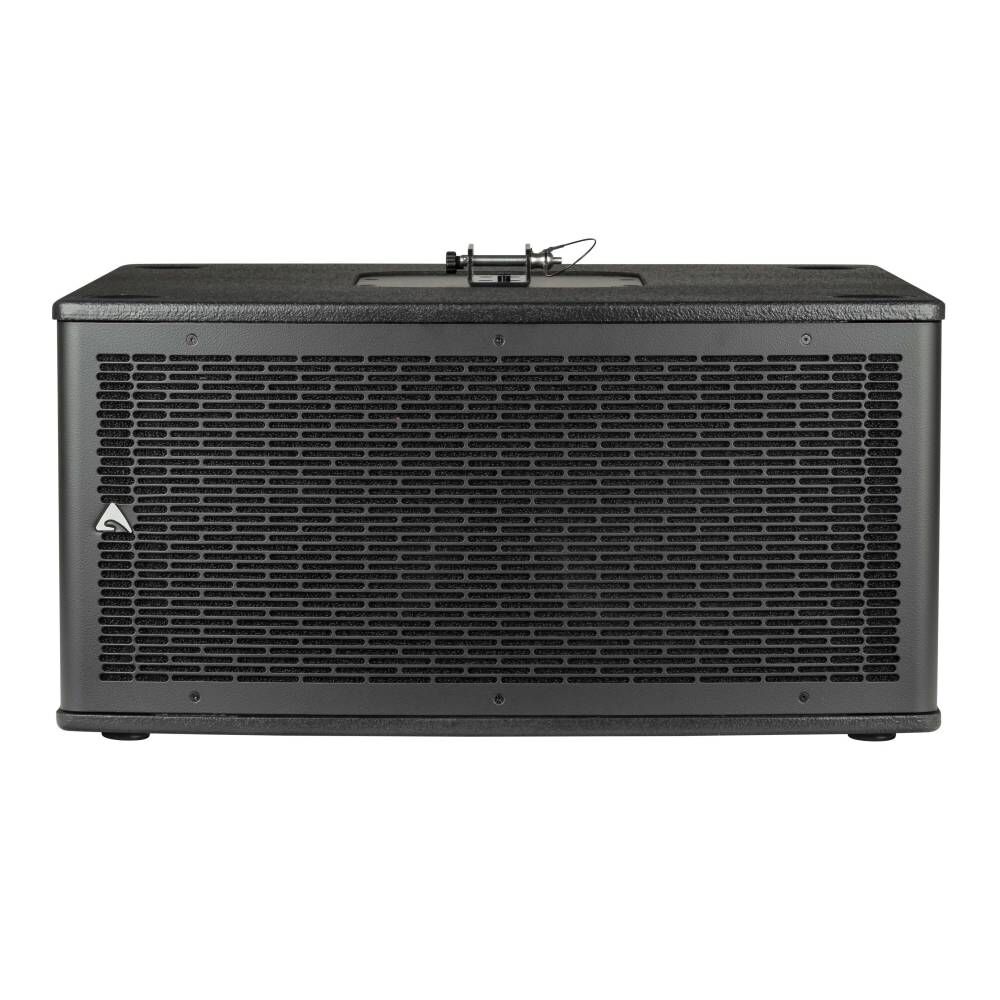

Axiom SW212A Dual 12″ Bi-Amped Subwoofer
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$7,499.00
In Stock
Key Features:
- Band-Pass/Bass-Reflex Active Subwoofer
- Two 12” Neodymium woofers with 3.5” voice coil
- Water repellent cone
- Very compact enclosure
- Very good output-to-weight ratio
- 2800 Watt Class D amplifier with PFC Switch Mode Power Supply
- 40 bit floating point CORE processing

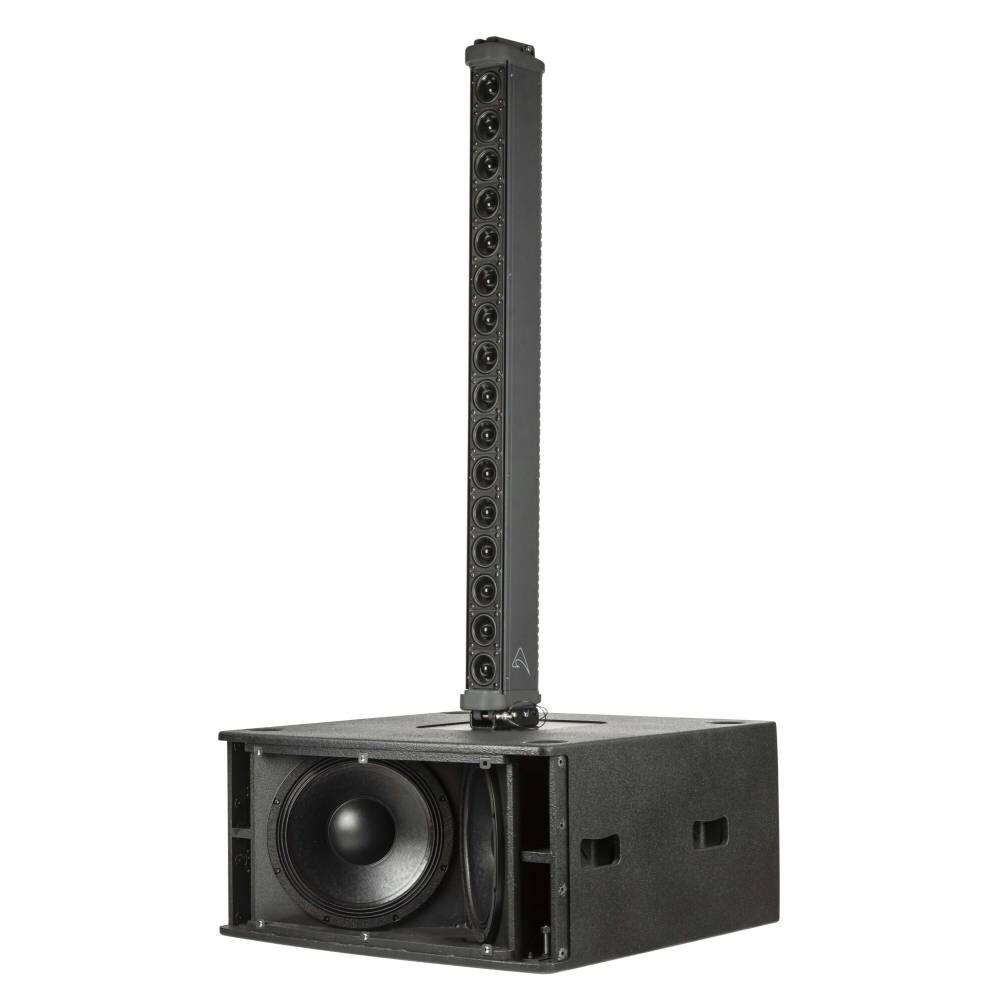

- Optimized presets for use in combination with AX16/8CL line array modules
- Fully networkable with PRONET AX remote control software
- 18mm birch plywood enclosure.
Technical Data
| System’s Acoustic Principle | Band-pass / bass-reflex |
|---|---|
| Frequency Response (±3dB) | 38 Hz – 220 Hz (Processed) |
| Maximum Peak SPL @ 1m | 133 dB |
| Type | Two 12” (320mm) woofer, neodymium magnet, 3.5” (88mm) VC |
| Cone | High stiffness, water repellent |
| Input Impedance | 20 kΩ balanced, 10 kΩ unbalanced |
| Input Sensitivity | +4dBu / 1.25 V |
| Signal Processing | CORE2 processing, 40bit floating point SHARC DSP, 24 bit AD/DA converters |
| Direct access Controls | 4 Presets (2 x AX16CL / 4 x AX16Cl / 1 x AX16CL), Network Termination, GND Link |
| Remote Controls | PRONET control software |
| Network protocol | CANBUS |
| Amplifier Type | Class D with SMPS and PFC |
| Output Power | 1400W + 1400W (Out1: SW212A – Out2: AX16CL or other AXIOM loudspeakers) |
| Mains Voltage Range | 100 – 240 V AC 50/60 Hz |
| Consumption | 700 W (nominal) / 2500 W (max) |

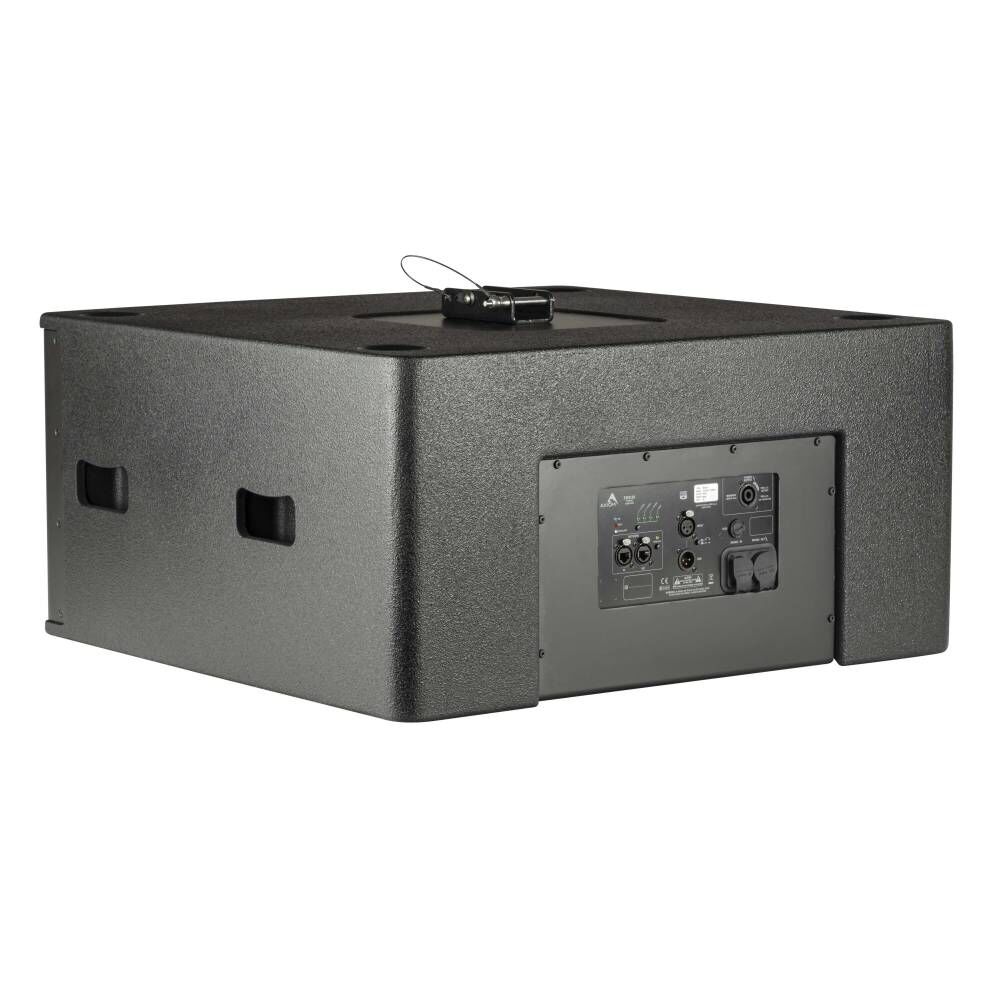

| IN / OUT Connectors | Neutrik XLR-M / XLR-F |
| IN / OUT Network Connectors | ETHERCON®(NE8FAV) |
| Mains Connectors | PowerCon® TRUE 1 (NAC3PXTOP) |
| Cooling | Variable speed DC fan |
| Dimensions (W x H x D) | 710 mm (27.9”) x 354 mm (13.9”) x 700 mm (27.6”) |
| Enclosure Material | 18mm, reinforced phenolic birch |
| Paint | High resistance, water based paint |
| Transport | 4 handles |
| Net Weight | 43.5 Kg (95.9 lbs) |
(AXIOM-SW212A)
| SKU | AXIOM-SW212A |
| Brand | AXIOM |
