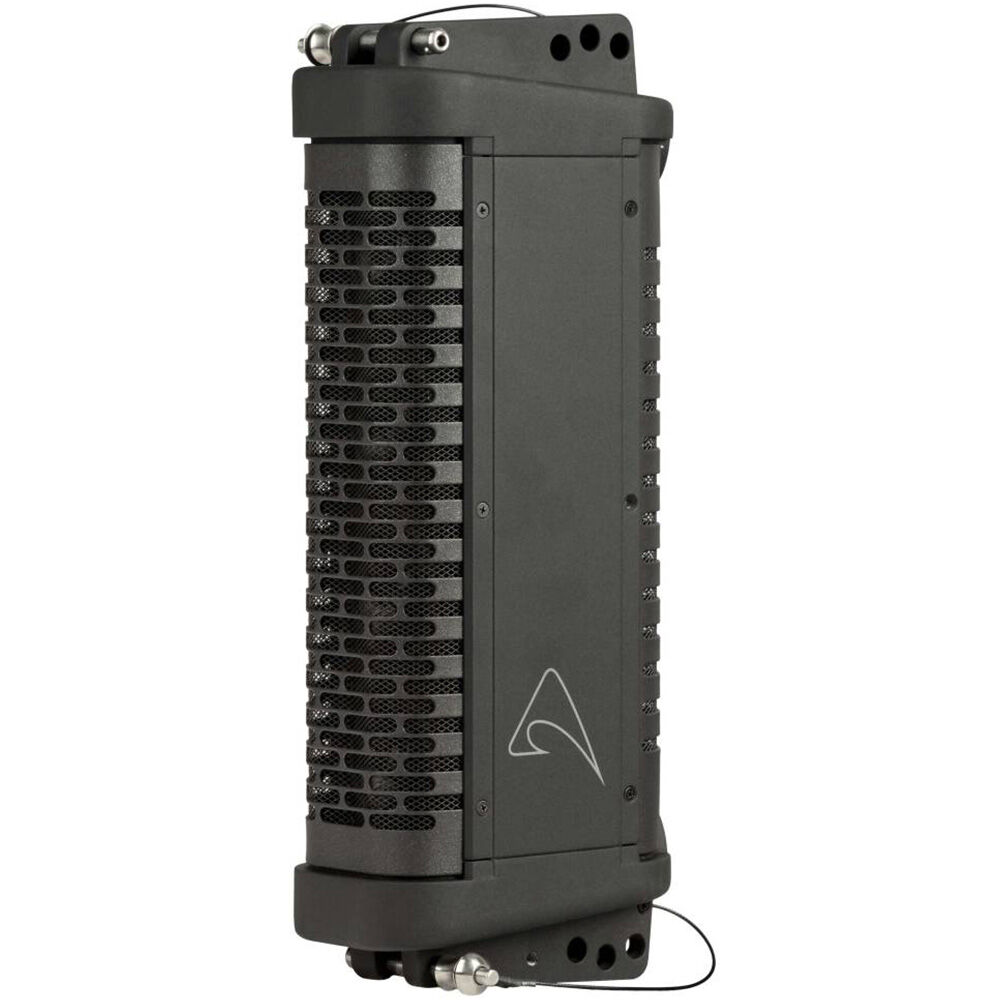

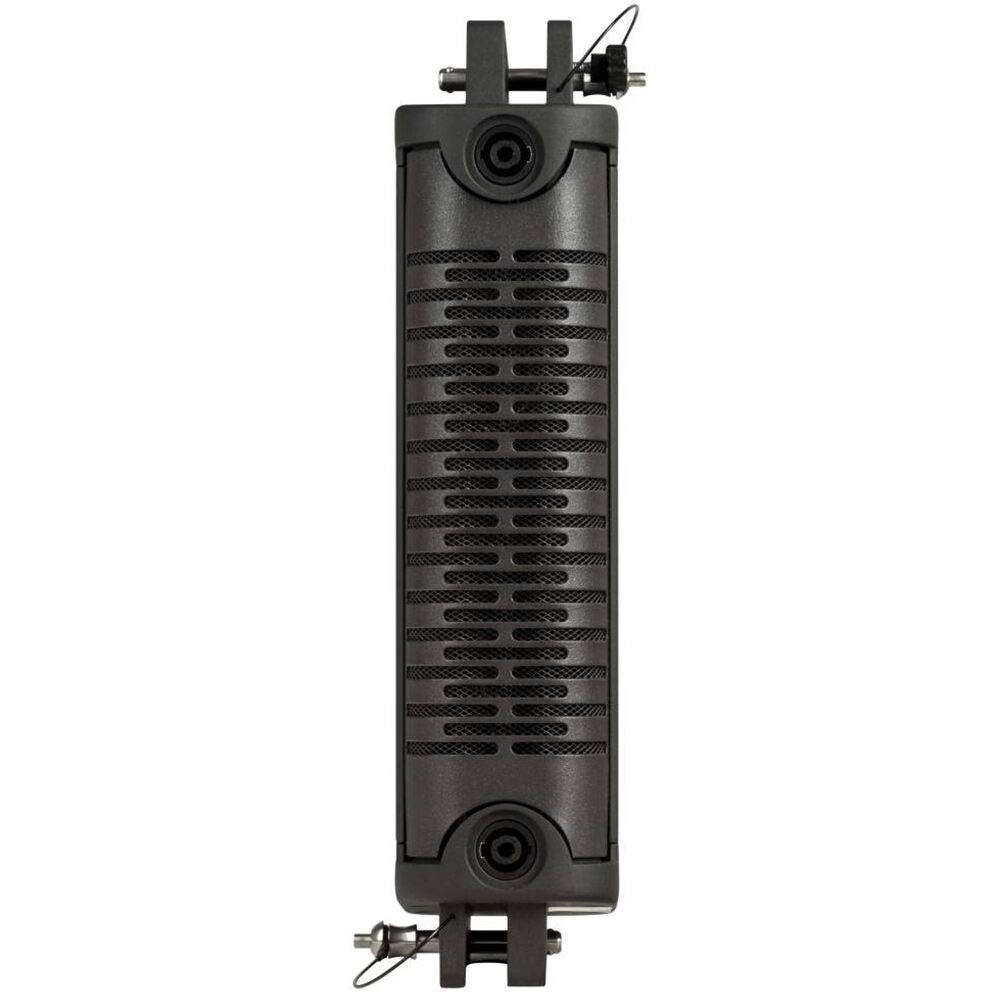

Axiom AX4CL Line Array Element
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$1,199.00
Sold Out - Backorder Available
Key Features:
- High Power passive portable Line Array element
- 4 x 2.5” neodymium transducers with waterproof cones
- 80W continuous power – 160W program power
- Line Array dispersion characteristics
- Acoustic transmission line back loading design, resulting in clean mid-bass reproduction and natural cardioid behavior
- Wide horizontal dispersion
- Fast, easy-to-use integrated suspension system
- Aluminium frame structure
- Designed for mobile and installed applications
- Black or white finish.
Technical Data
| System’s Acoustic Principle: | Line Array Element, Short Transmission, Line Back Loading |
|---|---|
| Frequency Response (±3dB): | 200 Hz – 16kHz (Processed) |
| Nominal Impedance: | 32 Ohm |
| Minimum Impedance: | 23,7 Ohm |
| Horizontal Coverage Angle: | 80° (-6dB) |
| Sensitivity (4V): | 91 dB SPL @ 1m* |
| Maximum Peak SPL @ 1m: | 116 dB |
| Type: | 4 x 2.5″ (66mm) Neodymium magnet woofers, 0.8″ (20mm) VC |
| Waterproof Cone: | Waterproof Cone |
| Ventilated voice coil: | Ventilated voice coil |
| Connector Type: | Neutrik® Speakon® NL4 x 2 (1+/1- signal IN & LINK ; 2+/2- thru) |
| Continuous AES Pink Noise Power: | 80 W |
| Program Power: | 160 W |
| Dimensions (W x H x D): | 90 mm (3.54”) x 390 mm (15.3”) x 154 mm (6.06”) |
| Enclosure Material: | Aluminum |
| Paint: | High resistance, water based paint, black or white finish |
| Flying system: | Aluminum Fast Link structure with dedicated pins |
| Net Weight: | 4 Kg |
(AXIOM-AX4CL)
| SKU | AXIOM-AX4CL |
| Brand | AXIOM |
