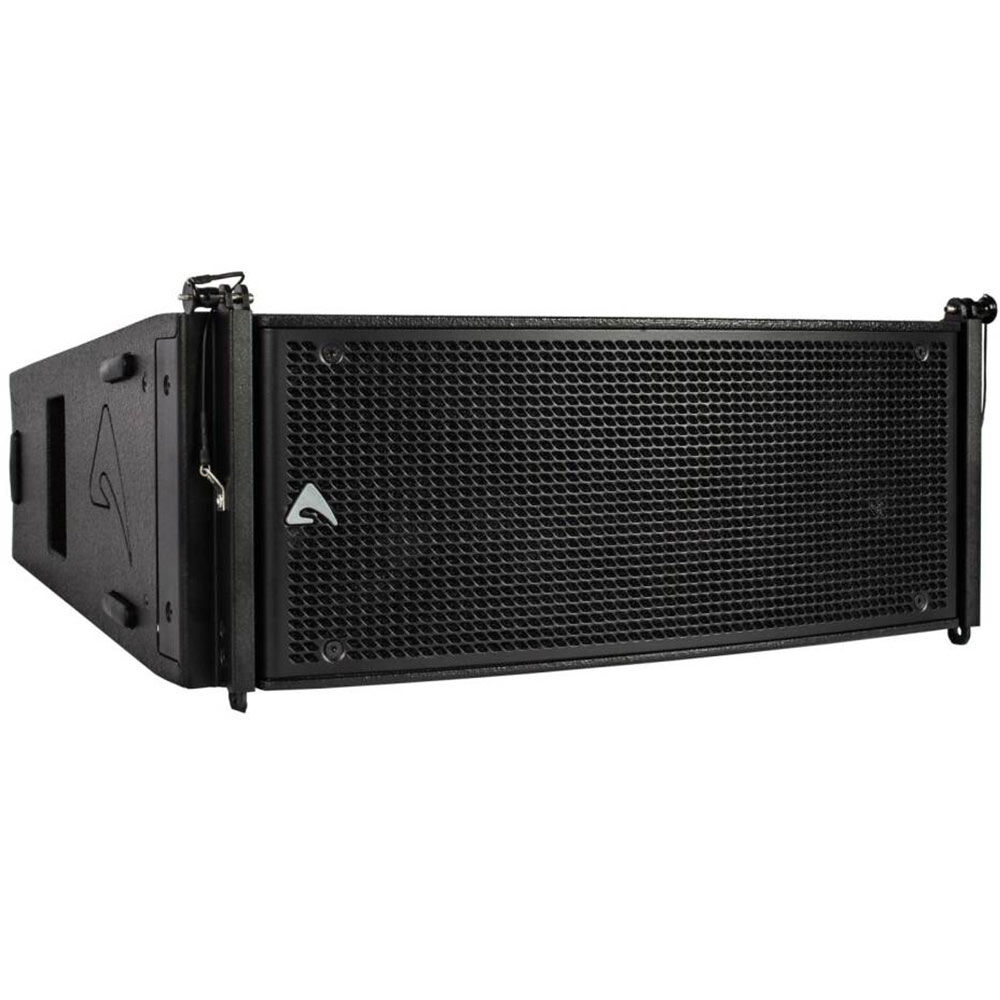

Axiom AX2065A Powered Dual 6.5” Array Element
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$5,299.00
Sold Out - Backorder Available
Key Features:
- High output Line Array element
- Compact size, very good output-to-weight ratio
- High quality, low compression, low distortion HF driver with Titanium Diaphragm
- Very stable horizontal coverage
- Transmission Line back loading for clean mid-bass reproduction
- Natural sound Transmission Line HF projection wave-forming device
- 96KHz / 40-bit floating point CORE processing with PRONET remote control
- Digitally controlled Class D amplifier module with SMPS.
Technical Data
| System’s Acoustic Principle: | Line Array Element, Short Transmission Line LF Back Loading, Acoustic Transmission Line HF Waveguide |
|---|---|
| Frequency Response (±3dB): | 80 Hz – 18kHz (Processed) |
| Horizontal Coverage Angle: | 110° (-6dB) |
| Vertical Coverage Angle: | 12° (-6dB) |
| Maximum Peak SPL @ 1m: | 129 dB |
| LF | Two 6.5”(165mm), 1.5” (38mm) aluminum voice coil, 16Ω each, paralleled |
| HF | One 1.4” driver, 2.5” (64mm) edgewound voice coil, titanium diaphragm, 8Ω |
| Input Impedance: | 20 kΩ balanced, 10 kΩ unbalanced |
| Input Sensitivity: | +4dBu / 1.25 V |
| Signal Processing: | CORE processing, 96kHz / 40bit floating point SHARC DSP, 24 bit AD/DA converters |
| Direct access Controls: | 4 Presets (Standard/Long Throw/Down Fill-Single Box, User), Network Termination, GND Link |
| Remote Controls: | PRONET control software |
| Network protocol: | CANBUS |
| Amplifier Type: | Class D with SMPS, Variable Switching Frequency |
| Output Power: | 1000W + 1000W |
| Mains Voltage Range (Vac): | 230V ±15% – 115 ±15% 50/60Hz (internally selectable) |
| IN / OUT Connectors: | Neutrik XLR-M / XLR-F |
| IN / OUT Network Connectors: | ETHERCON®(NE8FAV) |
| Mains Connector: | PowerCon® (NAC3MPA) |
| Mains Link Connector: | PowerCon® (NAC3MPB) |
| Cooling: | Variable speed DC fan |
| Width: | 583 mm (22.95”) |
| Height: | 244 mm (9.60”) |
| Depth: | 481 mm (18.93”) |
| Enclosure Material: | 15mm, reinforced Phenolic Birch |
| Paint: | High resistance, water based paint |
| Front Suspension: | Aluminum Fast Link structure |
| Back Suspension: | High Strength Steel with ¼ Fast Pin |
| Net Weight: | 22.5 Kg |
(AXIOM-AX2065A)
| SKU | AXIOM-AX2065A |
| Brand | AXIOM |
