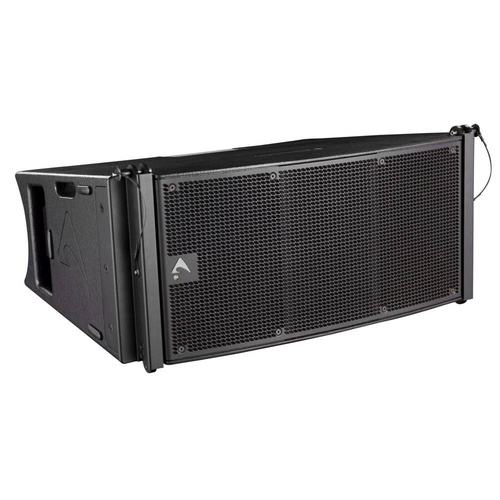

Axiom AX2010P Dual 10″ Array Element
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$4,999.00
Sold Out - Backorder Available
Key Features:
- High output Line Array element
- Compact size, very good output-to-weight ratio
- High-quality, low-compression, low-distortion HF driver
- Very stable horizontal coverage

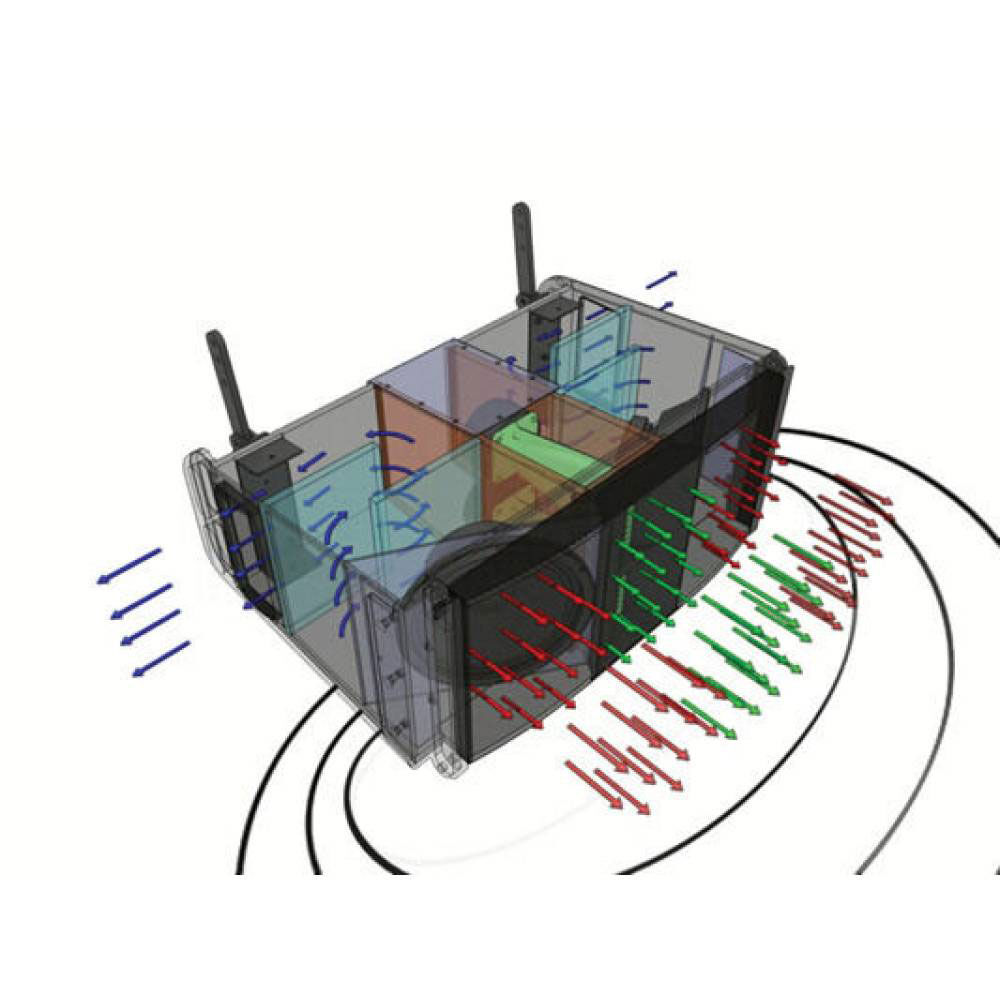

- Transmission Line back loading for clean mid-bass reproduction
- Natural sound Transmission Line HF projection wave-forming device.
Technical Data
| System’s Acoustic Principle: | Line Array Element, Short Transmission Line LF Back Loading, Acoustic Transmission Line HF Waveguide |
|---|---|
| Frequency Response | (±3dB) 75 Hz – 18kHz (Processed) |
| Nominal Impedance | 8Ω (LF) + 8Ω (HF) |
| Minimum Impedance | 7.5 Ω @ 300Hz (LF); 7Ω @ 2.5kHz (HF) |
| Sensitivity (2.83V @ 1m, 2Pi) | 99dBSPL (LF); 108dBSPL (HF) |
| Horizontal Coverage Angle | 110° (-6dB) |
| Vertical Coverage Angle | 10° (-6dB) |
| Maximum Peak SPL @ 1m | 138 dB |
| LF | Two 10”(260mm), 2.5” (64mm) aluminium voice coils, 16Ω each, paralleled |
| HF | Two 1.4” driver, 2.5” (64mm) edge wound voice coil, titanium diaphragm, 16Ω each, paralleled |
| Connector Type | Neutrik® Speakon® NL4 x 2 |
| Input Wiring | LF = Pin 1+/-; HF = Pin 2+/-) |
| Continuous AES Pink Noise Power | 700W + 150W |
| Program Power | 1400W + 300W |
| LF Power Compression | -10dB Power (70W): 0.5dB -3dB Power (350W): 1.5dB 0dB Power (700W): 3.2dB |
| Width | 583 mm (22.95”) |
| Height | 244 mm (9.60”) |
| Depth | 481 mm (18.93”) |
| Enclosure Material: | 15mm, reinforced Phenolic Birch |
| Paint: | High-resistance, water-based paint |
| Front Suspension: | Aluminium Fast Link structure |
| Back Suspension: | High Strength Steel with ¼ Fast Pin |
| Net Weight: | 19.2 Kg |
(AXIOM-AX2010P)
| SKU | AXIOM-AX2010P |
| Brand | AXIOM |
