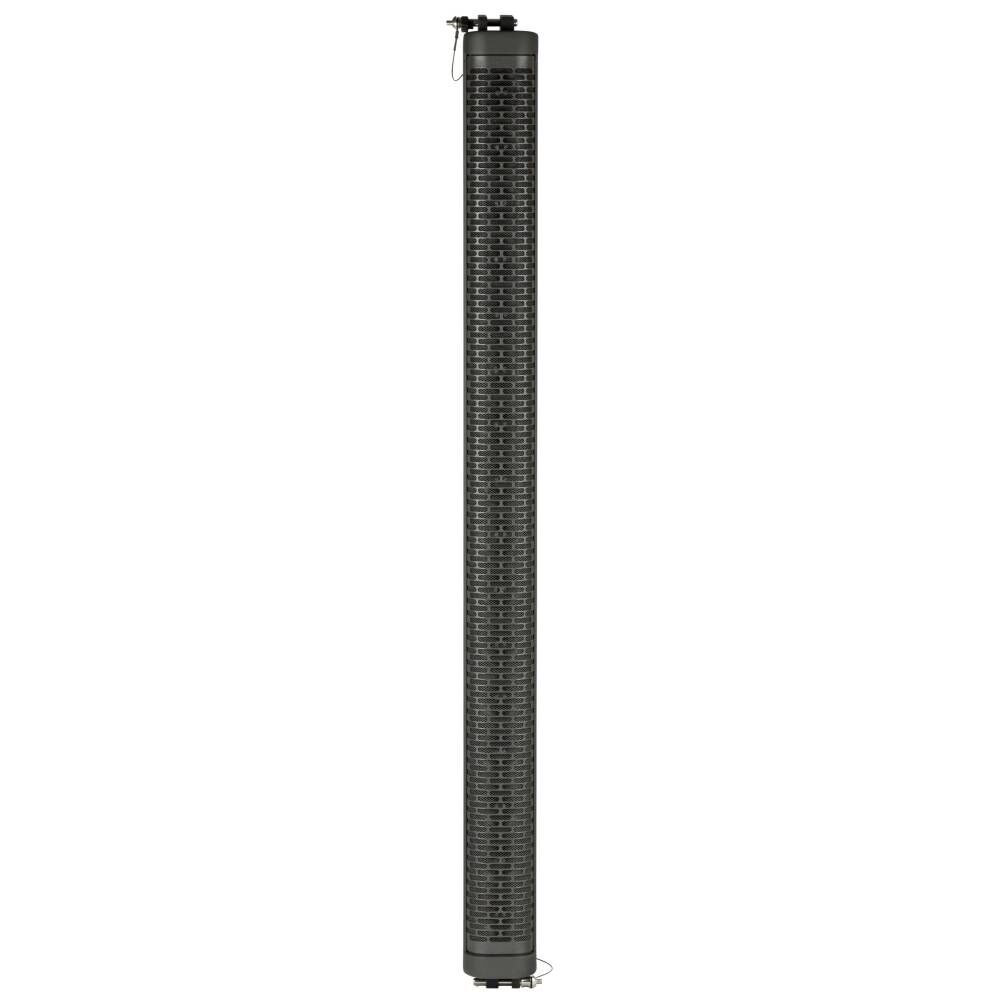

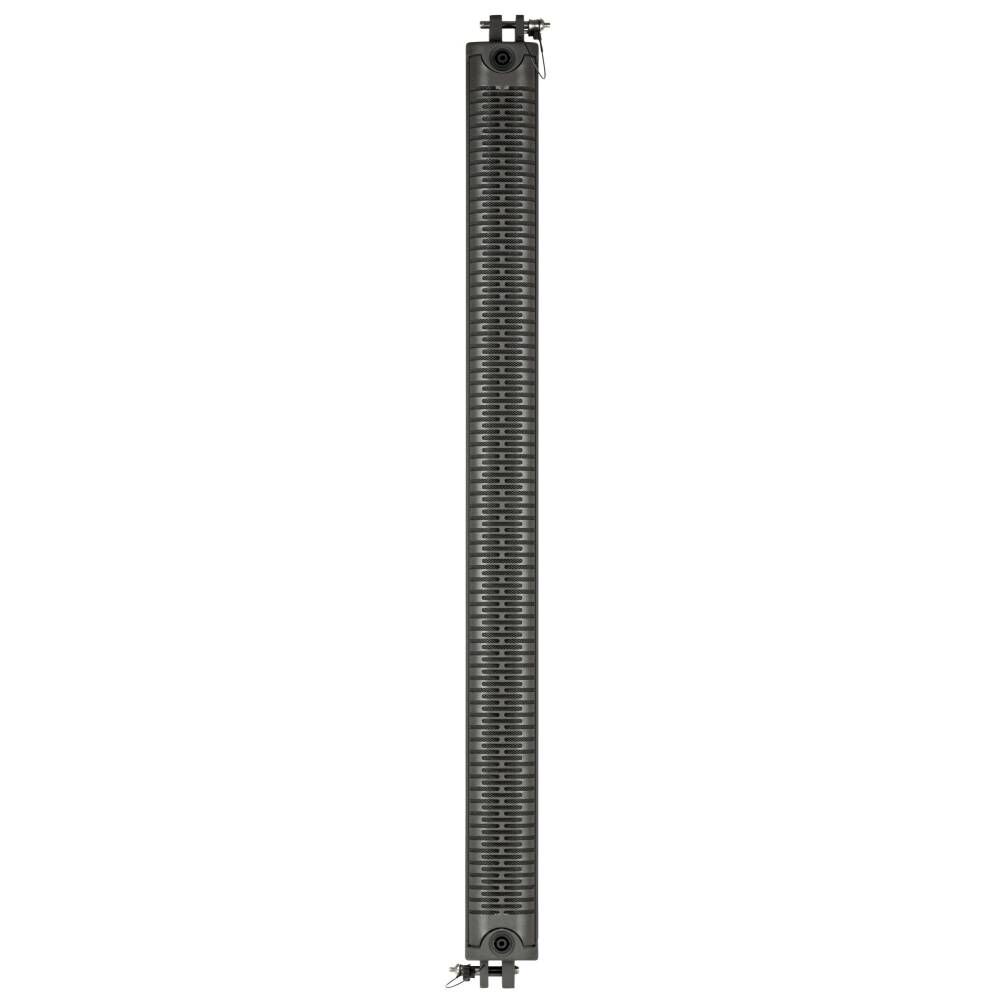

Axiom AX16CL Passive Line Array Module
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$2,399.00
In Stock
Key Features:
- High Power passive portable Line Array element
- 16 x 2.5” neodymium transducers with waterproof cones
- 320W continuous power – 640W program power
- Line Array dispersion characteristics
- Acoustic transmission line back loading design, resulting in clean mid-bass reproduction and natural cardioid behavior
- Wide horizontal dispersion
- Fast, easy-to-use integrated suspension system
- Aluminium frame structure
- Designed for mobile and installed applications
- Black or white finish.
Technical Data
| System’s Acoustic Principle | Line Array Element, Short Transmission, Line Back Loading |
|---|---|
| Frequency Response | (±3dB) 200 Hz – 16kHz (Processed) |
| Nominal Impedance | 32 Ohm |
| Minimum Impedance | 23,7 Ohm |
| Horizontal Coverage Angle | 80° (-6dB) |
| Sensitivity (4V) | 103 dB SPL @ 1m* |
| Maximum Peak SPL @ 1m | 128 dB SPL |
| Type | 16 x 2.5″ (66mm) Neodymium magnet woofers, 0.8″ (20mm) VC |
| Waterproof Cone | Waterproof Cone |
| Ventilated voice coil | Ventilated voice coil |
| Connector Type | Neutrik® Speakon® NL4 x 2 (1+/1- signal IN & LINK ; 2+/2- thru) |
| Continuous AES Pink Noise Power | 320 W |
| Program Power | 640 W |
| Dimensions (W x H x D) | 90 mm x 1190 mm x 154 mm |
| Enclosure Material | Aluminium |
| Paint | High resistance, water-based paint, black or white finish |
| Flying system | Aluminium Fast Link structure with dedicated pins |
| Net Weight | 11.5 Kg |
(AXIOM-AX16CL)
| SKU | AXIOM-AX16CL |
| Brand | AXIOM |
