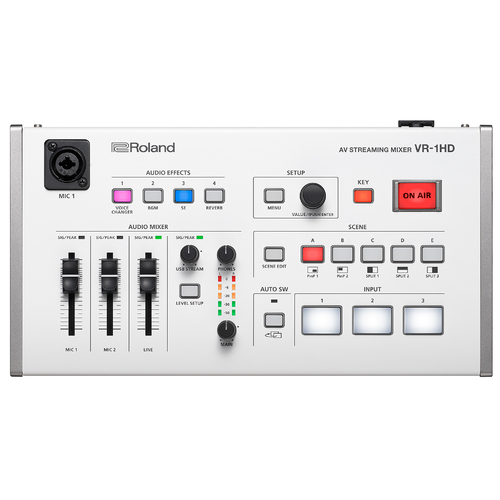

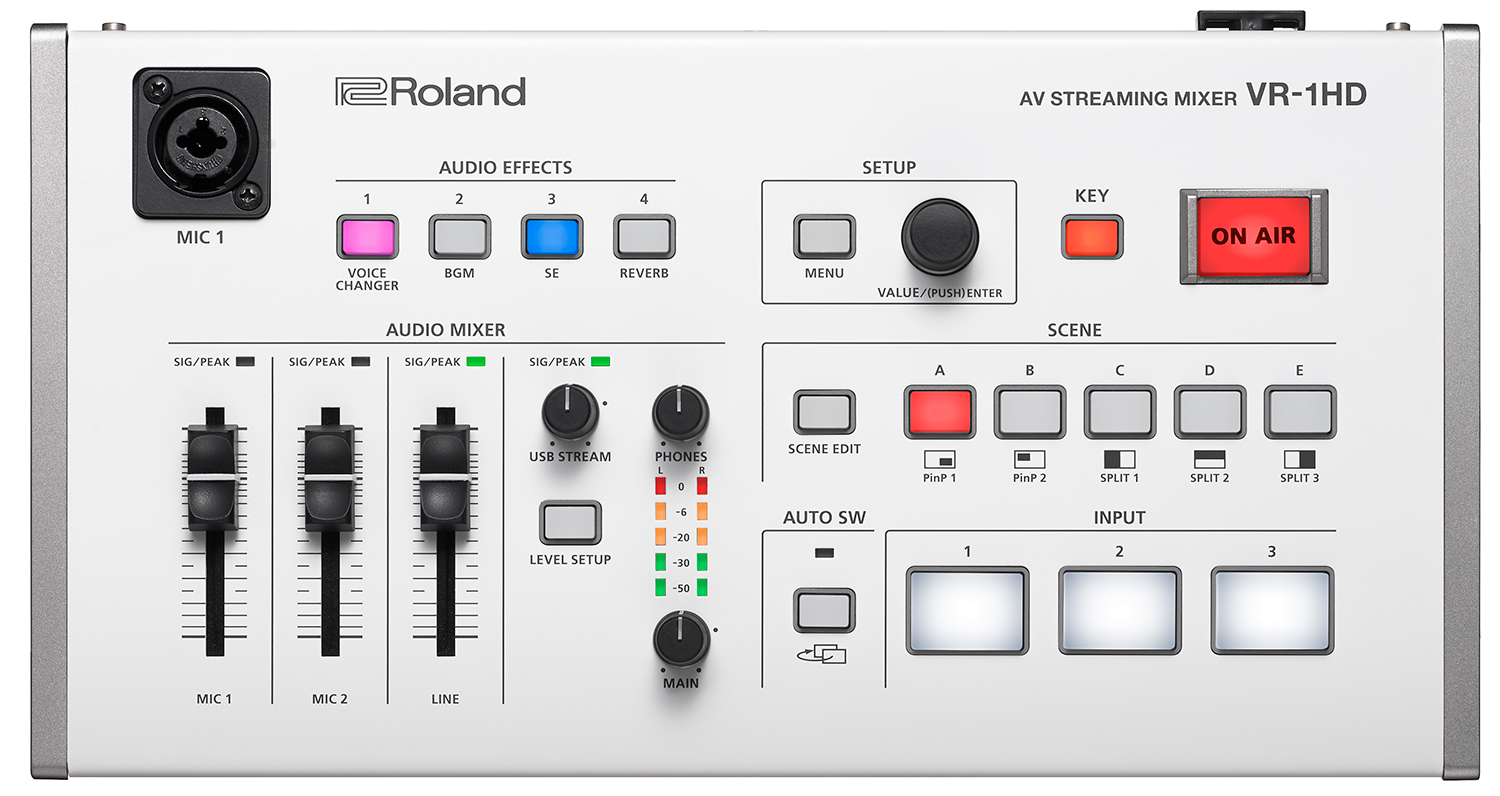

ROLAND VR-1HD HD AV MIXER

$1,950.00
Sold Out - Backorder Available


Calculate Shipping

VIDEO
Video Processing
4:4:4 (Y/Pb/Pr), 10-bit
Input Connectors
VIDEO INPUT 1--3 connectors: HDMI type A x 3
* HDCP Supported.
* Multi-format Supported

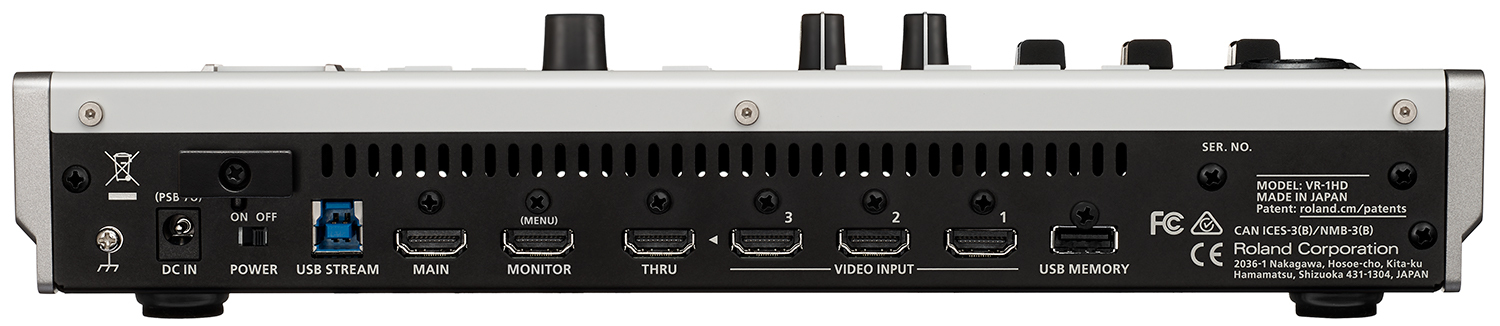

Output Connectors
MAIN connector: HDMI type A
* HDCP Supported
MONITOR connector: HDMI type A
* HDCP Supported
THRU connector: HDMI type A
* HDCP Supported
USB STREAM port: USB B type
Input formats
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/ 60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200, 60 Hz: Reduced blanking
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
Output formats
MAIN, MONITOR connectors:
720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, XGA (1024 x 768/60 Hz) (*1), WXGA (1280 x 800/60 Hz) (*1), SXGA (1280 x 1024/60 Hz) (*1), FWXGA (1366 x 768/60 Hz) (*1), SXGA+ (1400 x 1050/60 Hz) (*1), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The video signal frame rate can be selected at the SYSYTEM menu (59.94 or 50).
(*1) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.

USB STREAM port:
854 x 480/29.97p, 854 x 480/25p, 854 x 480/59.94p, 854 x 480/50p, 720/29.97p, 720/25p, 720/59.94p, 720/50p, 1080/29.97p, 1080/25p
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
Still Image
Maximum Size: 1920 x 1200 pixels
Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
* It can be loaded up to 2 files from USB memory at startup.
Video Effects
Scene: PinP, Split, PbyP
Transition: Black fade, Mix fade, Motion
Key Composition: Luminance key, Chroma key
Other: Still Image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
AUDIO
Audio Processing
Sample rate: 48 kHz, 24 bits
Audio formats
VIDEO INPUT 1--3 connectors: Linear PCM, 48 kHz, 24 bits, stereo
USB STREAM port: Linear PCM, 48 kHz, 16 bits, stereo

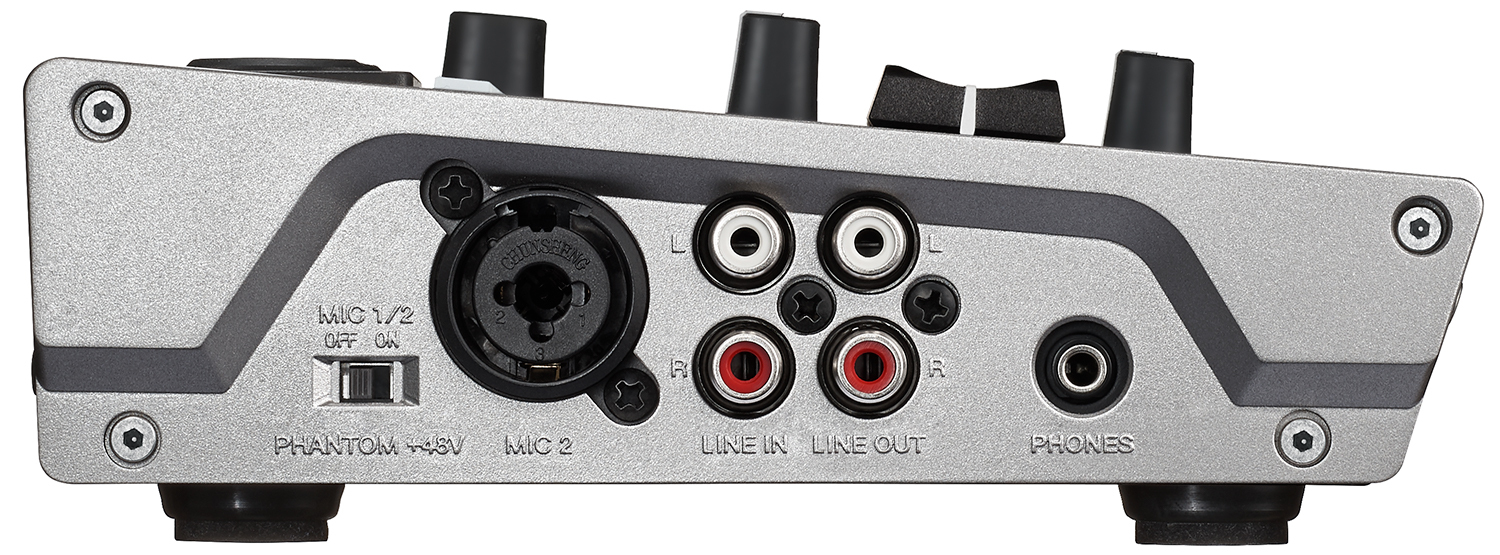

Input Connectors
VIDEO INPUT 1--3 connectors: HDMI type A
MIC IN 1--2 jacks: Combo type (XLR, 1/4-inch TRS phone), phantom power (DC 48 V, 10 mA Max)
LINE IN jacks: RCA phono type
USB STREAM port: USB B type
Output Connectors
MAIN connector: HDMI type A
MONITOR connector: HDMI type A
LINE OUT jacks: RCA phono type
USB STREAM port: USB B type
PHONES jack: Stereo miniature phone type
Nominal Input Level
MIC IN 1--2 jacks: -60--+10 dBu (Maximum input level: +28 dBu)
LINE IN jacks: -10 dBu (Maximum input level: +8 dBu)
Input Impedance
MIC IN 1--2 jacks: Minimum 10 k ohms (balanced, HEAD AMP GAIN: 0--+17 dBu), Minimum 5 k ohms (balanced, HEAD AMP GAIN: +18--+64 dBu)
LINE IN jacks: 15 k ohms
Nominal Output Level
LINE OUT jacks: -10 dBu (Maximum input level: +8 dBu)
PHONES jack: 92 mW + 92 mW (32 ohms)
Output Impedance
LINE OUT jacks: 1 k ohms
PHONES jack: 10 ohms
Audio Effects
Auto mixing, Echo canceller, Howling canceller, EQ, Delay, Compressor, HPF, Gate, Reverb, Limiter, Voice changer
Audio Player
Number of Players: 4
Data Format: WAV (Linear PCM, 48 kHz, 16 bits stereo/44.1 kHz, 16 bits, stereo)
COMMON SECTION
Connectors
USB MEMORY port (HOST): USB A type (For USB flash drive, Still image, Audio player)
USB STREAM port (DEVICE): USB B type (For USB-VIDEO (USB 3.0), USB-AUDIO (USB2.0): stereo 1 IN/1 OUT, Remote control)
DC IN jack
Functions
Scene memory : 5
Panel lock function
EDID emulator
Auto switching (Auto scan, Beat sync switching, Video follow audio)
Power Supply
AC Adaptor
Current Draw
2 A
Power Consumption
24 W
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions
314 (W) x 169 (D) x 66 (H) mm
12-3/8 (W) x 6-11/16 (D) x 2-5/8 (H) inches
Weight
1.6 kg
3 lbs 9 oz
Accessories
Startup Guide
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Power cord

(ROLVR-1HD)

SKU ROLVR-1HD
Brand ROLAND
Shipping Weight 2.3000kg
Shipping Width 0.350m
Shipping Height 0.100m
Shipping Length 0.020m
Shipping Cubic 0.000700000m3
