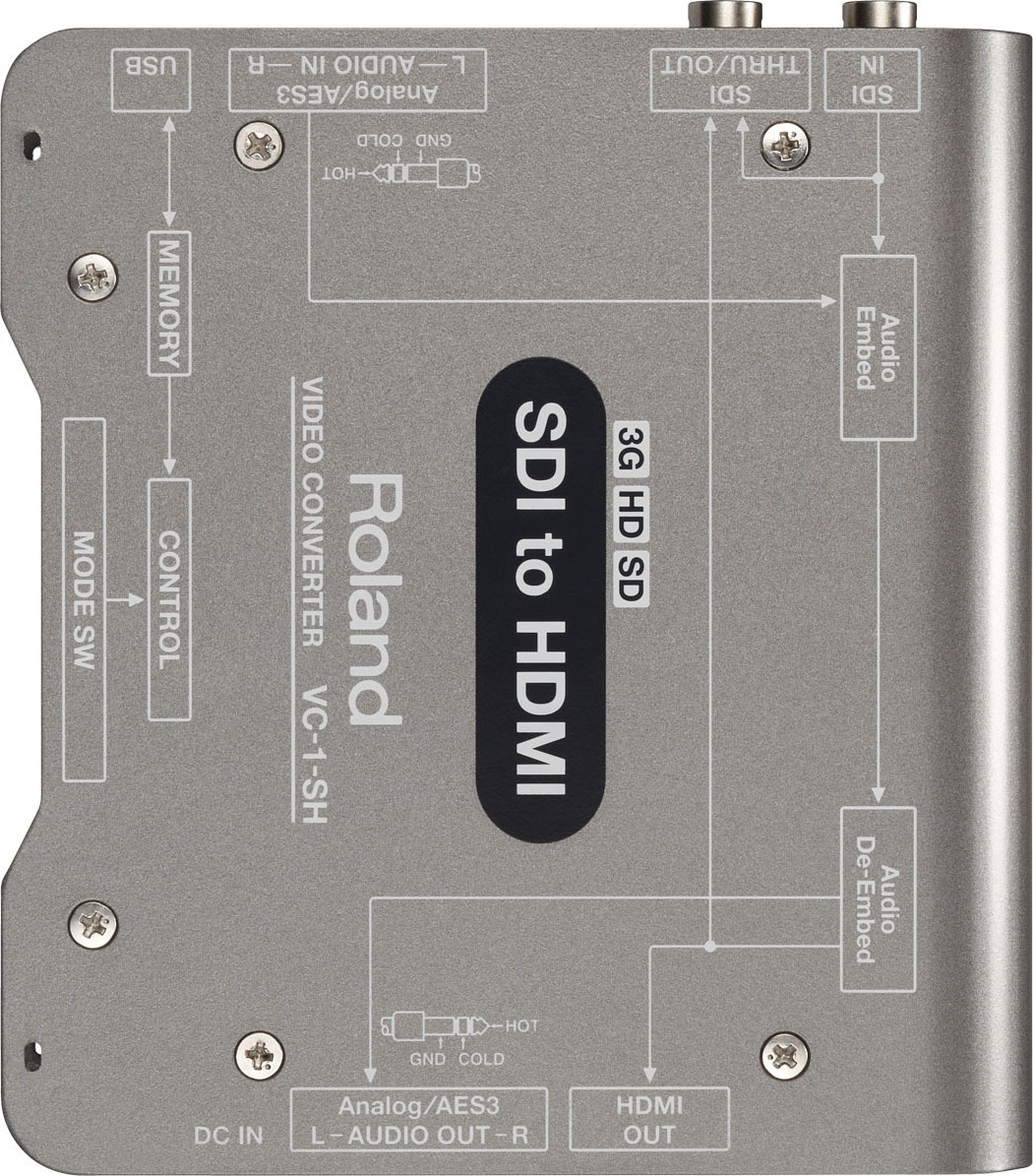

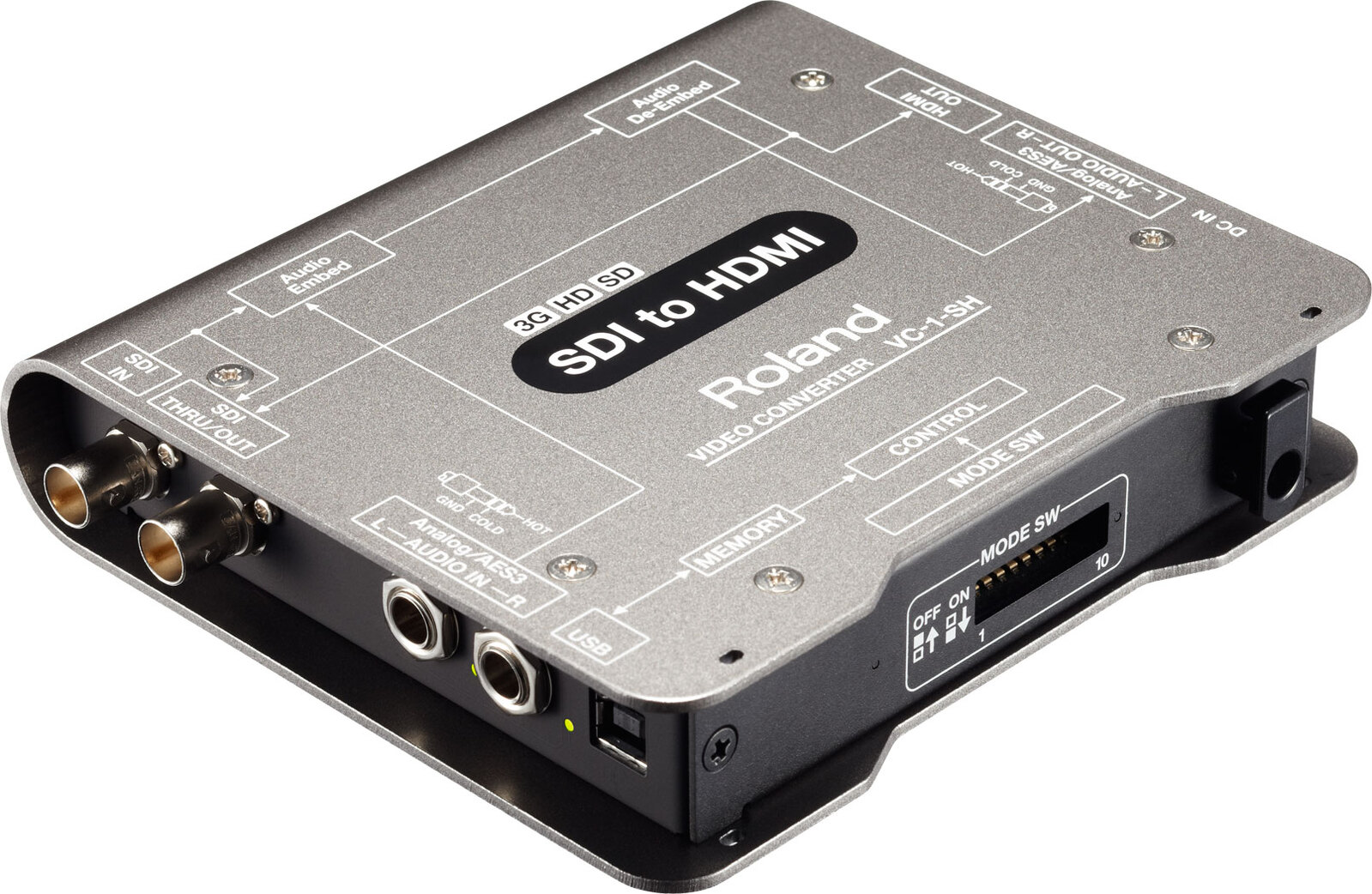

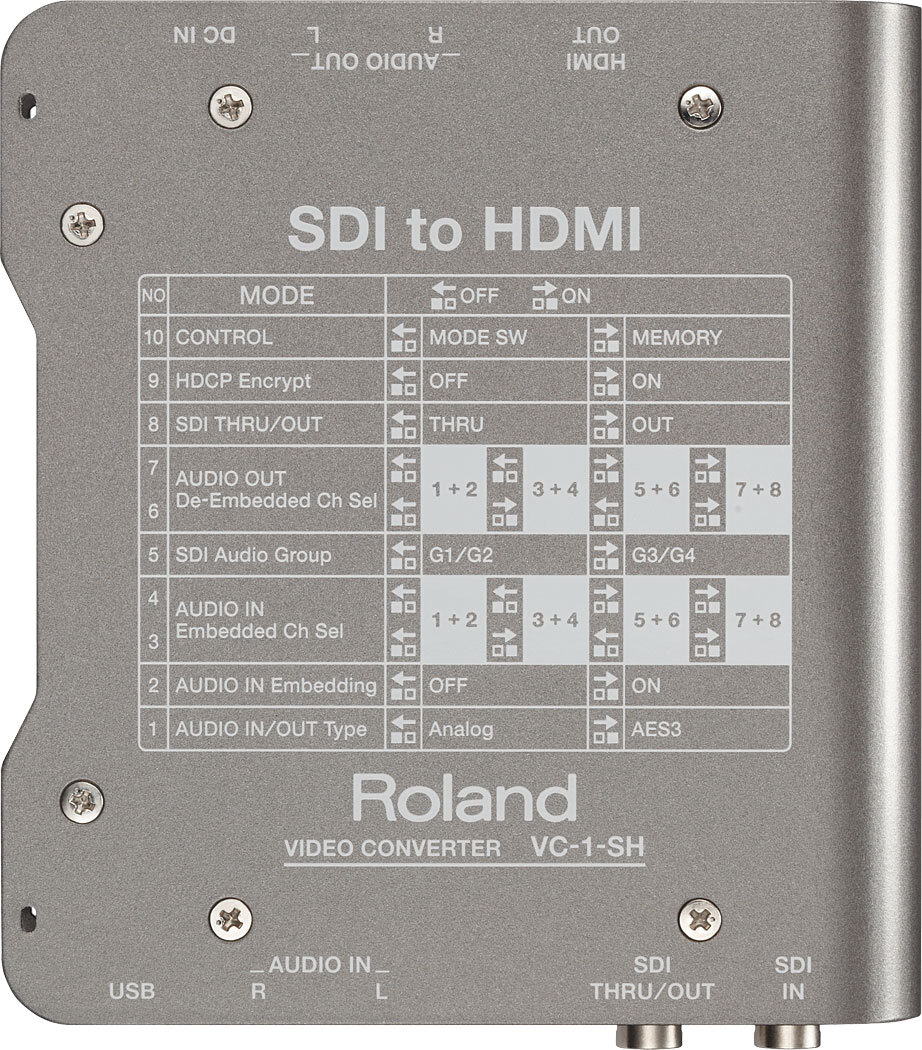

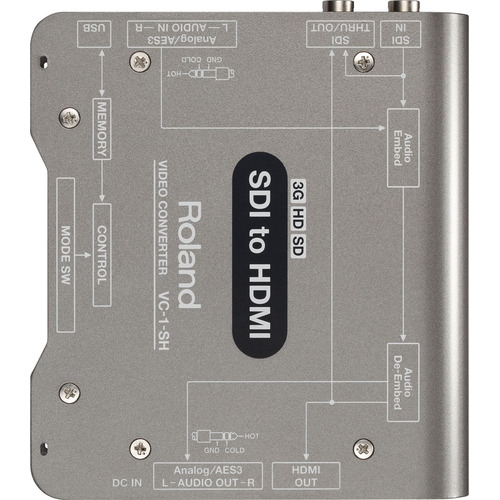

ROLAND VC-1-SH SDI to HDMI Video Converter

$849.00
Sold Out - Backorder Available


Calculate Shipping

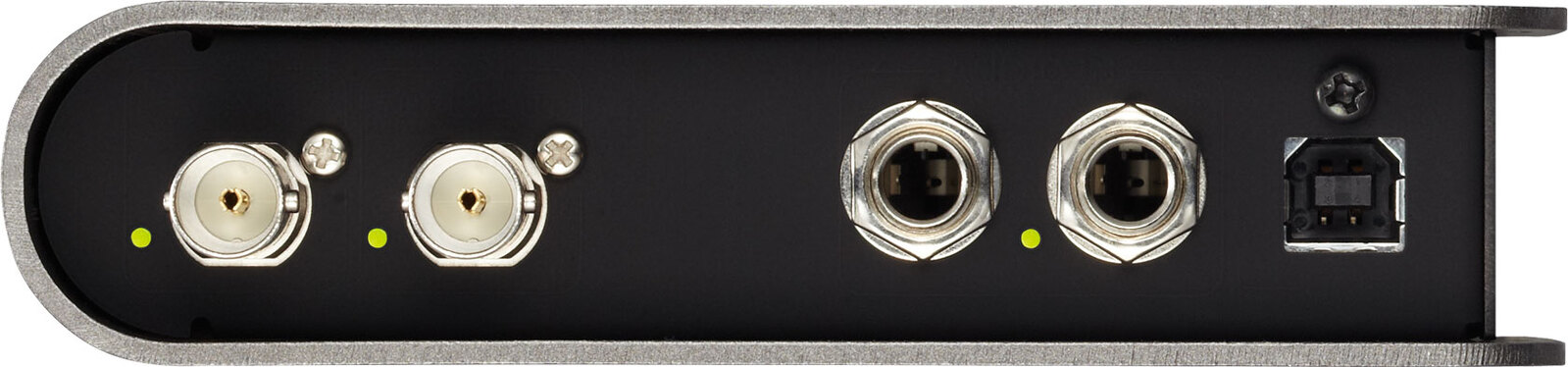

INPUT
SDI Connector
BNC type x 1
Analog Audio Connector
1/4" TRS phone type ( balanced ) x 1 pair (L/R)
Digital Audio Connector
1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )
PROCESSING
Audio embedding Audio de-embedding

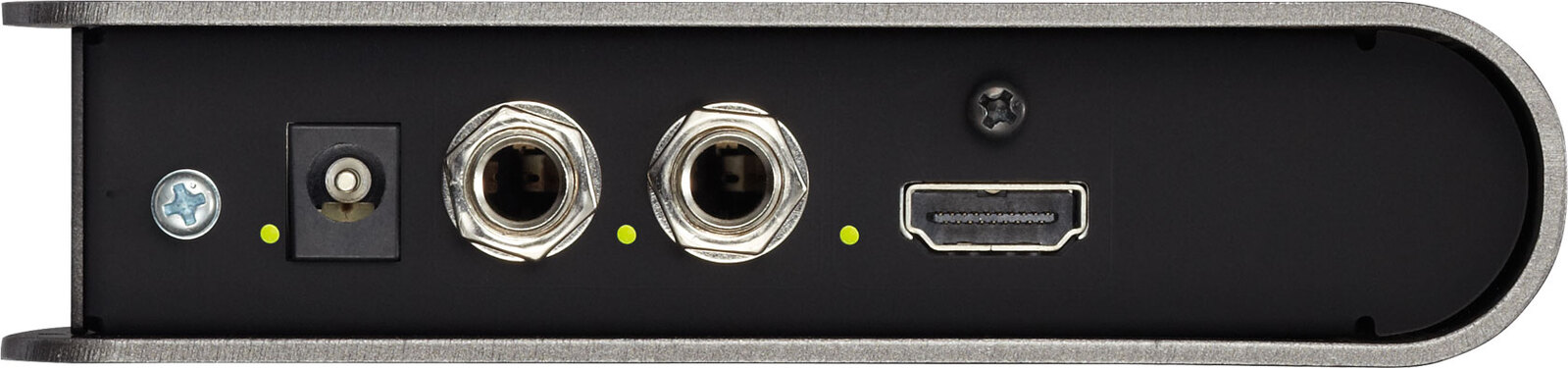

OUTPUT
SDI Connector
BNC type x 1 ( Thru/Out )
HDMI Connector
Type A (19 pins ) x 1
Analog Audio Connector
1/4" TRS phone type ( balanced) x 1 pair (L/R)
Digital Audio Connector
1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )
INPUT / OUTPUT FORMAT
SDI Input Signal Standards
SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Input Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
Audio Format
Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Input Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
HDMI Input Audio Format
Linear PCM, 24 bit, 48 kHz, 8 ch
SDI Output Signal Standards
SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Output Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
SDI Output Audio Format
Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Output Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
HDMI Output Audio Format
Linear PCM, 24 bit, 48 kHz, 8 ch
AUDIO INPUT / OUTPUT
Analog Audio Input Level
+4dBu
Analog Audio Maximum Input Level
+24dBu
Analog Audio Input Impedance
110 ohms
Analog Audio Output Level
+4dBu
Analog Audio Output Impedance
600 ohms
Digital Audio Output Signal Format
AES3, 16/24 bits, 32/48 kHz, 2 ch
Digital Audio Output Impedance
110 ohms
OTHERS
USB Connector
USB Type B (Hi-Speed USB) x 1
Power Supply
DC 9V
Power Consumption
8W
Operation Temperature
+0 to + 40 degrees Celsius
Accessories
AC adaptor, Power Cord, Rubber Foot x 4, Owner's Manual
SIZE AND WEIGHT
Width
150 mm
5-15/16 inches
Depth
130 mm
5-1/8 inches
Height
30 mm
1-3/16 inches
Weight
500 g
1 lbs. 2 oz.

(ROLVC-1-SH)

SKU ROLVC-1-SH
Brand ROLAND
Shipping Weight 1.0000kg
Shipping Width 0.180m
Shipping Height 0.070m
Shipping Length 0.160m
Shipping Cubic 0.002016000m3
