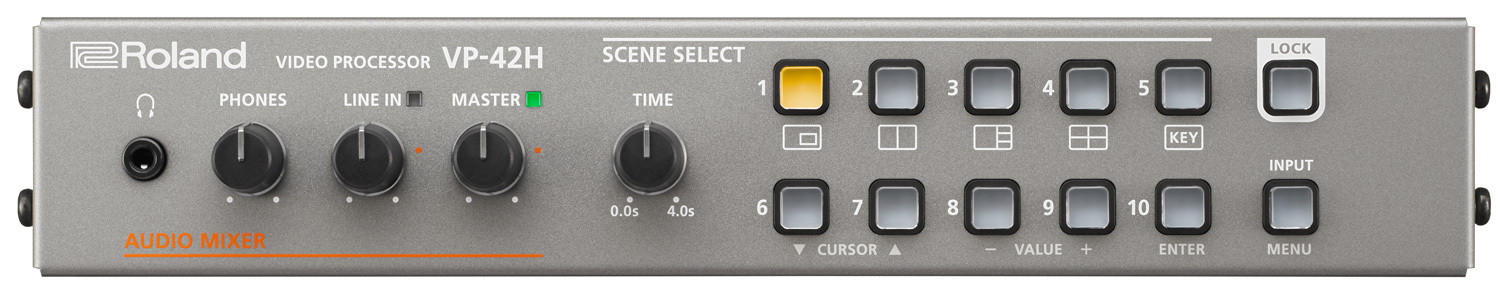

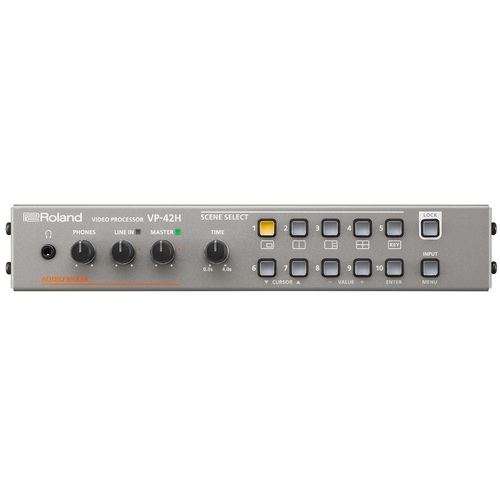

ROLAND VP-42H VIDEO PROCESSOR

$2,299.00
Sold Out - Backorder Available


Calculate Shipping



IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

Processing
4:4:4 (Y/Pb/Pr, RGB)/10 bits, 4:2:2 (Y/Pb/Pr)/10 bits
Input Connectors
HDMI: HDMI type A x 4 (HDMI INPUT 1--4)
* HDCP Supported
Output Connectors
HDMI: HDMI type A x 2 (HDMI OUTPUT 1--2)
* HDCP Supported
Formats
480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p,
800 x 600/60 (*1), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB
*Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11
*Frame rate is 59.94 Hz (NTSC) or 50 Hz (PAL).
(*1) Input only.
(*2) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
Composition
Layer: 4 (Picture in Picture x 4)
*Layer 1 is Picture in Picture with Keyer.
Transition
Black-insert, Mix, Cut, Motion
Still Image
Internal Memory: 1
Maximum Size: 1920 x 1200 pixels
Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
AUDIO
Sample Rate
48 kHz, 24 bits
Input Connectors
HDMI: HDMI type A x 4
AUDIO INPUT: RCA pin type
Output Connectors
HDMI: HDMI type A x 2 *2 Output is the same audio.
AUDIO OUTPUT: RCA pin type
PHONES: Stereo mini type
Input Level
AUDIO INPUT: -10 dBu (Maximum: +8 dBu)
Input Impedance
AUDIO INPUT: 15 k ohms
Output Level
AUDIO OUTPUT: -10 dBu (Maximum : +8 dBu)
PHONES: 72 mW + 72 mW (32 ohms)
Output Impedance
AUDIO OUTPUT: 1 k ohm
PHONES : 10 ohms
Formats
HDMI: Linear PCM, 24 bits, 48 kHz, 2 ch
Processing
Mixer: 4 ch (Delay: Maximum 250 ms)
OTHERS

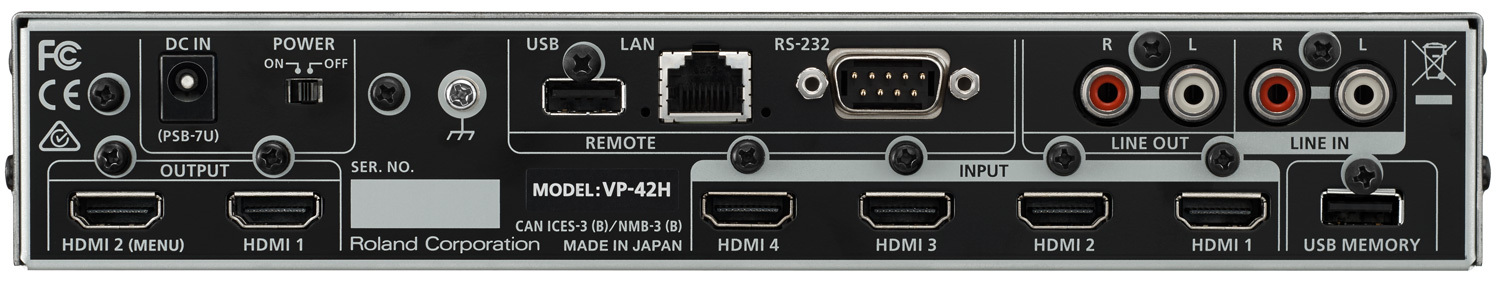

External Connectors
* REMOTE
RS-232: DB-9 type (Male) x 1
LAN: RJ45 x 1
USB: USB A type x 1 (Use for future expansion)
* USB MEMORY: USB A type x 1 (Use for USB Memory)
Functions
Scene Memory: 10
Test Pattern Generator
Test Tone Generator
EDID Emulator
Power Supply
AC Adaptor
Current Draw
2.1 A
Power Consumption
25 W
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions
242 (W) x 125 (D) x 44 (H) mm
9-9/16 (W) x 4-15/16 (D) x 1-3/4 (H) inches
Weight
1.2 kg
2 lbs 11 oz
Accessories
Owner’s Manual
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Power cord
Rubber feet (4 pcs.)

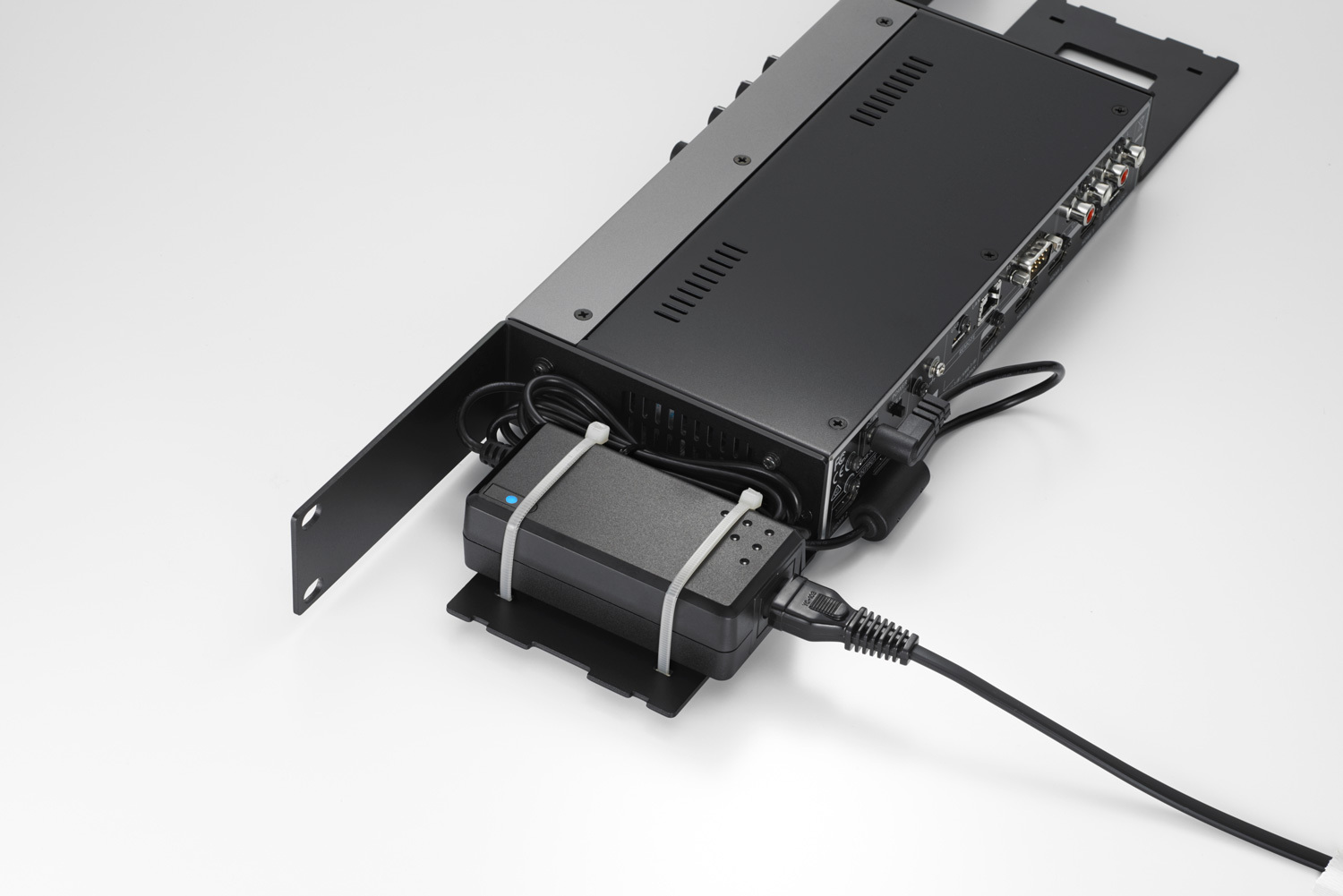

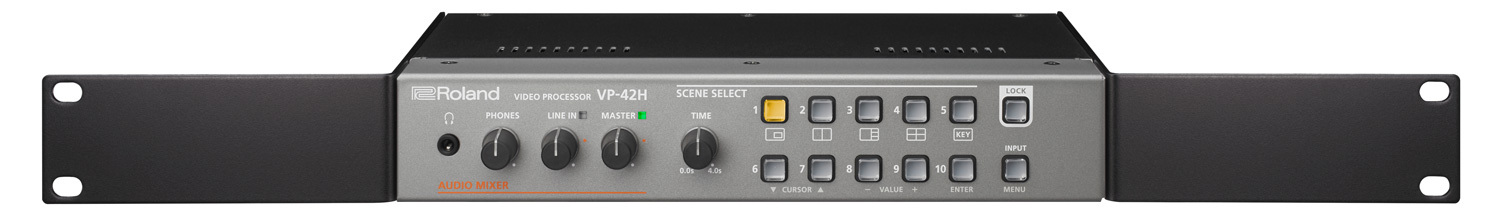

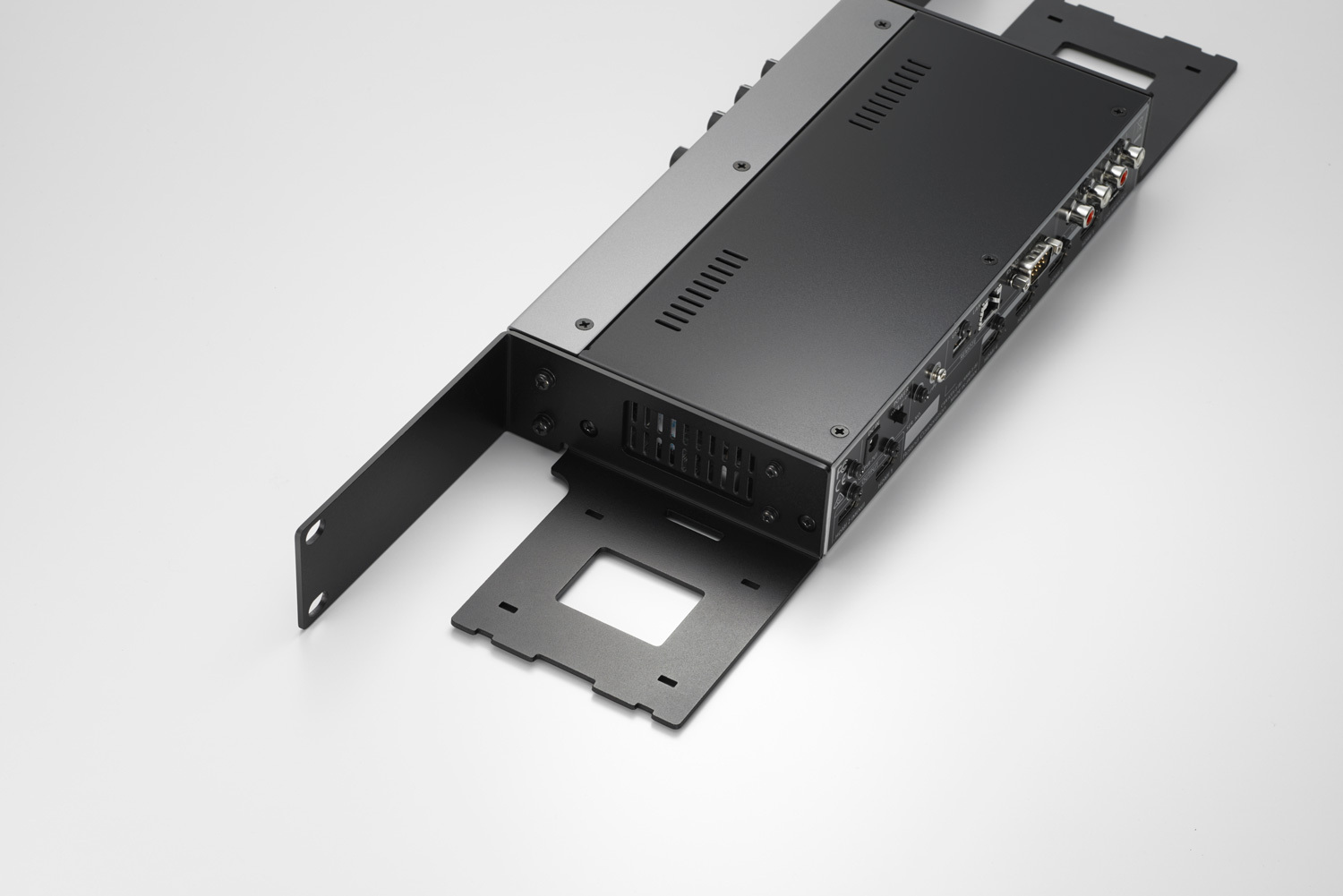

Rack mount angle set

(ROLVP-42H)

SKU ROLVP-42H
Brand ROLAND
Shipping Weight 2.0000kg
Shipping Width 0.280m
Shipping Height 0.100m
Shipping Length 0.160m
Shipping Cubic 0.004480000m3
