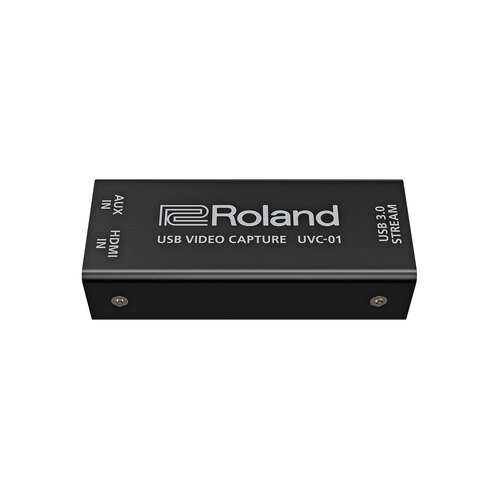

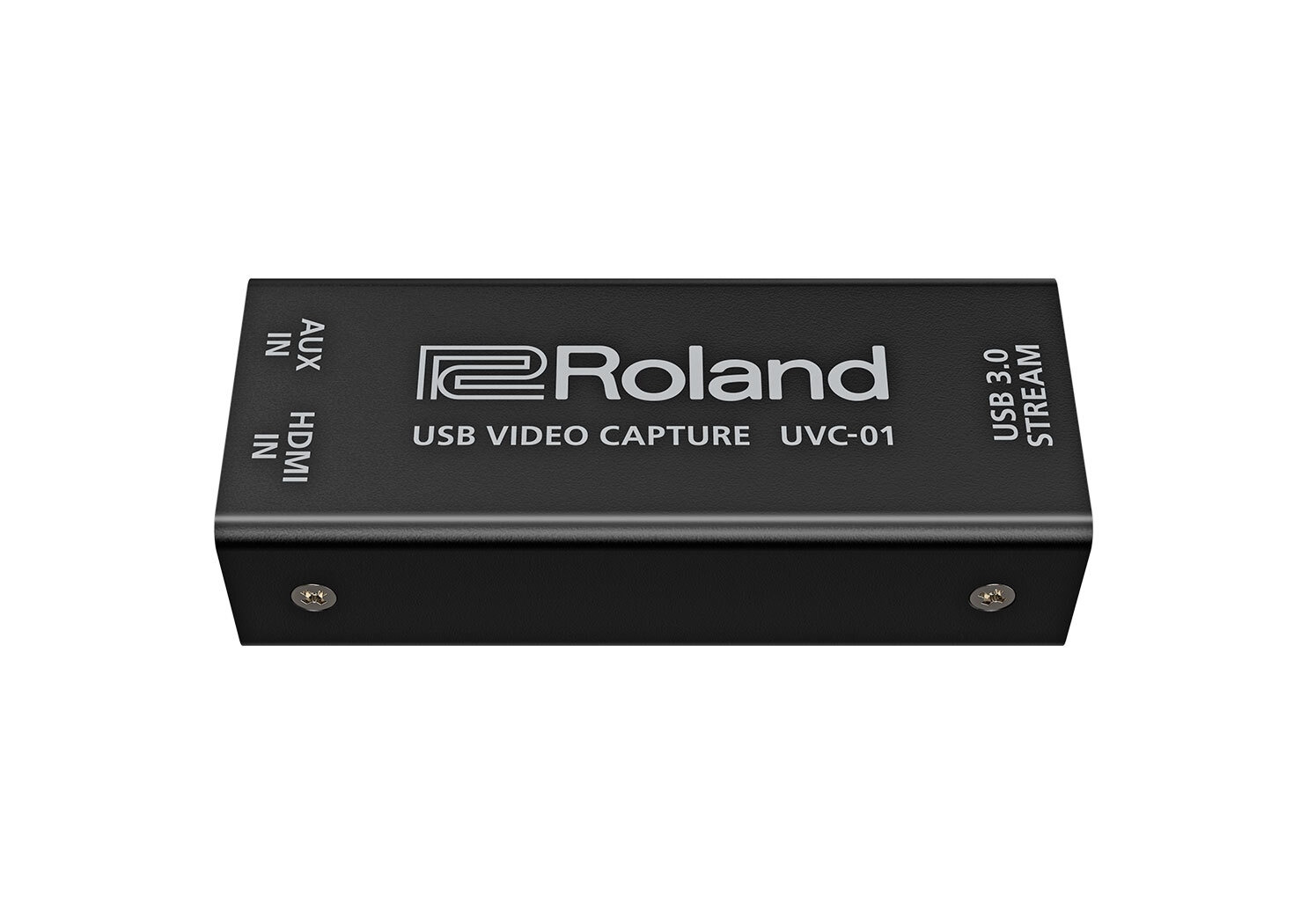

ROLAND UVC-01 USB VIDEO CAPTURE

Calculate Shipping

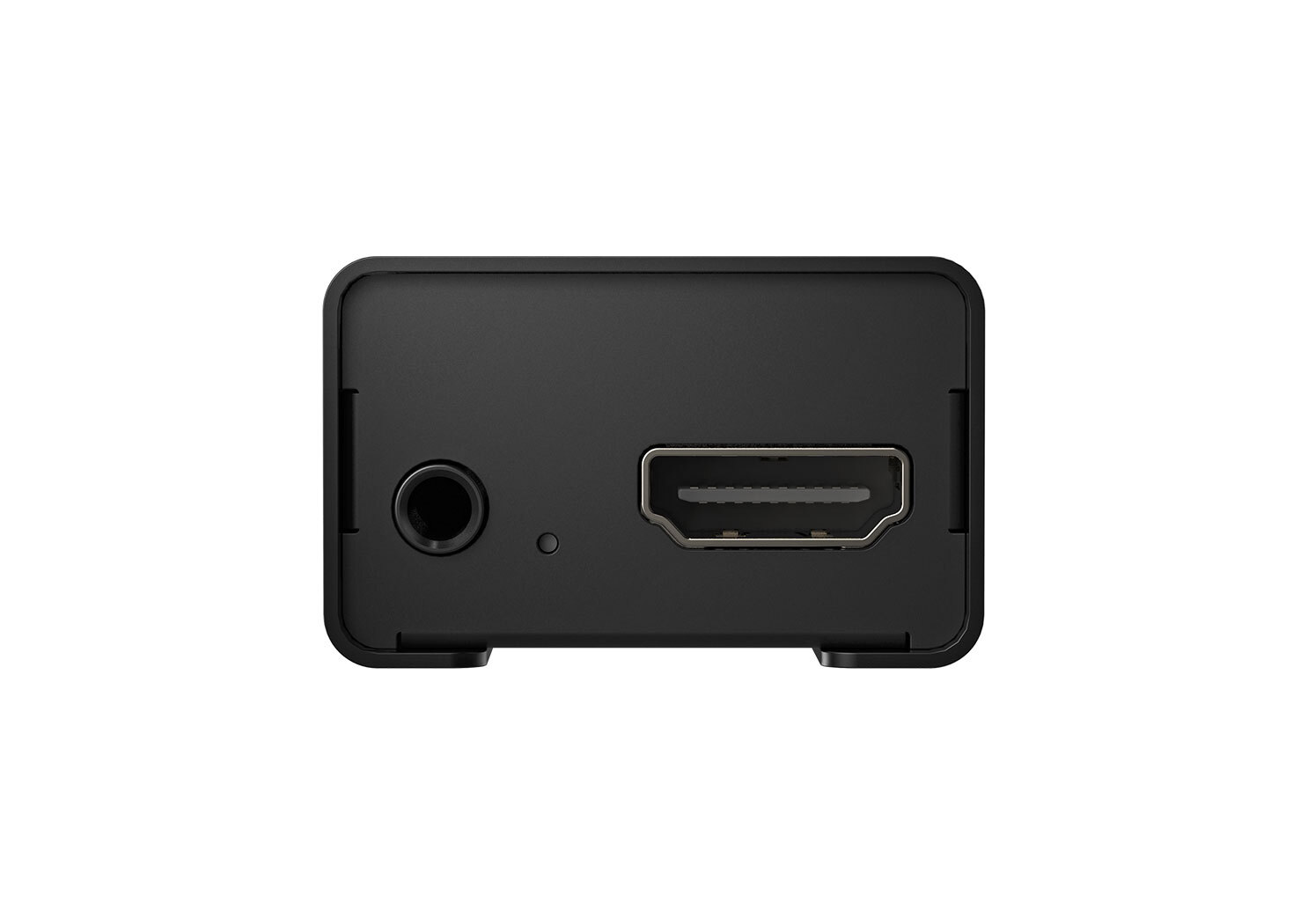

Input Connectors: HDMI IN connector: HDMI type A
* Multi-format Supported
* HDCP Not Supported

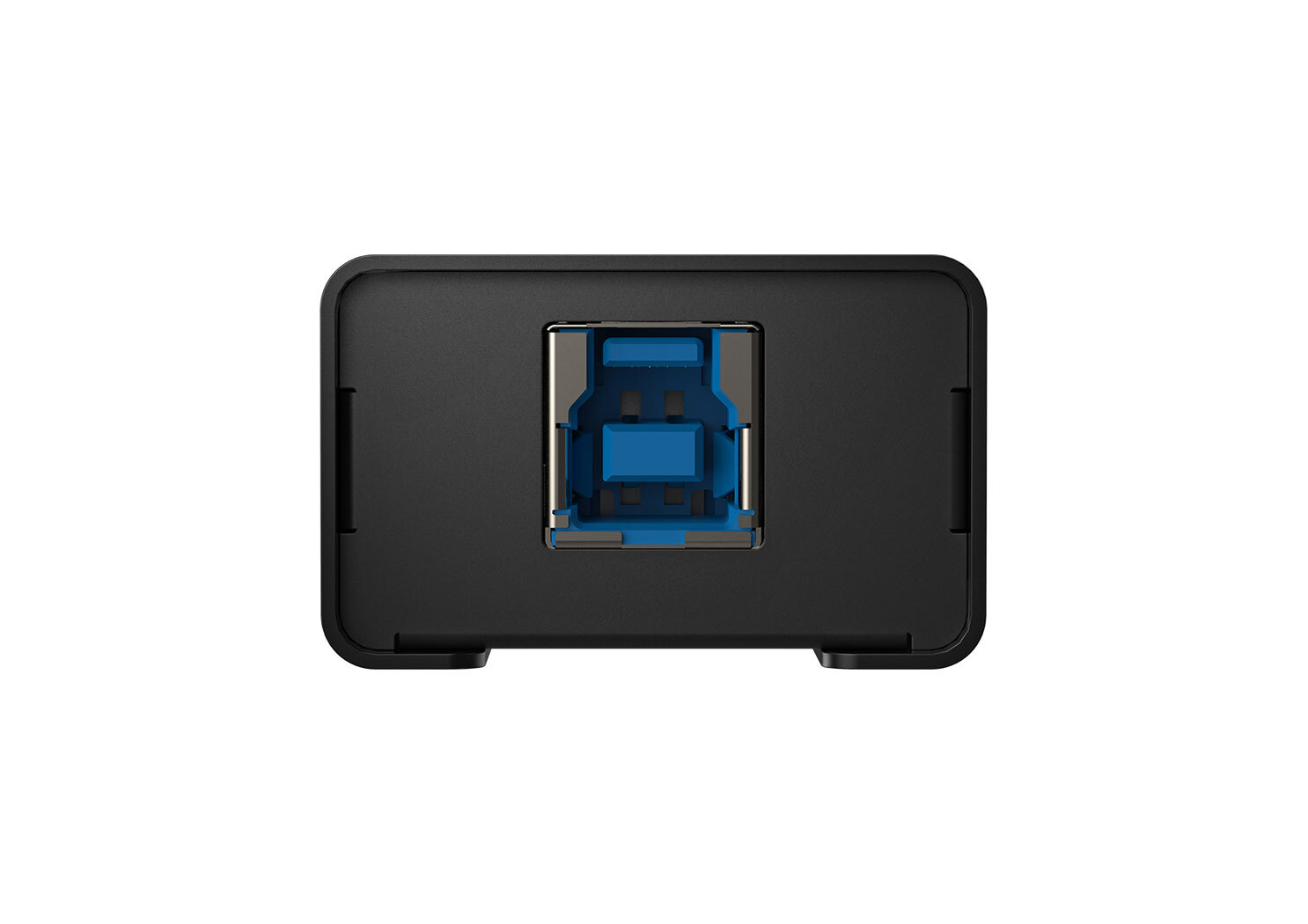

Output Connectors: USB STREAM port: USB 3.0 B type
Input Formats: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
USB Video Output Format: YUY2 (Uncompressed)
USB Video Output Resolution: 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1152 x 864, 1024 x 768, 1024 x 576, 960 x 540, 856 x 480, 800 x 600, 768 x 576, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
* The maximum frame rate is 60 fps.
AUDIO
Audio formats: HDMI IN connector: Linear PCM, 48 kHz / 44.1 kHz, 24 bits / 20 bits / 16 bits, stereo
USB STREAM port: Linear PCM, 48 kHz, 16 bits, stereo
Input Connectors: HDMI IN connector: HDMI type A
AUX IN jack: Stereo miniature phone type
Output Connectors: USB STREAM port: USB 3.0 B type
Nominal Input Level: AUX IN jack: -10 dBu (Maximum input level: +8 dBu)
Input Impedance: AUX IN jack: 10 k ohms
OTHERS
Power Supply: Supplied from the computer via USB
Current Draw: 500 mA
Operation Temperature: +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions: 90 (W) x 37 (D) x 23 (H) mm
3-9/16 (W) x 1-1/2 (D) x 15/16 (H) inches
Weight (excluding AC adaptor): 96 g
4 oz
Accessories: Owner's Manual
USB 3.0 Cable

* 0 dBu = 0.775 Vrms

(ROLUVC-01)

SKU	ROLUVC-01
Brand	ROLAND
Shipping Weight	0.2000kg
Shipping Width	0.110m
Shipping Height	0.006m
Shipping Length	0.006m
Shipping Cubic	0.000004000m3
