- Processing
- 4:4:4 (Y/Cb/Cr), 10 bit
- Formats
- SDI:
2160p(DCI)/60 Hz, 59.94 Hz, 50 Hz, 48 Hz *2, 47.95 Hz *2, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz (SMPTE ST2048)
2160p(UHD)/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz (SMPTE ST2036)
1080p(DCI)/60 Hz, 59.94 Hz, 50 Hz, 48 Hz *2, 47.95 Hz *2, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz (SMPTE ST2048)
1080p(FHD)/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz (SMPTE ST274)
1080i/59.94 Hz, 50 Hz (SMPTE ST274)
720p/60 Hz, 59.94 Hz, 50 Hz (SMPTE ST296)
HDMI: *1 *4
2160p(DCI)/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz (CEA-861-F)
2160p(UHD)/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz (CEA-861-F)
1080p(DCI)/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz *3, 23.98 Hz *3
1080p(FHD)/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz *3, 23.98 Hz *3 (CEA-861-F)
1080i/59.94 Hz, 50 Hz (CEA-861-F)
720p/60 Hz *3, 59.94 Hz *3, 50 Hz (CEA-861-F)
2560 x 1440/60 Hz (VESA CVT Reduced blanking)
2560 x 1440/144 Hz (Pixel Clock 595.5MHz) *2
1920 x 1200/60 Hz (VESA CVT Reduced blanking)
1920 x 1080/240 Hz (Pixel Clock 556.8MHz､567.0MHz) *2
1920 x 1080/144 Hz(Pixel Clock 346.54MHz) *2
1920 x 1080/120 Hz, 119.88Hz, 100Hz (CEA-861-F) *2
1920 x 1080/239.76 Hz, 200Hz(VESA CVT) *2
1600 x 1200/60 Hz (VESA DMT)
1400 x 1050/60 Hz (VESA DMT)
1280 x 1024/60 Hz (VESA DMT)
1280 x 800/60 Hz (VESA DMT)
*1 HDCP 1.4, 2.2 supported.
*2 Input and through output.
*3 Input only.
*4 Color Space: RGB Full/12bit, RGB Limited/12bit, YUV444/12bit, YUV422/12bit, YUV420/12bit (Valid bits are 10 bits)
* Color Gamut: Rec.601, Rec.709, Rec.2020
* Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG
USB Streaming: *5 *6 *7
1080p, 720p, 640 x 480
*5 UVC (USB Video Class) Uncompressed Video 4:2:2 (Y/Cb/Cr), 8 bit
*6 The video signal frame rate can be selected Full or Half of System frame rate.
*7 Color Gamut: Rec.601, Rec.709, Dynamic Range: SDR - Functions
- 4K Scaler
FHD Down Scaler for USB Streaming
Fade to Black
Test Pattern Generator
Rotation *8
Flip H, V
Edge Enhancer
Motion Adaptive Deinterlacer
Color Correction
Dynamic Range Conversion
Frame Rate Conversion (up to 240Hz)
*8 The following functions cannot be used at the same time. Sub Processing, Rotation, HDMI Through. - AUDIO
- Processing
- 24 bits/48 kHz
- Formats
- 12G-SDI: Linear PCM, 24 bits/48 kHz, 16 ch (SMPTE 299M)
HDMI 4K: Linear PCM, 24 bits/48 kHz, 8 ch
STREAMING: Linear PCM, 16 bits/48 kHz, 2 ch (UAC (USB Audio Class)) - Input Level
- LINE IN: -10 dBu (Maximum: +8 dBu)
AUDIO IN: +4 dBu (Maximum: +24 dBu) - Input Impedance
- LINE IN: 38 k ohms
AUDIO IN: 15 k ohms - Output Level
- LINE OUT: -10 dBu (Maximum: +8 dBu)
AUDIO OUT: +4 dBu (Maximum: +24 dBu) - Output Impedance
- LINE OUT: 1 k ohm
AUDIO OUT: 600 ohms - Functions
- Output Level
Patchbay
Delay
Equalizer
Mastering
Test Tone Generator - CONNECTORS

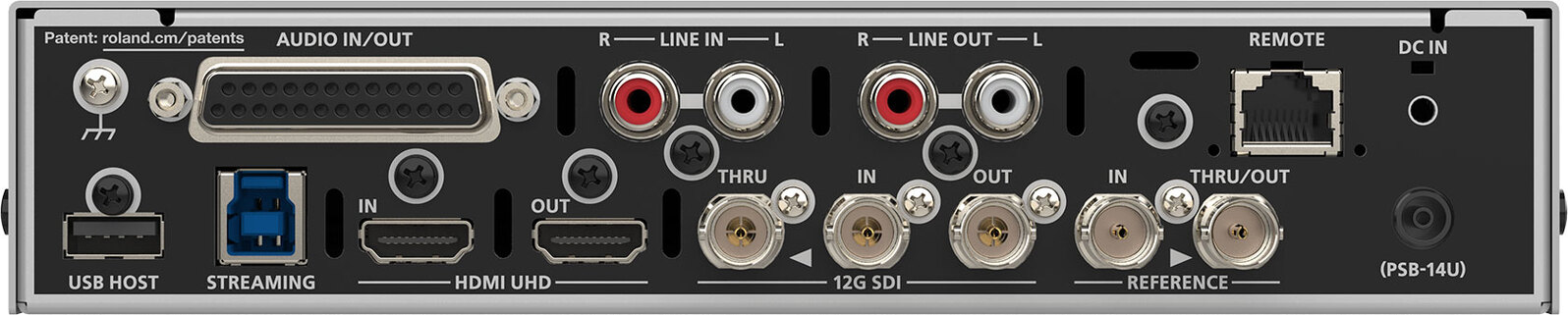

- Input Connectors
- 12G-SDI IN: BNC type (SMPTE 2082, 2081, 424M(SMPTE 425M-AB), 292M, 259M)
HDMI 4K IN: HDMI type A
STREAMING: USB type B (USB3.0)
LINE IN: RCA phono type
AUDIO IN: DB-25 female type (Balanced audio 2 ch)
REFERENCE IN: BNC type (Black Burst (Sync to frames), Bi-Level, Tri-Level) - Output Connectors
- 12G-SDI OUT: BNC type (SMPTE ST2082, ST2081, 424M(SMPTE 425M-AB), 292M, 259M)
12G-SDI THRU: BNC type
HDMI 4K OUT: HDMI type A
STREAMING: USB type B (USB3.0)
LINE OUT: RCA phono type
AUDIO OUT: DB-25 female type (Balanced audio 2 ch)
REFERENCE THRU/OUT: BNC type (Black Burst) - Other Connectors
- USB HOST: USB A type (USB2.0) (for USB flash drive)
REMOTE: RJ45 type, 100BASE-TX - OTHERS
- Functions
- EDID Emulator
Genlock
Preset Memory x 8 - Display
- Graphic LCD 256 x 64 dots
- Power Supply
- AC Adaptor
- Current Draw
- 2.3 A (DC 24V)
- Power Consumption
- 55 W
- Operation Temperature
- +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit - Dimensions
- 210 (W) x 284.5 (D) x 43 (H) mm
8-5/16 (W) x 11-1/4 (D) x 1-3/4 (H) inches - Weight (excluding Accessories)
- 2.2 kg
4 lbs 14 oz - Accessories
- Owner's Manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord
Rubber feet (4 pcs.)

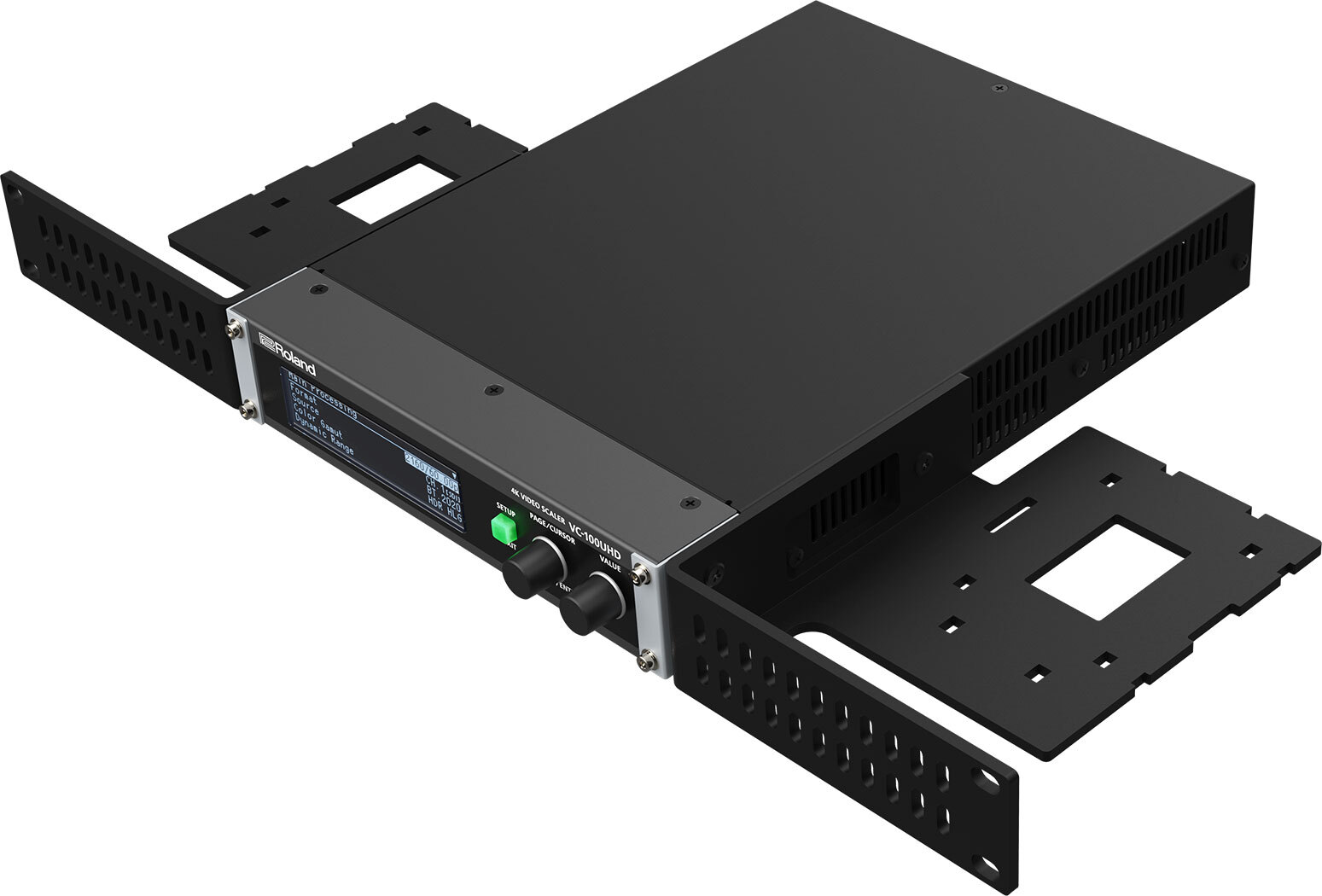

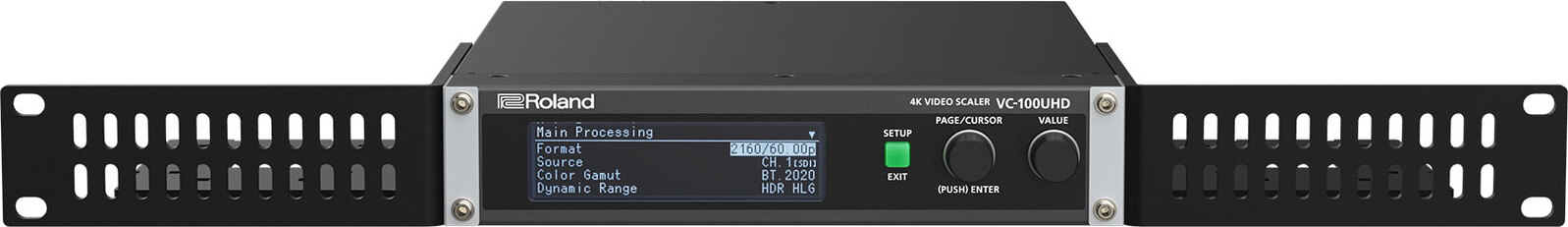

Rack mount angle set
DC Plug Stopper
* 0 dBu = 0.775 Vrms

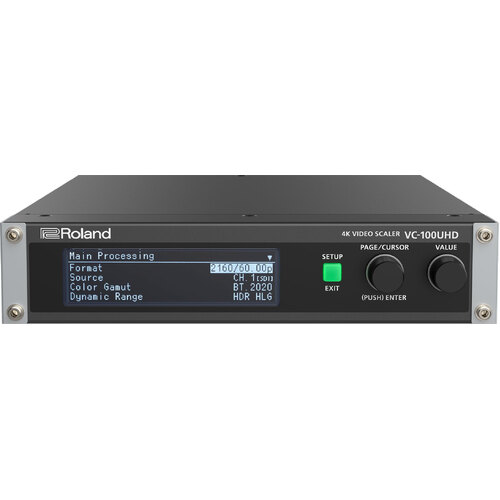

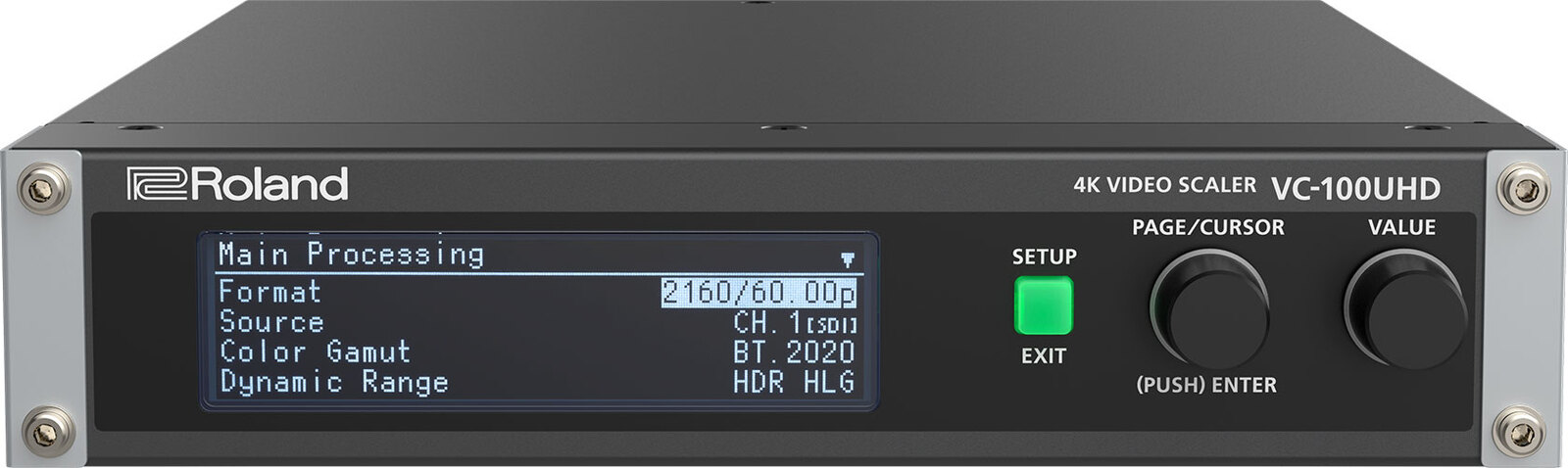

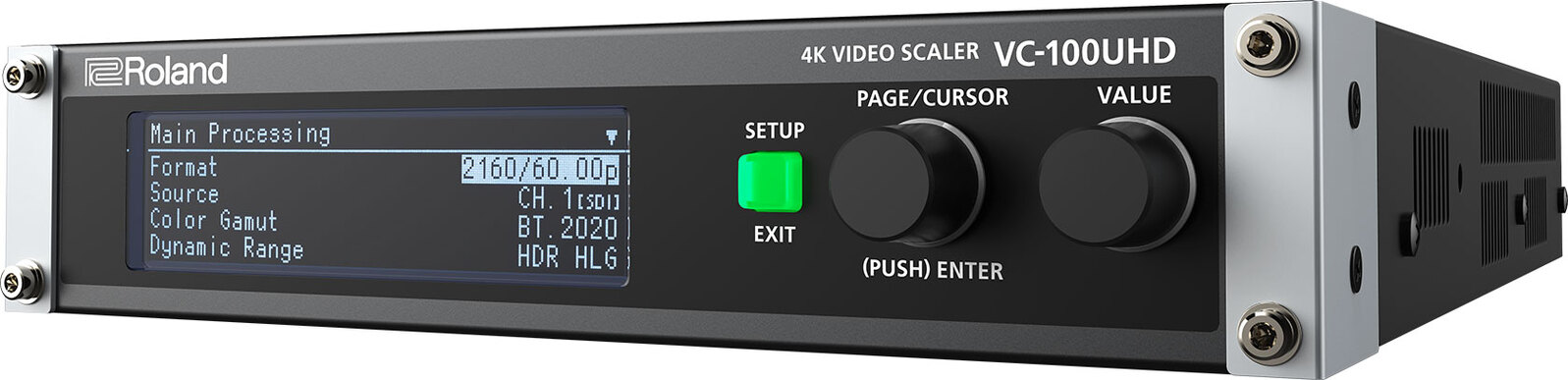

ROLAND VC-100UHD 4K VIDEO SCALER
$3,999.00
Sold Out - Backorder Available
(ROLVC-100UHD)
| SKU | ROLVC-100UHD |
| Brand | ROLAND |
| Shipping Weight | 3.0000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.100m |
| Shipping Length | 0.310m |
| Shipping Cubic | 0.007750000m3 |
