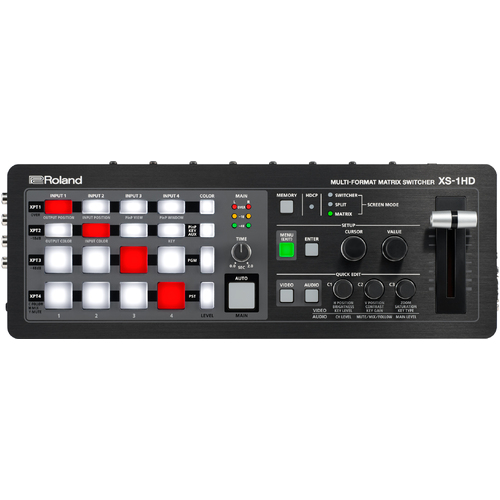

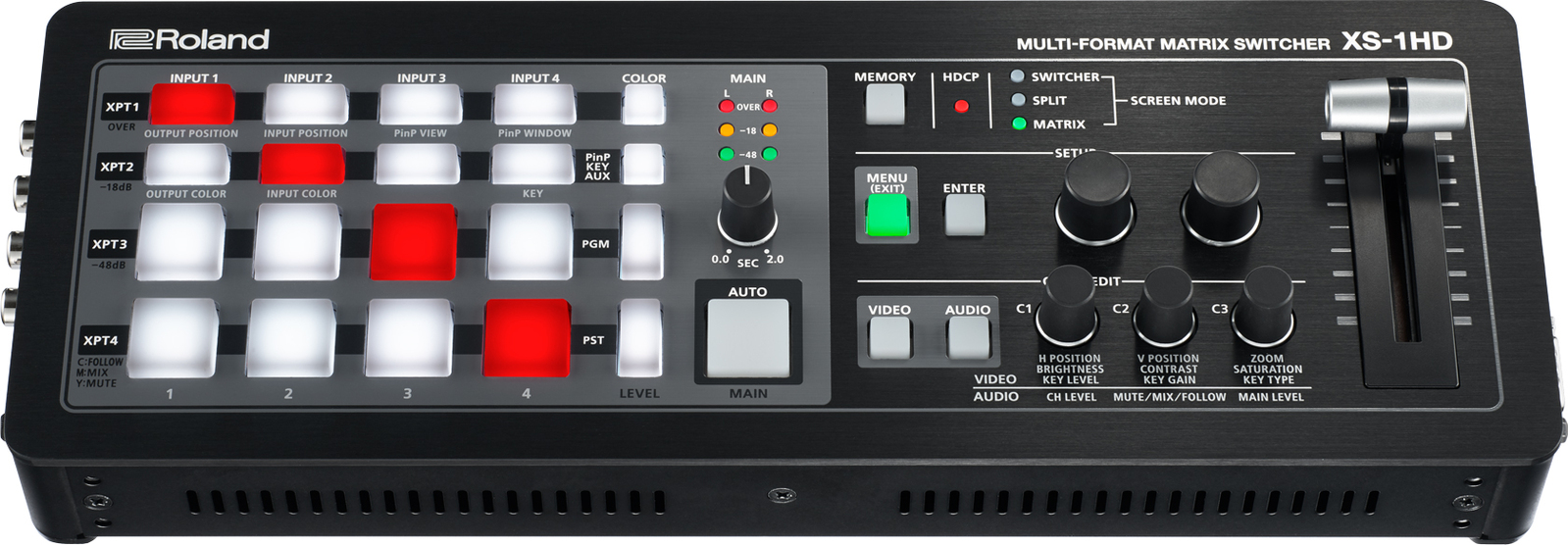

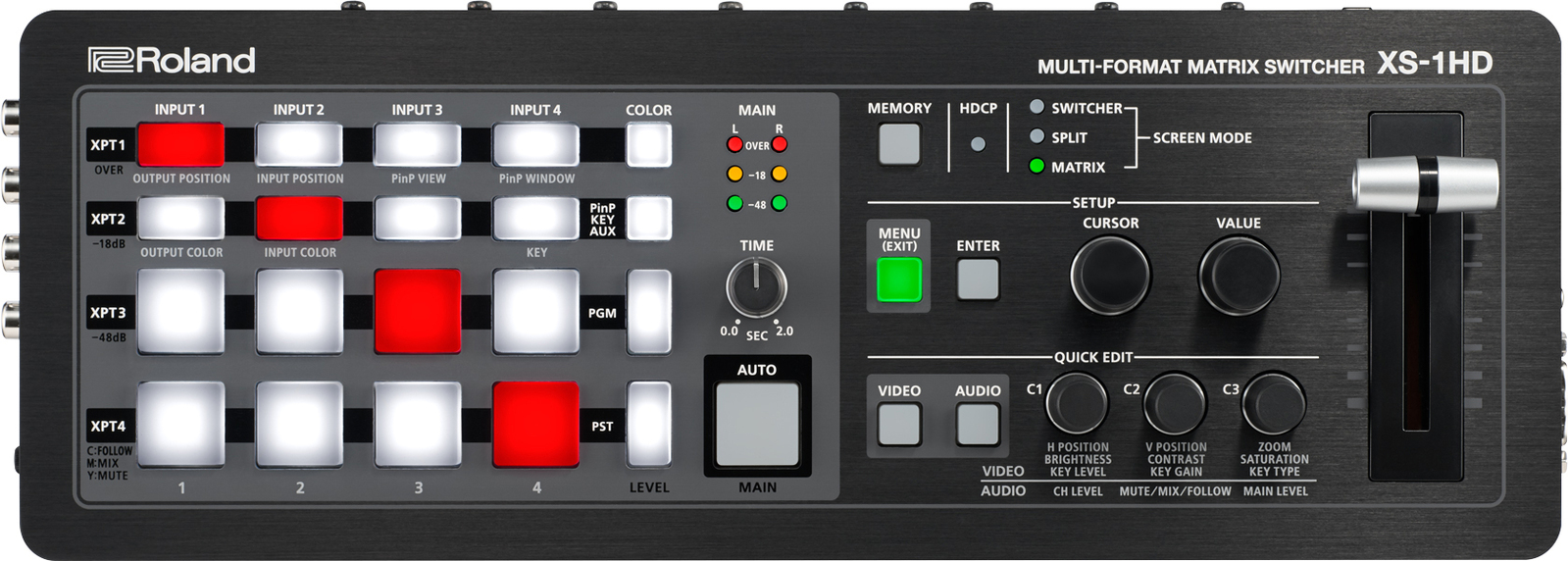

ROLAND XS-1HD MULTI-FORMAT MATRIX SWITCHER

Calculate Shipping

PICK UP FROM STORE - $0.00
FREE PICK UP BETWEEN 10AM - 4.30PM WEEKDAYS FROM THE PRODUCTION SHOP

Processing: 4:4:4 (Y/Pb/Pr, RGB) /10 bits
4:2:2 (Y/Pb/Pr) /10 bits

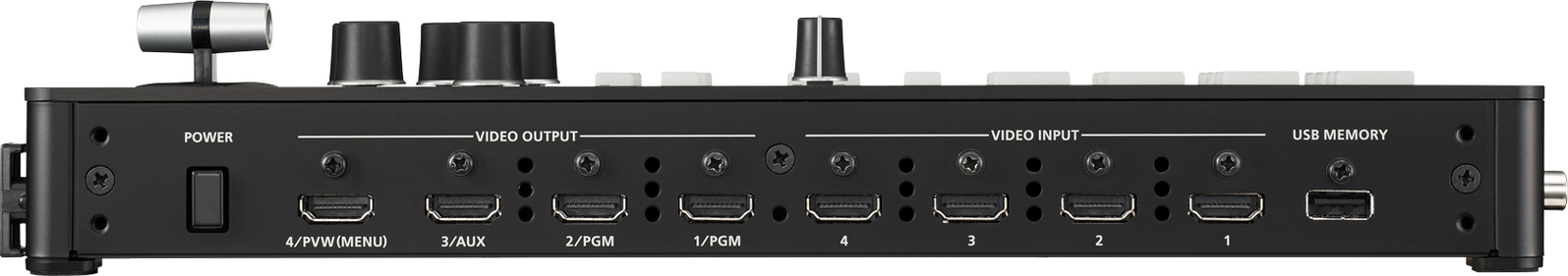

Input Connectors: HDMI : HDMI type A x 4 (HDMI INPUT 1--4)
*HDCP Supported
Output Connectors: HDMI : HDMI type A x 4 (HDMI OUTPUT 1--4)
*HDCP Supported
Formats: 480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 800 x 600/60 (*1), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB
*Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11
*Frame rate is 59.94 Hz (NTSC) or 50 Hz (PAL).
(*1) Input only.
(*2) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
Effects: Output Mode : Switcher, Split, Matrix
Transition : Mix, Cut (*3)
Composition (Keyer) : 1 (*3)
Others : HDCP Supported, Test Pattern Generator.
(*3) These effects depends on Output Mode.
Still Image: Internal Memory : 1
Maximum Size : 1920 x 1200 pixels
Format : Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
AUDIO
Sampling Rate: 24 bits/48 kHz
Input Connectors: HDMI : HDMI type A x 4

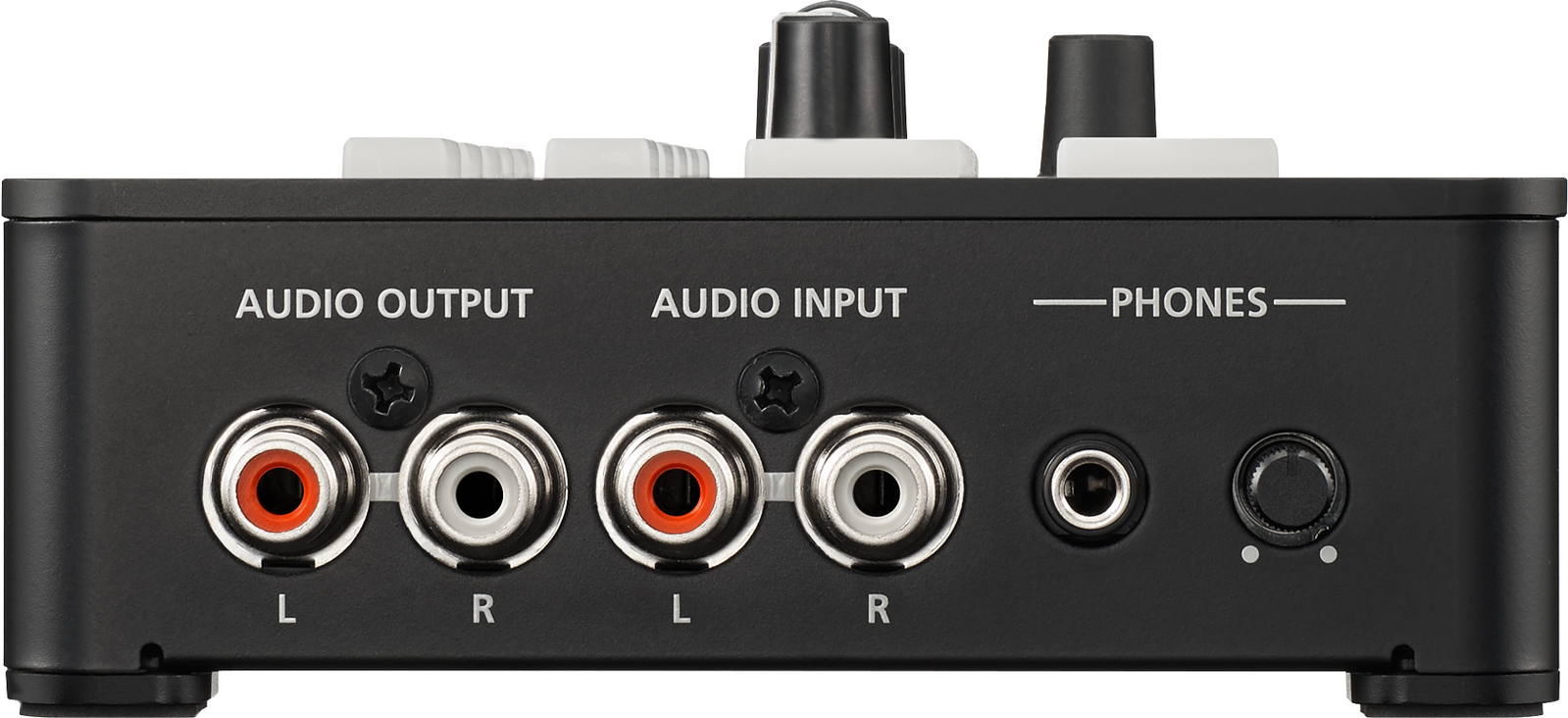

AUDIO INPUT : RCA pin type
Output Connectors: HDMI : HDMI type A x 4
AUDIO OUTPUT : RCA pin type
PHONES : Stereo mini type
Input Level: AUDIO INPUT : -10 dBu (Maximum : +8 dBu)
Input Impedance: AUDIO INPUT : 15 k ohms
Output Level: AUDIO OUTPUT : -10 dBu (Maximum : +8 dBu)
PHONES : 72 mW + 72 mW (32 ohms)
Output Impedance: AUDIO OUTPUT : 1 k ohm
PHONES : 10 ohms
Formats: HDMI : Linear PCM, 24 bits, 48 kHz, 2 ch
Processing: Mixer : 4 ch (Delay : Maximum 500 ms, Audio Follow)
Test Tone Generator
OTHERS

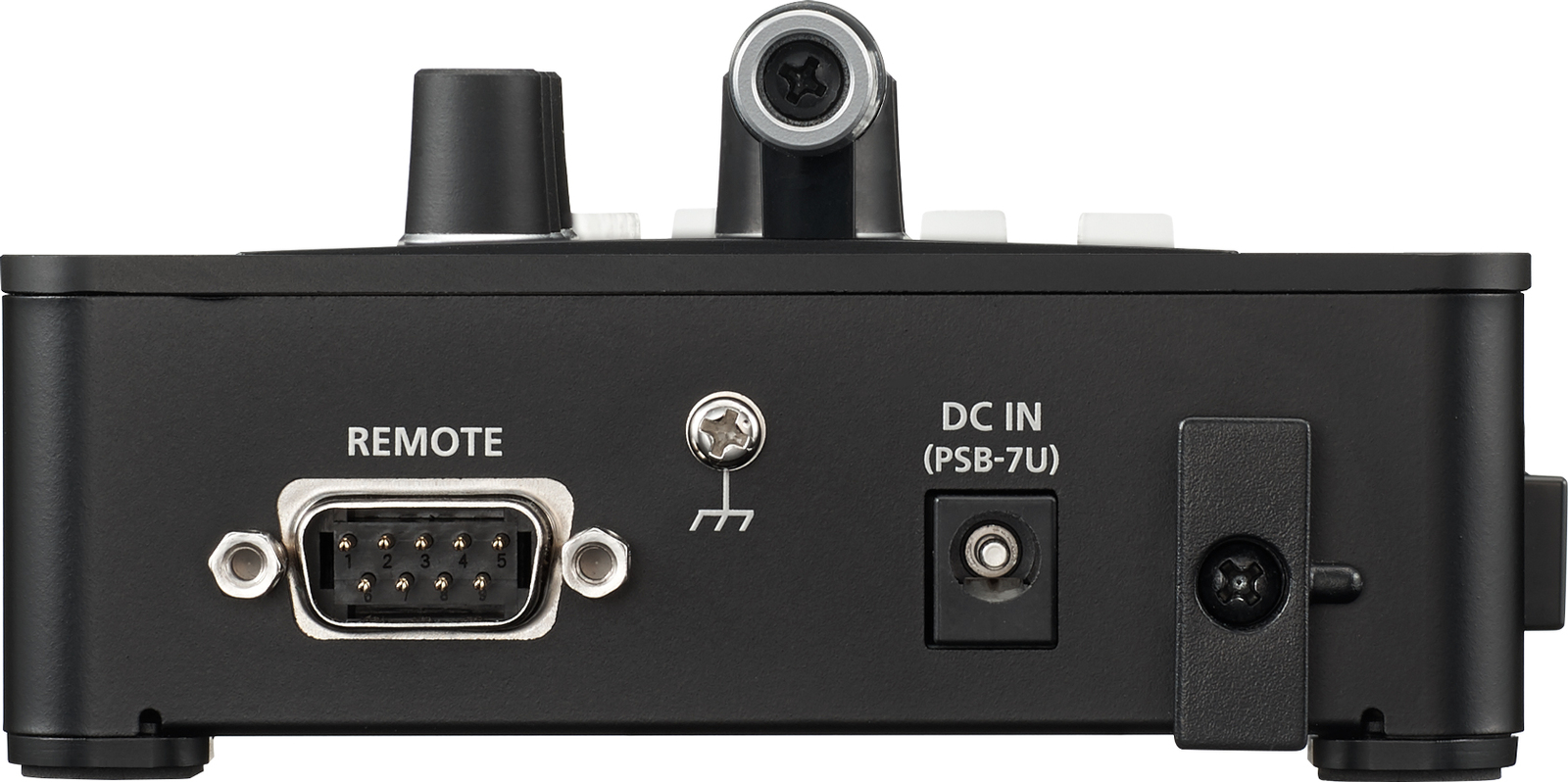

External Connectors: REMOTE : RS-232 DB-9 type (Male) x 1 *for Remote Control
USB MEMORY : USB A type x 1 (USB Memory)
Preset Memory: 16
*Auto Memory Function
Power Supply: AC Adaptor
Current Draw: 2.1 A
Power Consumption: 25 W
Operation Temperature: +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions: 328 (W) x 117 (D) x 57 (H) mm
12-15/16 (W) x 4-5/8 (D) x 2-1/4 (H) inches
Weight: 1.2 kg
2 lbs 11 oz
Accessories: Owner's Manual
AC adaptor
Power cord
Notes: * 0 dBu = 0.775 Vrms

(ROLXS-1HD)
