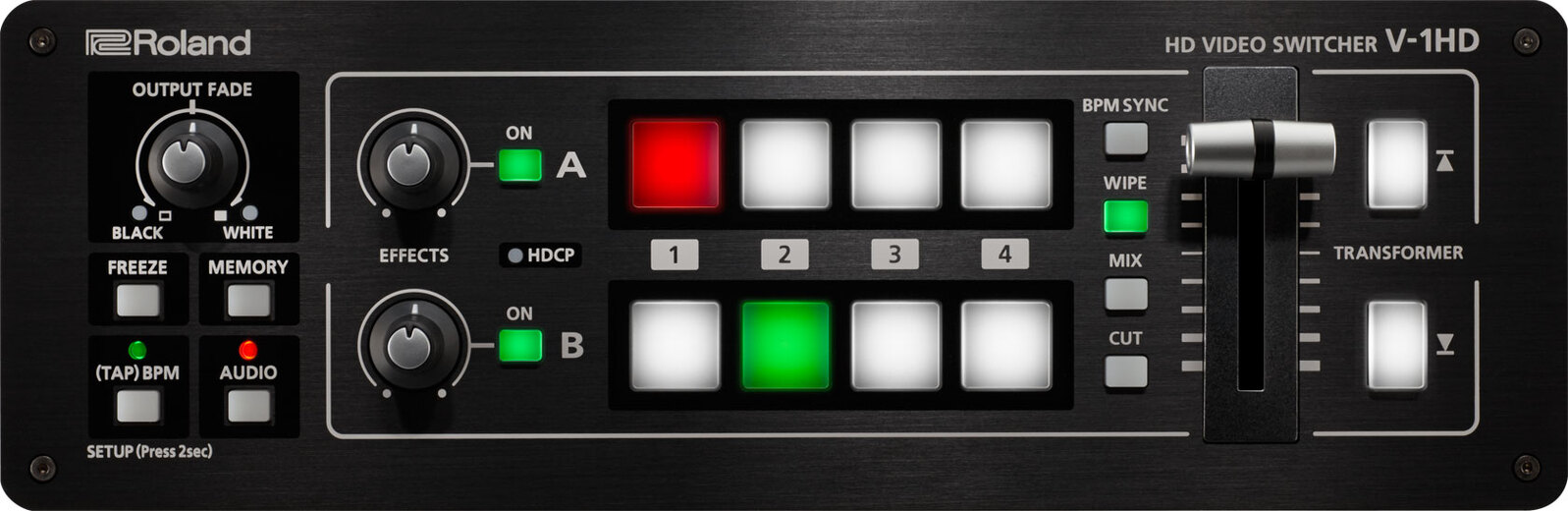

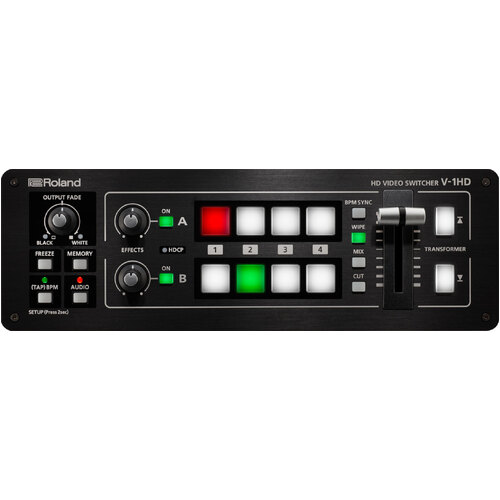

ROLAND V-1HD HD VIDEO SWITCHER

Calculate Shipping

PICK UP FROM STORE - $0.00
FREE PICK UP BETWEEN 10AM - 4.30PM WEEKDAYS FROM THE PRODUCTION SHOP

Video Processing: 4:2:2(Y/Pb/Pr), 8-bit

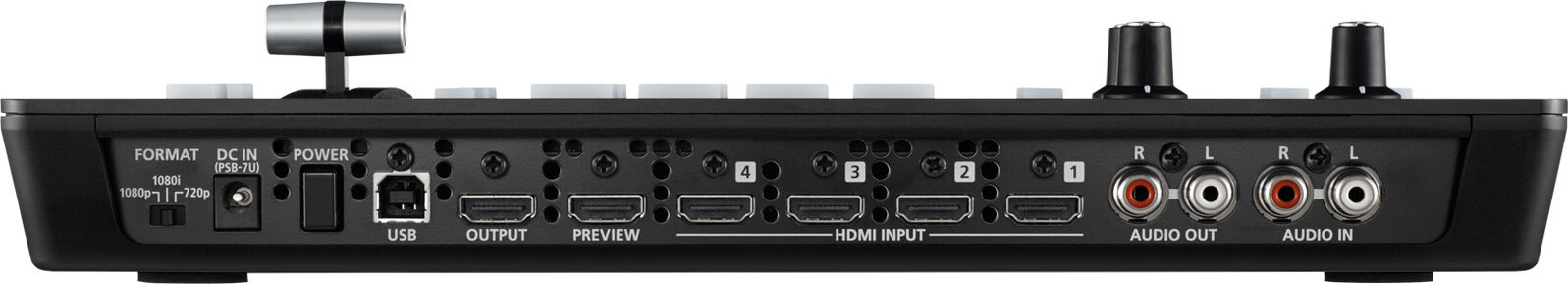

Input Connectors: HDMI INPUT 1-4: Type A(19pins)x 4 *HDCP Supported
Output Connectors: HDMI OUTPUT: Type A(19pins) / HDMI PREVIEW: Type A(19pins) *HDCP Supported
Input Formats: HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
HDMI: 1080/59.94i,1080/50i,1080/59.94p,
1080/50p(FORMAT switch = 1080i or 1080p)
*The input interlaced video signal is converted to progressive video signal by internal processing.
*The video signal frame rate is selected by SETUP parameters (59.94 or 50).
Output Formats: HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
HDMI: 1080/59.94i,1080/50i(FORMAT switch = 1080i)
HDMI: 1080/59.94p,1080/50p(FORMAT switch = 1080p)
*The video signal frame rate is selected by SETUP parameters (59.94 or 50).
Video Effects: Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types),
TRANSFORMER(11 types)
EFFECTS: NEGATIVE, EMBOSS, COLORIZE, COLORPASS, POSTERIZE, SILHOUETTE,
MONOCOLOR, FINDEDGE, FLIP, WH-LUMIKEY@, BK-LUMIKEY@,
GR-CHROMAKEY@, BL-CHROMAKEY@, PinP(1/4)@, PinP(1/3)@, PinP(1/2)@,
SPLIT(H-STRETCH)@. SPLIT(H-CENTER)@, SPLIT(V-STRETCH)@,
SPLIT(V-CENTER)@
*@ marked Effects are effected common to A-BUS and B-BUS.
AUDIO
Audio Processing: Sampling rate: 24bit/48kHz
Input Connectors: Digital: HDMI INPUT 1–4 (19 pins) x 4

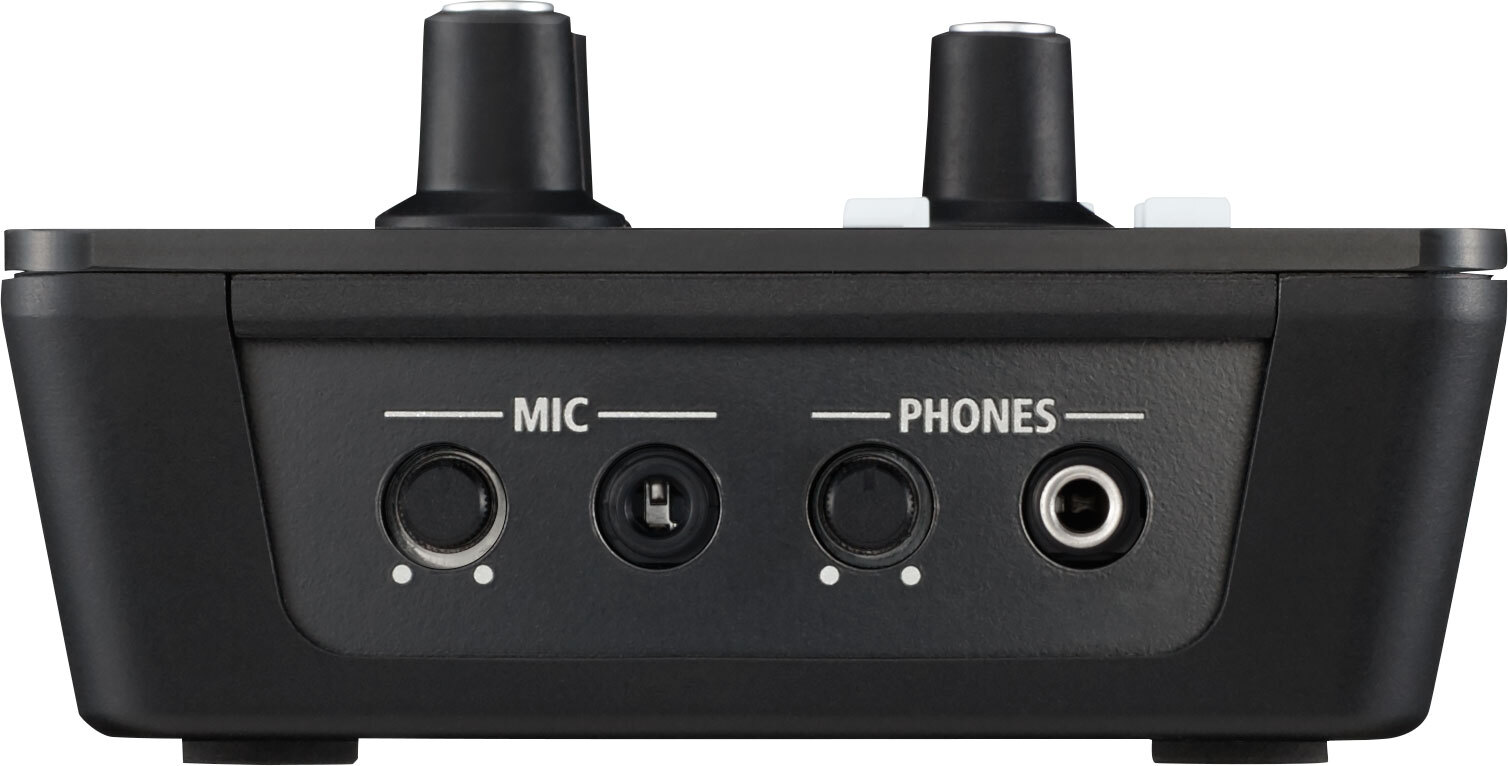

Analog: AUDIO IN (RCA pin type), MIC (Stereo mini type, plug-in power supported)
Output Connectors: Digital: HDMI OUTPUT (HDMI Type A 19 pins), HDMI PREVIEW (HDMI Type A 19 pins)
Analog: AUDIO OUT (RCA pin type), PHONES (Stereo mini type)
Input Level: AUDIO IN: -10 dBu (Maximum : +8 dBu), MIC: -41 – -13dBu (Maximum : -1 dBu)
Input Impedance: AUDIO IN: 15 k ohms, MIC:10 k ohms
Output Level: AUDIO OUT: -10 dBu (Maximum : +8 dBu), PHONES: 72mW + 72mW (32 ohms)
Output Impedance: AUDIO OUT: 1k ohms, PHONES: 10 ohms
Audio Effects: EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
OTHERS

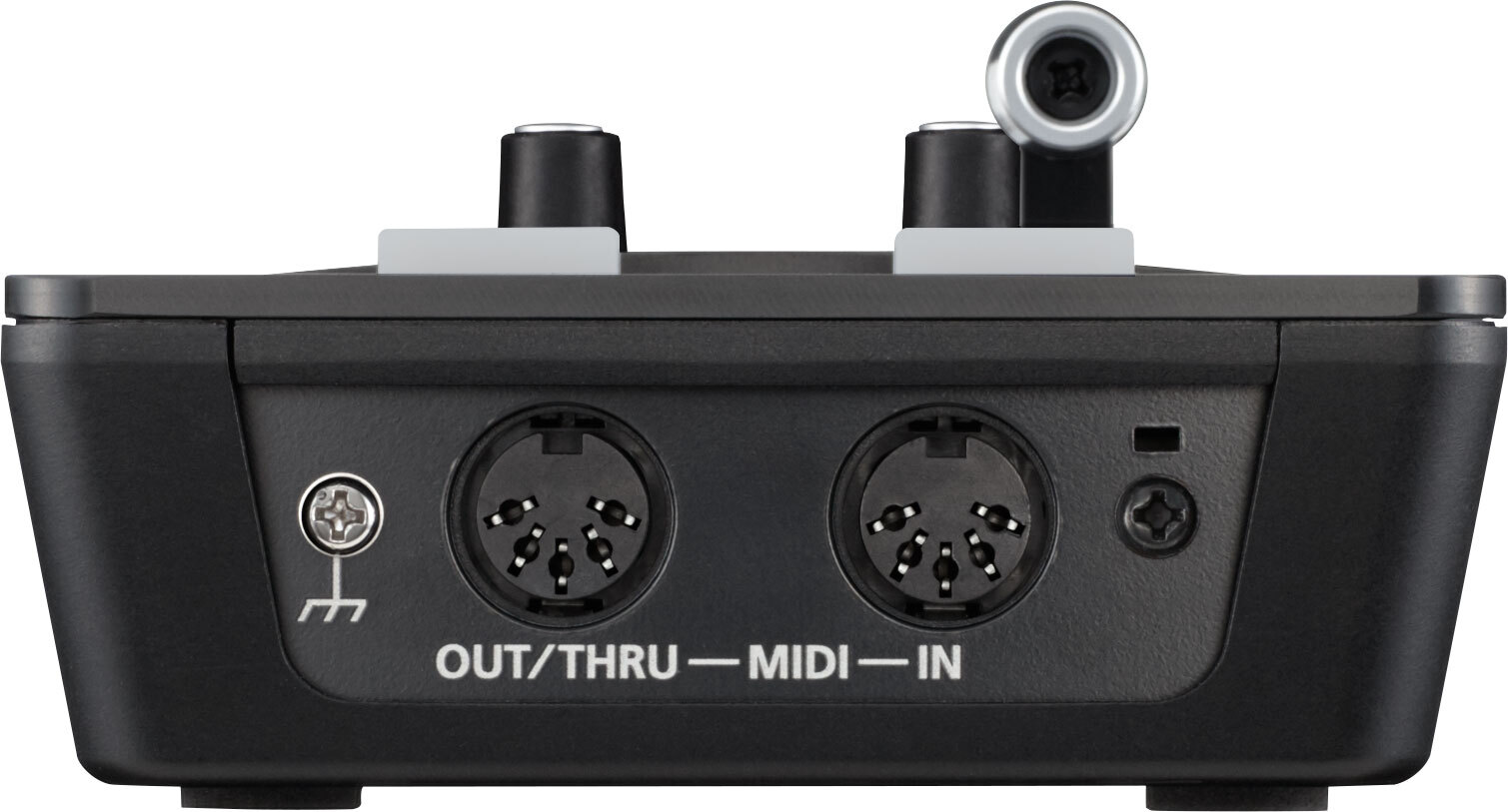

Other Connectors: USB: B Type (for remote control from PC), MIDI: IN, OUT/THRU
Other Functions: MEMORY (8 types), FREEZE (input video captured),
BPM SYNC (auto transition synchronized to tempo), OUTPUT FADE (WHITE/BLACK/AUDIO)
Power Supply: AC adaptor
Current Draw: 1.5A
Power Consumption: 18W
Dimensions: 313 (W) x 102 (D) x 59 (H) mm / 12-1/3 (W) x 4 (D) x 2-1/3 (H) inches
Weight: 1.2 kg (excluding AC adaptor) 2 lbs 10-2/5 oz
Accessories: Owner’s Manual, AC Adaptor, Power Cord, Cord Hook

(ROLV-1HD)

SKU	ROLV-1HD
Brand	ROLAND
Shipping Weight	2.0000kg
Shipping Width	0.350m
Shipping Height	0.100m
Shipping Length	0.150m
Shipping Cubic	0.005250000m3
