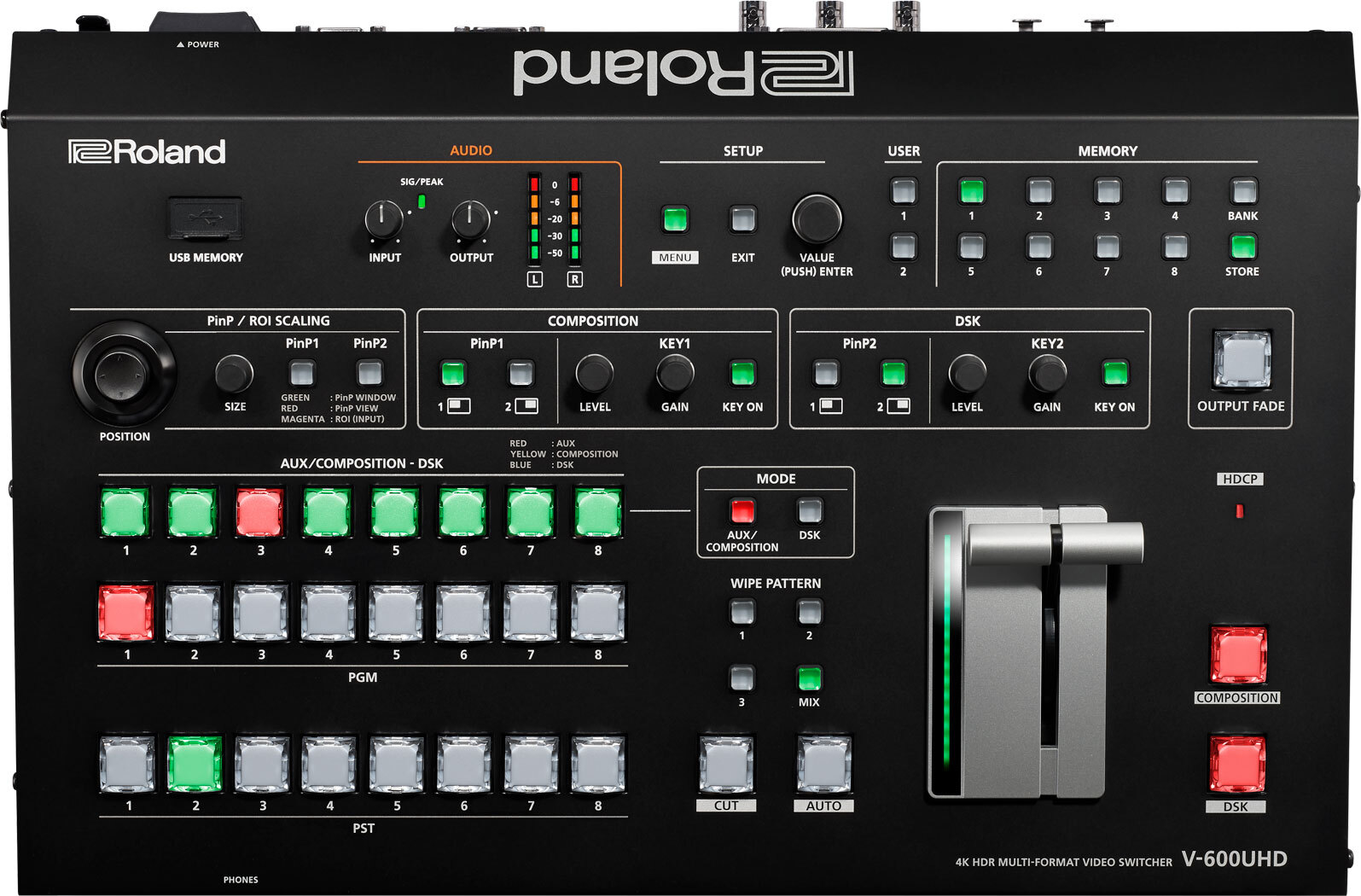

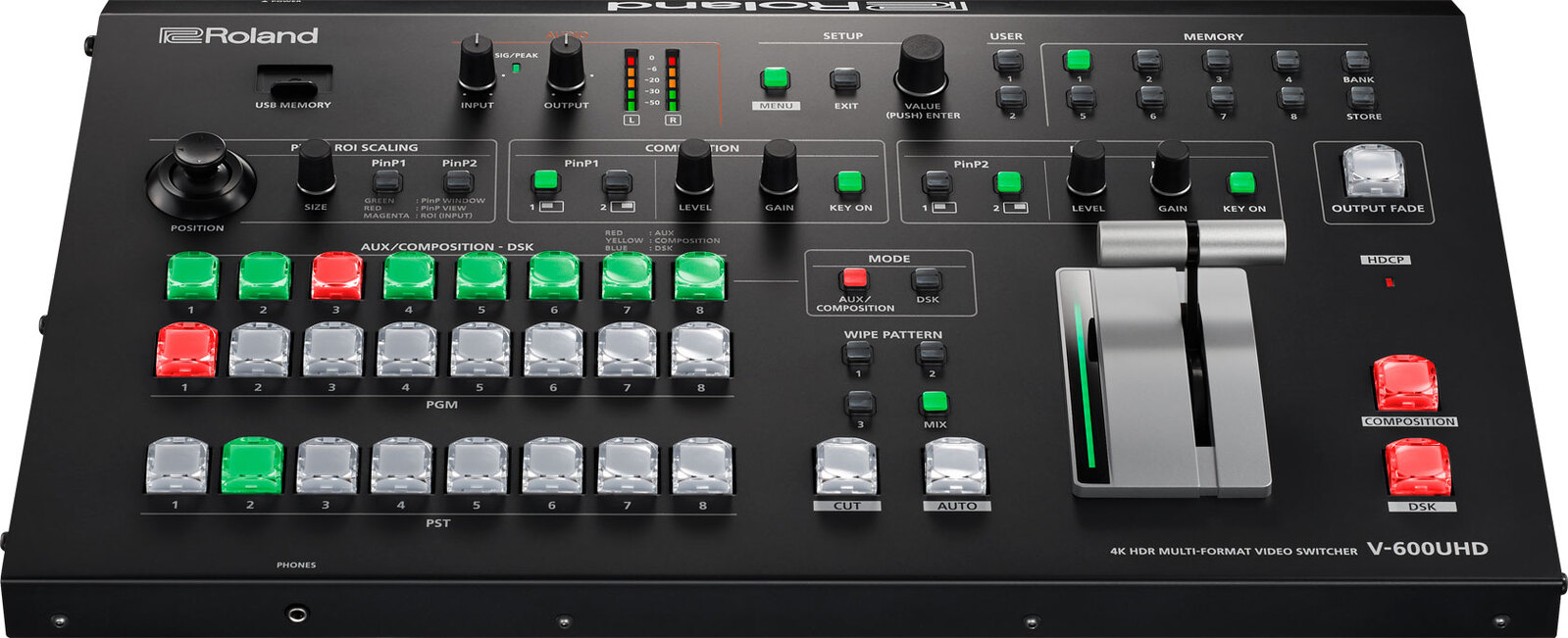

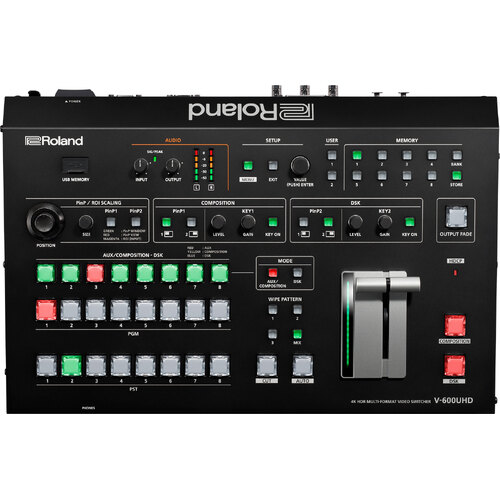

ROLAND V-600UHD 4K HDR Multi-format Video Switcher

$16,499.00
Sold Out - Backorder Available


Calculate Shipping



FREIGHT QUOTE - $20.00
Email store for cheapest freight option thanks
Free pick-up from store - $0.00
FREE PICK UP BETWEEN 10AM - 4.30PM WEEKDAYS FROM THE PRODUCTION SHOP

Video Processing
4:4:4 (Y/Pb/Pr), 10-bit

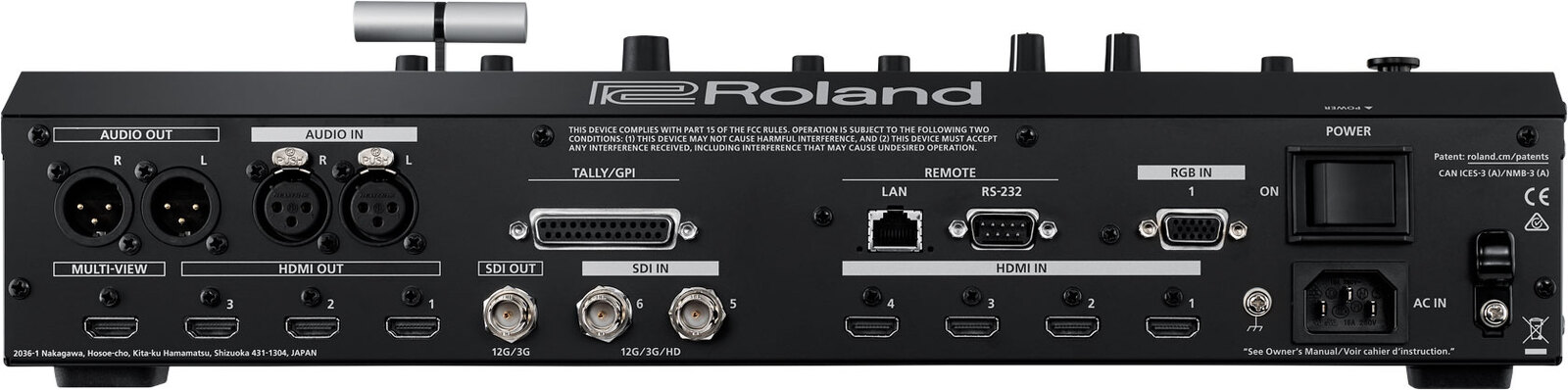

Input Connectors
HDMI IN 1--4 connectors: HDMI type A (HDMI 2.0)
SDI IN 5--6 connectors: BNC type (12G/3G/HD-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B), 292M)
RGB IN 1 connector: HD DB-15 type (Analog RGB, Select HDMI IN 1 or RGB IN 1 using menu)
Output Connectors
SDI OUTPUT connector: BNC type (12G/3G-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B))
HDMI OUT 1--3 connectors: HDMI type A (HDMI 2.0)
MULTI-VIEW connector: HDMI type A (HDMI 1.4)
Input Formats
HDMI (Video, CEA-861-F): 720/50p, 720/59.94p
HDMI (Video, CEA-861-F): 1080/50i, 1080/59.94i
HDMI (Video, CEA-861-F): 1080/50p, 1080/59.94p
HDMI (Video, CEA-861-F): 2160/50p (UHD 4K), 2160/59.94p (UHD 4K)
HDMI (Video, CEA-861-F): 2160/50p (DCI 4K), 2160/59.94p (DCI 4K)
HDMI (PC, VESA DMT): 1024 x 768/60Hz (XGA)
HDMI (PC, VESA CVT): 1280 x 768/60Hz (WXGA)
HDMI (PC, VESA DMT): 1280 x 1024/60Hz (SXGA)
HDMI (PC, VESA CVT): 1400 x 1050/60Hz (SXGA+)
HDMI (PC, VESA DMT): 1600 x 1200/60 Hz (UXGA)
HDMI (PC, CEA-861-F): 1920 x 1080/30 Hz (FHD), 1920 x 1080/60 Hz (FHD)
HDMI (PC, VESA CVT): 1920 x 1200/60 Hz (WUXGA, Reduced blanking)
HDMI (PC, CEA-861-F): 3840 x 2160/24 Hz (UHD 4K), 3840 x 2160/30 Hz (UHD 4K), 3840 x -2160/60 Hz (UHD 4K)
HDMI (PC, CEA-861-F): 4096 x 2160/24 Hz (DCI 4K), 4096 x 2160/30 Hz (DCI 4K), 4096 x -2160/60 Hz (DCI 4K)

RGB (PC, VESA DMT): 1600 x 1200/60Hz (UXGA)
RGB (PC, CEA-861-F): 1920 x 1080/60Hz (FHD)

SDI (Video, SMPTE ST274): 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
SDI (Video, SMPTE ST2036): 2160/59.94p (UHD 4K), 2160/50p (UHD 4K)
SDI (Video, SMPTE ST2048): 2160/59.94p (DCI 4K), 2160/50p (DCI 4K)

Still Image: Windows Bitmap File (.bmp), Maximum 4096 x 2160 pixels, 24-bit per pixel, uncompressed
Still Image: PNG File (.png), Maximum 4096 x 2160 pixels (*1)
*1 Alpha channel of PNG file is not loaded.
Output Formats
HDMI (Video, CEA-861-F): 1080/50p, 1080/59.94p
HDMI (Video, CEA-861-F): 2160/50p (UHD 4K), 2160/59.94p (UHD 4K)
HDMI (Video, CEA-861-F): 2160/50p (DCI 4K), 2160/59.94p (DCI 4K)
HDMI (PC, CEA-861-F): 1920 x 1080/30Hz (FHD) (*2), 1920 x 1080/60Hz (FHD)
HDMI (PC, CEA-861-F): 3840 x 2160/30Hz (UHD 4K), 3840 x 2160/60Hz (UHD 4K)
HDMI (PC, CEA-861-F): 4096 x 2160/30Hz (DCI 4K), 4096 x 2160/60Hz (DCI 4K)
*2 Available when Down Convert of HDMI OUT 1-3 is set to "Enabled".

SDI (Video, SMPTE ST274):1080/59.94p, 1080/50p
SDI (Video, SMPTE ST2036):2160/59.94p (UHD 4K), 2160/50p (UHD 4K)
SDI (Video, SMPTE ST2048):2160/59.94p (DCI 4K), 2160/50p (DCI 4K)

* Conforms to VESA DMT, VESA CVT, CEA-861-F
* Color Gamut: Rec.709, Rec.2020
* Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG
Video Effects
Transition: Mix, Cut, Wipe (9 patterns)
Composition: PinP, Key (*1), PinP + Key (*1)
DSK: PinP, Key (*1), PinP + Key (*1)
Others: Output Fade, Output Freeze, Output Capture
*1 Luminance Key, Chroma Key
AUDIO
Audio Processing
24 bits/48 kHz
Audio formats
SDI IN/OUT: Linear PCM, 24 bits/48 kHz, 16 ch (Conforms to SMPTE 299M)
HDMI IN/OUT: Linear PCM, 24 bits/48 kHz, 2 ch
Input Connectors
AUDIO IN L/R connectors: XLR-3-31 type (balanced)
Output Connectors
AUDIO OUT L/R connectors: XLR-3-32 type (balanced)
PHONES jack: Stereo miniature phone type
Nominal Input Level
AUDIO IN L/R: +4 dBu (Maximum: +24 dBu)
Input Impedance
AUDIO IN L/R: 15 k ohms
Nominal Output Level
AUDIO OUT L/R: +4 dBu (Maximum: +24 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance
AUDIO OUT L/R: 600 ohms
PHONES: 10 ohms
Audio Effects
Matrix mixer
Delay (1 ms units, max 500 ms)
Test tone output
OTHERS
Other Connectors
USB MEMORY port: USB A type (for USB flash drive)
RS-232 connector: DB-9 type (Male) (for Remote Control)
LAN port: RJ45 type, 100BASE-TX (for Remote Control)
TALLY/GPI port: DB-25 type (Female) (Tally: 16, GPI: 8)

* XLR type: 1 GND, 2 HOT, 3 COLD
Power Consumption
80 W
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions
482 (W) x 300 (D) x 109 (H) mm
19 (W) x 11-13/16 (D) x 4-5/16 (H) inches
* When rack mount angles are fitted.
Weight (excluding AC adaptor)
5.3 kg
11 lbs 11 oz
* Including rack mount angles.
Accessories
Owner's Manual
Power cord
Rack-mount angle x 2

* 0 dBu = 0.775 Vrms
* This product is a Class A digital device under FCC part 15.

(ROLV-600UHD)

SKU ROLV-600UHD
Brand ROLAND
Shipping Weight 6.3000kg
Shipping Width 0.530m
Shipping Height 0.150m
Shipping Length 0.340m
Shipping Cubic 0.027030000m3
