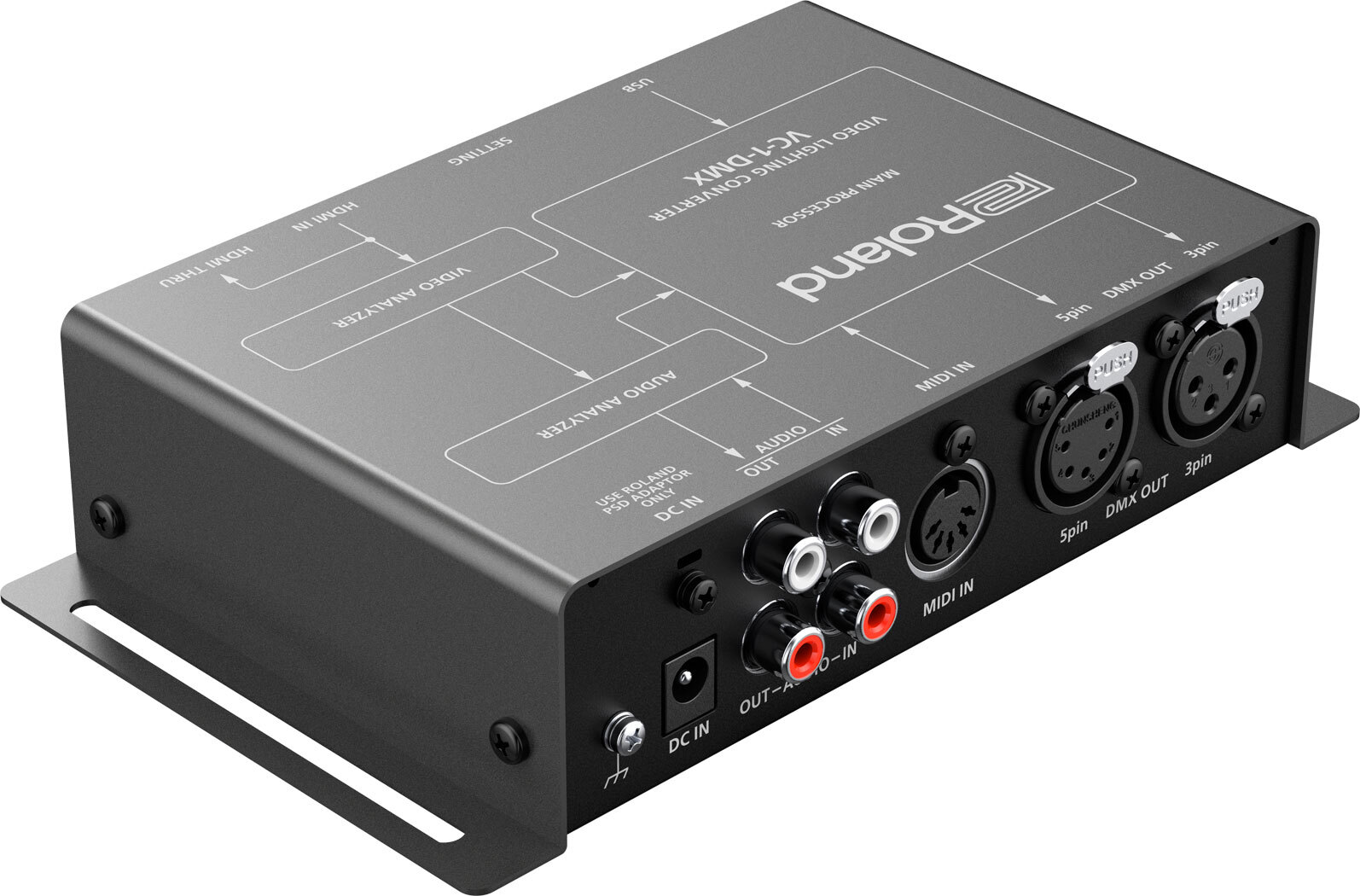

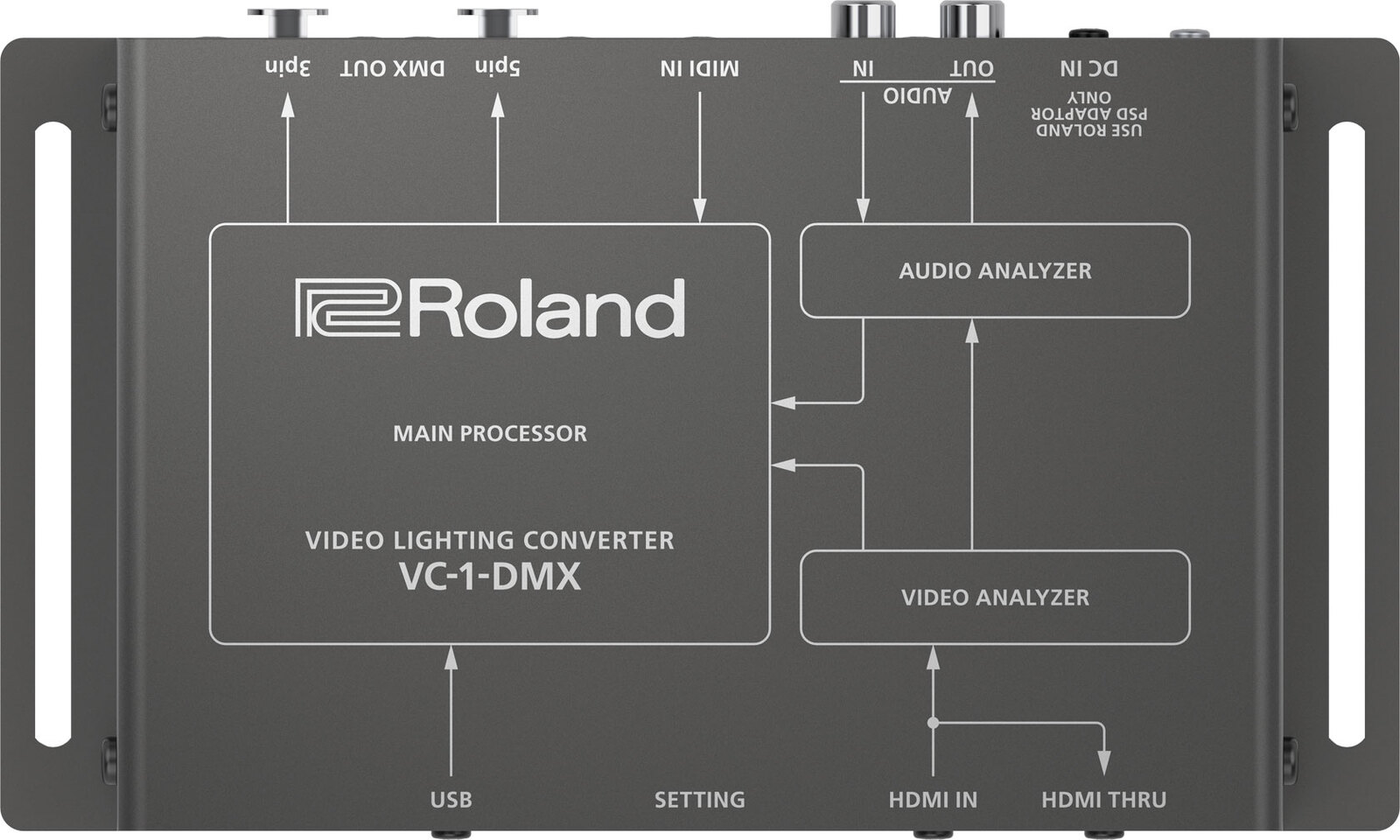

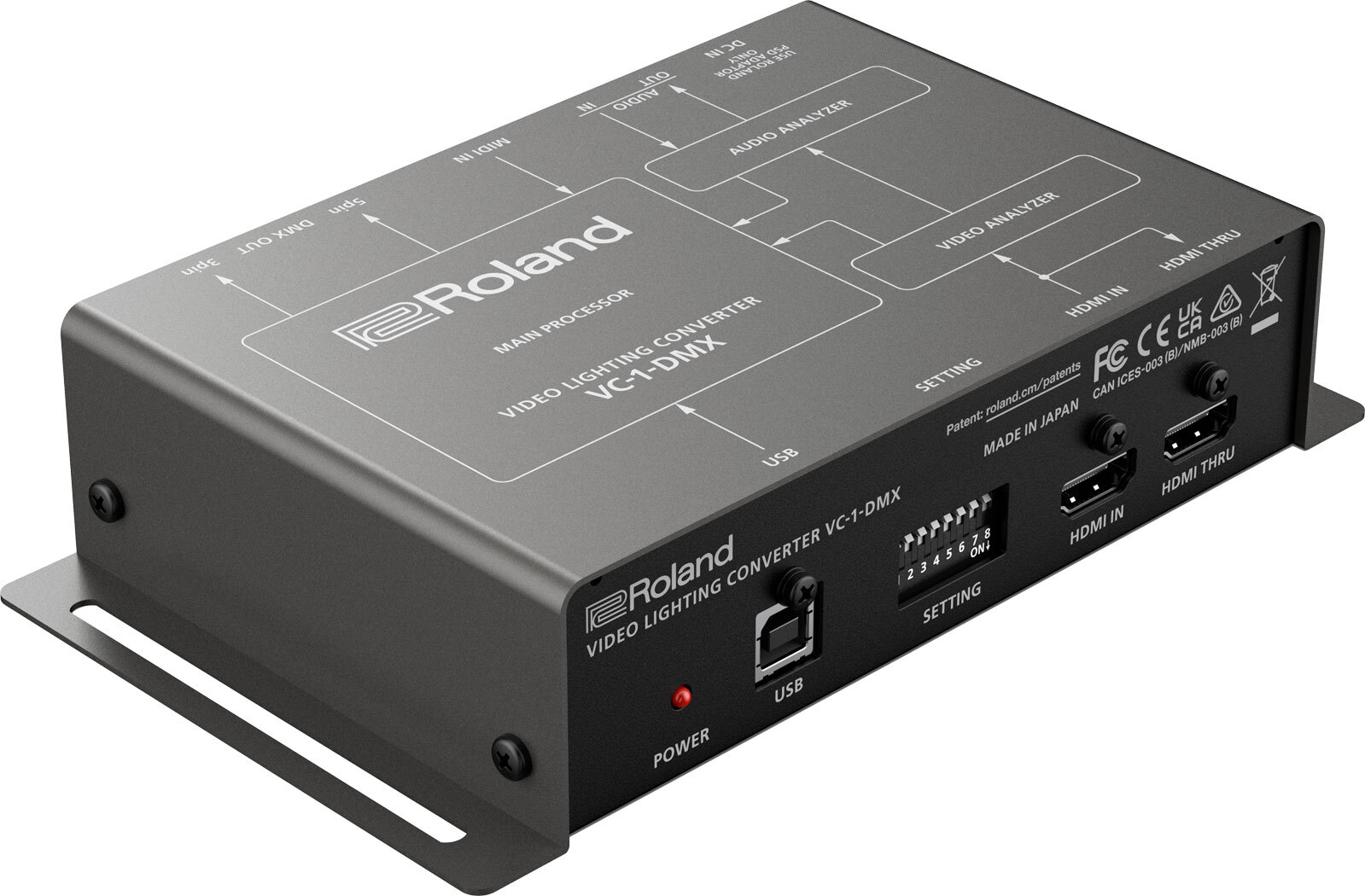

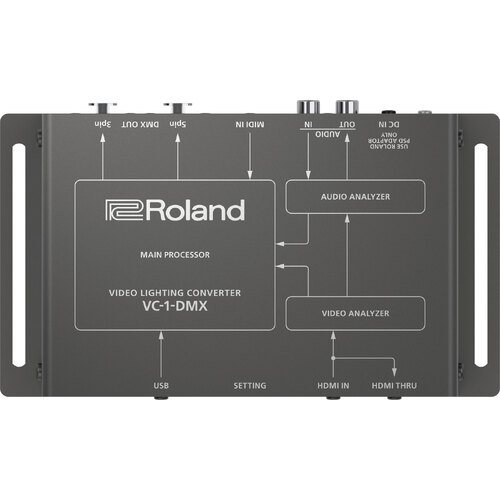

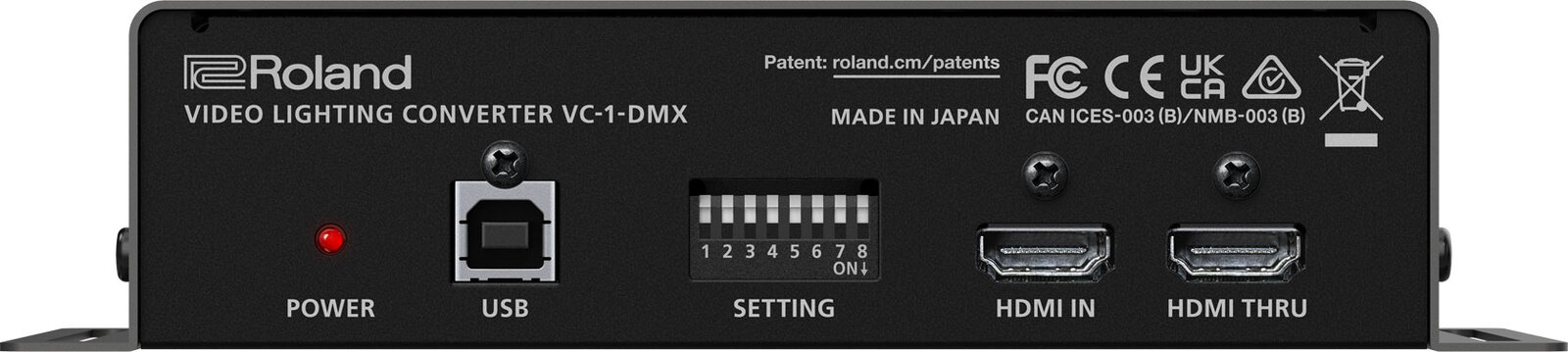

ROLAND VC-1-DMX VIDEO LIGHTING CONTROLLER
$779.00
Sold Out - Backorder Available
- Input Connector
- HDMI IN connector : HDMI type A
* HDCP Supported
* Multi-format Supported - Output Connector
- HDMI THRU connector : HDMI type A
- Video Formats
- 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p,
720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p,
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz),
HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz),
FWXGA (1366 x 768/ 60 Hz), SXGA+ (1400 x 1050/60 Hz),
UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11. - AUDIO
- Input Connectors
- AUDIO IN jacks : RCA phono type
HDMI IN connector : HDMI type A - Output Connectors
- AUDIO OUT jacks : RCA phono type
HDMI THRU connector : HDMI type A - Digital Audio Format
- Linear PCM, 48 kHz, 24 bits, stereo
- Audio Processing
- Sample rate : 48 kHz, 24 bits
- Nominal Input Level
- AUDIO IN jacks : -10 dBu (Maximum input level : +8 dBu)
- Nominal Output Level
- AUDIO OUT jacks : -10 dBu (Maximum input level : +8 dBu)
- Input Impedance
- AUDIO IN jacks : 15 k ohms
- Output Impedance
- AUDIO OUT jacks : 1 k ohms

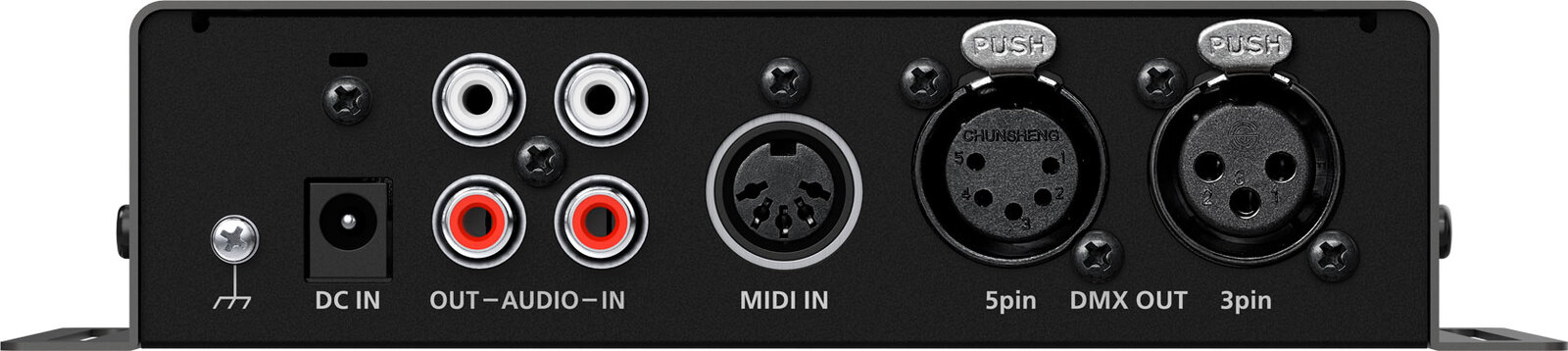

- DMX
- Output Connectors
- DMX OUT 3 pin jack : XLR type (3 pins)
DMX OUT 5 pin jack : XLR type (5 pins) - DMX channel
- 512 channels (1 universe)
- OTHERS
- Control Terminal
- MIDI IN jack
USB port - Switches
- SETTING switch : 8 terminals
- Indicator
- POWER indicator
- Functions
- Video Synchronized Lighting Control
Audio Synchronized Lighting Control
MIDI Synchronized Lighting Control
Lighting Speed Control
HDMI Audio De-embedder - Power Supply
- AC Adaptor
- Current Draw
- 1,000 mA
- Current Consumption
- 5.7 W
- Operation Temperature
- +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit - Dimensions
- 180 (W) x 115 (D) x 41 (H) mm
7-1/8 (W) x 4-9/16 (D) x 1-5/8 (H) inches - Weight (excluding AC adaptor)
- 570 g
1 lb 5 oz - Accessories
- Leaflet "USING THE UNIT SAFELY"
Owner's Manual
AC Adaptor
Plug Holder
Rubber Feet
(ROLVC-1-DMX)
| SKU | ROLVC-1-DMX |
| Brand | ROLAND |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.210m |
| Shipping Height | 0.100m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.003150000m3 |
