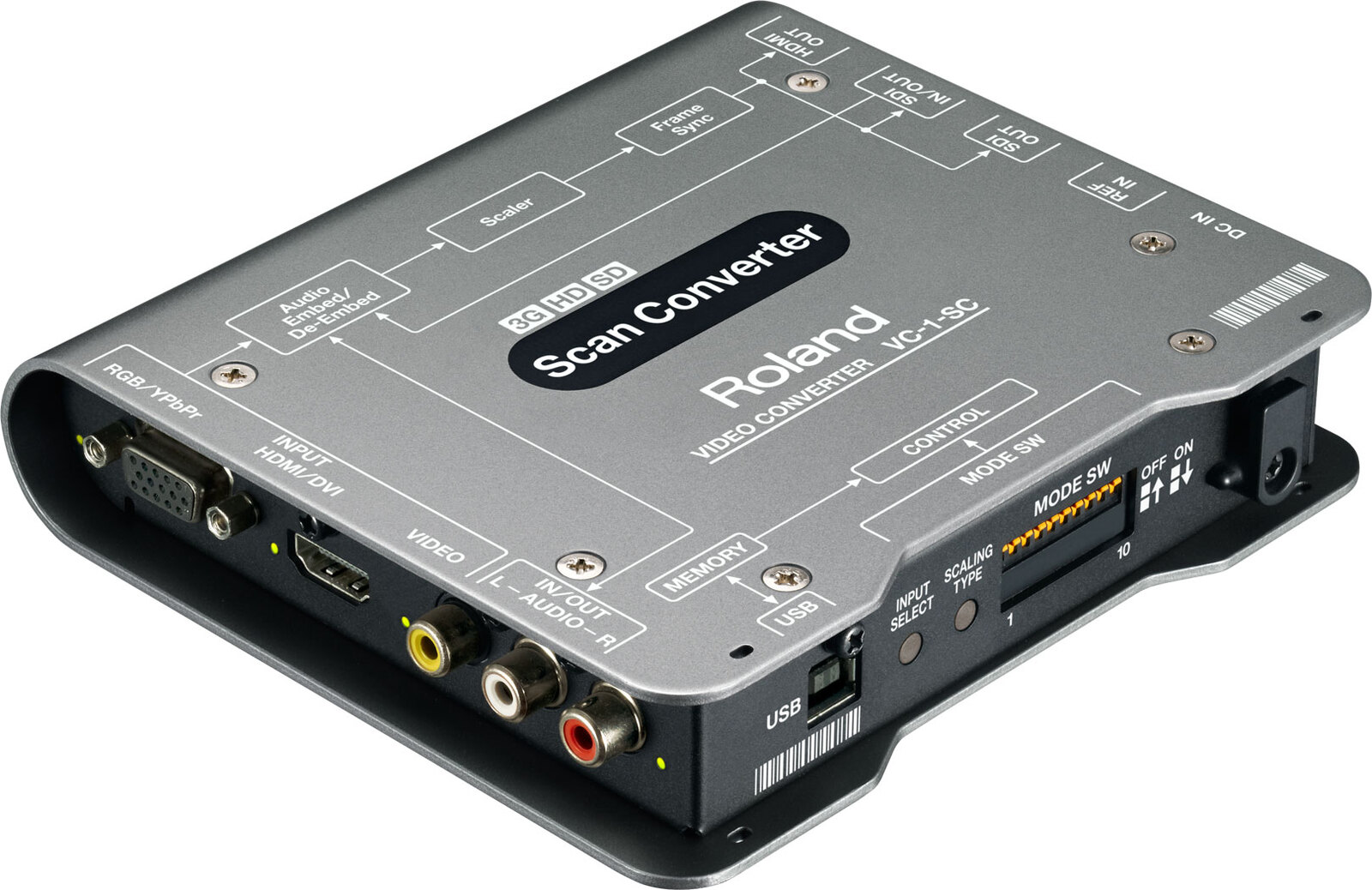

ROLAND VC-1-SC VIDEO CONVERTER

$1,549.00
Sold Out - Backorder Available


Calculate Shipping



PICK UP FROM STORE - $0.00
FREE PICK UP BETWEEN 10AM - 4.30PM WEEKDAYS FROM THE PRODUCTION SHOP

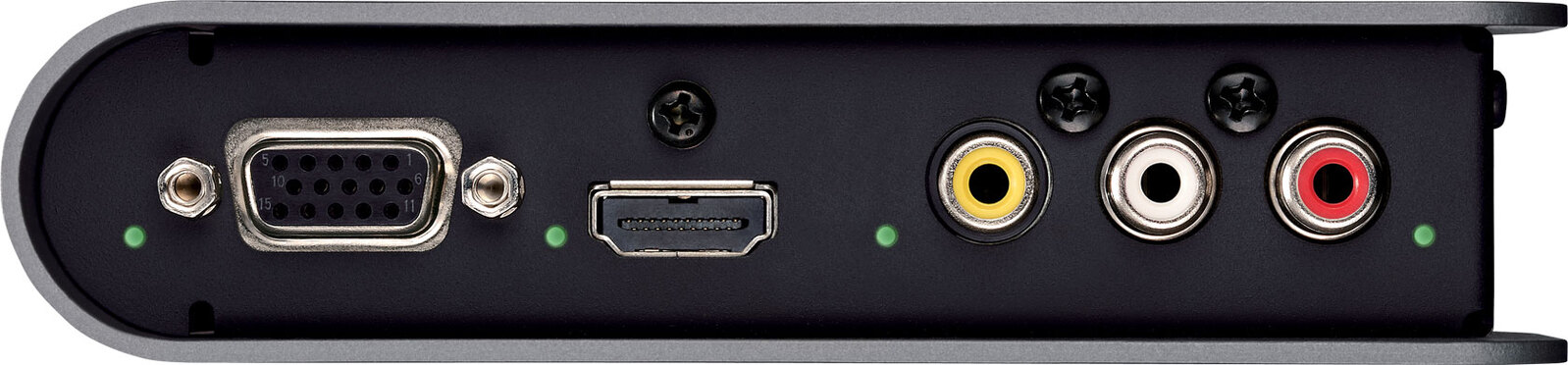

INPUT CONNECTORS
SDI
Connector: BNC type x 1 (Combined use with SDI Out Connector)
Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
HDMI
Connector: Type A (19 pins) x 1
Signal Standard: HDMI HDCP support (When an HDCP-applied signal is input, output from the SDI OUT connector is stopped)
RGB/Component
Connector: HD DB-15 type x 1
Signal Level: 1.0Vp-p (Y signal), 0.7Vp-p (R/G/B/Pb/Pr signals), 5VTTL (H/V signals)
Impedance: 75 ohms
Composite
Connector: BNC type x 1
Signal Level: 1.0 Vp-p (Y signal), 0.286 V-p (C signal (NTSC)), 0.3 V-p (C signal (PAL))
Impedance: 75 ohms
Analog Audio
Connector: RCA phono type x 1 pair (L/R) (Combined use with Analog Audio Out Connector)
Input Level: -6dBV
Maximum Input Level: +6dBV
Impedance: 22 k ohms
Reference
Connector: BNC type x 1
Impedance: 75 ohms
Signal Format: Black Burst, Bi-level, Tri-level

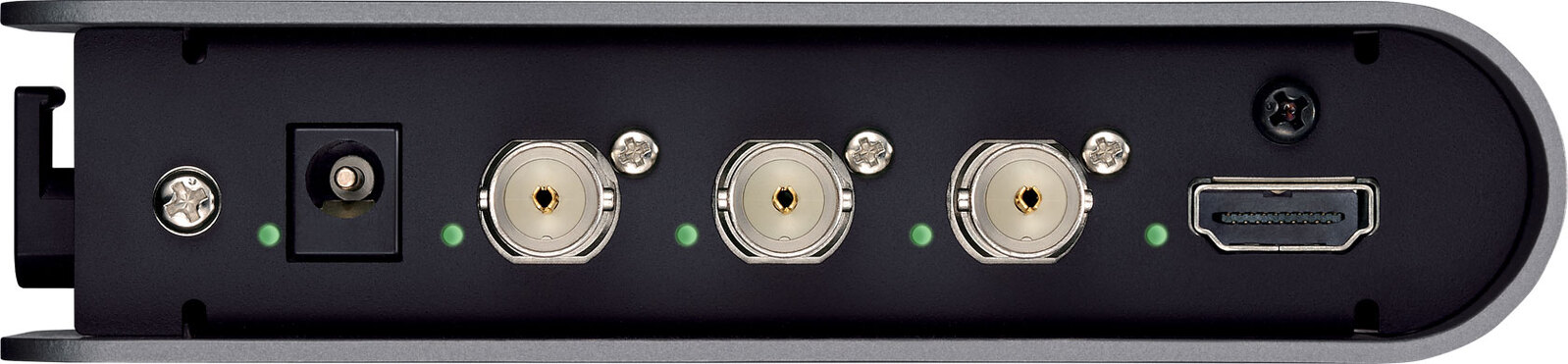

OUTPUT CONNECTORS
SDI
Connector: BNC type x 2 (One is Combined with SDI In Connector)
Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
HDMI
Connector: Type A (19 pins) x 1
Signal Standards: HDMI HDCP support
Analog Audio
Connector: RCA phono type x 1 pair (L/R) (Combined use with Analog Audio In Connector)
Input Level: -6dBV
Maximum Output Level: +6dBV
Impedance: 2.2 k ohms
INPUT FORMATS
SDI
Connector: BNC type x 1 (Combined use with SDI Out Connector)
Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
Video Formats: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i
1920x1080/30PsF/29.97PsF/25PsF/24PsF/23.98PsF (Conforms to SMPTE 274M)
1280x720/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p (Conforms to SMPTE 296M)
720x480/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5)
Color Format: 10 bits YCC 4:2:2
Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
*When frame synchronizer is engaged, CH 3-8 of HDMI and CH 3-16 of SDI audio output are not available.
HDMI
Video Formats: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i
1280x720/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
720x480/59.94p/59.94i, 720x576/50p/50i (Conforms to CEA-861-E)
PC Formats: 640x480/60/72/75/85Hz, 800x600/56/60/72/75/85Hz, 1024x768/60/70/75/85Hz, 1280x768/60/75/85/Hz, 1360x768/60Hz, 1152x864/75Hz, 1400x900/60/75/85Hz, 1280x960/60/85Hz, 1280x1024/60/75/85Hz, 1400x1050/60/75Hz, 1680x1050/60Hz, 1600x1200/60Hz, 1920x1200/60Hz Reduced blanking (Conforms to VESA DMT Version 1.0 Revision 11)
Color Format: 10 bits YCC 4:2:2, 8 bits YCC 4:4:4, 8 bits RGB 4:4:4
Audio Format: Linear PCM, 24 bits, 48 kHz, 8 ch
RGB/Component
Video Formats: 1920x1080/60p/59.94p/50p/60i/59.94i/50i/24PsF/23.98PsF (Conforms to SMPTE 274M)
1280x720/60p/59.94p/50p (Conforms to SMPTE 296M)
720x480/59.94p/59.94i, 720x576/50p/50i
PC Formats: 640x480/60/72/75/85Hz, 800x600/56/60/72/75/85Hz, 1024x768/60/70/75/85Hz, 1280x720/60Hz, 1280x768/60/75/85/Hz, 1360x768/60Hz, 1152x864/75Hz, 1400x900/60/75/85Hz, 1280x960/60/85Hz, 1280x1024/60/75/85Hz, 1400x1050/60/75Hz, 1680x1050/60Hz, 1600x1200/60Hz, 1920x1080/60Hz, 1920x1200/60Hz Reduced blanking (Conforms to VESA DMT Version 1.0 Revision 11)
Composite
Video Formats: NTSC, PAL

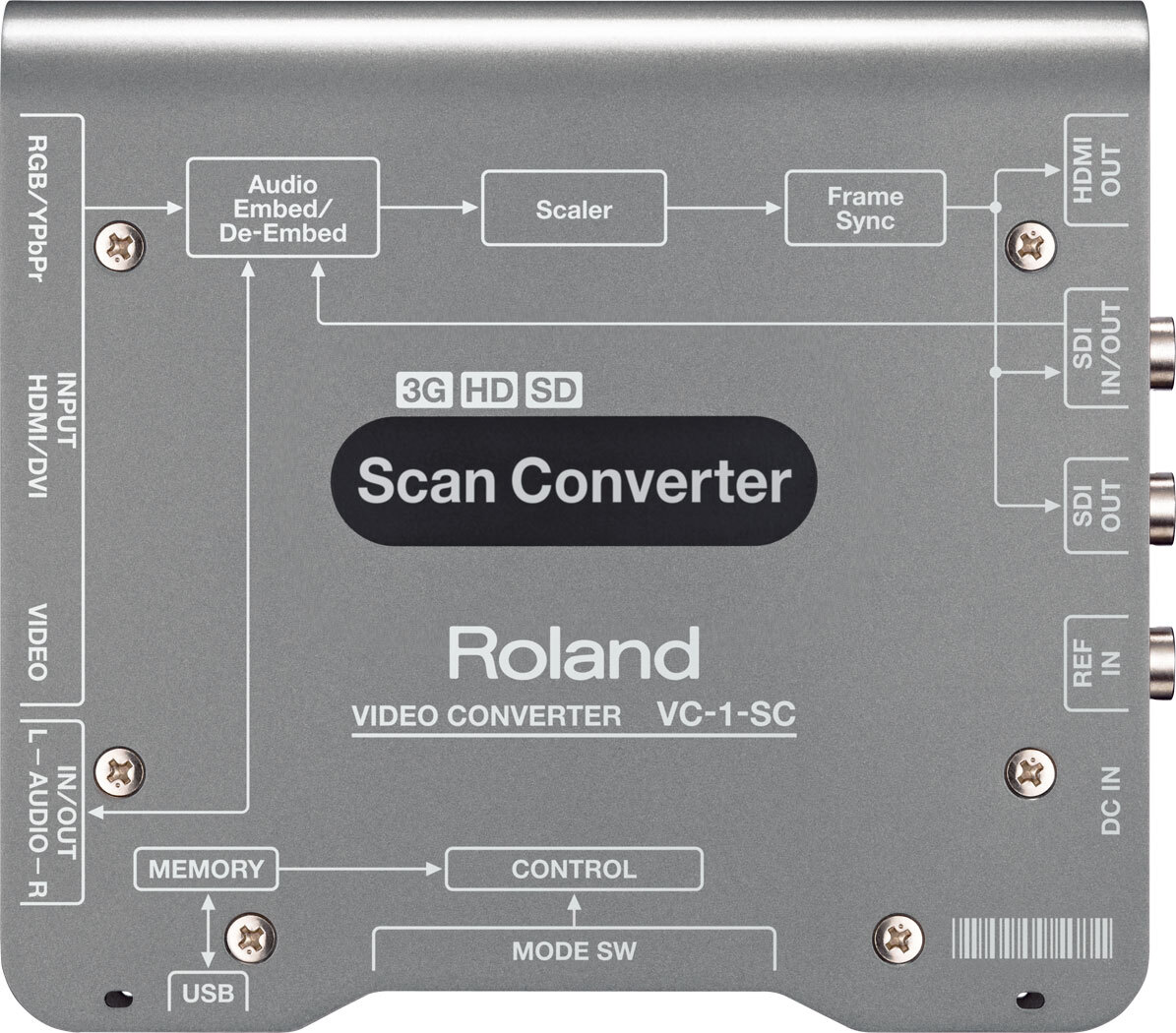

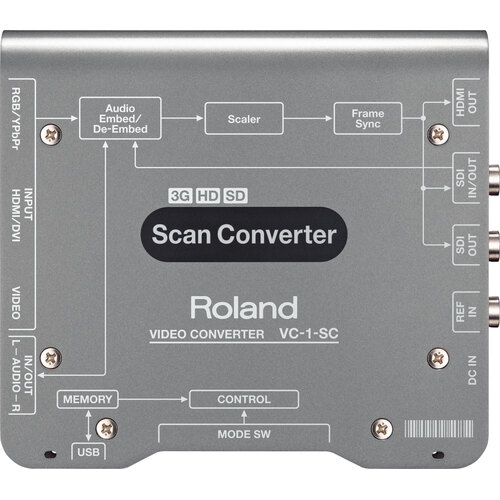

PROCESSING
Audio Embed/De-embed
2ch
Frame Synchronizer
Frame sync is activated when a reference signal is detected. When frame synchronizer is engaged, CH 3-8 of HDMI and CH 3-16 of SDI audio output are not available.
Resolution Conversion
Selectable Full/LetterBox/Crop/Dot-by-Dot Type
Frame Rate Conversion
Frame Skip/Repeat Type
OTHERS

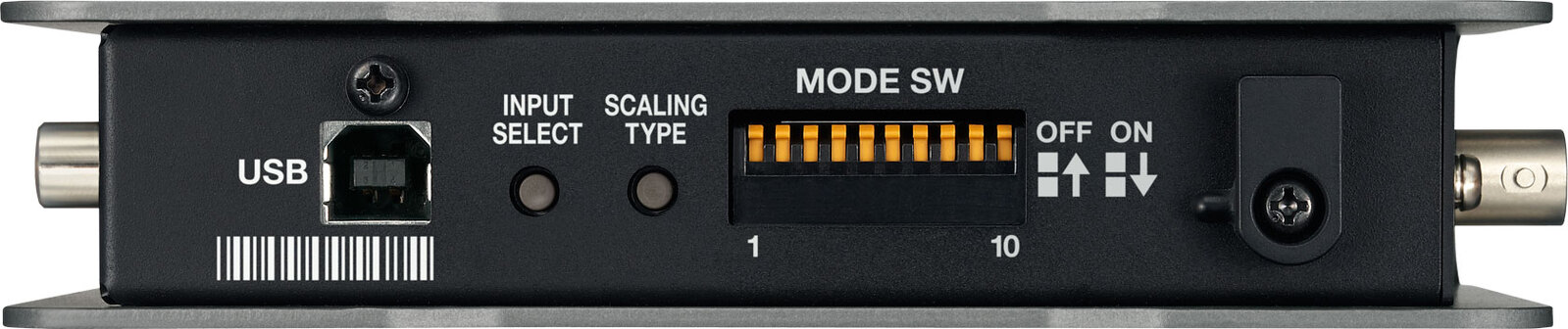

USB
USB Type B (Hi-Speed USB) x 1
Power Supply
DC 9 V (AC Adaptor)
Operation Temperature
+0--+40 degrees Celsius +41--+104 degrees Fahrenheit
Accessories
AC adaptor Power Cord Rubber Foot x 4 Owner's Manual
SIZE AND WEIGHT
Width
150 mm
5-15/16 inches
Depth
130 mm
5-1/8 inches
Height
30 mm
1-3/16 inches
Weight
500 g
1 lbs. 2 oz.

(ROLVC-1-SC)

SKU ROLVC-1-SC
Brand ROLAND
Shipping Weight 1.0000kg
Shipping Width 0.180m
Shipping Height 0.070m
Shipping Length 0.160m
Shipping Cubic 0.002016000m3
