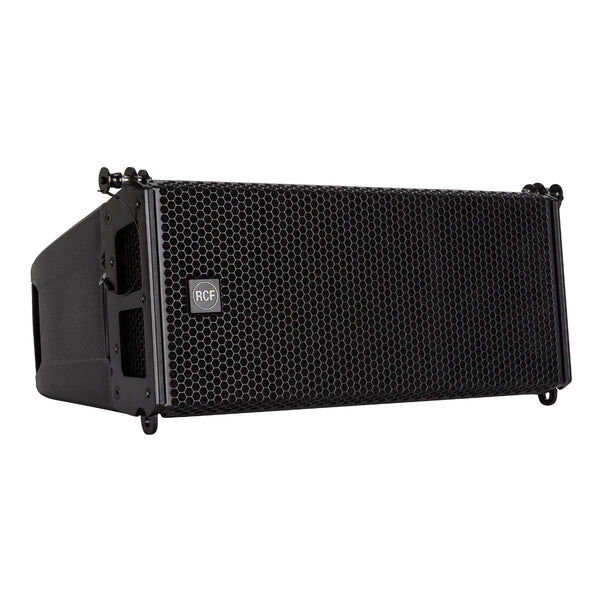

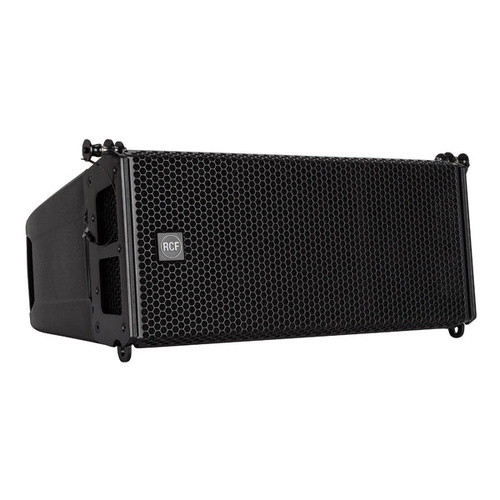

RCF HDL 6-A ACTIVE LINE ARRAY MODULE

Description

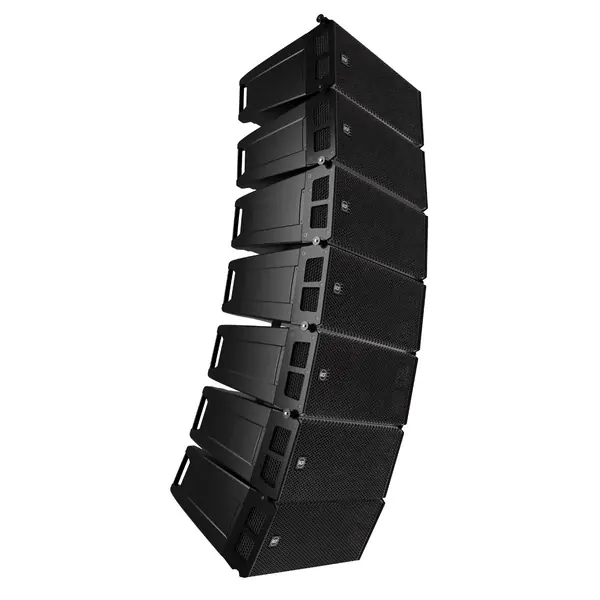

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic. The HDL 12-AS is the ideal flyable bass complement for the HDL 6-A array system.

• 1400 W, two-way amplification
• 131 dB max SPL
• 1.7" voice coil neodymium compression driver
• 2 x high power neodymium 6.0"woofers
• 48 kHz, 32 bit floating point DSP processing
• Symmetrical design
• Extremely low weight
• FiRPHASE processing.

SPECIFICATIONS

FREQUENCY RESPONSE: 65 Hz ÷ 20000 Hz

MAX SPL @ 1M: 131 dB

HORIZONTAL COVERAGE ANGLE: 100°

VERTICAL COVERAGE ANGLE: 10°

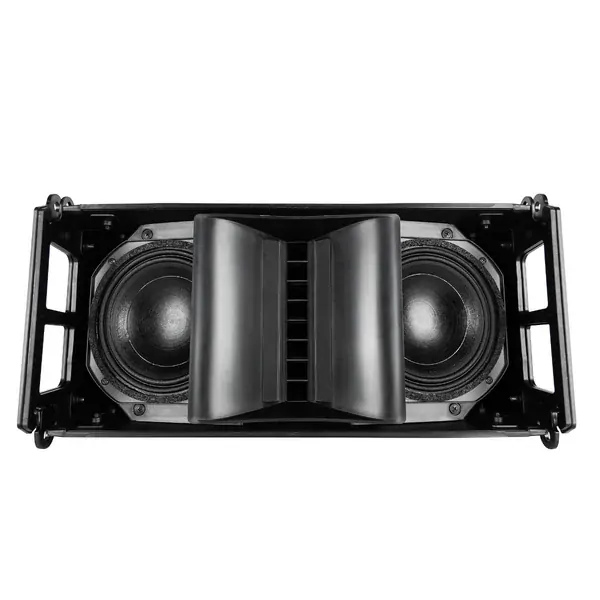

Transducers

COMPRESSION DRIVER: 1 x 1.0'' neo, 1.75'' v.c

WOOFER: 2 x 6.0'' neo, 2.0'' v.c

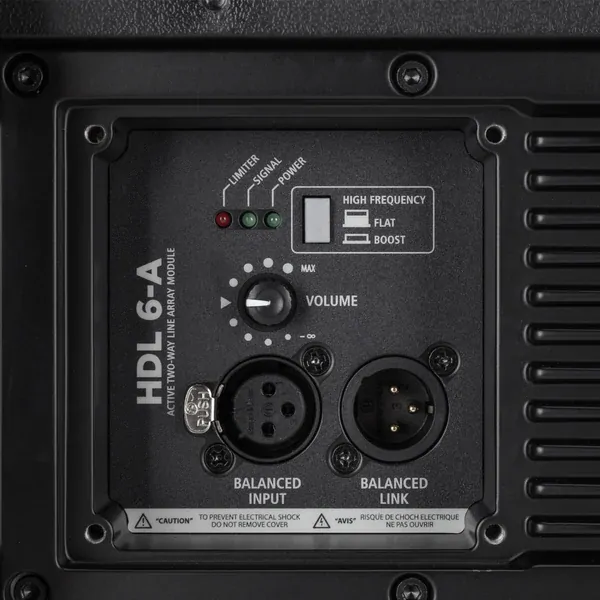

Input/Output section

INPUT SIGNAL: bal/unbal

INPUT CONNECTORS: XLR

OUTPUT CONNECTORS: XLR

INPUT SENSITIVITY: +4 dBu

Processor section

CROSSOVER FREQUENCIES: 900 Hz

PROTECTIONS: Thermal, RMS

LIMITER: Soft Limiter

CONTROLS: HF correction

Power section

TOTAL POWER: 1400 W Peak, 700 W RMS

HIGH FREQUENCIES: 400 W Peak, 200 W RMS

LOW FREQUENCIES: 1000 W Peak, 500 W RMS

COOLING: Convection

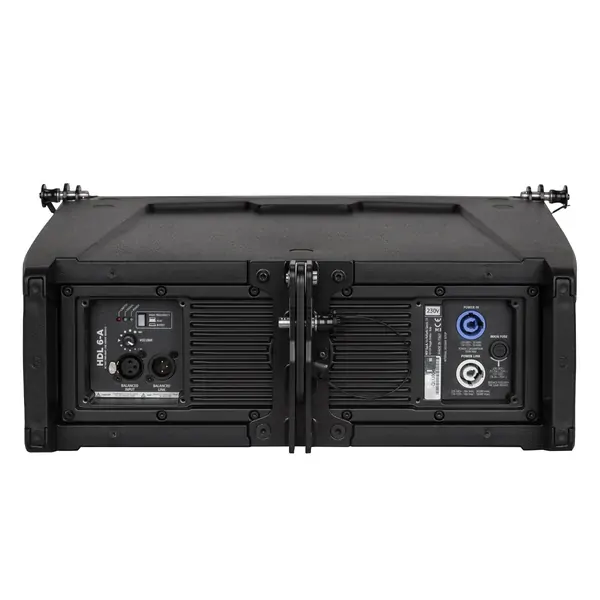

CONNECTIONS: Powercon IN/OUT

Standard compliance

CABINET/CASE MATERIAL: PP Composite

HARDWARE: Array fittings

HANDLES: 2 Back

GRILLE: Steel

COLOR: Black, White

Size

HEIGHT: 237 mm / 9.33 inches

WIDTH: 470 mm / 18.5 inches

DEPTH: 377 mm / 14.84 inches

WEIGHT: 11.6 kg / 25.57 lbs

Shipping informations

PACKAGE HEIGHT: 260 mm / 10.24 inches

PACKAGE WIDTH: 550 mm / 21.65 inches

PACKAGE DEPTH: 425 mm / 16.73 inches

PACKAGE WEIGHT: 13 kg / 28.66 lbs
