RCF HDL 26-A ACTIVE TWO WAY LINE ARRAY MODULE

Description

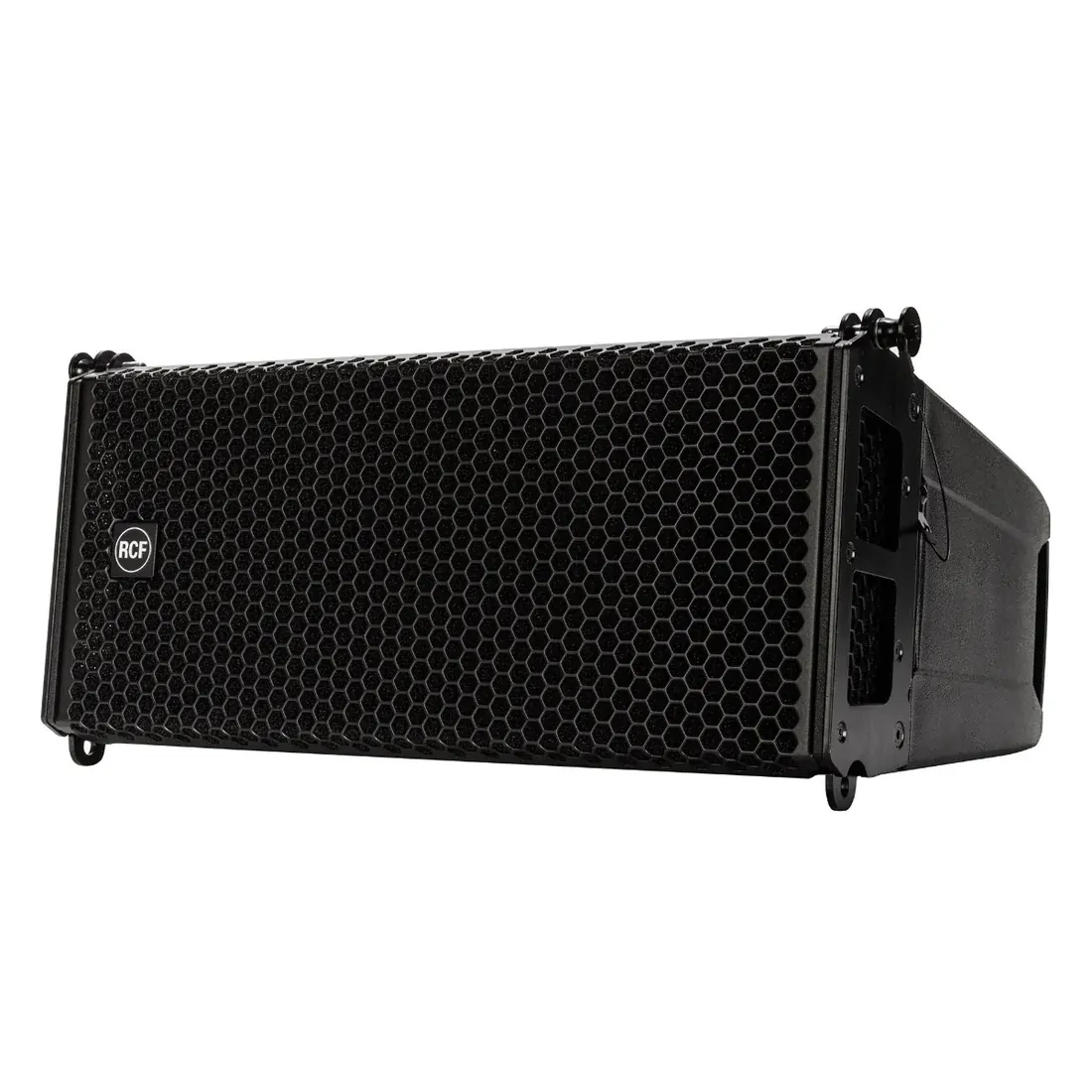

The RCF HDL26-A is an ultra-compact bi-amped two-way active touring system for small and medium-sized events, both indoors and outdoors. Due to the advanced transducer design and the 2000W Class-D amplifier, among the best in its class, it is capable of an extended bottom-end and a pristine sound for a wide range of applications, alone or in RDNet managed line-array configurations. The HDL 35-AS is the ideal flyable bass complement for the HDL 26-A array system.

FEATURES

• 133 dB Max SPL
• 2000W Two-Way Amplifier
• Exclusive FiRPHASE technology on-board
• 750 Hz Crossover for best vocal reproduction
• RDNet Networked Management
• 3.0” VC Compression Driver
• 2 x 6” High-Powered Neodymium Woofers
• 4 PATH waveguide.

The RCF HDL 26-A features state-of-the-art RCF transducers with neodymium magnets. RCF’s experienced engineering teams have specially developed and matched each component — starting from the power supply through the input board to the amplifiers and transducers right up to the complete HDL 26-A System.

High frequencies

• High-performance RCF ND840
• 3.0-inch diaphragm titanium compression driver
• 1.4-inch exit throat
• 750 Hz Crossover Point

Low frequencies

• 2 X 2.0” voice coil neodymium 6” woofers
• Low frequencies handling down to 55 Hz
• Water resistant fiber doped cone
• Polycotton M-roll surround
• Hypervented magnetic structure.
