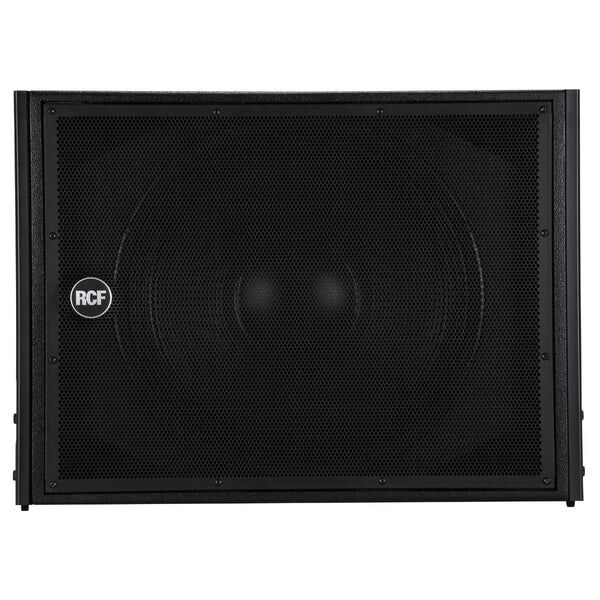

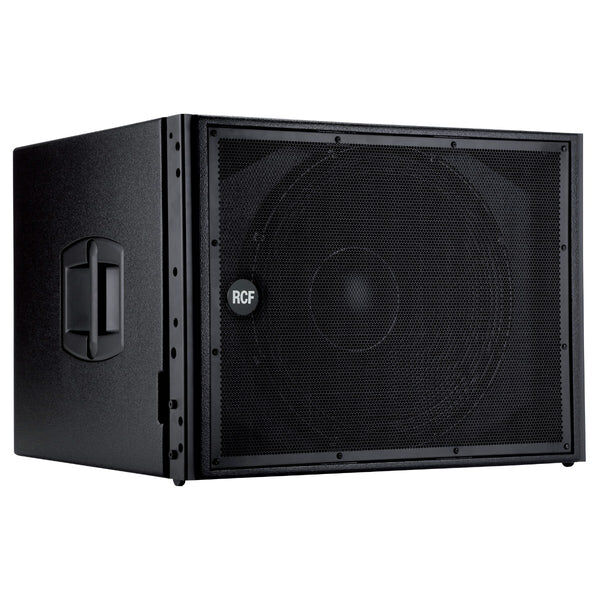

RCF HDL 18-AS ACTIVE FLYABLE HIGH POWER SUBWOOFER

Description

The HDL18-AS is a compact, flyable high power subwoofer, designed to integrate seemlessly into a HDL 20-A flown array. The bass reflex design guarantees a deep, linear power response while the 4” voice coil vented design woofer offers the minimum of power compression. The system provides integrated mechanics compatible with the HDL 20-A array module.

• 2000 Watt Peak power - 1000 Watt RMS
• 135 dB max SPL
• 30 Hz - 140 Hz frequency response
• 1 x 18" Woofer
• DSP controlled Input section with selectable presets
• Tour grade safe and solid variable mechanics, compatible with HDL 20-A
• Designed to compliment the HDL 20-A speaker system
• Baltic birch tour grade cabinet



SPECIFICATIONS

Acoustical specifications



FREQUENCY RESPONSE: 30 Hz ÷ 140 Hz



MAX SPL @ 1M: 135 dB



Transducers

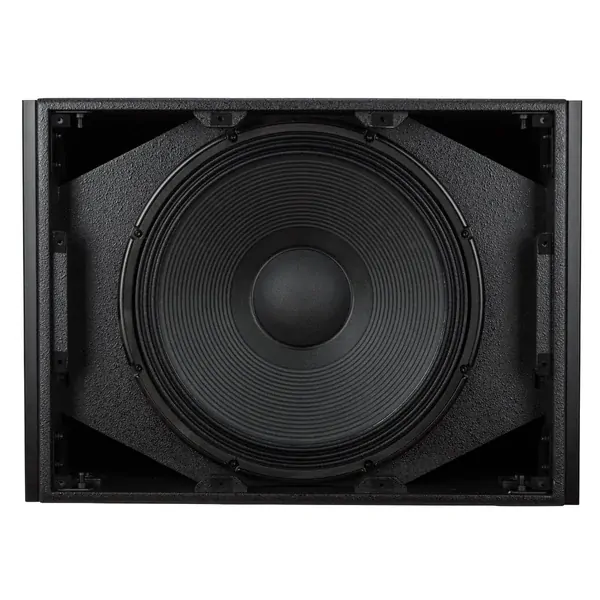

WOOFER: 18'', 4.0'' v.c

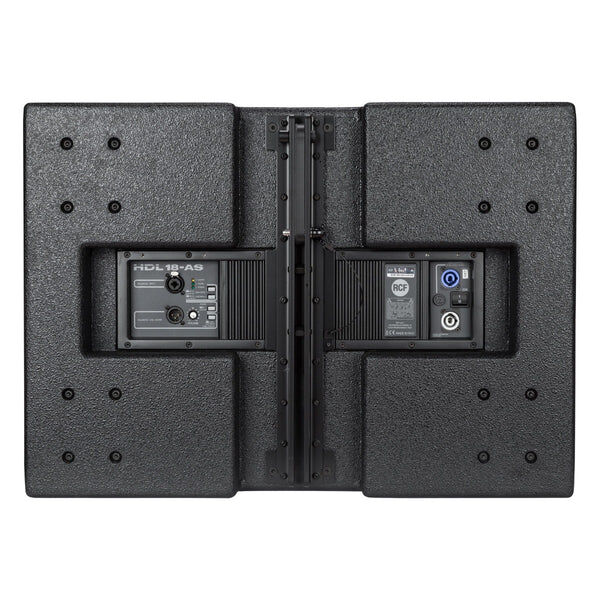

Input/Output section



INPUT SIGNAL: bal/unbal



INPUT CONNECTORS: XLR



OUTPUT CONNECTORS: XLR



INPUT SENSITIVITY: -2 dBu/+4 dBu



Processor section



HI-PASS FREQUENCIES: 30Hz, 45Hz



LOW-PASS FREQUENCIES: 90Hz, 140Hz



PROTECTIONS: Thermal, RMS



LIMITER: Soft Limiter



CONTROLS: Volume, EQ shape, Xover



Power section



TOTAL POWER: 2000 W Peak, 1000 W RMS



LOW FREQUENCIES: 2000 W Peak, 1000 W RMS



COOLING: Convection/Forced

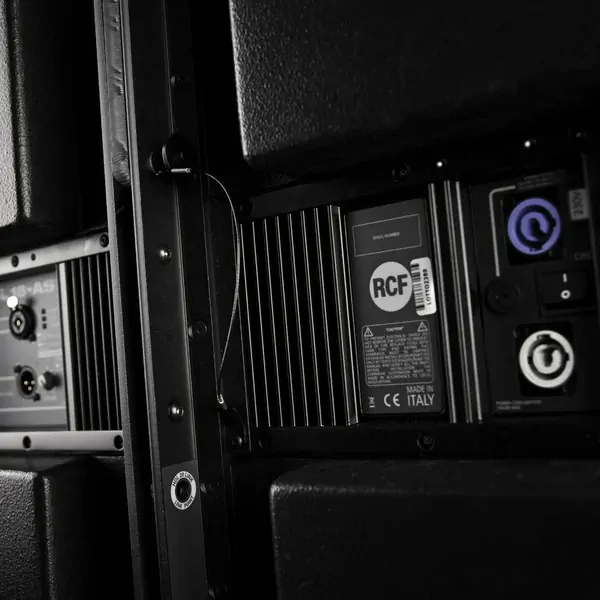

CONNECTIONS: Powercon IN/OUT



Physical specifications



CABINET/CASE MATERIAL: Baltic birch plywood



HARDWARE: Rigging flyware, M20 insert



HANDLES: 2 side



GRILLE: Steel



COLOR: Black



Size



HEIGHT: 512 mm / 20.16 inches



WIDTH: 700 mm / 27.56 inches



DEPTH: 620 mm / 24.41 inches



WEIGHT: 53 kg / 116.84 lbs



Shipping informations



PACKAGE HEIGHT: 639 mm / 25.16 inches



PACKAGE WIDTH: 814 mm / 32.05 inches



PACKAGE DEPTH: 734 mm / 28.9 inches



PACKAGE WEIGHT: 60.2 kg / 132.72 lbs
