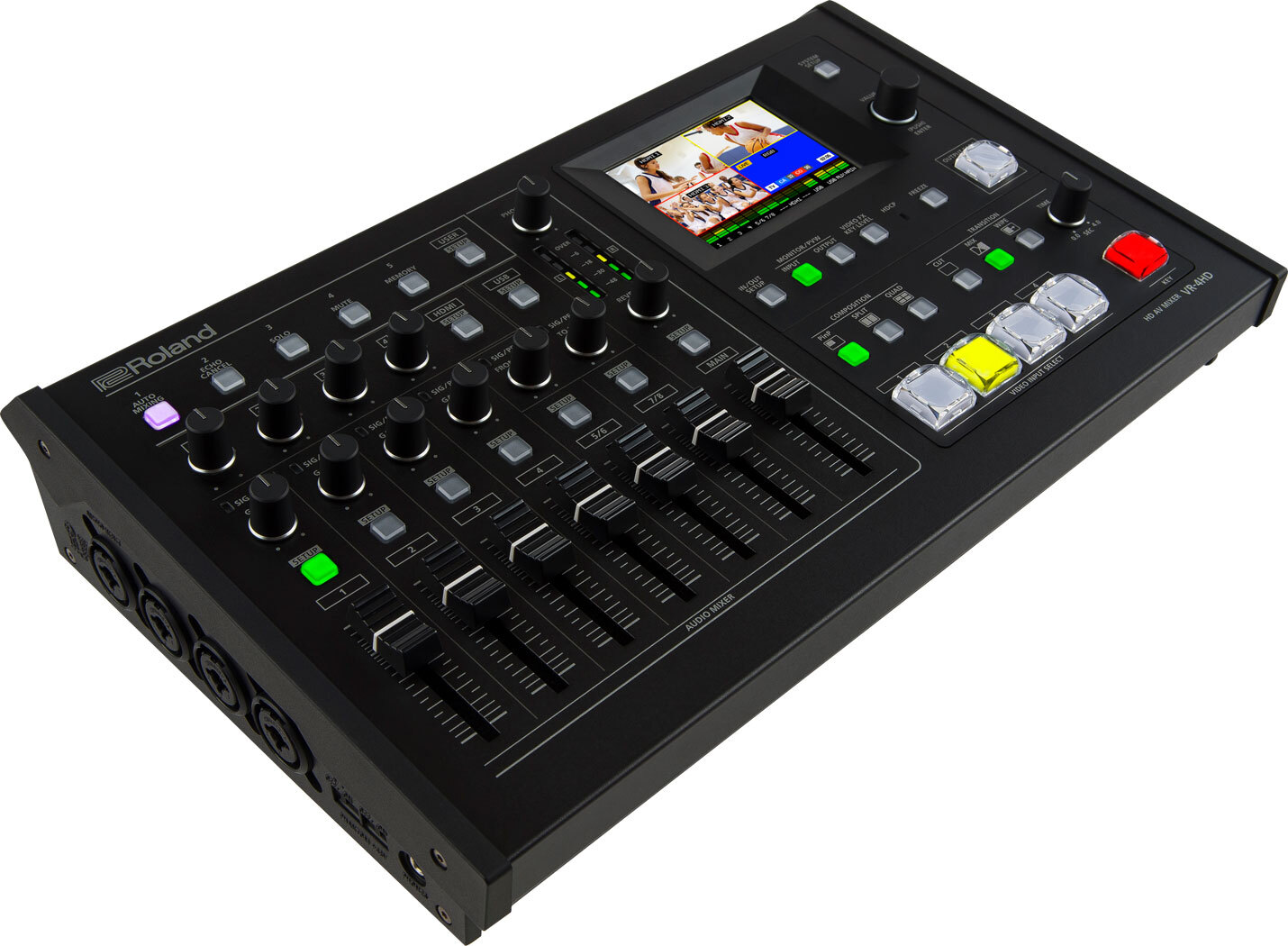

- All-in-one portable production solution

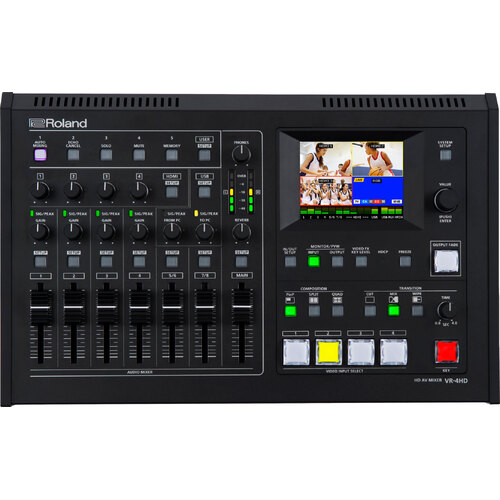

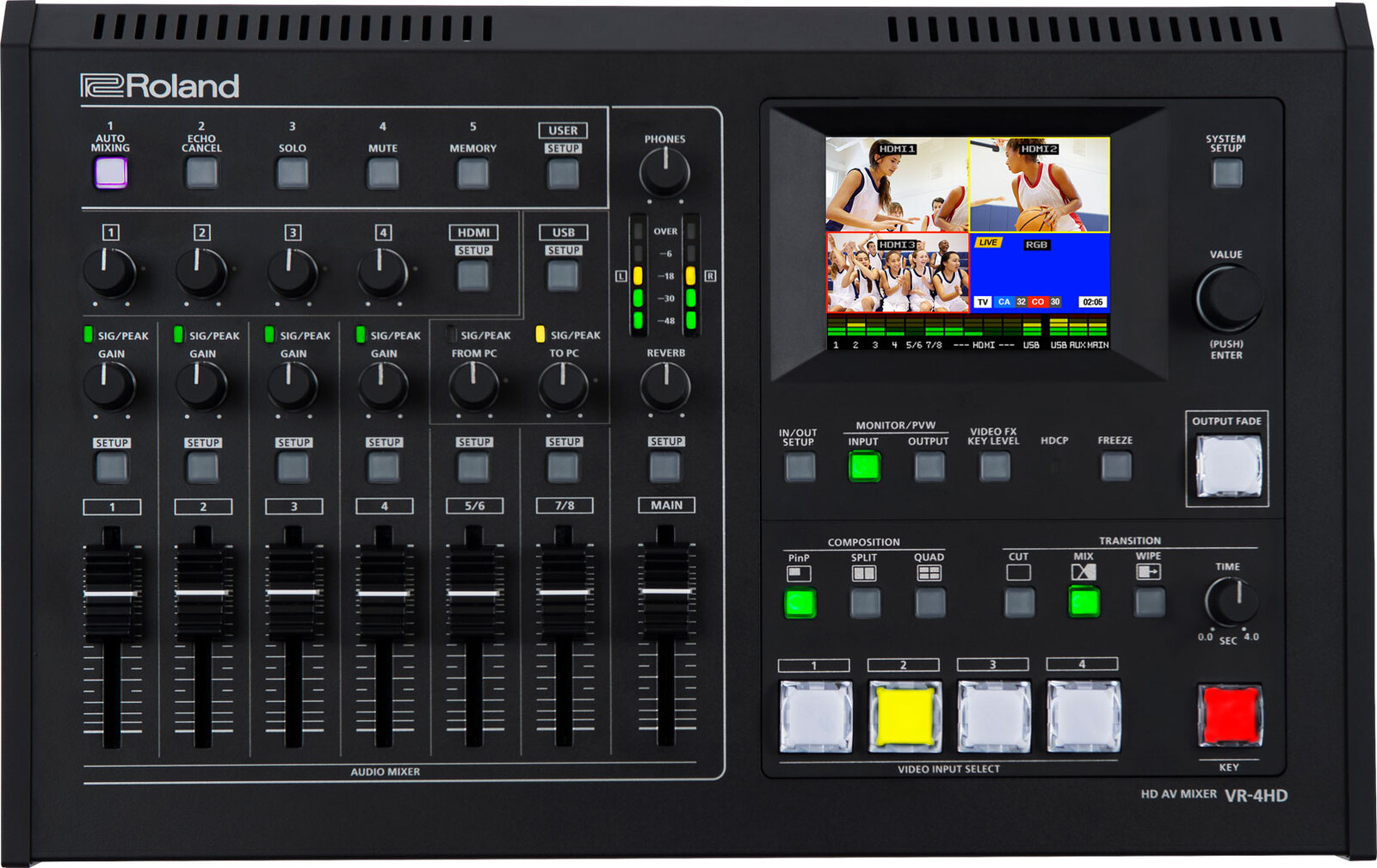

- Easy to use with dedicated hardware controls and audio faders and integrated touch screen preview monitor
- 6 input, 4-Channel Video Switcher

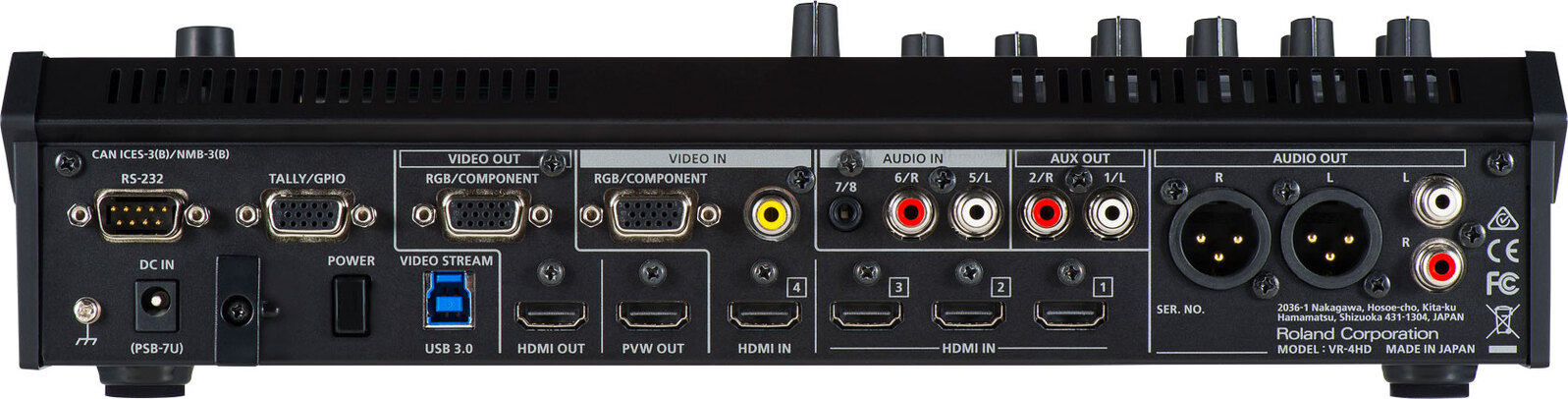

- Supports HDMI*1, RGB/Component, and Composite Video Inputs Up to 1080p
- Input 4’s scaler now supports a wider range of video and VESA resolutions.*1 *2
- Built-in Scaler via CH4
- Automatic switching modes [Ver.2.0]

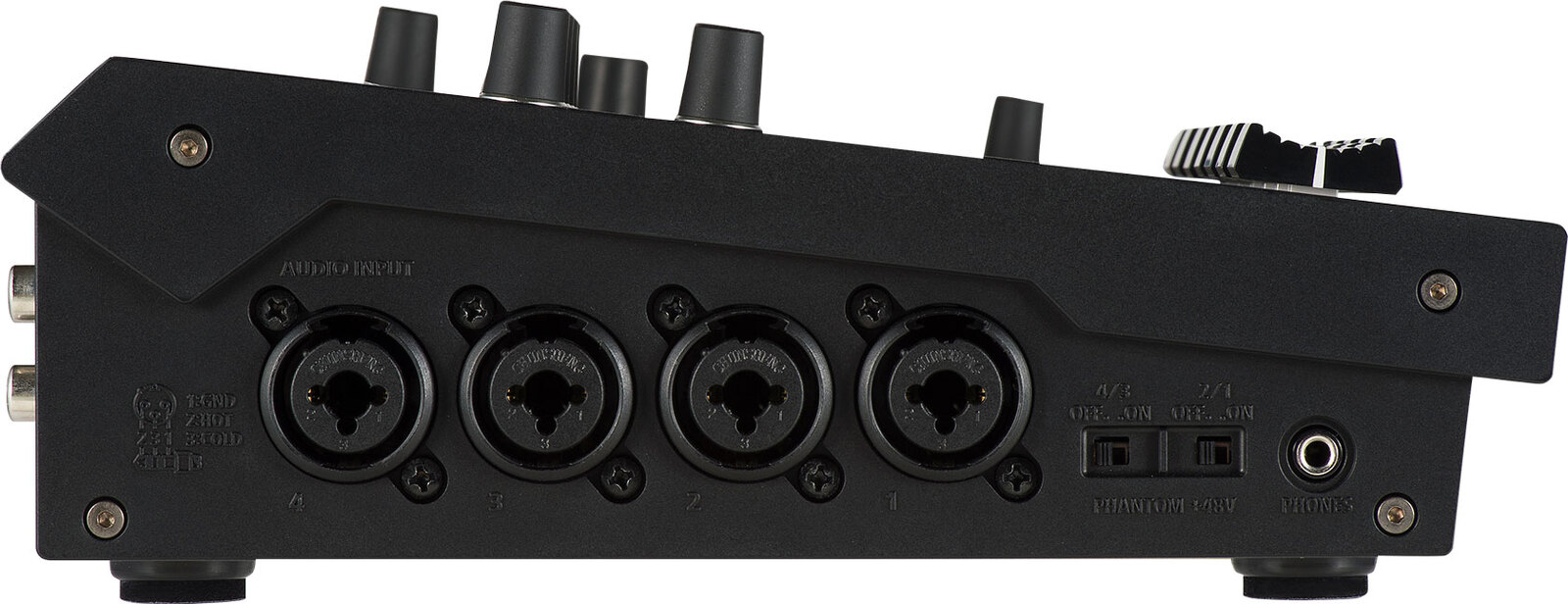

- 18-Channel Digital Audio Mixer with XLR, TRS, and RCA jacks along with audio from HDMI inputs
- Embedding and de-embedding of audio with delay settings
- Auto mixing and Echo Canceling function
- Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
- Capturing a still Image from Input Video on channel 4*3 [Ver.1.5]
- Built-in touch quad-input multi-viewer with audio metering
- External Multi-View Output through HDMI
- HDCP Support
- USB3.0 Video/Audio Output up to 1080/30p (uncompressed) and Audio Loopback Feature
- Software control using VR-4HD RCS application for Mac and PC and remote control via USB connection
- Sending a still image to the VR-4HD by VR-4HD RCS*3 [Ver.1.5]
- Tally, GPIO connections
- *1 HDCP Compliant
- *2 Built-in EDID Emulator
- *3 The Still-image data is deleted once the power is turned off.
