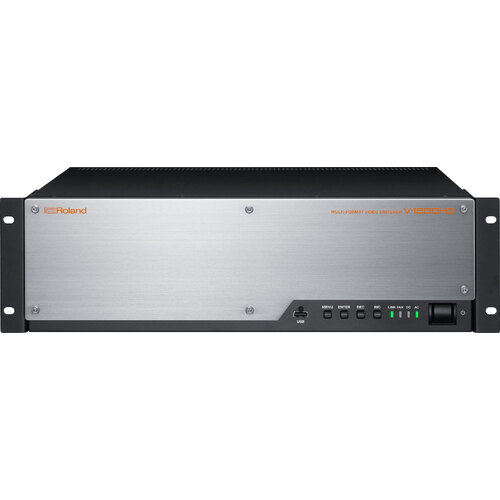

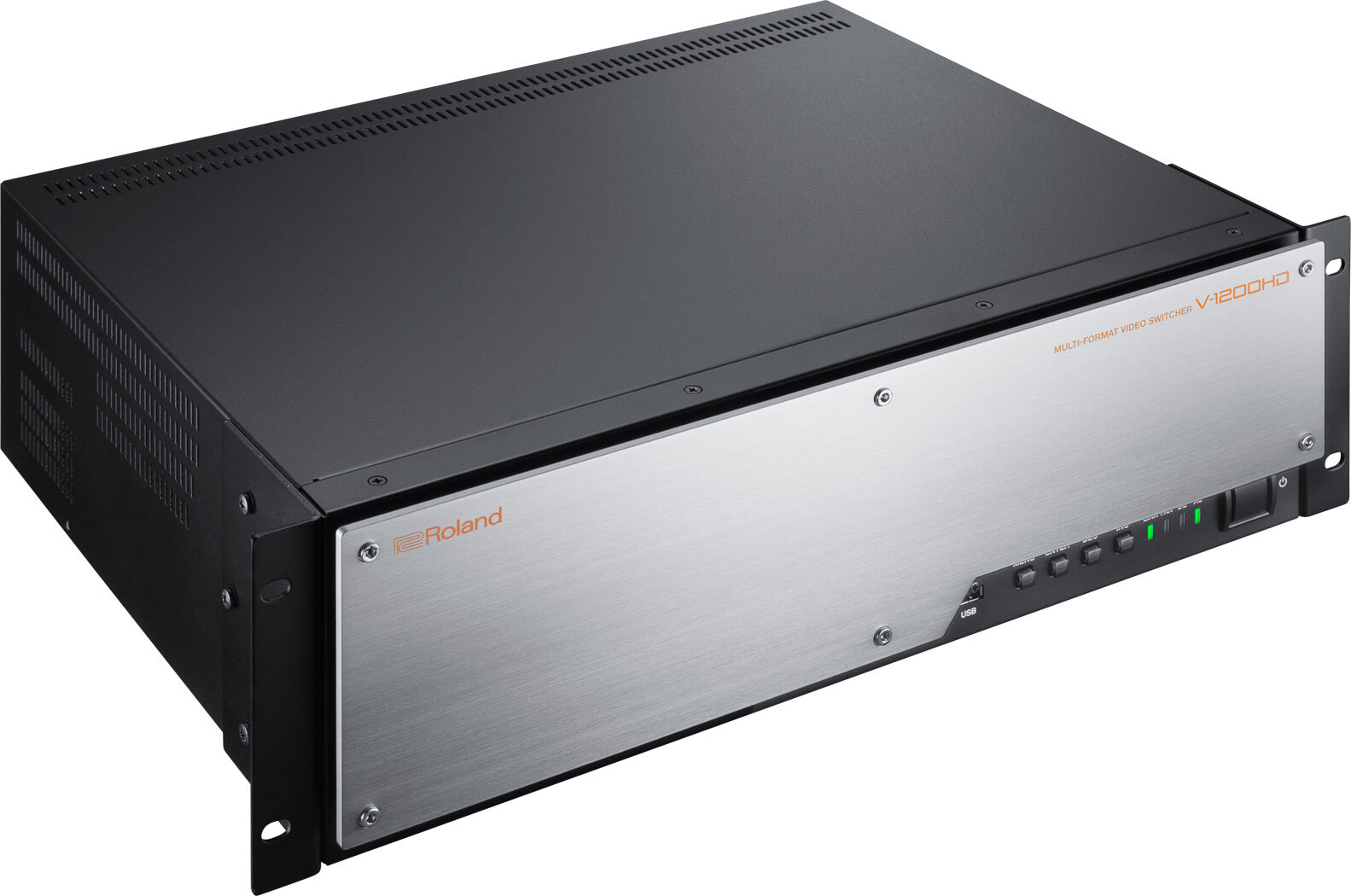

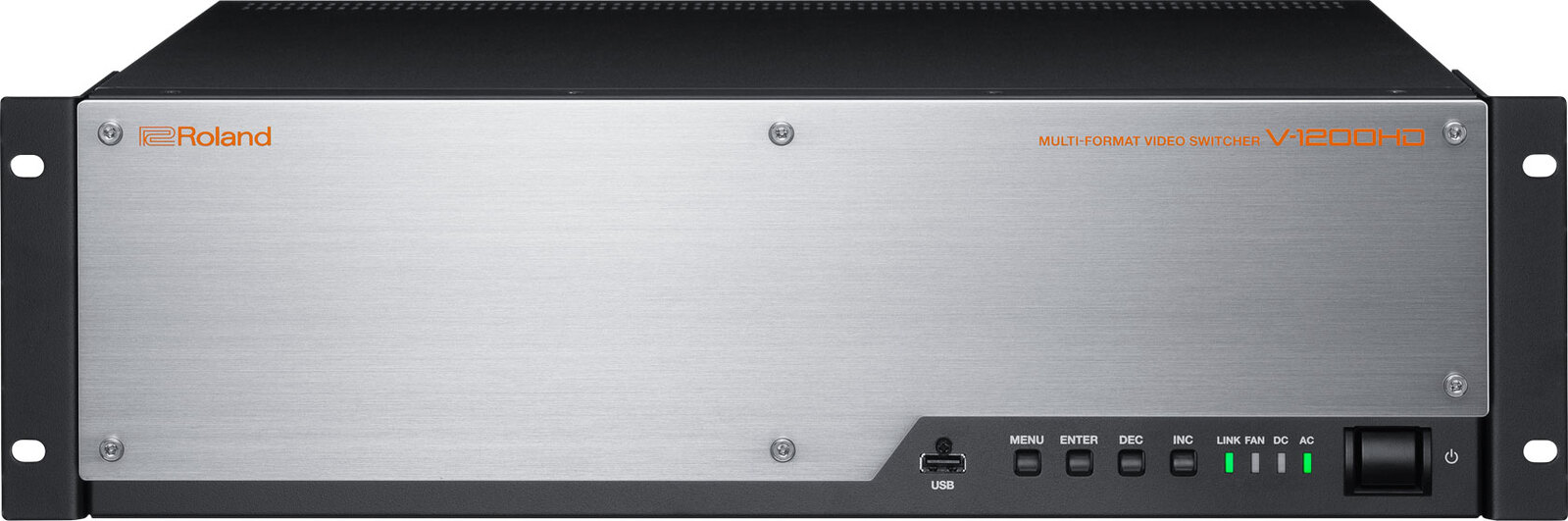

ROLAND V-1200HD Multi-Format Video Switcher

Calculate Shipping

PICK UP FROM STORE - $0.00
FREE PICK UP BETWEEN 10AM - 4.30PM WEEKDAYS FROM THE PRODUCTION SHOP

Processing: 4: 4: 4 (Y/Pb/Pr / RGB), 10-bit /
4: 2: 2 (Y/Pb/Pr), 10-bit

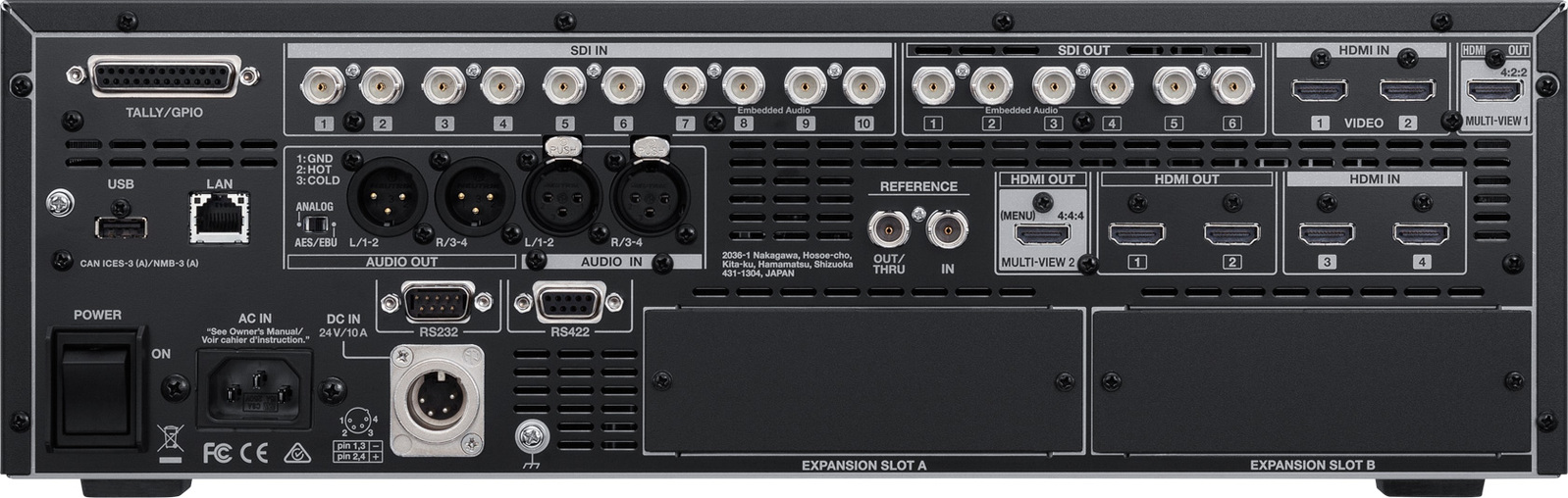

Input Connectors: 3G/HD-SDI: BNC typx 10 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI: type A x 2 (HDMI INPUT 1--2) * HDCP Not supported
HDMI: type A x 2 (HDMI INPUT 3--4) * HDCP Supported., Multi-format Supported.
Output Connectors: 3G/HD-SDI: BNC type x 6 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI: type A x 2 (HDMI OUTPUT 1--2) * HDCP Supported
HDMI: type A x 2 (HDMI OUTPUT MULTI-VIEW 1 * HDCP Not required, 1080/59.94p)
(HDMI OUTPUT MULTI-VIEW 2 * HDCP Required, 1080/59.94p)
Formats: SDI: 1080/59.94p, 1080/50p
* Conforms to SMPTE 274M
HDMI: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1024x768/60 (*1), 1280x720/60 (*1), 1280x800/60 (*1), 1366x768/60 (*1), 1280x1024/60 (*1), 1400x1050/60 (*1) ,1600x1200/60, 1920x1080/60, 1920x1200/60
* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11
* The output format of HDMI1,2 and SDI is always the same.
* Frame rate is 59.94(NTSC) or 50(PAL)
* MULTI-VIEW 1,2 output is 1080/60p always.
Output refresh rate is 75 Hz when frame rate is set to 50Hz.
Effects (4:2:2 Processing): M/E: 1M/E, 1.5M/E, 2M/E (9 types)
Transition: Mix, NAM (*2), FAM (*2), Cut, Wipe
Composition (Keyer): 4 (PinP, Luminance Key, Chroma Key, External Key supported)
AUX: 2
Others: Output Fade, Output Freeze, Output Capture, Composition Edit, SDI Output Patchbay
*These effects depends on M/E type.
(*2) PGM/PST only
Effects (4:4:4 Processing): M/E: 1M/E, Matrix, Scaler
Input: 4 (4:2:2 Processing outputs x 2, HDMI INPUT 3, HDMI INPUT 4)
Transition: Mix, Cut
Composition (Keyer): 1 (PinP, Luminance Key)
Others: HDCP Supported, Output Fade, Output Cropping, Signal Generator.
*These effects depends on M/E type.
Still Image: Still Image Inputs: 2, Internal Memory: 16, Maximum 1920x1080 pixels
Format: Windows Bitmap File (.bmp ) 24 bit per pixel, uncompressed, Portable Network Graphic File (.png) * Alpha channel Supported.
Multiviewer: MULTI-VIEW 1 (4:2:2 Processing): 16/10 screens, Label, Tally * HDCP Supported
MULTI-VIEW 2 (4:4:4 Processing): 4 screens, Label, Tally, OSD Setup Menu
* HDCP Required
AUDIO
Processing: Sampling Rate : 24 bits/48 kHz
Input Connectors: 3G/HD-SDI: BNC type x 4 (Ch7-10), HDMI: type A x 4, AUDIO IN (XLR/TRS) L (1/2),R (3/4)
* Analog Audio or AES/EBU
Output Connectors: 3G/HD-SDI: BNC type x 4 (Ch1-4), HDMI: type A x 2, AUDIO OUT (XLR/TRS) L (1/2),R (3/4)
* Analog Audio or AES/EBU
Input Level and Impedance: AUDIO IN: +4dBu (Maximum: +22dBu, 15k ohms)
Output Level and Impedance: AUDIO OUT: +4dBu (Maximum: +22dBu, 600 ohms)
Formats: SDI: Linear PCM, 24bits, 48kHz, 16ch * Conforms to SMPTE 299M
HDMI: Linear PCM, 24bits, 48kHz, 2ch
AES/EBU: Linear PCM, 24bits, 48kHz, 4ch
Effects: Patchbay: 92 inputs x 92 outputs Delay: 16ch
Mixer: 16ch, channel Effects: 3-Band EQ, Delay Master Effects: Mastering, 3-Band EQ, Reverb
OTHERS
Expansion Slot: Slot: 2
*The video a maximum of 2 inputs 2 outputs and the audio a maximum of 16 inputs 16 outputs can treat in 2 slots sum total.
Reference: Input: BNC type x 1
*Black Burst (Sync to frames), Bi-Level, Tri-Level
Output/Through: BNC type x 1
*Black Burst (Sync to frames)
External Connectors: RS-232: DB-9 type (Male) x 1 *for Remote Control
RS-422: DB-9 type (Female) x 1 *for VISCA Control
TALLY/GPIO: DB-25 type (Female) x 1 (Input: 8, Output/Tally: 16)
LAN: RJ45 100BASE-TX (Connect to V-1200HDR or Computer (V-1200HD RCS))
USB: A type *USB Memory
Memory: 8 * Last Memory Function
User Function Button: 32 * 16 buttons x 2 banks
Remote Camera Control: RS-422: D-Sub 9 pin type x 1 Protocol: VISCA
Remote Controller: V-1200HDR Control Surface * Option
V-1200HD RCS * Windows7 or later / Mac OSX
Power Supply: AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
DC 24 V (XLR-4-32 type)
* Redundant Power Supply
Operation Temperature: +0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit
Dimensions: 482 (W) x 357 (D) x 133 (H) mm
19 (W) x 14-1/16 (D) x 5-1/4 (H) inches
* EIA-3U rack mount size
Weight: 9.0 kg 19 lbs 14 oz
Accessories: Power Cord, Rubber Feet (4), Owner’s Manual; This product is a Class A digital device under FCC part 15. "VISCA" is a trademark of Sony Corporation.

(ROLV-1200HD)

SKU	ROLV-1200HD
Brand	ROLAND
Shipping Weight	10.0000kg
Shipping Width	0.510m
Shipping Height	0.170m
Shipping Length	0.400m
Shipping Cubic	0.034680000m3
