QSC TouchMix®-30 Pro 32-Channel Professional Digital Mixer

$4,849.00
Sold Out - Backorder Available


Calculate Shipping



PICK UP FROM STORE - $0.00
FREE PICK UP BETWEEN 10AM - 4.30PM WEEKDAYS FROM THE PRODUCTION SHOP

TouchMix® is quite simply the most powerful, compact mixer ever created. It offers the features, capabilities and sound quality of the world's most esteemed large format consoles in a highly compact and portable package that’s small enough to be carry-on luggage. Perfect for musicians, larger bands, AV production professionals and performance venues, the TouchMix-30 Pro goes "Beyond Mixing" by offering Wizards, Presets and other beneficial tools that help seasoned audio professionals and novices alike get great results quickly and easily.

Its 32 mixing channels (24 Mic/Line, 6 Line, Stereo USB) and 16 outputs offer tremendous signal management flexibility for a wide range of applications. Advanced features such as class-A microphone preamps, Anti-Feedback and Room Tuning Wizards, two real-time analyzers (RTA), patch matrix, 32-channel direct-to-external-drive recording and DAW interface with MacOS® and Windows® computers make it equally competent as both a professional live sound and a recording tool.

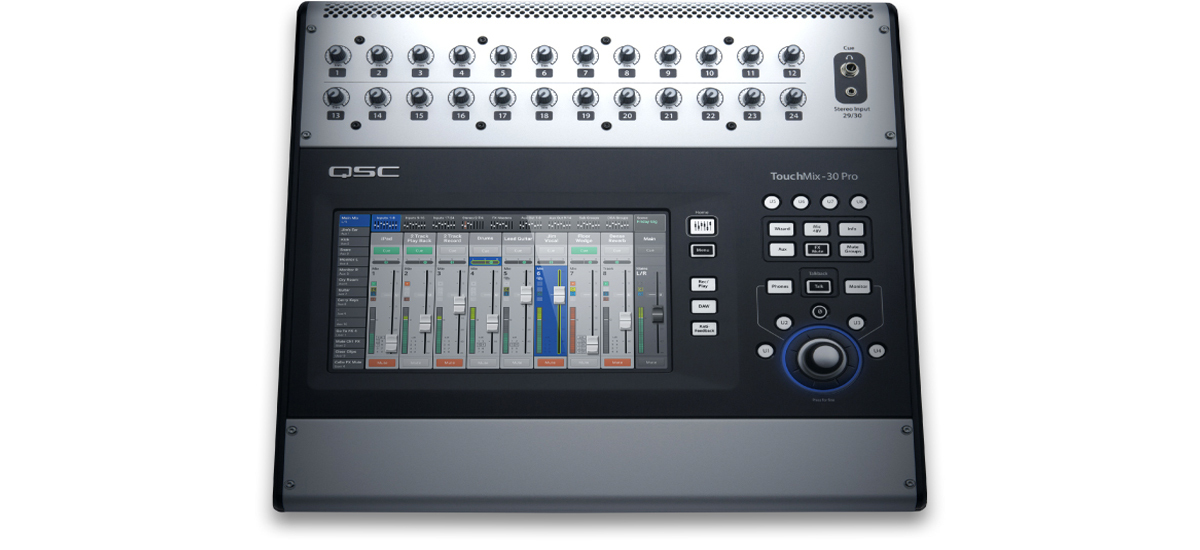

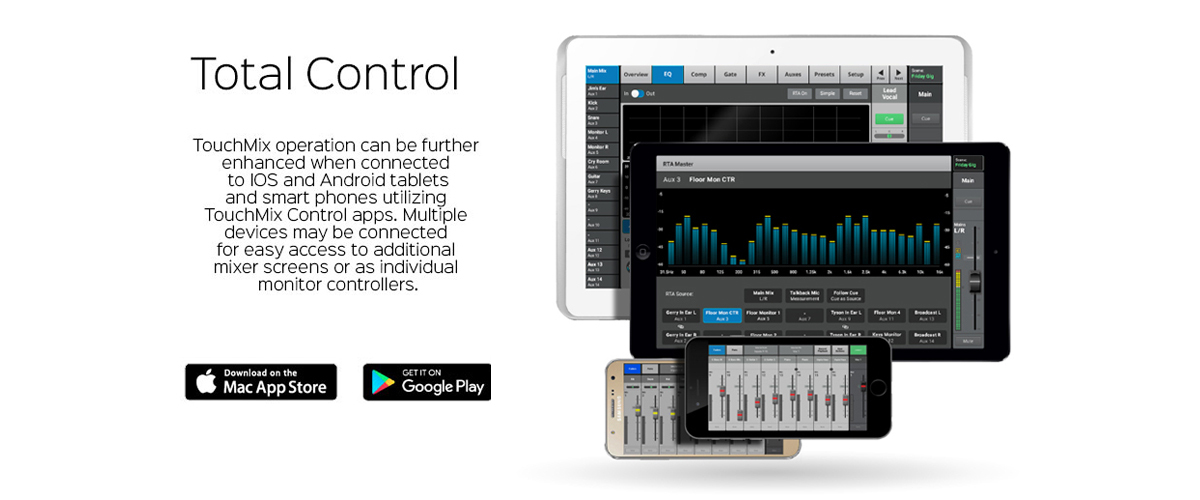

The touch-and-turn interface of TouchMix allows for tactile control over fader and mixer parameters while also providing a hardware connection to mixer functions. Mixer functions and displays are duplicated via iOS or Android devices over Wi-Fi, providing both portable, wireless connectivity as well as additional control surfaces of mixer functionality.

With firmware version 3.0, the TouchMix-30 Pro mixer now satisfy the needs of many more professionals with the addition of Scenes, Snapshots, Cue List management and offline editing functionalities. Scenes provide the user with the ability to store and recall the entire mixer configuration, while Snapshots allow the user to save and recall selected settings for designated channels without affecting other mixer settings. Cue Lists select and arrange Scenes, Snapshots and audio files into a predetermined sequence for recall during a show, while offline editing provides the user with the ability to create and edit mixer configurations without the mixer being connected to Wi-Fi. The v3.0 firmware release is also supported by an updated TouchMix Control app for iOS and Android™ devices, providing further enhancements to the remote control experience.

Key features include:

  • Large (10-inch) multi-touch touchscreen offers a wealth of on-screen information while also providing confident hands-on control
  • Anti-Feedback and Room Tuning Wizards simplify complex equalization tasks
  • Two real-time analyzers (RTA) provide instantaneous display of channel tonal balance and room response
  • Touch-and-route patch matrix provide easy “multing” and rearrangement of inputs
  • 14 Aux mixes provide ample monitor configuration options
  • Eight sub-groups with 6-band full parametric EQ, variable high- and low-pass filters and limiter may be linked for stereo
  • A gain sharing Automatic Microphone Mixer is available for all 24 mic/line input channels
  • 32-channel direct-to-hard drive record/playback — capture and recall performances without the need for an external computer
  • 32-channel DAW interface with macOS® and Windows® computers allows for bidirectional I/O with popular workstation software
  • MP3 playback direct from USB
  • Download future upgrades directly from the Internet

Specifications

  TouchMix®-30 Pro TouchMix®-16 TouchMix®-8
Display
  254 mm (10 in) diagonal, 1024 x 600 pixel, color TFT, capacitive multi-touch sensing 178 mm (7 in) diagonal color TFT, capacitive touch sensing 178 mm (7 in) diagonal color TFT, capacitive touch sensing
Inputs
Total 32 (24 mic/line, 6 line, 2 stereo USB) 22 14
Mic/Line 24 (20 XLR, 4 XLR combo) 16 (12 XLR, 4 XLR combo) 8 (4 XLR, 4 XLR combo)
Line 6 (balanced, 1/4" TRS + top panel 1/8" (3.5 mm) stereo) 2 Stereo (1/4" TRS) 2 Stereo (1/4" TRS)
Stereo USB Stereo USB / MP3 playback Stereo USB / MP3 playback Stereo USB / MP3 playback
Talkback 1 (XLR with 48 V) 1 (XLR) N/A
Input Channel Processing
EQ 4-band Parametric EQ with Hi/Low Shelving option, variable 24 db/octave HPF and LPF 4-band Parametric EQ with Hi/Low Shelving option, variable 24 db/octave HPF and LPF 4-band Parametric EQ with Hi/Low Shelving option, variable 24 db/octave HPF and LPF
Dynamics Gate, Compressor Gate, Compressor Gate, Compressor
Delay Delay (100 msec max) Delay (100 msec max) Delay (100 msec max)
Automatic Microphone Mixer Gain Sharing, 24 channels, two instances (requires firmware 1.3 or higher) N/A N/A
Outputs
Total 16 12 6
Main L/R 2 (XLR, line-level)   2 (XLR, line-level) 2 (XLR, line-level)
Aux 14 (XLR, line-level) 6 (XLR, line-level) + 2 (TRS, stereo In Ear Monitor or mono balanced line-level) 4 (XLR, line-level)
In-ear Monitor (Stereo) 2 (TRS, 16 ohm min. impedance, from Auxes 11/12 and 13/14) 2 (TRS, 16 ohm min. impedance, from Auxes 7/8 and 9/10) 1 (TRS, 16 ohm min. impedance, from Auxes 3/4)
Cue 2 (Stereo, TRS, line or headphone, 16 ohm min. impedance) 1 (Stereo, TRS, line or headphone, 16 ohm min. impedance) 1 (Stereo, TRS, line or headphone, 16 ohm min. impedance)
Monitor L/R 2 (Stereo, XLR) 1 (Stereo, TRS, line or headphone, 16 ohm min. impedance)  N/A
Output Channel Processing
EQ 1/3 octave GEQ, 6-band Parametric EQ, Variable High- and Low-Pass Filters 1/3 octave GEQ, 6-band Parametric EQ, Variable High- and Low-Pass Filters 1/3 octave GEQ, 6-band Parametric EQ, Variable High- and Low-Pass Filters
Anti-Feedback Filters 12-band Anti-Feedback Filters 8-band Anti-Feedback Filters 8-band Anti-Feedback Filters
Dynamics Compressor / Limiter Limiter Limiter
Delay 100 msec 100 msec 100 msec
Recording / Playback1
Multi-Track 32 × 32 tracks direct to hard drive 22 × 22 tracks direct to hard drive 14 × 14 tracks direct to hard drive
DAW 32 × 32 tracks Interface for macOS® (Core Audio) and Windows® computers N/A N/A
MP3 Stereo USB / MP3 playback Stereo USB / MP3 playback Stereo USB / MP3 playback
Groups
Cue
  Selectable. AFL, PFL, Solo in Place Selectable. AFL, PFL Selectable. AFL, PFL
Effects
  6 simultaneous, professional effects engines including Reverb, Echo, Delay, Chorus, Pitch Shift 4 simultaneous, professional effects engines including Reverb, Echo, Delay, Chorus, Pitch Shift 4 simultaneous, professional effects engines including Reverb, Echo, Delay, Chorus, Pitch Shift
  1 Pitch Correct (assignable to any mono input channel) 1 Pitch Correct (assignable to any mono input channel) 1 Pitch Correct (assignable to any mono input channel)
Real Time Analyzer (RTA)



2 (1/3 octave, assignable to channels or user selectable source) 1 (1/3 octave. Assignable to channels or user selectable source) 1 (1/3 octave. Assignable to channels or user selectable source)
Preset Memory



99 User Scenes, 120 Factory Presets, 99 User Presets 99 User Scenes, 120 Factory Presets, 99 User Presets 99 User Scenes, 120 Factory Presets, 99 User Presets
Digital Connections
  2 USB A connector, 1 USB B connector, 1 RJ-45 (connection for Wi-Fi router) 2 USB A connectors 2 USB A connectors
External Control2
  TouchMix-30 Control App for iOS®/Android™ (via Wi-Fi). Third party control surfaces (via mixer or iOS® tablet) TouchMix-8/16 Control App for iOS® and Android devices controls all mixer functions via Wi-Fi. TouchMix-8/16 Control App for iOS® and Android devices controls all mixer functions via Wi-Fi.
Wi-Fi3



Requires external ethernet Wi-Fi router (recommended) or USB Wi-Fi adaptor 3 (not included) USB Wi-Fi adaptor (included) or external Wi-Fi router (requires USB to ethernet adaptor) USB Wi-Fi adaptor (included) or external Wi-Fi router (requires USB to ethernet adaptor)
Dimensions (H×W×D)
Shipping Container 580 × 290 × 485 mm
22.8 × 11.4 × 19 in
620 × 380 × 120 mm
24.4 × 15 × 4.7 in
510 × 420 × 114 mm
20 × 16.5 × 4.5 in
Mixer only 190 × 429 × 460 mm
7.5 in × 16.9 in × 18.1 in
58 × 360 × 291 mm
2.3 in × 14.2 in × 11.5 in
56 × 333 × 245 mm
2.2 in × 13.1 in × 9.6 in
Weight
Shipping 11.2 kg / 24.7 lb 5.2 kg / 11.5 lb 4.8 kg / 10.6 lb
Mixer only 7.9 kg / 17.5 lb 2.98 kg / 5.9 lb 1.95 kg / 4.3 lb
Power Requirements
  85 W, 100-240 VAC, 50-60 Hz 42 W, 100 - 240 VAC, 50 - 60 Hz 42 W, 100 - 240 VAC, 50 - 60 Hz
Sampling Frequency
  Selectable 44.1 kHz or 48 kHz Selectable 44.1 kHz or 48 kHz Selectable 44.1 kHz or 48 kHz
Internal Processing



32-bit floating point 32-bit floating point 32-bit floating point
THD



<0.005%, +4 dBu; 20 Hz-20 kHz, unity gain, any input to any output <0.005%, +4 dBu; 20 Hz-20 kHz, unity gain, any input to any output <0.005%, +4 dBu; 20 Hz-20 kHz, unity gain, any input to any output
Frequency Response
  20 Hz-20 kHz +/-0.5 dB, any input to any output 20 Hz-20 kHz +/-0.5 dB, any input to any output 20 Hz-20 kHz +/-0.5 dB, any input to any output
Dynamic Range
  105 dB 105 dB 105 dB
Equivalent input Noise
  -126 dBu -126 dBu -126 dBu
Residual Output Noise
  -86 dBu -86 dBu -86 dBu
Crosstalk
  -80 dB -80 dB -80 dB
S/N Ratio
  -94 dB -94 dB -94 dB
Gain (Mic Inputs)
  75 dB (60 dB analog, 15 dB digital) 75 dB (60 dB analog, 15 dB digital) 75 dB (60 dB analog, 15 dB digital)
Maximum input Level
  +16 dB (XLR mic/line inputs), +26 dB ( TRS mic/line inputs), +24 dBu (TRS line inputs), 0 dBv (top panel 1/8" stereo input) +16 dBu (Mic/Line inputs, XLR), +26 dBu (Mic/Line inputs, TRS), +22 dBu (Stereo inputs) +16 dBu (Mic/Line inputs, XLR), +26 dBu (Mic/Line inputs, TRS), +22 dBu (Stereo inputs)
Maximum Output Level
  +22 dBu (all line-level outputs) +22 dBu (all line-level outputs) +22 dBu (all line-level outputs)
Phantom Power
  48 v, mic and talkback inputs, individually switchable 48 v, all mic inputs, individually switchable 48 v, all mic inputs, individually switchable
Included Accessories
  Power cable USB Wi-Fi adapter, soft carrying case, power supply USB Wi-Fi adapter, soft carrying case, power supply
Optional Accessories
  TouchMix-30 Pro Cover (Dust cover)
TouchMix-30 Pro Tote (Soft, padded tote)
TMR-2 (Rack mount kit)
TS-1 (Tablet support stand)
TMR-1 (Rack kit) TMR-1 (Rack kit)
 Regulatory Approvals
  UL, CE, FCC (Class B), RoHS NRTL-Approved, CE, FCC (Class B), RoHS NRTL-Approved, CE, FCC (Class B), RoHS

(QSC-TouchMix-30)

SKU QSC-TouchMix-30
