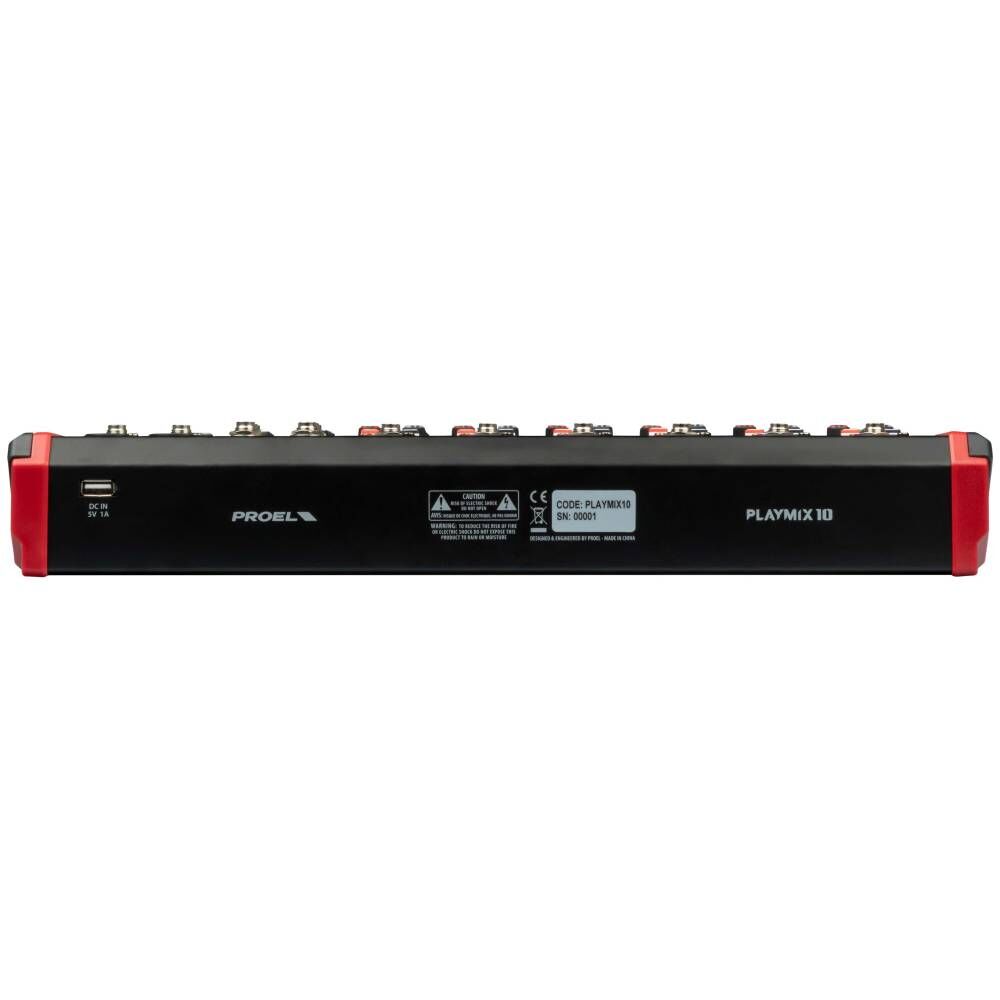

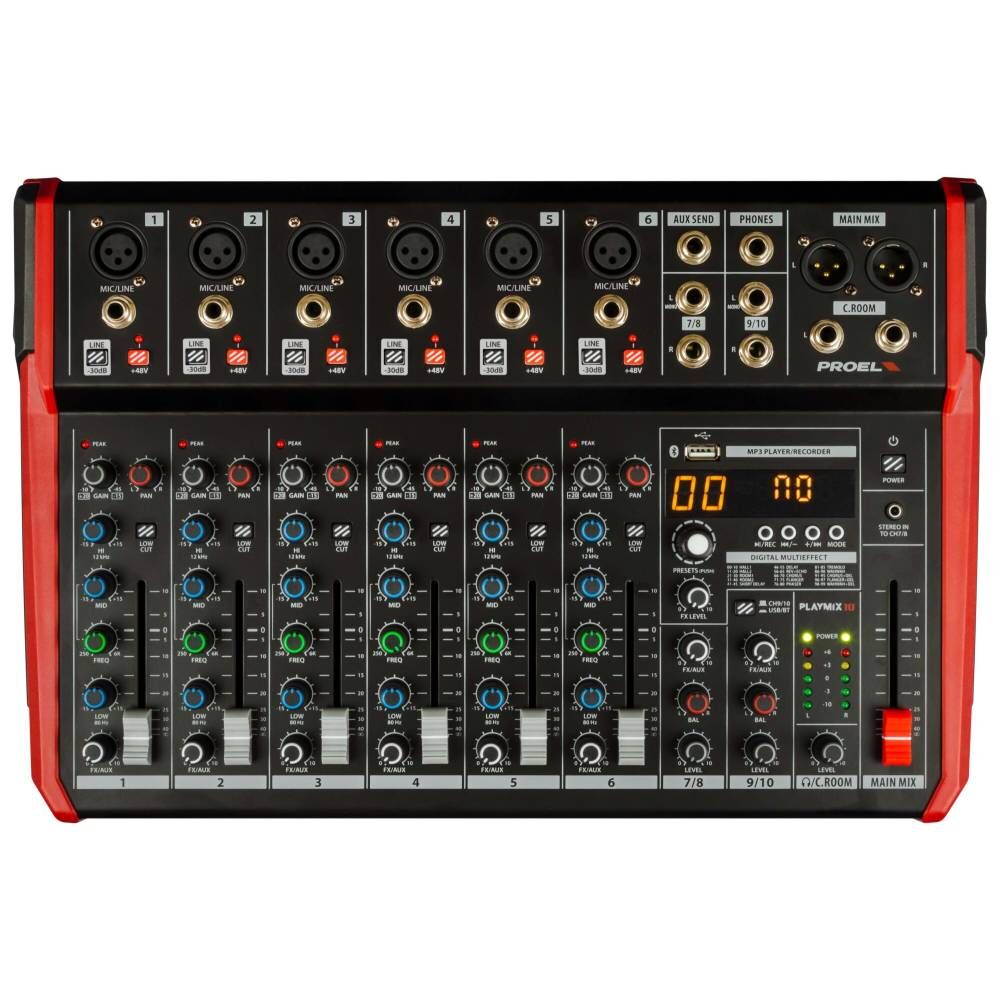

Proel PLAYMIX10 Compact 10-channel mixer with DSP and USB/BT interface

A high-quality 24-bit built-in DSP with 100 studio-grade presets of single and combined effect (REVERBS, DELAYS, MODULATIONS)
A 48KHz stereo USB audio interface for playing/recording thru PC connection
A built-in MP3 player from USB memory key or BLUETOOTH interface
On-the-go stereo recording on USB memory key.

Technical Data

INPUTS:	6x Mono MIC/Line 2x Mono Stereo TS/TRS
MONO Mic Input:	-Sensitivity from -10 to -45 dB via Balanced XLR-F -Impedance = 1 Kohm
MONO Line Input:	-Sensitivity from from +20 to -15 dB Balanced JACK -Impedance = 20 Kohm
STEREO Line Input:	-Sensitivity from from +12 to -15 dB Balanced JACK -Impedance = 20 Kohm
LOW CUT:	80Hz, 6dB/oct.
EQ:	-HIGH (shelving) ±15 dB @ 12K Hz -MID (peaking) ±12 dB @ 250-6K Hz -LOW (shelving) ±15 dB @ 80 Hz
MAIN MIX:	nom. out level +4 dBu Unbalanced XLR-M (Left and Right)
C. ROOM output:	nom. out level +4 dBu Unbalanced JACK (Left and Right)
SEND output:	nom. out level +4 dBu Unbalanced JACK
HEADPHONES:	min. impedance 64 ohm Stereo JACK
BLUETOOTH:	Version 5.0, Audio Streaming
USB Audio Interface:	Stereo IN/OUT, 16-bit converter, 44.1 KHz sample rate Type A
Effects:	100 presets
A/D and D/A converters:	24 bit
DSP resolution:	24 bit
Controls:	2-DIGIT display, DIAL, LEVEL
Maximum level:	all outputs +15 dBu
Crosstalk:	meas. at 1 KHz > 75 dB
HUM & Noise:	unweighted < 90 dB
THD + Noise:	at +4dB, 1kHz < 0.009 %
Dimensions (WxHxD):	247 x 274 x 61 mm
Weight:	1.80 kg
Power Supply:	use only supplied AC/DC ADAPTER 5VDC 1A
Mains Supply Voltage:	100-240 VAC (±10%) 50/60 Hz
