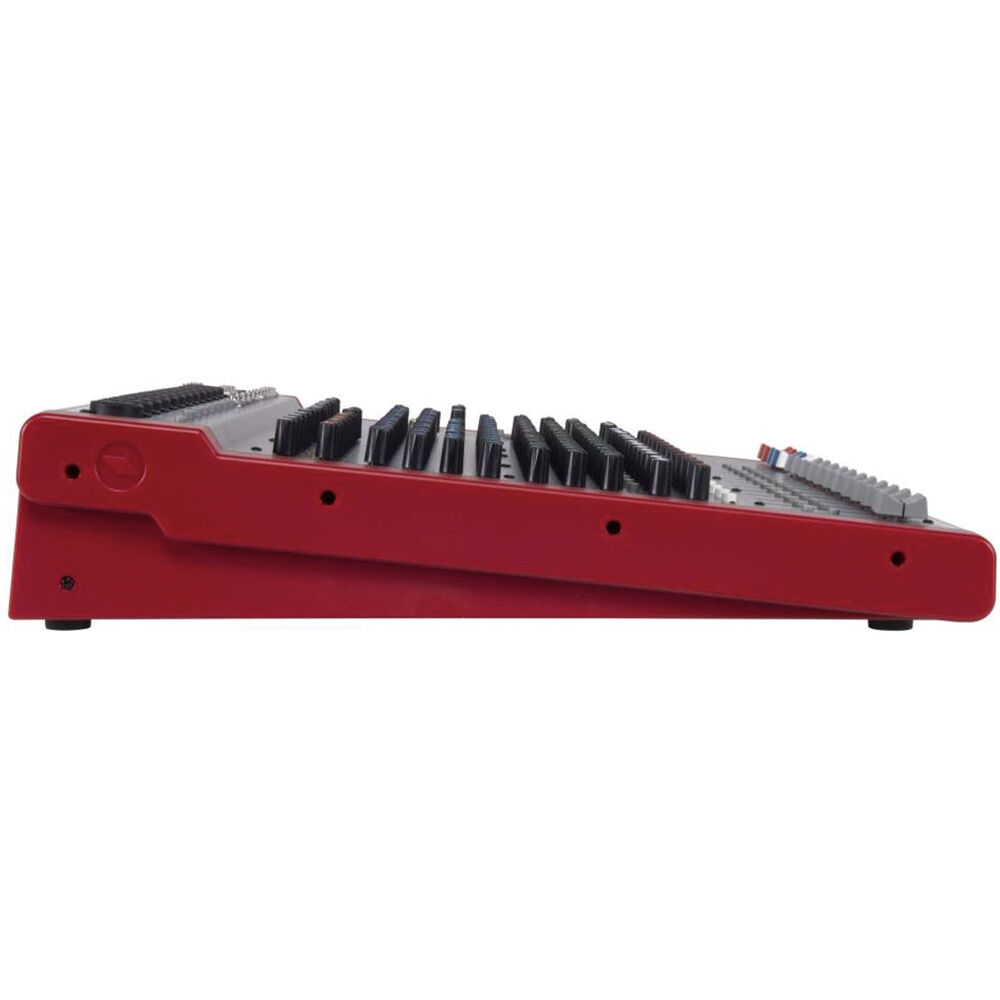

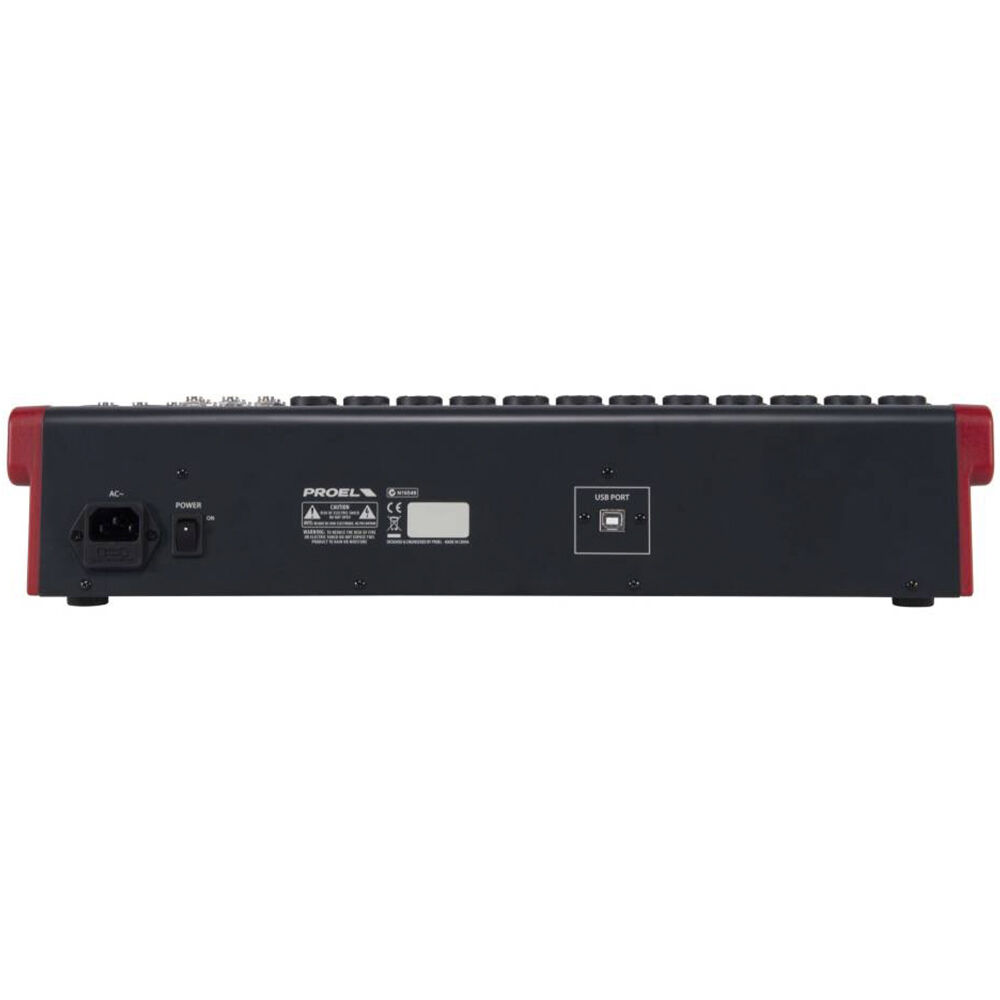

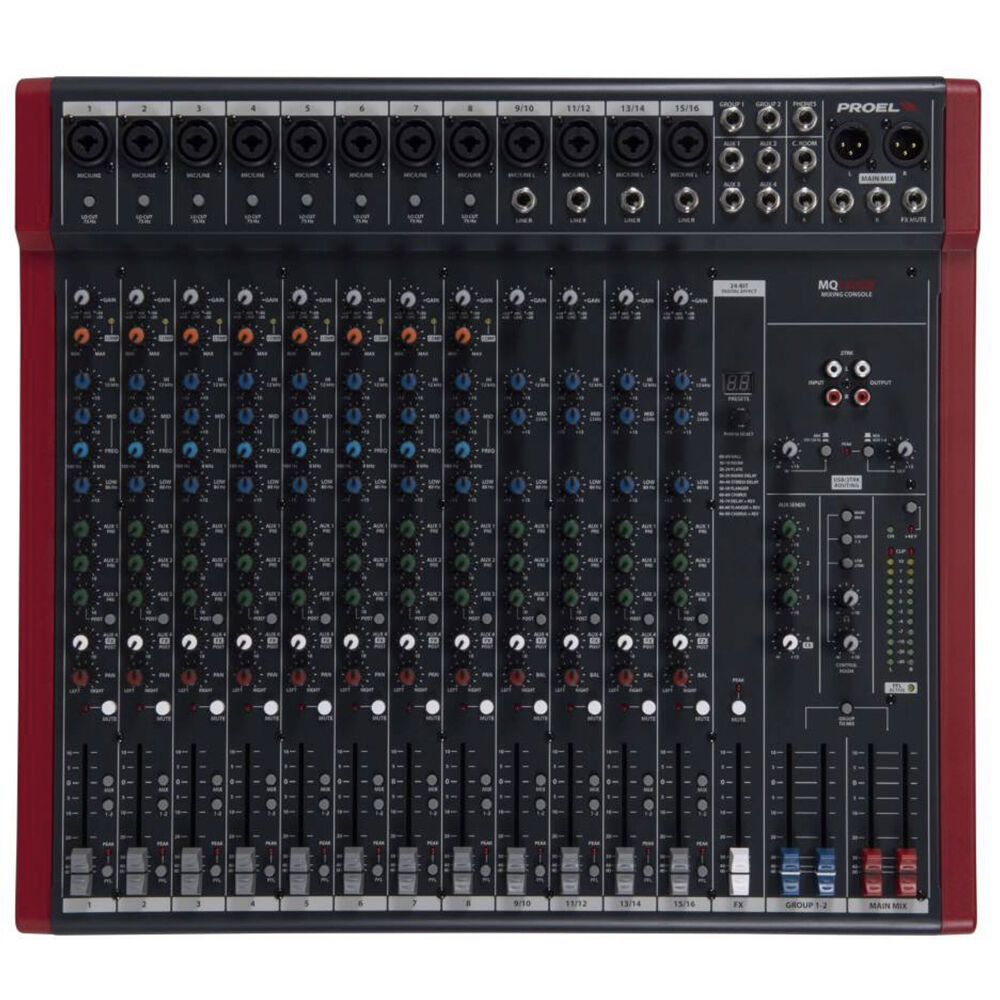

Proel MQ16USB Compact 16-channel mixer with FX and USB
SHIPPED FROM SUPPLIER TO CUSTOMER DIRECTLY
$749.00
In Stock
Key Features:
- Compact 16-input 4-bus mixer with effect and USB I/F
- 8 MONO MIC/LINE inputs and 4 STEREO MIC/LINE inputs
- 12 low-noise, very high-headroom microphone preamplifiers
- PHANTOM power
- ‘One-knob’ COMPRESSOR with LED indicator on MONO channels
- 3-band EQ with sweep mids and LO-CUT filter
- 3 AUX sends pre-fader e 1 AUX send post-fader
- 24bit studio-grade digital effect with 100 presets, 2-digit display and footswitch MUTE
- Built-in USB interface with routing options for PC recording and playback
- GROUS 1&2 with MIX routing and output
- 2-TRACK, HEADPHONES and CONTROL ROOM outputs
- Electronically balanced MAIN MIX outputs with XLR-M and ¼” JACK connectors
- Two 12-LED VU-METERS
- Universal switching power supply 100-250V
- Stage-proof construction and ultra-rugged metal chassis
- Designed and engineered in Italy by PROEL.
Technical Data
| INPUTS: | -8x Mono MIC/Line -4x Mono Stereo XLR/Line |
|---|---|
| MONO Mic Input: | -Sensitivity from -10 to -50 dB via Balanced XLR/TRS Combo -Impedance = 2 Kohm |
| MONO Line Input: | -Sensitivity from from +20 to -20 dB Balanced JACK -Impedance = 10 Kohm |
| STEREO Mic Input: | – Sensitivity from -10 to -50 dB Balanced XLR/TRS Combo -Impedance = 2 Kohm |
| STEREO Line Input: | -Sensitivity from from +20 to -20 dB Balanced JACK -Impedance = 10 Kohm— -Sensitivity -10 dB via Balanced JACK, RCA -Impedance = 10 Kohm |
| LOW CUT: | 75Hz, 18dB/oct. |
| EQ: | -HIGH (shelving) ±15 dB @ 12K Hz -MID (peaking) ±15 dB @ 2.5 KHz -LOW (shelving) ±15 dB @ 80 Hz |
| COMPRESSOR: | Fet Style on CH 1-4, 1-knob |
| MAIN MIX: | nom. out level +4 dBu Balanced JACK and XLR-M (Left and Right) |
| C. ROOM output: | nom. out level +4 dBu Unbalanced JACK (Left and Right) |
| FX/AUX output: | nom. out level 0 dBu Unbalanced JACK |
| HEADPHONES: | -min. impedance 32 ohm -max. out level (2x) 193 mW Stereo JACK |
| USB | Stereo IN/OUT, 16-bit converter, 48 KHz sample rate Type B |
| Effects: | 100 presets |
| A/D and D/A converters: | 24 bit |
| DSP resolution: | 24 bit |
| Controls: | 2-DIGIT display, DIAL, PEAK LED, MUTE switch, MUTE footswitch |
| Maximum level: | all outputs +22 dBu |
| Crosstalk: | meas. at 1 KHz > 82 dBu |
| HUM & Noise: | unweighted < -93 dB |
| THD + Noise: | at +4dB, 1kHz < 0.008 % |
| Dimensions (WxHxD): | 481 x 432 x 104 mm |
| Weight: | 6.50 kg |
| Mains Supply Voltage: | 100-240 VAC (±10%) 50/60 Hz |
| Consumption: | 35 W |
(PROEL-MQ16USB)
| SKU | PROEL-MQ16USB |
| Brand | PROEL |
