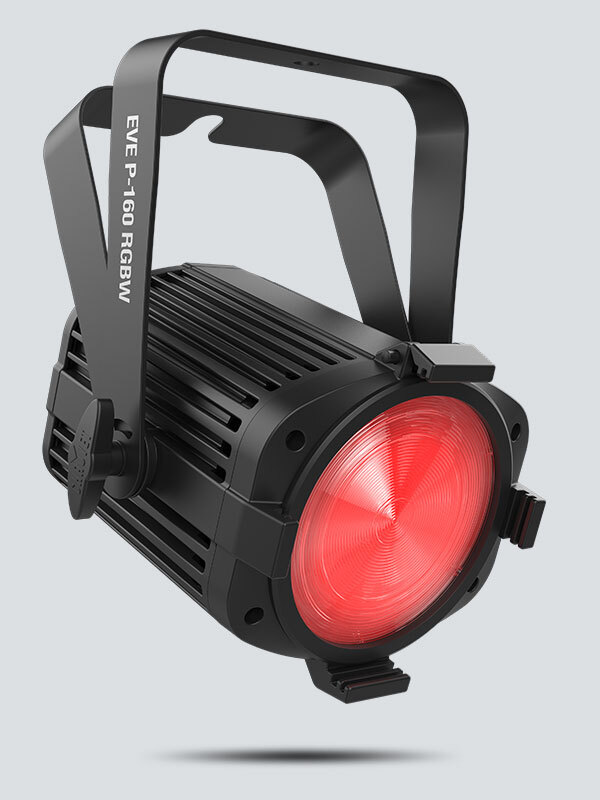

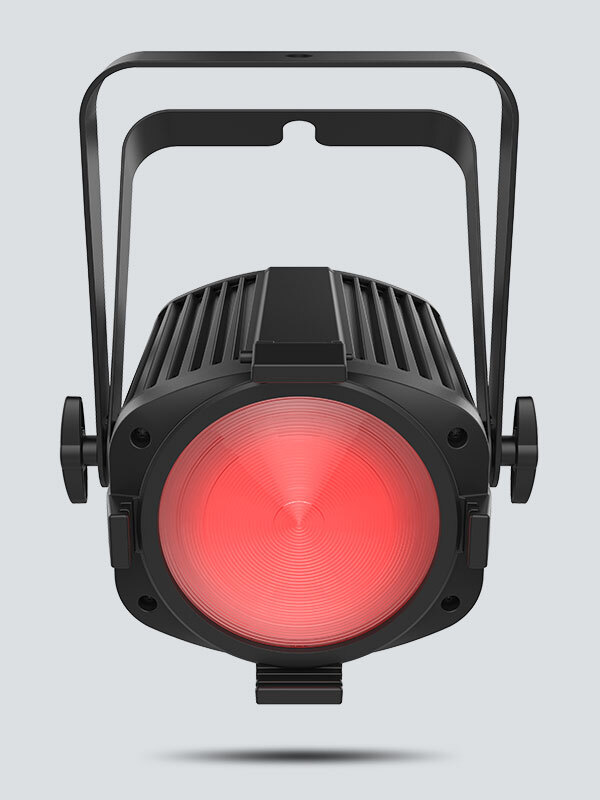

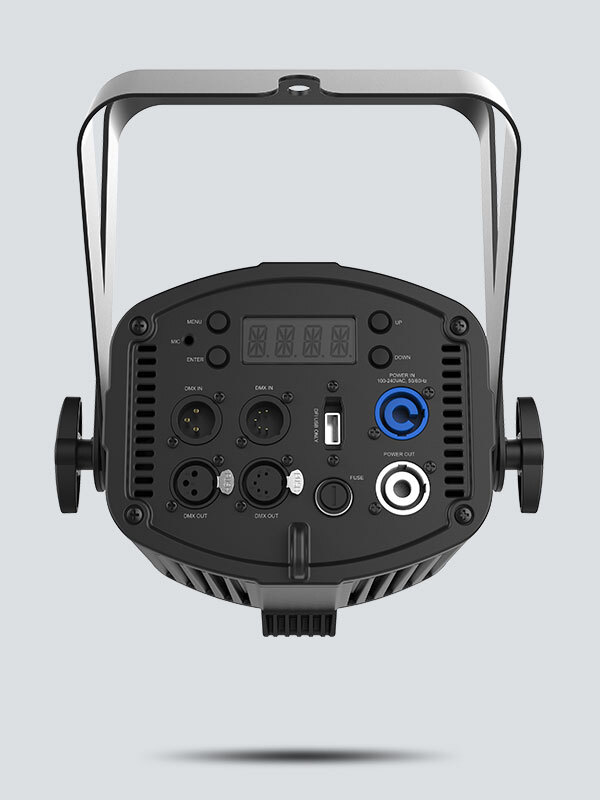

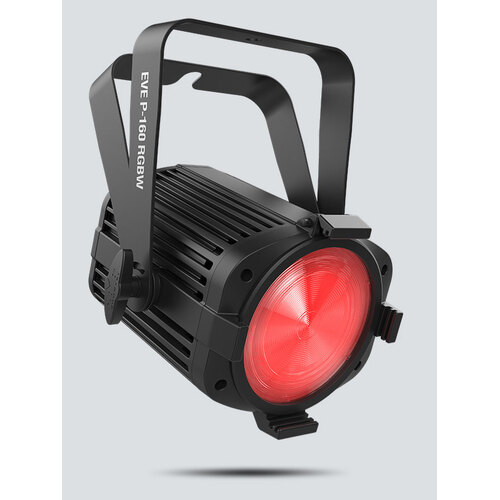

CHAUVET DJ EVE-P160 RGBW LED Fresnel

Calculate Shipping

PICK UP FROM STORE - $0.00
FREE PICK UP BETWEEN 10AM - 4.30PM WEEKDAYS FROM THE PRODUCTION SHOP

Robust wash light designed for mobile and installation applications
Included interchangeable magnetic lenses alter the beam to desired angles
Full color output as well as preset white color temperatures built in.
Built-in gel frame holder and 6¼-inch accessory slot to hold barn doors
Fanless design ensures 100% silent operation
Flicker-free on video due to the high-frequency LED dimming
D-Fi USB compatibility for wireless master/slave or DMX control
Cast aluminum housing provides extra strength without the weight
powerCON®-compatible power input/output connections for power linking
Fits best in the CHS-40 VIP gear bag
DMX Channels: 4, 6 or 11
DMX Connectors: 3- and 5-pin XLR
Light Source: 61 LEDs (14 red, 13 green, 14 blue, 20 white) 160 W total, (3.8 A), 50,000 hours life expectancy
Strobe Rate: 0 to 33 Hz
PWM Frequency: 2 kHz
Beam Angle: 23°, 35° or 48°
Field Angle: 50°, 63° or 85°
Illuminance: (23°): 3,442 lux @ 2 m (no lens)
(35°): 2,414 lux @ 2 m (lens 1)
(48°): 1,310 lux @ 2 m (lens 2)
(23°): 519 lux @ 5 m (no lens)
(35°): 386 lux @ 5 m (lens 1)
(48°): 211 lux @ 5 m (lens 2)
Lumens: 4,880
Power Linking: 11 units @ 120 V; 21 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 122 W, 1 A @ 120 V, 60 Hz
121 W, 0.5 A @ 230 V, 50 Hz
Weight: 7.8 lbs (3.6 kg)
Size: 8.6 x 9.7 x 12 in (220 x 245 x 305 mm)
Approvals: CE, MET, RoHS
Accessory Holder/Gel Frame Size: 6.25 in (159 mm)
CRI: 80 (Warm White)
Color Temperature Range: 2700 to 6500 K
Optional Controllers: DFI USB
WHAT'S INCLUDED
EVE P-160 RGBW
Power cord
2 lenses
Gel frame
Quick Reference Guide

(CHADJEVEP160RGBW)

SKU	CHADJEVEP160RGBW
Brand	CHAUVET
Shipping Weight	4.5000kg
Shipping Width	0.260m
Shipping Height	0.350m
Shipping Length	0.280m
Shipping Cubic	0.025480000m3
