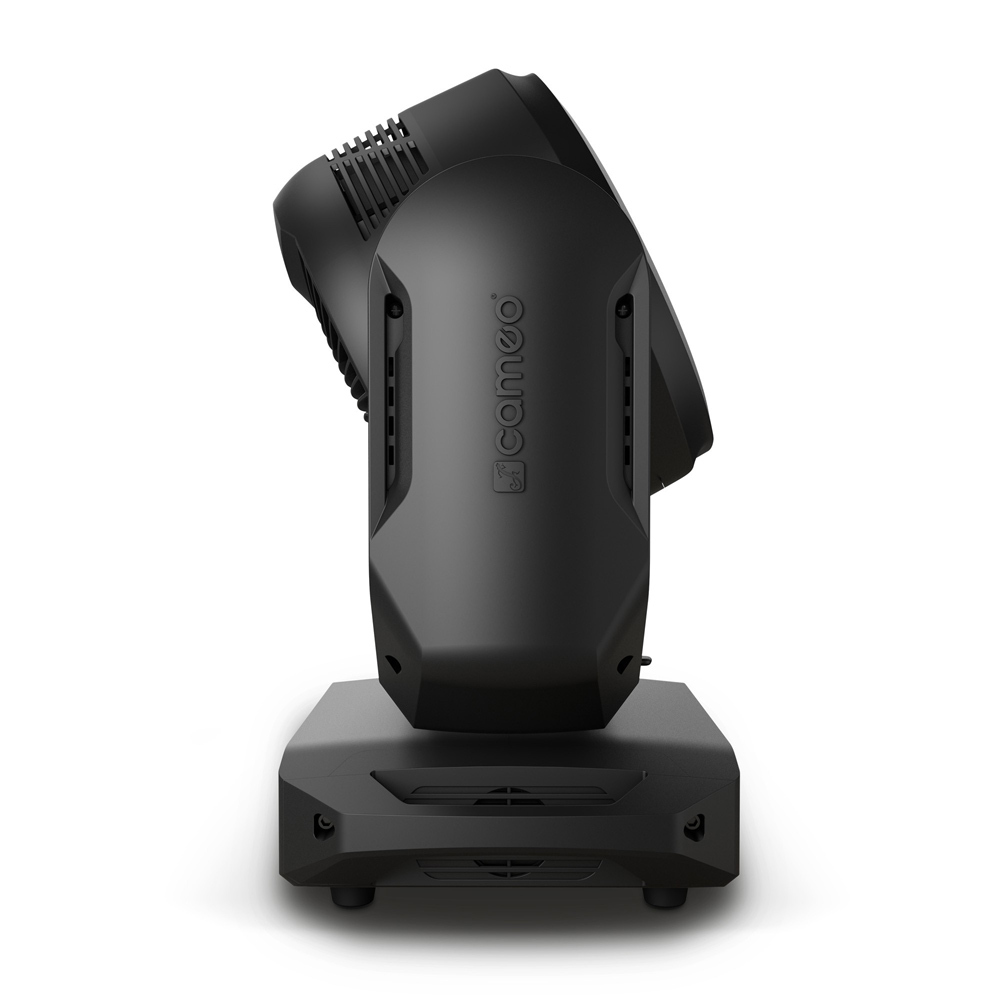

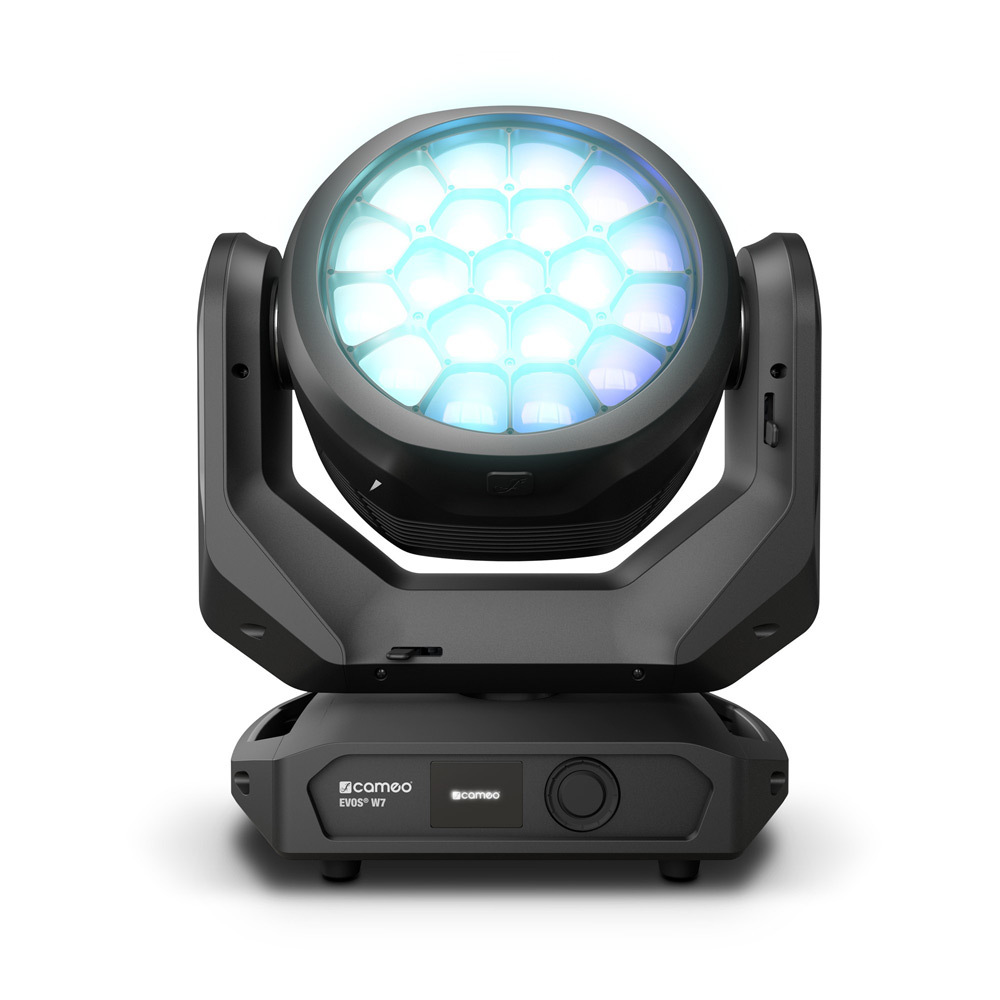

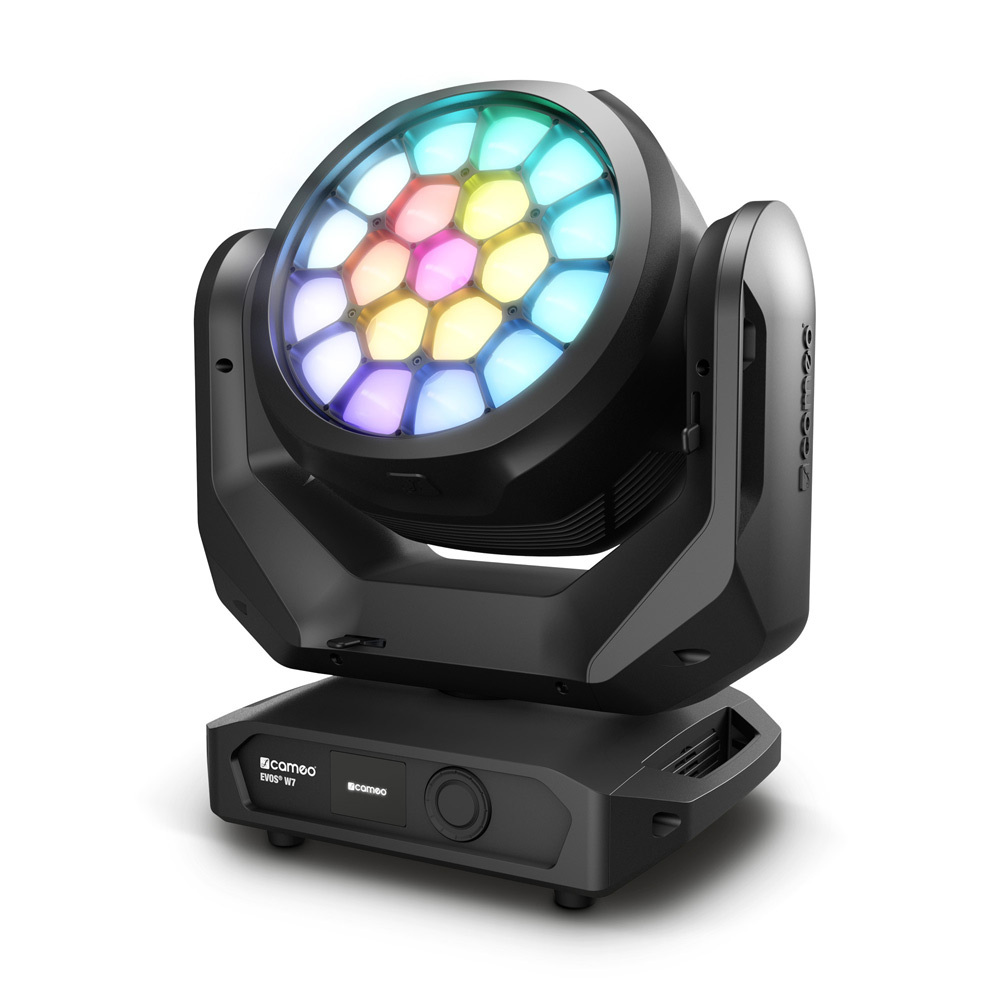

Cameo EVOS W7 LED Wash Moving Head

In Stock

Calculate Shipping


  • Wash-Beam Moving Head with 12,500 lm luminous flux
  • Light intensity of 96,000 lx @ 1 m
  • 19 full-colour 40 W RGBW LEDs
  • Precise colour reproduction with CRI > Ra 90
  • Individual control of all LEDs (Single Pixel Control)
  • Zoom range of 4.5° to 34° (beam) / 7° to 55° (field)
  • Adjustable refresh rate of between 800 Hz and 25 kHz
  • Control via DMX, RDM Art-Net3, sACN or KlingNet
  • Intuitive rotary encoder for easy configuration
  • Includes Beam Shaper for asymmetrical beams.

If you’re looking for a particularly natural-looking LED light for effects and lighting, then this professional WashBeam is the right choice. The warm white LED allows you to blend attractive warm pastel shades, and also delivers a wonderful warm white light for lighting people/objects/etc. The Cameo EVOS W7 WashBeam Moving Head with Single Pixel Control and Beam Shaper for asymmetrical beams is especially designed for rental companies with demanding professional customers. A total of 19x 40 W RGBW LEDs produce rich RGB colours for breath-taking lighting effects. Compared to other devices, the Cameo EVOS W7 offers a particularly high colour reproduction index. The warm white chip can be used to light people or objects – either with naturally warm white light or as mood lighting in pastel shades. This versatility results from the unique combination of a full-colour LED with a WW chip, which generates extremely clearly defined white tones with a CRI above Ra 90.

Providing individual control of all LEDs by means of Single Pixel Control, the Cameo EVOS W7 WashBeam Moving Head produces breath-taking pixel effects. The powerful luminous flux of 12,500 lumen floods any event with warm, bright light in clearly defined colours and delivers generous coverage up to 540° horizontally (pan) and 270° vertically (tilt). Its versatility is further enhanced by an impressive zoom range of 4.5° to 55°, which facilitates powerful beam and large-area wash effects. The directional light beams can also be asymmetrically shaped using the included Beam Shaper.

Live broadcast images of your event are guaranteed to be flicker-free because the WashBeam Moving Head’s refresh rate can be adjusted in six stages between 800 Hz and a maximum of 25 kHz.

Software control via a network is highly flexible with DMX, RDM Art-Net3, sACN or KlingNet. Further effect devices in the network are looped through via 3 or 5-pin XLR sockets and the DMX mode is available in 16, 18, 23, 33, 43 and 97 channel versions to transmit the extremely extensive range of DMX functions: pan/tilt, pan/tilt fine, dimmer, dimmer fine, stroboscope 0-20 Hz, zoom, zoom fine, single pixel control, pattern, effect pattern, colour presets (LEE filter) and motion macros. Independent operation and mains-independent configuration in Auto Program and Static Mode are carried out via the intuitive encoder with battery-powered graphic display. Preset colour filters allow problem-free use in combination with conventional headlamps.

The black housing is made of environmentally-friendly, fire-retardant ABS, nylon and PC plastic and features temperature-controlled fans, a mains power connection with a Neutrik TrueOne plug and an integrated 1 m mains cable.

Technical Data


Product type: LED Moving Lights
Type: Moving Head
Colour spectrum: RGBWW
Number of LEDs: 19
LED type: 40 W RGBW
Refresh rate: 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz – adjustable Hz
Dispersion: Beam Angle: 4.5 ° – 34 °, Field Angle: 7 ° – 55 °

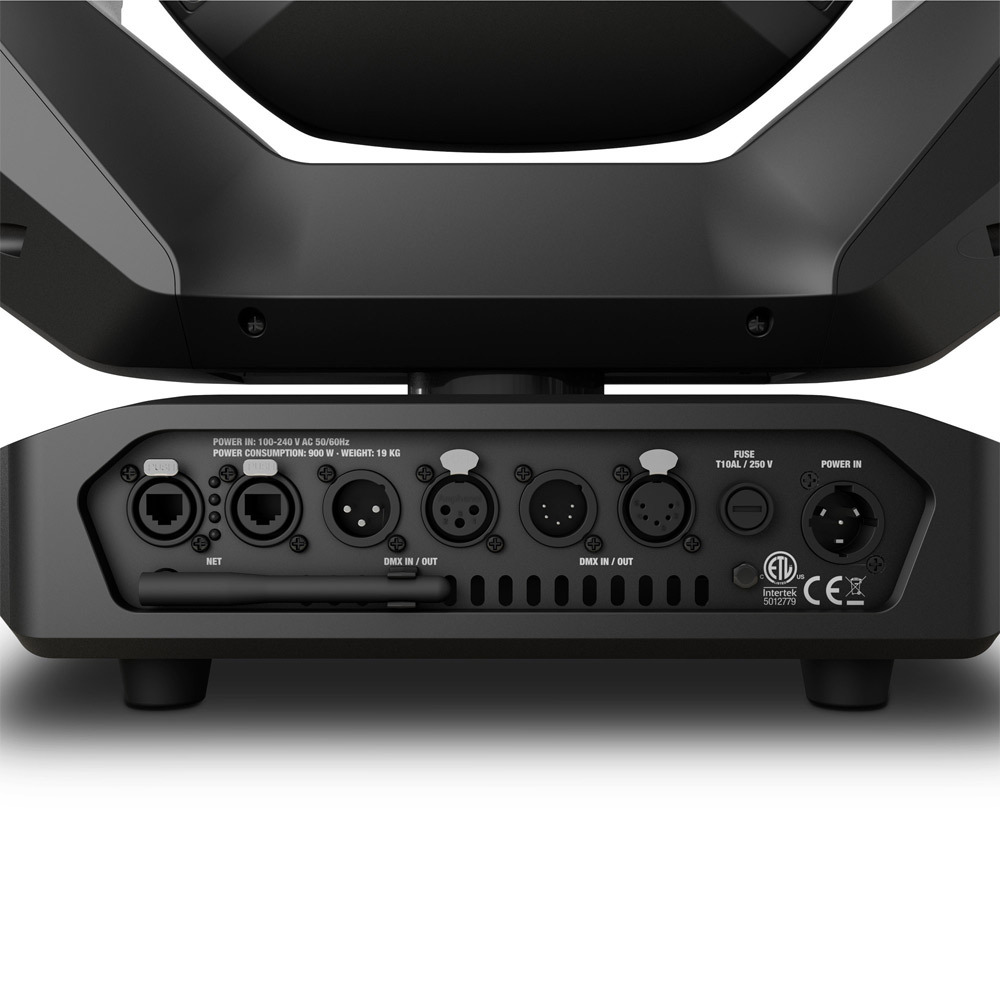

DMX input: Network, XLR 3-pin male, XLR 5-pin male
DMX output: Network, XLR 3-pin female, XLR 5-pin female
DMX mode: 16-channel, 18-channel, 23-channel, 33-channel, 43-channel, 87-channel
DMX Functions: Colour presets, Device Settings, Dimmer, Dimmer Fine, Effect patterns, Motion Macro, Pan/Tilt, Pan/Tilt fine, Patterns, Single Pixel Control, strobe, Zoom, Zoom Fine
PAN movement: 540 °
TILT movement: 270 °
Control: Art-Net3, DMX512, KlingNet, RDM enabled, sACN
Standalone modes: Auto programs, Static
Controls: Encoder wheel
Indicators: Backlit colour LCD display, Battery supply for mains-independent system settings (automatically rechargeable battery)
Operating voltage: 100 V AC – 240 V AC, 50 – 60 Hz
Power consumption: 900 W
Fuse: T10AL 250 V
Power connector: Neutrik TrueOne Input
Housing material: Environment-friendly fire-retardant ABS, nylon and polycarbonat
Cabinet colour: Black
Luminous flux: 12500 lm
Dimensions: 421 x 257 x 482.5 mm
Weight: 23 kg
