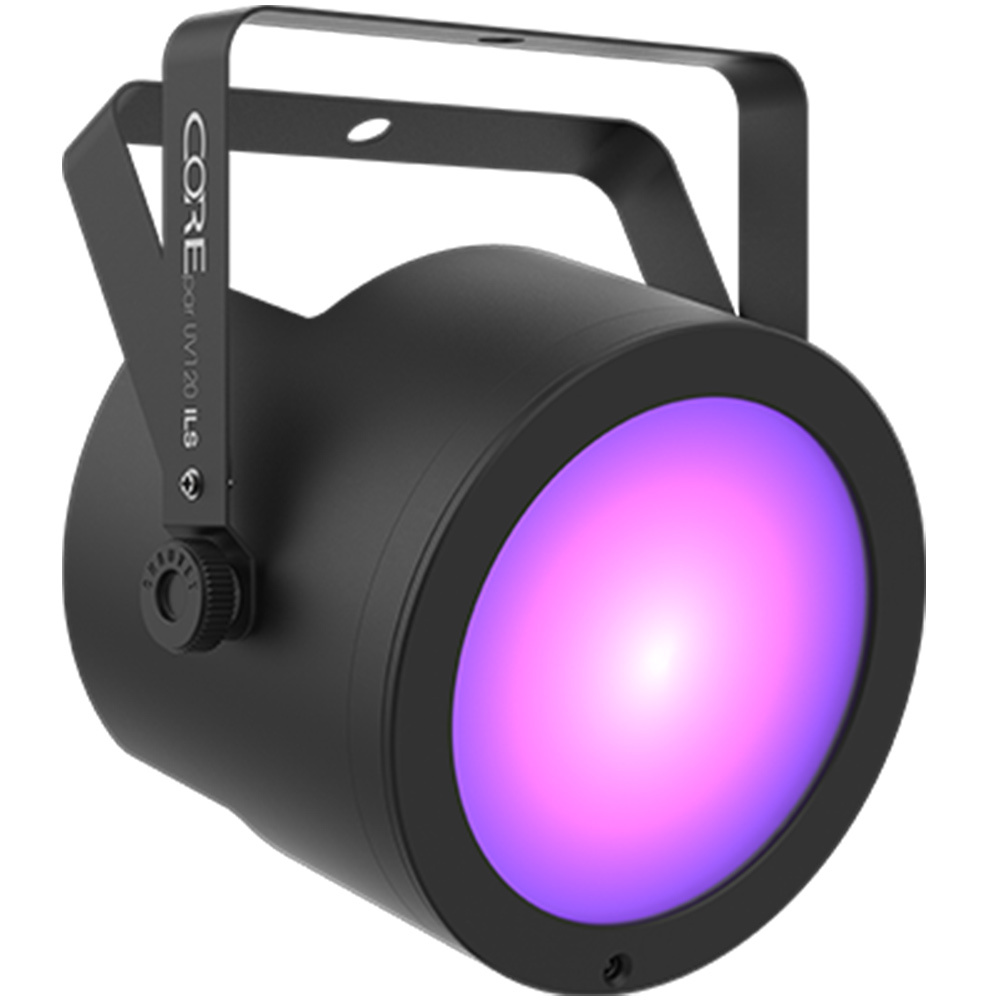

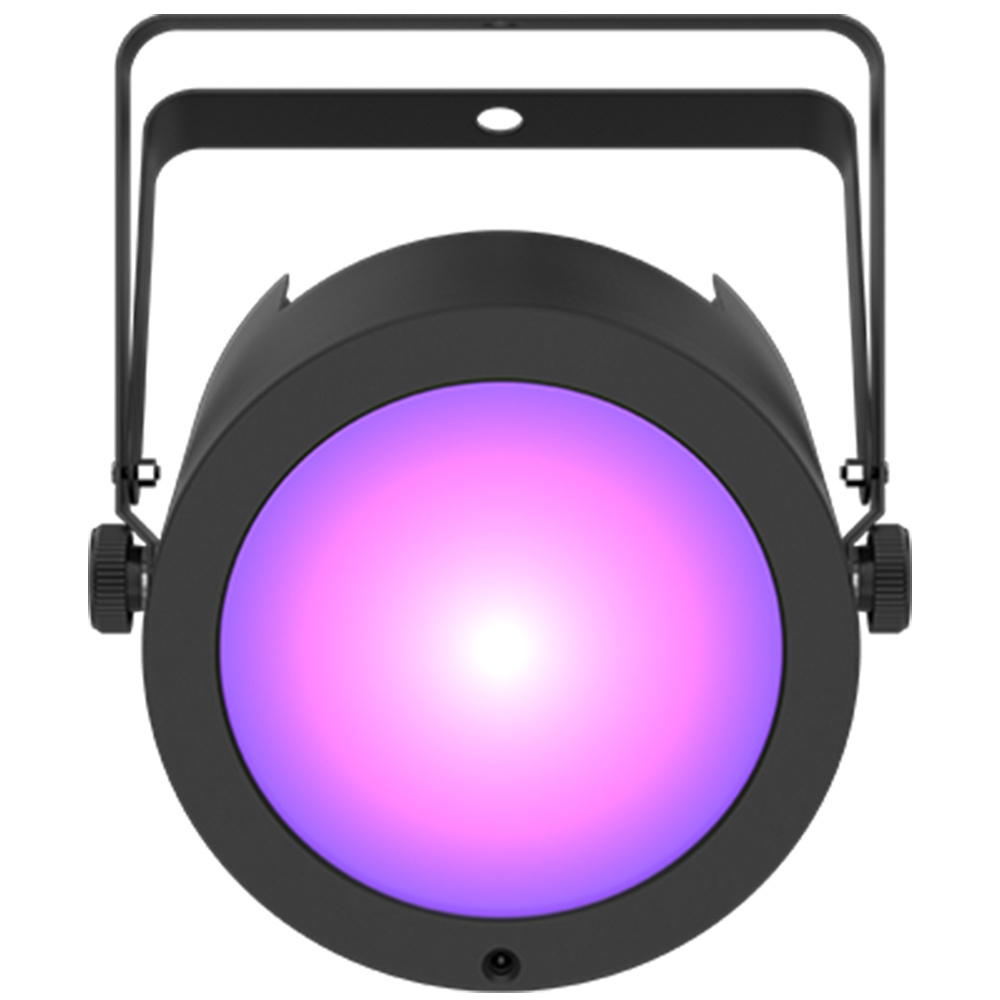

Chauvet DJ Corepar UV 120 ILS LED PAR

SHIPPED DIRECTLY FROM SUPPLIER

$599.00
Sold Out - Backorder Available


Calculate Shipping



PICK UP FROM STORE - $0.00
FREE PICK UP BETWEEN 10AM - 4.30PM WEEKDAYS FROM THE PRODUCTION SHOP

  • Compact ultra-wide UV wash with COB (Chip-on-Board) technology
  • ILS compatibility for use in the ILS ecosystem
  • D-Fi USB compatibility for wireless Master/Slave or DMX control
  • Magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam
  • Withstand the harshness of travelling from gig to gig with a robust housing

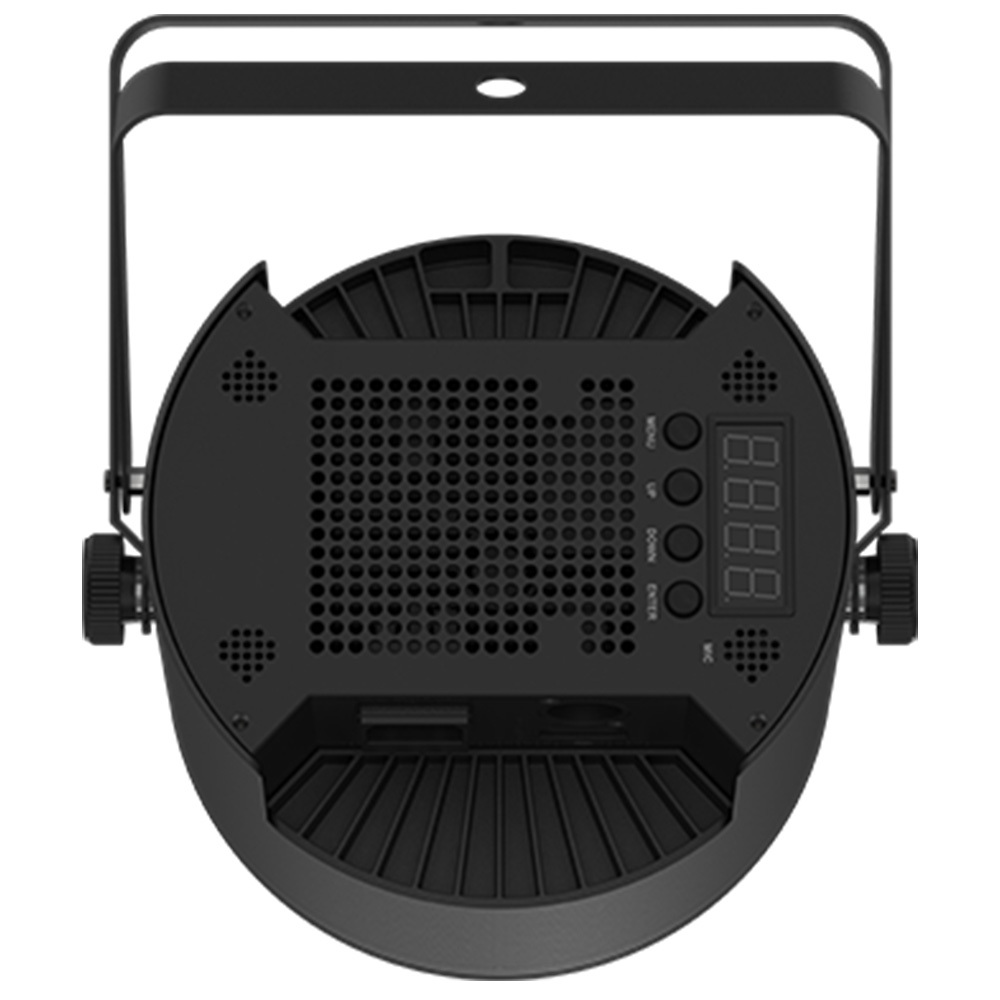

  • Sit-flat housing design hugs the floor and features power and DMX outlets
  • Achieve flicker-free video operation with high-frequency LED dimming
  • Save time running cables and extension cords by power linking multiple units
  • Operation of sound-activated and automated programs with optional IRC-6 remote
  • Fits best in the CHS-40 VIP Gear Bag.

Chauvet DJ Corepar UV 120 ILS is a compact ultra-wide 120-watt UV wash with COB (Chip-on-Board) technology. Also, onboard is ILS compatibility for use in the Integrated Lighting System (ILS) ecosystem. In fact, this makes creating coordinated light shows across different fixture types easy.

Corepar UV 120 ILS also has D-Fi USB compatibility for wireless Master/Slave or DMX control. Also, high-frequency LED dimming lets you achieve flicker-free video operation. The included magnetic Fresnel lens allows the flexibility to go from an ultra-wide to a narrow beam in seconds.

Additionally, its sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit for easy connections. Furthermore, Corepar UV 120 ILS has robust housing to withstand the harshness of travelling from gig to gig.

Technical Data



DMX Channels: 1 or 5
DMX Connectors: 3-pin XLR
Light Source: 1 COB LED (UV) 120 W, (3.34A), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
Beam Angle: (with lens): 21° (without lens): 44°
Field Angle: (with lens): 34° (without lens): 94°
Power Linking: 5 units @ 120 V; 9 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 118 W, 0.9 A @ 230 V, 50 Hz
Weight: 2.1 kg
Size: 225 x 185 x 228 mm
Approvals: CE, RoHS, UKCA
Optional Controllers: IRC-6, D-Fi USB

(CHA-COREPAR-UV120-ILS)

SKU CHA-COREPAR-UV120-ILS
Brand CHAUVET
