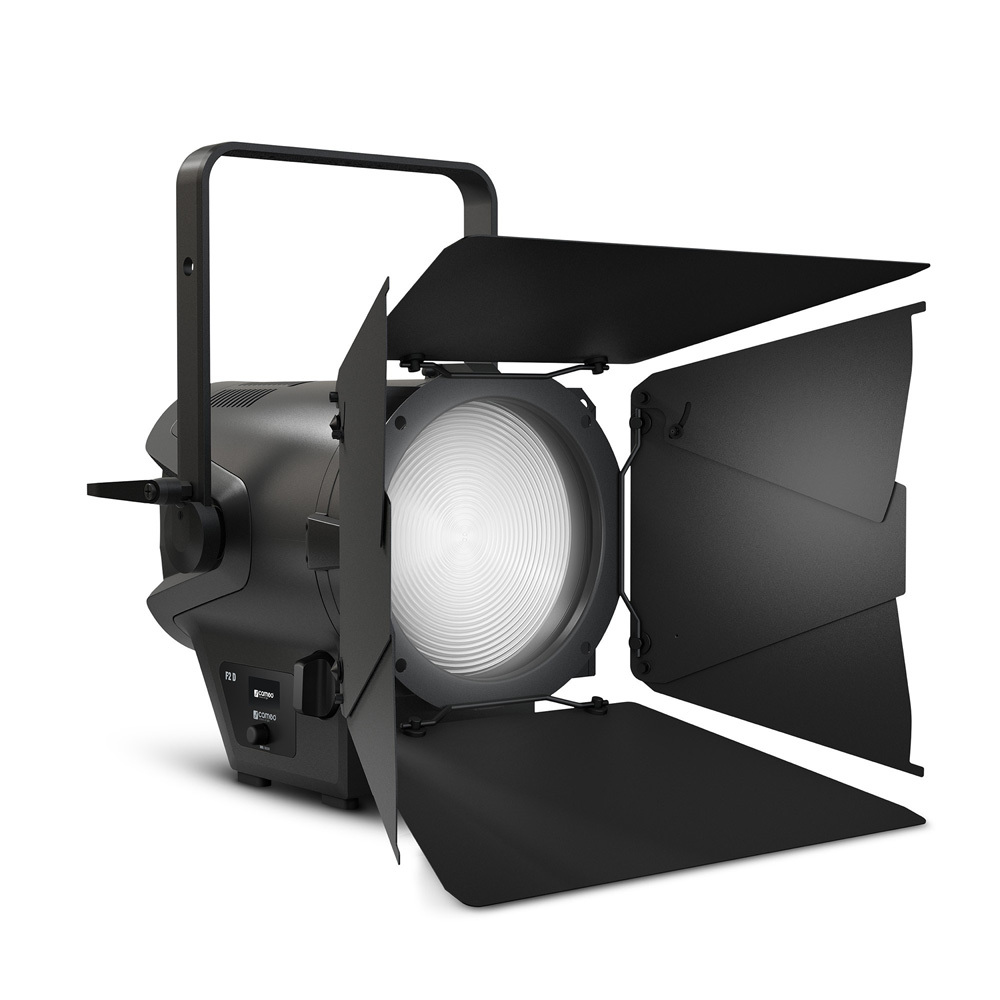

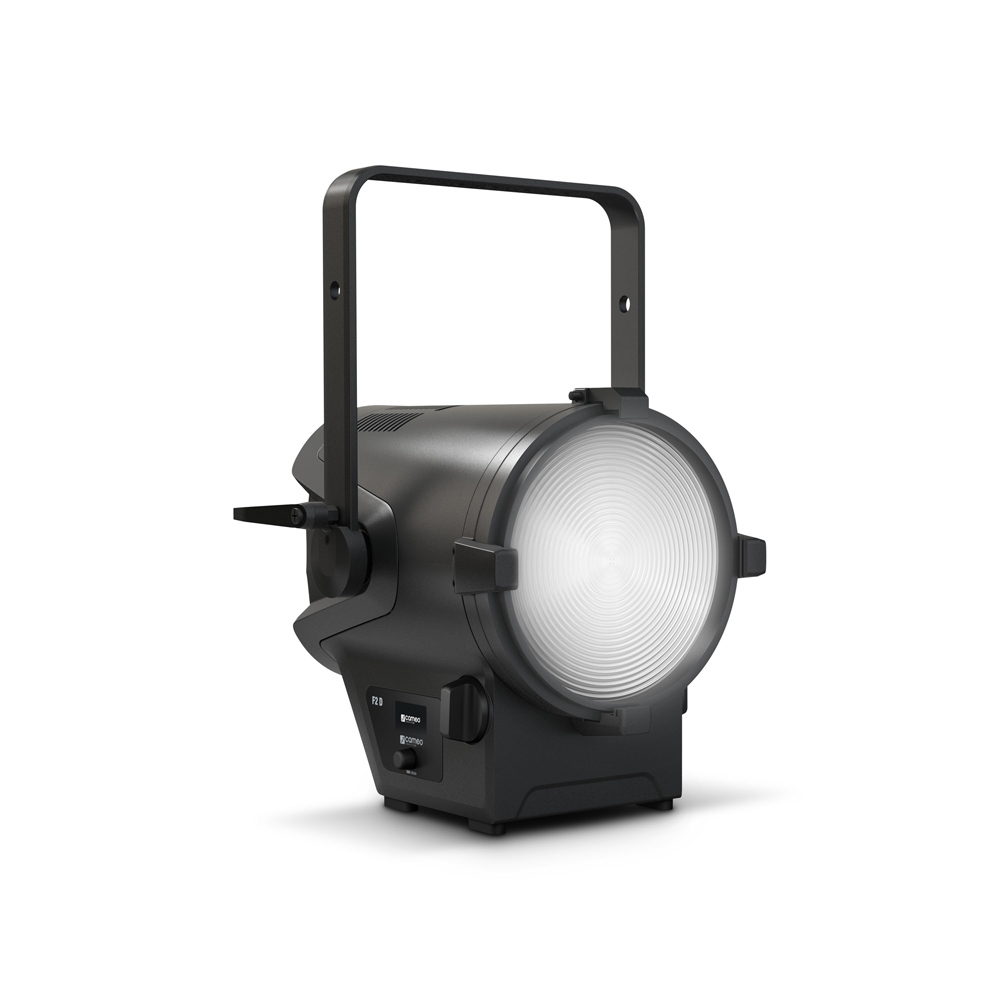

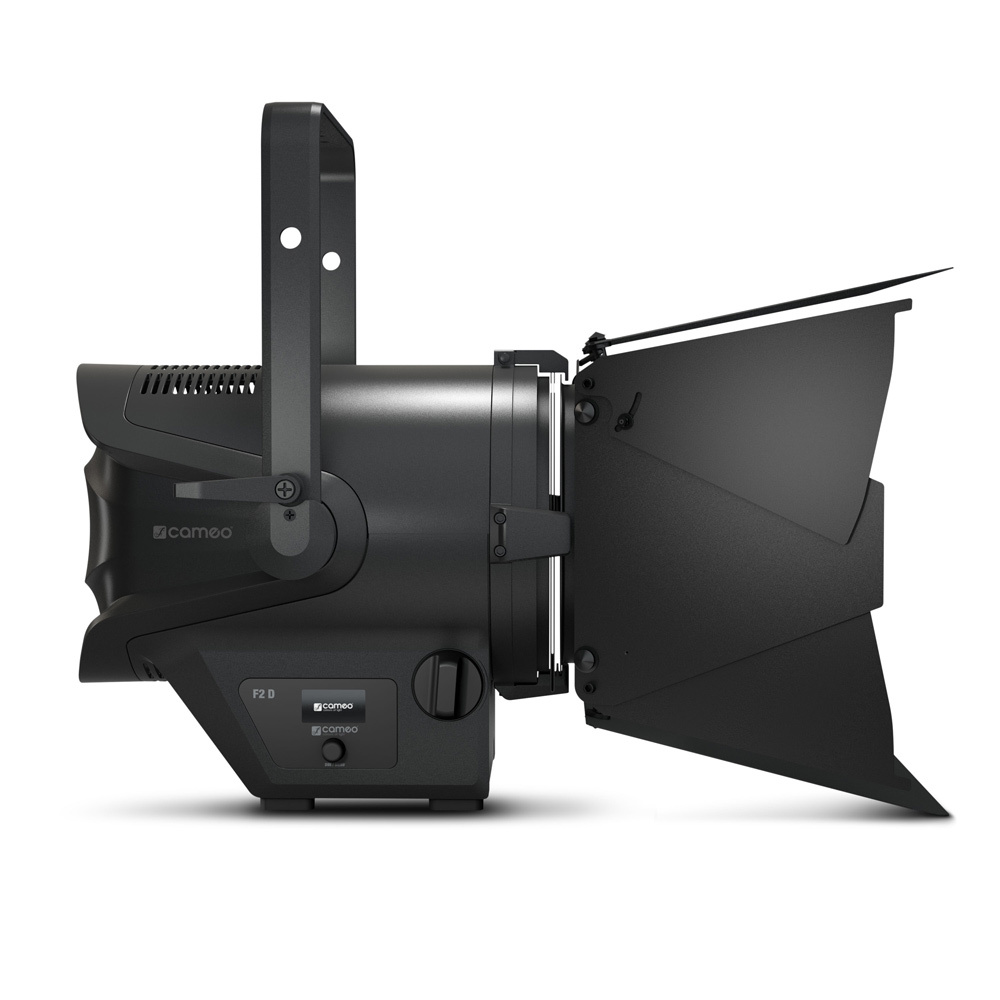

Cameo F2 D Daylight LED Fresnel Spot Light
$2,099.00
Sold Out - Backorder Available
- Daylight LED Fresnel with 5,400 K colour temperature and 15,000 lm output
- Perfect replacement for conventional 1 kW Fresnels
- Faithful colour reproduction, CRI rating of 96, TLCI of 97
- Continuously variable zoom for 15° to 40° beam spread
- 16-bit dimming with 4 selectable curves and adjustable response
- Super efficient heat pipe cooling and temperature controlled fan for optimum operation
- RDM enabled
- Selectable PWM frequencies up to 25 kHz
- Flicker-free and silent operation, ideal for TV, film and theatre applications

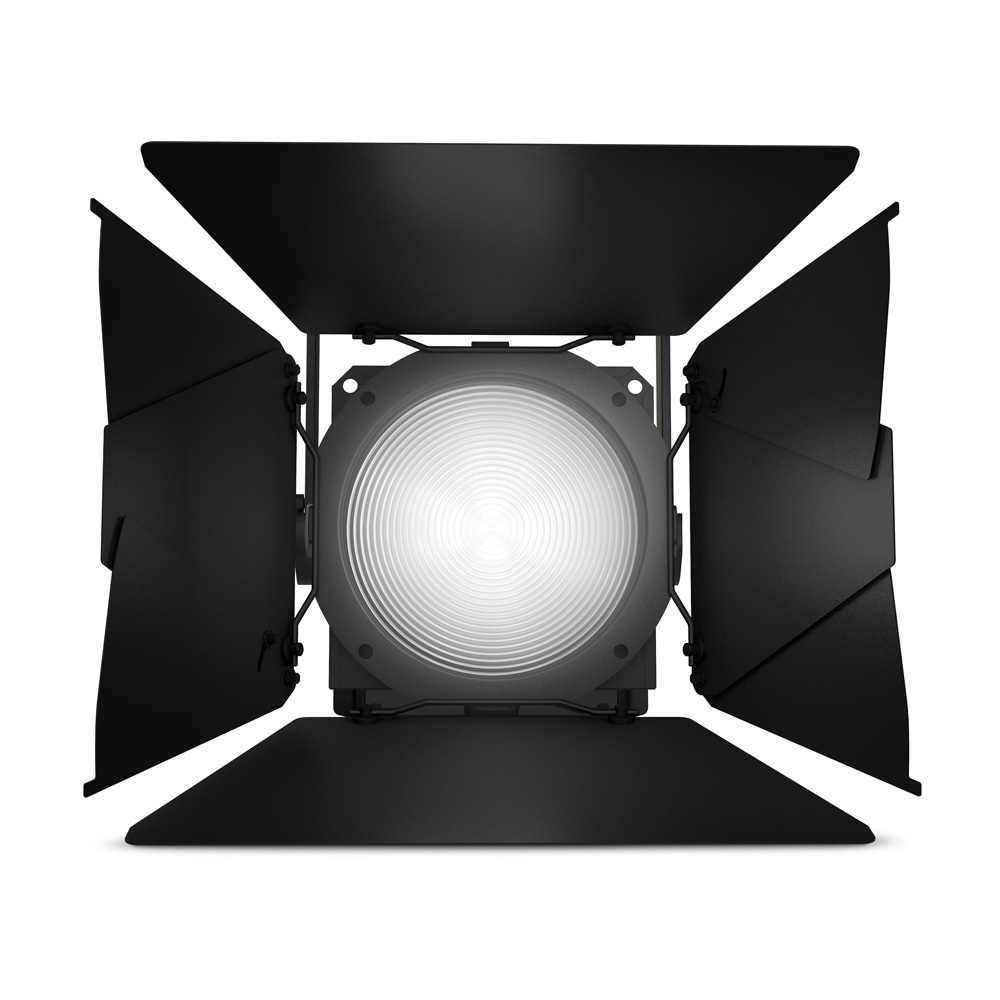

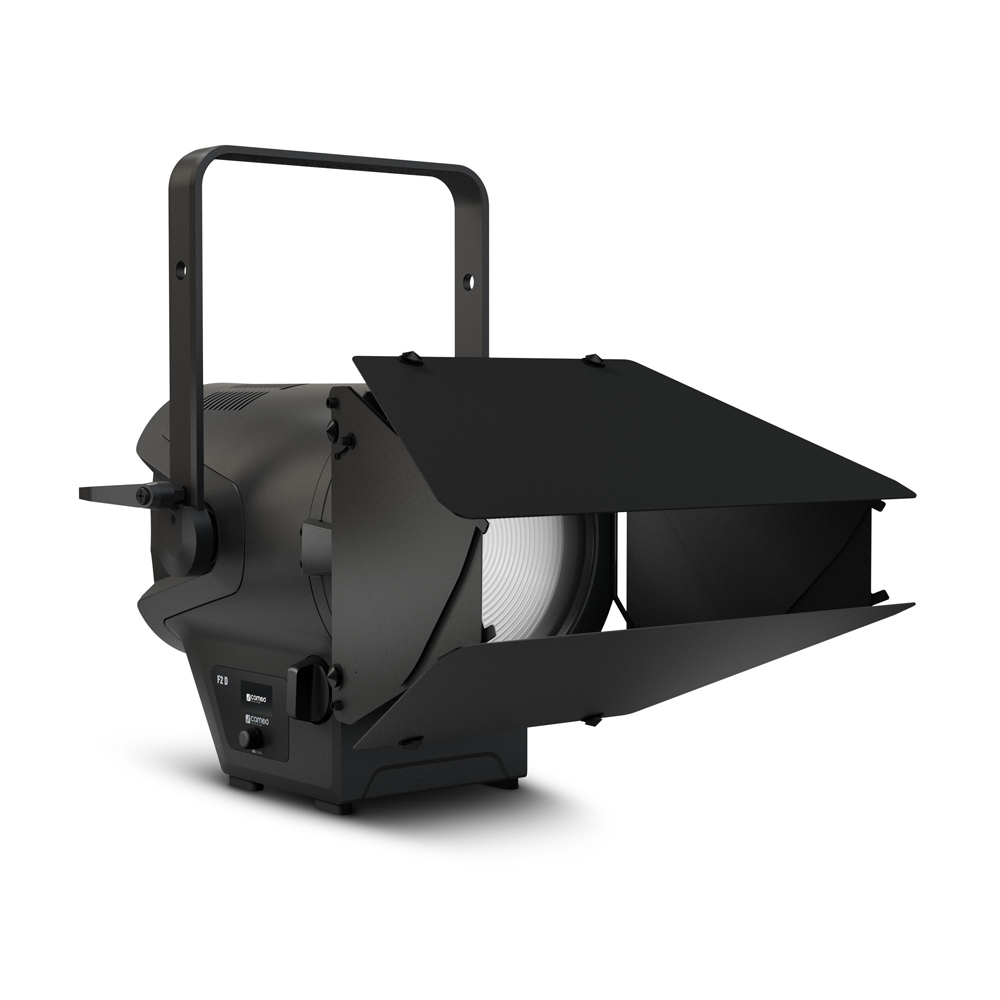

- Includes 8-way barn door and gel frame.
Technical Data
| Product type: | LED Fresnel Spotlight |
| Type: | Theatre Fresnel |
| Colour spectrum: | Cold White (5400K) |
| Number of LEDs: | 1 |
| LED type: | 240 W (ca. 50,000 Operating Hours) |
| Refresh rate: | Adjustable: 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12000 Hz, 25000 Hz |
| Dispersion: | Beam Angle: 16 ° – 40 °, Field Angle: 28 ° – 60 ° |
| Lens: | 200 mm Fresnel |

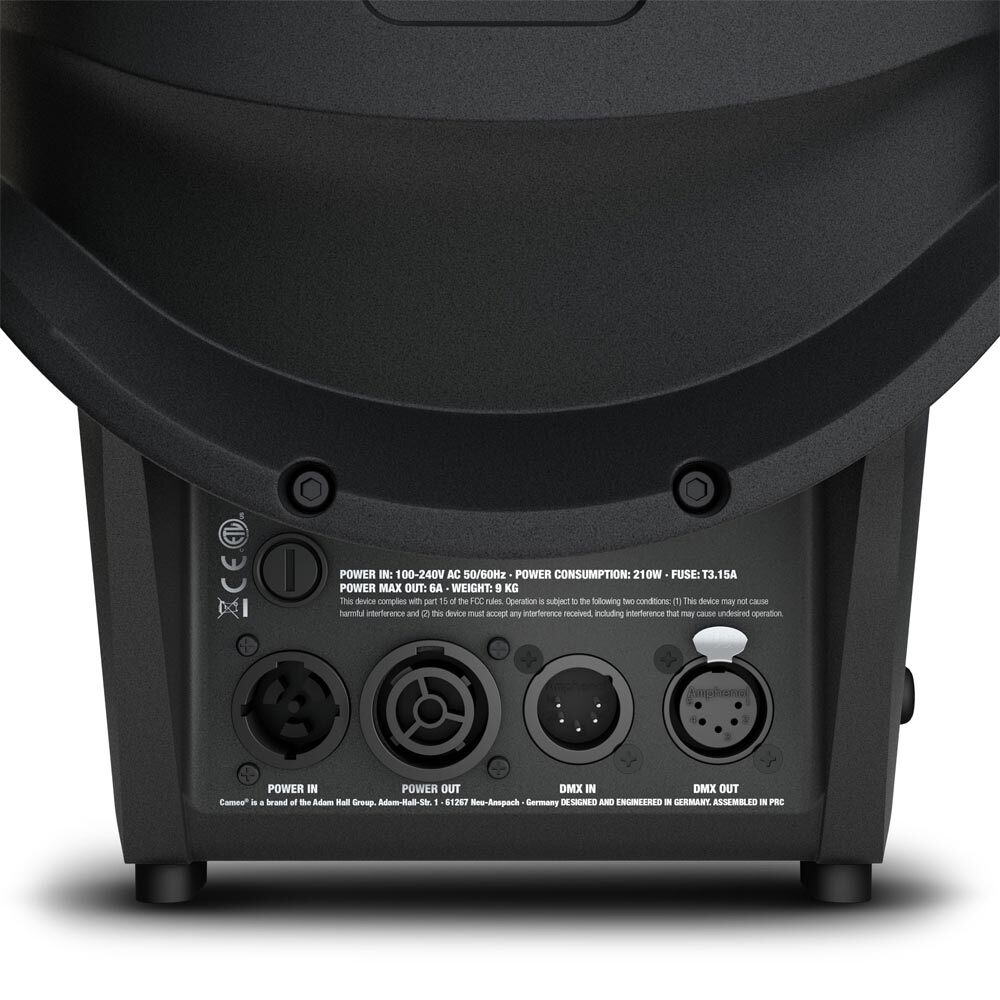

| DMX input: | 5-Pol |
| DMX output: | 5-Pol |
| DMX mode: | 1-channel, 2-channel 1, 2-channel 2, 3-channel, 4-channel, 5-channel |
| DMX Functions: | Device Settings, Dimmer, Dimmer Curve, Dimmer Fine, strobe |
| Standalone modes: | Master / Slave mode, Static |
| Controls: | Encoder |
| Indicators: | OLED Display |
| Operating voltage: | 100 V AC – 240 V AC, 50 – 60 Hz |
| Power consumption: | 210 W |
| Power connector: | TRUE1 Compatible Power I/O Socket |
| Housing material: | Die-cast aluminium |
| Cabinet colour: | Black |
| Protection class IP: | IP20 |
| Cooling: | Comination of Heat Pipe and Temperature Controlled Fan |
| Luminous flux: | 15,000 lm |
| Efficiency: | 63 lm/W |
| Colour temperature: | 5400 K |
| Ambient temperature (operating): | -15 – 45 °C |
(CAMEO-F2D)
| SKU | CAMEO-F2D |
| Brand | CAMEO |
