Active plywood loudspeakers – with internal FIR DSP

Internal FIR signal processing
Proven ‘DELTA Active’ reliability
Practical ‘DELTA Active’ design
Retro-fittable electronics
Compatible with DELTA active subwoofers
Increased Continuous Power. Now 800 Watts

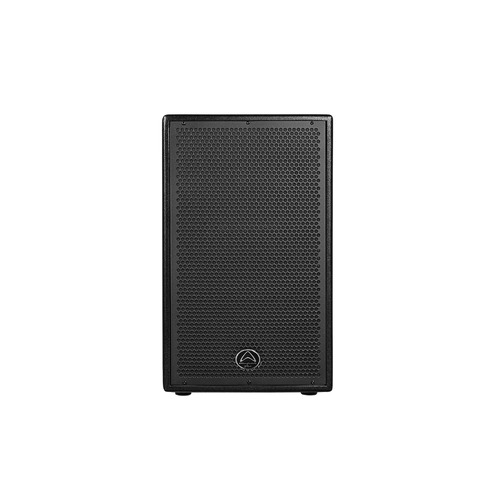

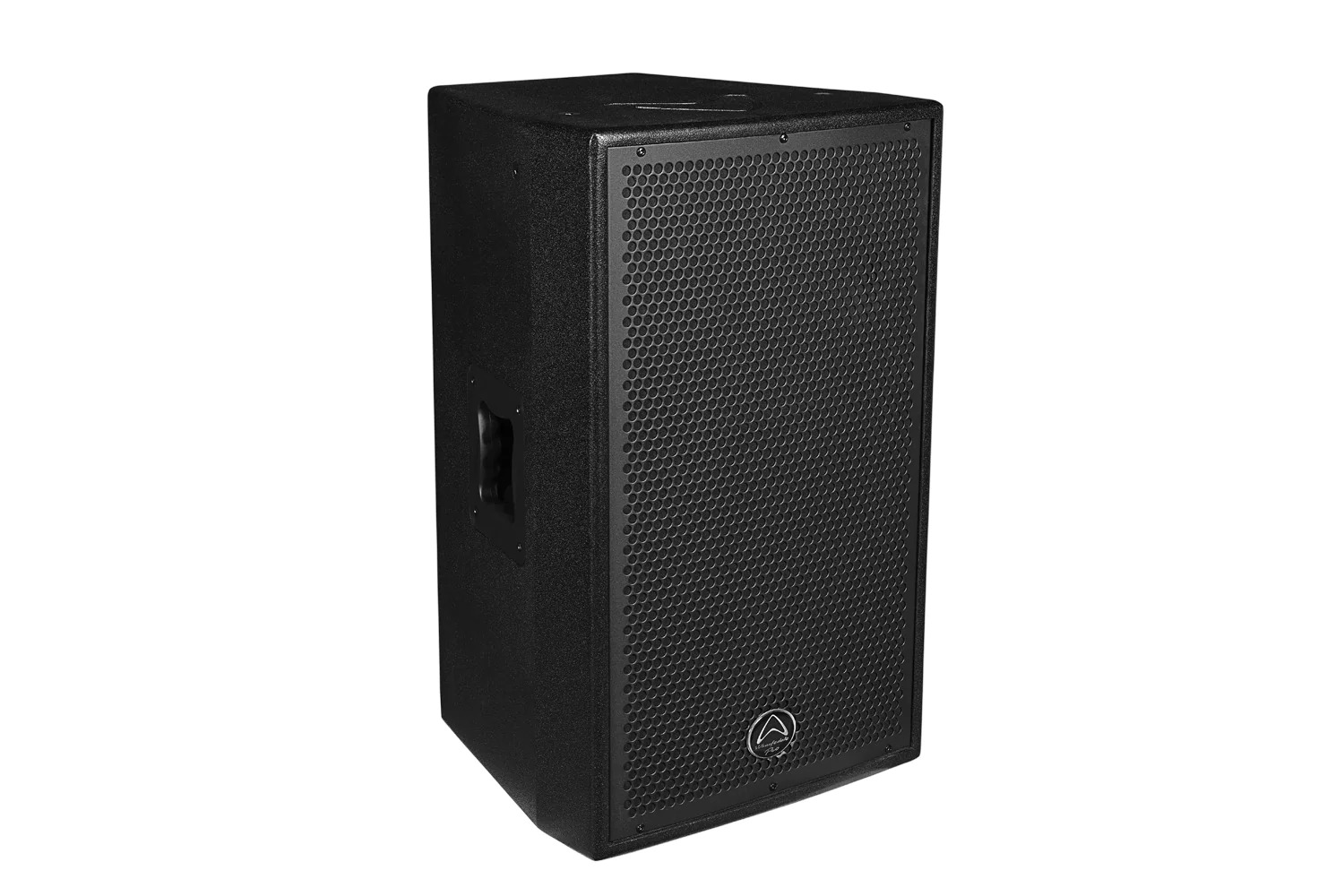

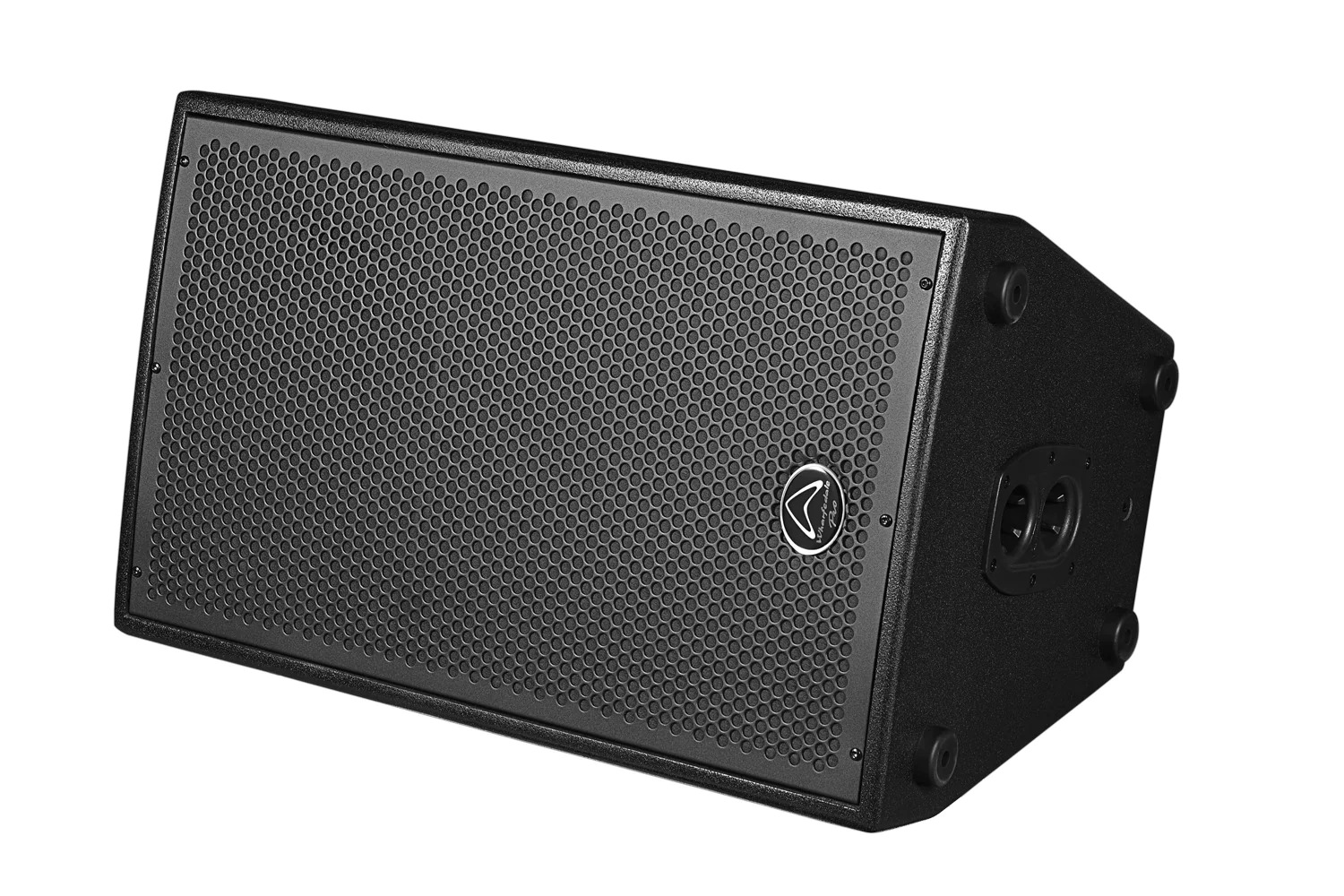

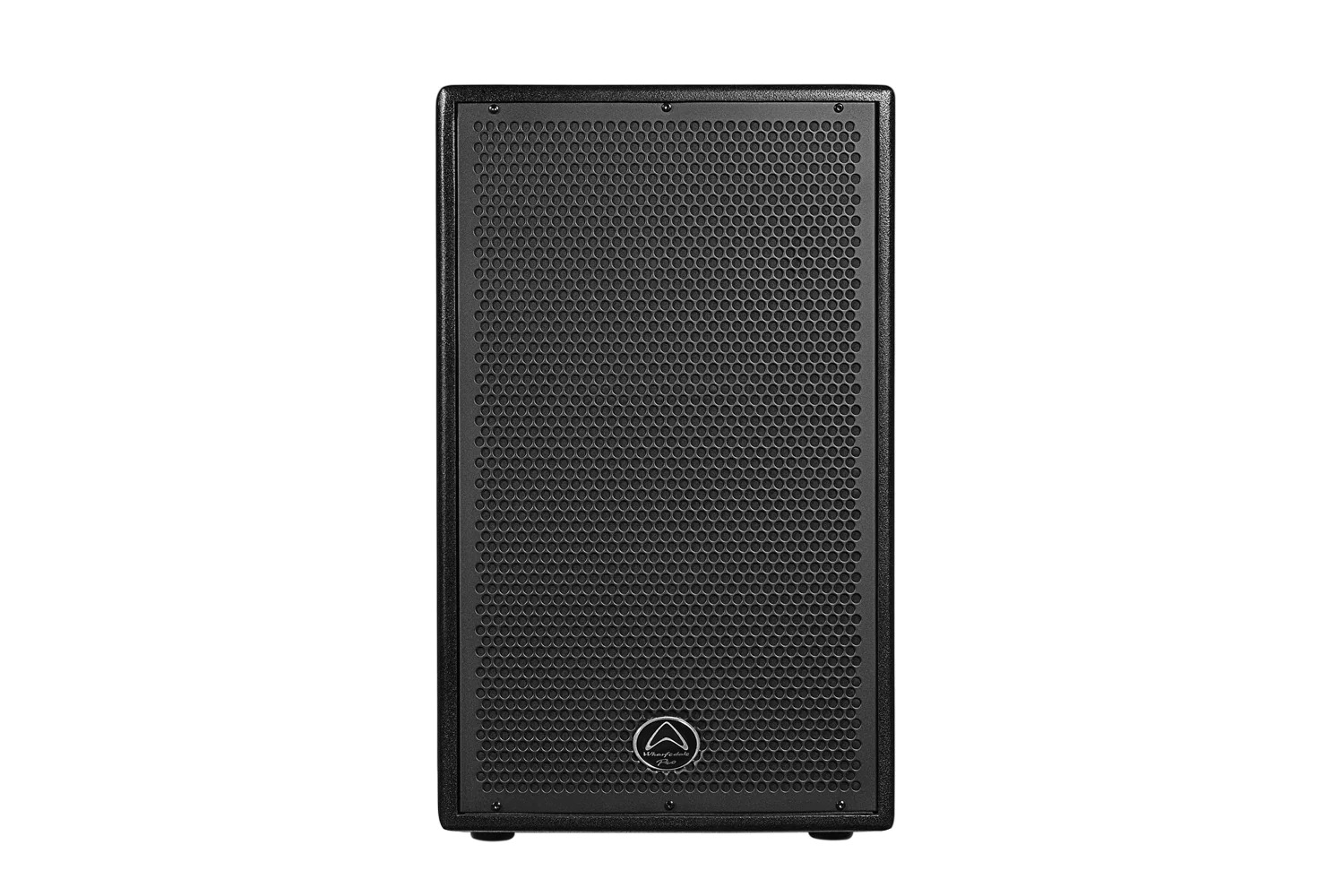

DELTA-AXF15

15″ two-way bi-amplified active loudspeaker
800 watts Continuous power
1600 watts Peak power
90° x 45° dispersion
2″ HF Compression driver
3″ LF voice coil
Advanced Internal FIR DSP
131.5 dB Max SPL @ 1 meter

The graph shows phase response.

Frequency is on the X axis and time (expressed in degrees) is on the Y axis.

BIRCH PLYWOOD

Delta-AXF models use premium Baltic birch plywood construction.

Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character.

Delta-AXF is also covered in our most durable and hard wearing Rhino Rock paint finish. This ensures that a Delta-AXF will always look as good as the day you unboxed it.

ROUTED LOGO

Delta-AXF features a routed Wharfedale Pro logo.

It is also a logo to be proud of. A logo that lets your audience know that the sound of your even will be of the highest possible quality.

NEED A SUB ?

Delta-AXF12 and Delta-AXF15 are perfectly matched with the Delta-AX15B and Delta-AX18B subwoofers.

FULL RANGE

Delta-AXF12 and Delta-AXF15 use 2 x Class D amplifiers. These are specifically tuned and selected to be the perfect match for the HF and LF drivers inside.

With multiple analogue inputs, Delta-AXF full range models are ready to connect to whatever signal source you have.

SPECIFICATIONS

Model Name	DELTA-AXF15
System Type	Active 15” 2-way Bi-Amplified
Frequency Response (+/-3 dB)	50 Hz – 20 KHz
Frequency Range (-10 dB)	45 Hz – 20 KHz
Calculated Maximum SPL @1m	131.5 dB
Low Frequency Transducer – Size ( mm / inches)	404 mm / 15″
Coil Size ( mm / inches)	75 mm / 3″
Impedance	4 Ω
High Frequency Transducer – Type	Compression Driver
Coil Size ( mm / inches)	51.2 mm / 2″
Exit Size ( mm / inches)	25 mm / 1”
Diaphragm Material	Titanium
Impedance	8 Ω
Nominal Coverage (H x V)	90° x 45°
Amplifiers
Amplifier Design	Class D
Power Rating:	1600 W Peak (1400 W LF + 200 W HF), 800 W Continuous (700 W LF + 100 W HF)
Power On Protection	Power Switch On/Off Mute
Thermal Protection	Amplifier Shut Down. Auto Reset
Low Line Voltage Shut Down	80% Nominal Line Voltage
Driver Protection	Independent LF and HF Limiters
DC and Short Protection	Yes
Clip Limiter	Turns on Approx 650 W Output
Limiter Indicator	Red LED
Power Indicator	Green LED

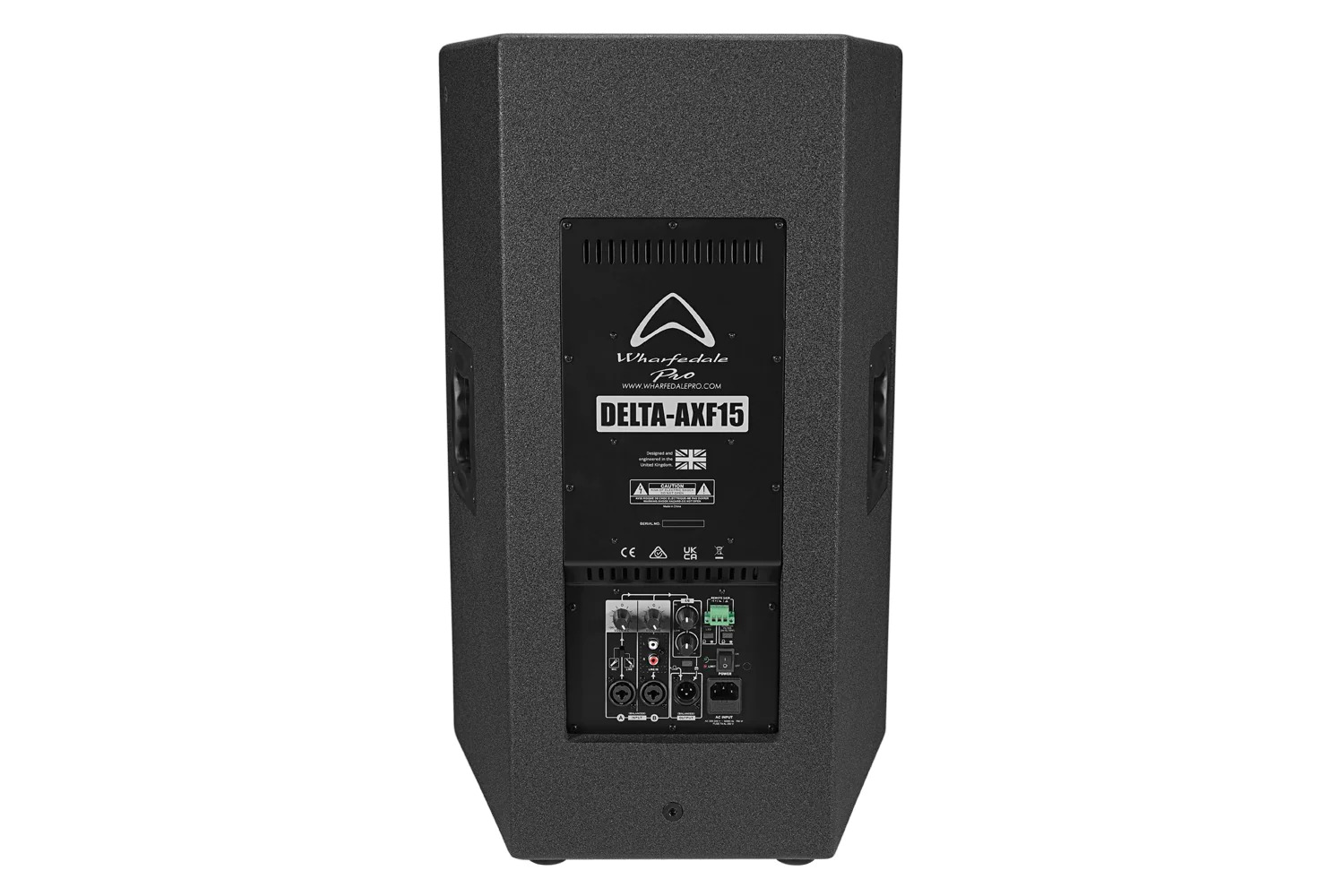

Connectors
Input A – type	Switchable Balanced Mic or Line Level Input
Input Sensitivity	Mic:-40 dBu Line:0 dBu
Maximum Input Level	22 dBu
Input Connector	XLR 1/4〞Combo jack / 2 x RCA
Input Impedance	Balanced:20 KΩ Unbalanced:10 KΩ
Line Output Connector	Switchable LOOP/MIX Balanced pin XLR Connector
Impedance Balanced	Balanced: 200 Ω Unbalanced:100 Ω
Loop Gain	Mic:69 dB, Line:29 dB
AC Power details – Power Supply	High Efficiency Switching Mode Power Supply
AC Power Options	AC100-120 V~/220-240 V~,50/60 Hz
Hardware – Rigging	M10 x 6
Pole Mount	Dual Angle (0⁰ or 10⁰) 35 mm Pole Socket
Enclosure Material and finish	15 mm Plywood
Colour Options	Black Rhino Paint
Grille Material & Finish	1.5 Steel
Unpacked dimensions – Height	700 mm / 27.56″
Width (Front)	446 mm / 17.56″
Width (Back)	281.4 mm / 11.08″
Depth	406 mm / 15.98″
Packed Dimensions – Height	803 mm / 31.6”
Width (Front)	638 mm / 25.1”
Width (Back)	366 mm / 14.4”
Depth	498 mm / 19.6”
Net Weight ( kg / lbs)	30.5 kg / 67.1 lbs
Gross Weight ( kg / lbs)	35.4 kg / 77.9 lbs
