RCF EVOX J8 Active 12" 2-Way 1400W Portable Line Array PA System
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$2,849.00
In Stock
Description
FEATURES
- 128 dB Max SPL
- 1400 Watt 2-way power
- DSP Processing with FiRPHASE
- 12" woofer, high power 2.5" voice coil
- 8 x 2" ultra compact fullrange 1.0" voice coil
- 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
- 23,8/52.5 kg/lbs

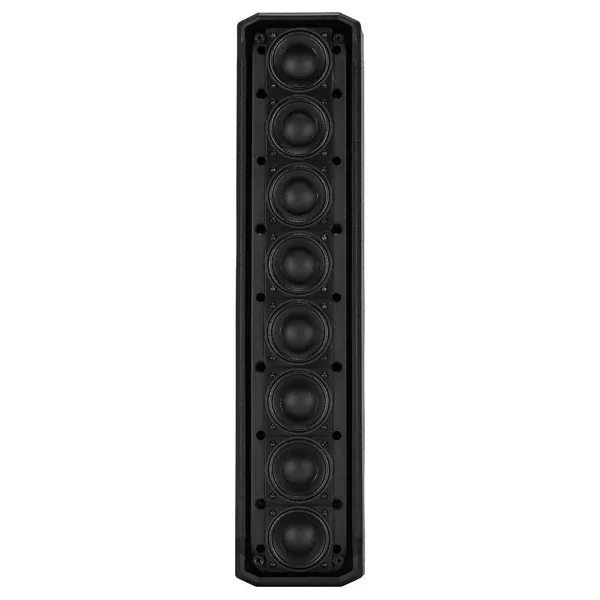

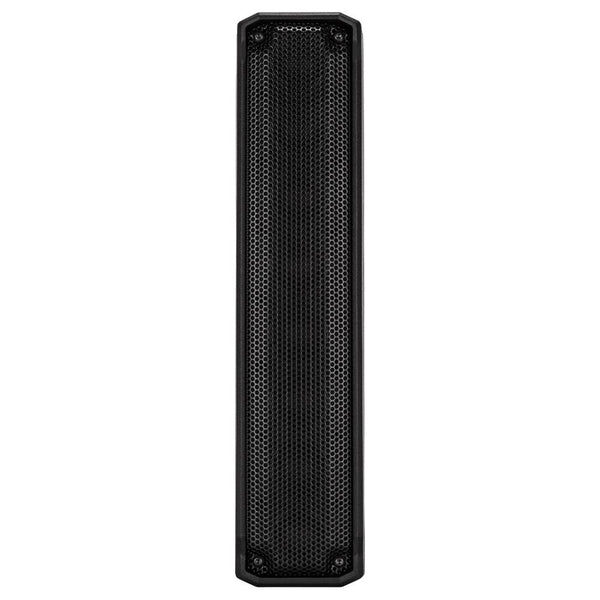

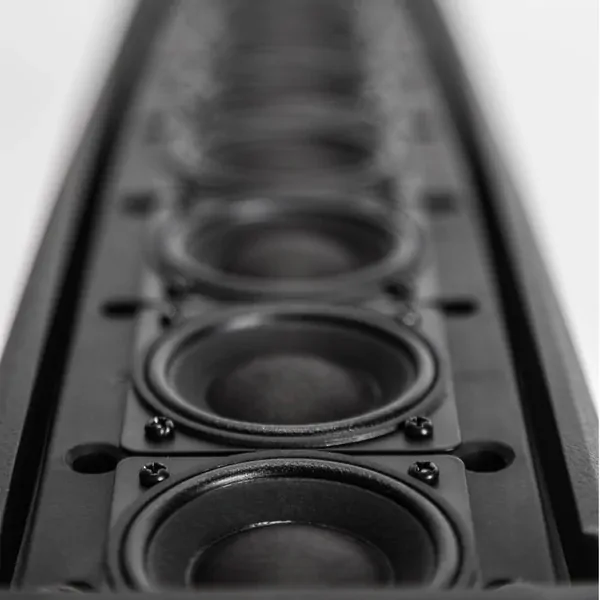

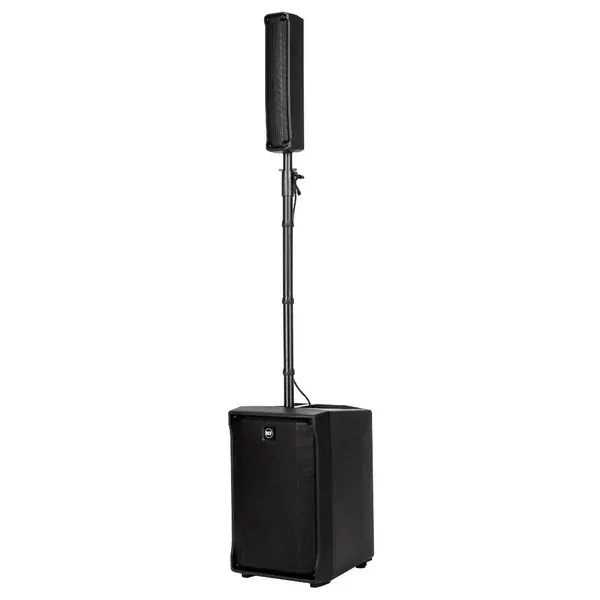

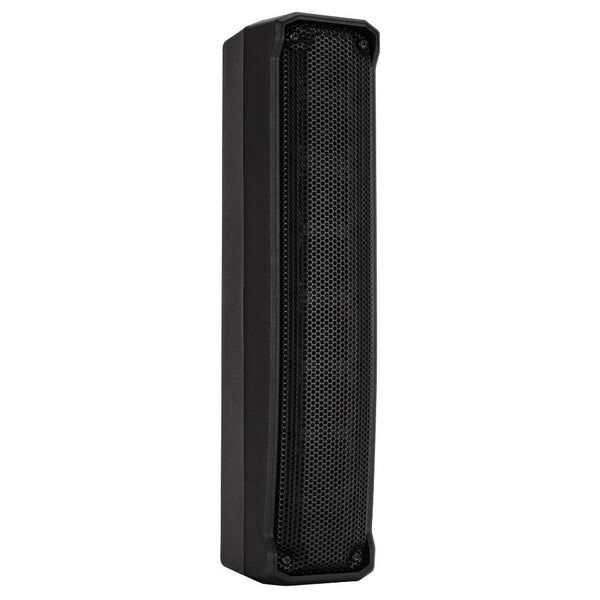

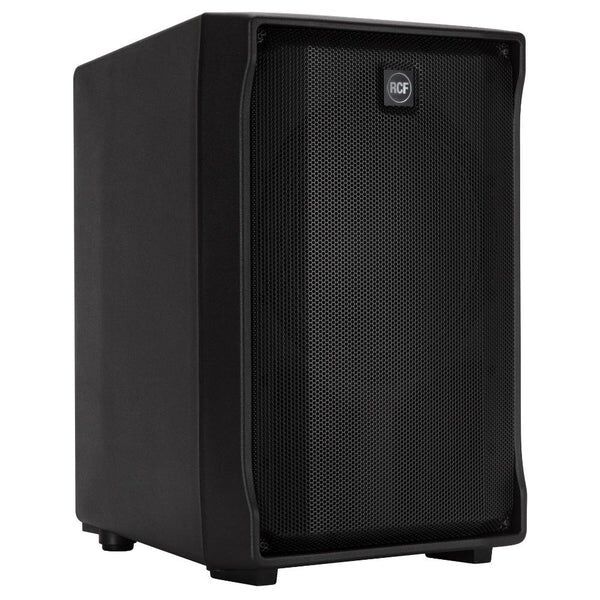

The RCF J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.
Specification
Portable PA System
| Speaker Configuration | 1 x 2-Way Speaker Column with Subwoofer |
| Amplifier Power Rating | Total: 1400 W Peak 700 W RMS LF: 1000 W Peak 500 W RMS HF: 400 W Peak 200 W RMS |
| Amplifier Class | Class-D |
Speakers
| HF Driver | 8 x 2" / 5.1 cm |
| HF Voice Coil | 1" / 2.5 cm |
| LF Driver | 1 x 12" / 30.5 cm Woofer |
| LF Voice Coil | 2.5" / 6.4 cm |
Signal Processing
| Crossover | 220 Hz |
| Dynamic Processing | Soft Limiter |
Performance
| Frequency Response | 40 Hz to 20 kHz |
| Maximum SPL | 128 dB |
| Coverage Angle | 120° H x 30° V |
| Input Sensitivity | +4 dBu / -2 dBu |
| Protections | RMS, Thermal |
Connectivity
| Audio I/O | 1 x XLR 3-Pin Female Input 1 x 1/4" TS Input 1 x XLR 3-Pin Male Output 1 x speakON NL2 Output |
Physical
| Construction Material | Metal Grille, Polypropylene |
| Dimensions | 24.5 x 15.7 x 18.1" / 62.3 x 40 x 46 cm |
| Weight | 52.5 lb / 23.8 kg |
Packaging Info
| Package Weight | 64 lb |
| Box Dimensions (LxWxH) | 27 x 23.4 x 18" |
(RCF-EVOX-J8)
| SKU | RCF-EVOX-J8 |
| Brand | RCF |
