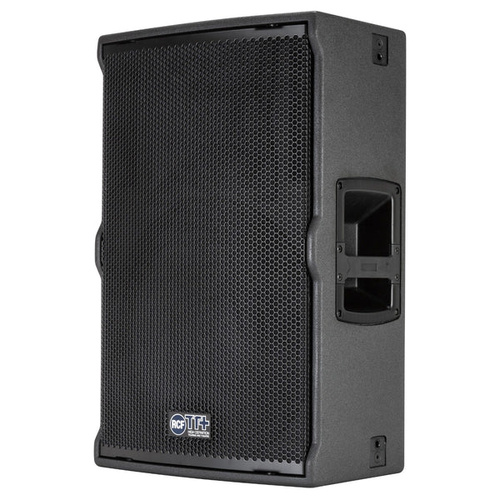

RCF TT 25-A II ACTIVE HIGH OUTPUT TWO-WAY SPEAKER
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
Description

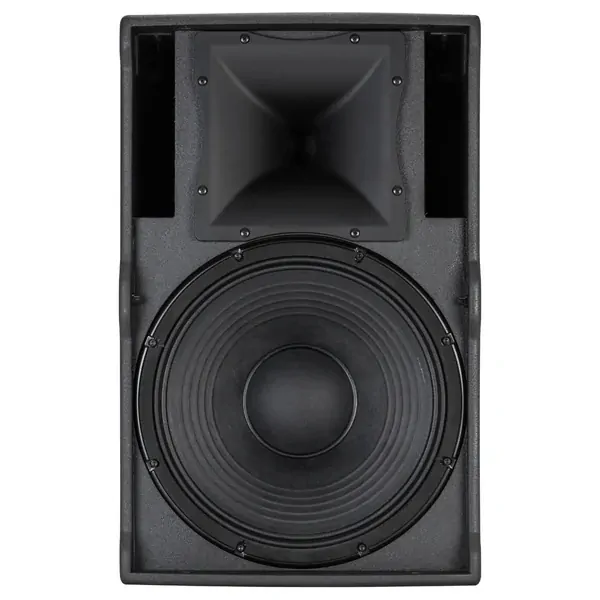

The TT25-A II is the most flexible and powerful tool in its class. TT25-A II offers very high output and dynamics, and extreme linearity and accuracy in a compact size. TT25-A II is a 2-way active system featuring a 15” neo woofer, 86 mm voice coil in a bass reflex configuration; 1,5” exit, 100 mm voice coil neo compression driver; 90° x 60° constant directivity horn, 90° rotating. The TT25-A II is the ideal professional speaker for sound reinforcement, live performances and events.
- 1100 W Class D Amplifier
- 90 x 60 constant directivity coverage angle
- 15" neo woofer, 3.5" voice coil
- 1.5 " neo c. driver, 4.0" voice coil
- DSP Processing
- Onboard RDNet Control
- Multifunctional cabinet
- Very high output.
Specification
SPECIFICATIONS
FREQUENCY RESPONSE: 50 Hz ÷ 20000 Hz
MAX SPL @ 1M: 134 dB
HORIZONTAL COVERAGE ANGLE: 90°
VERTICAL COVERAGE ANGLE: 60°
Transducers
COMPRESSION DRIVER: 1 x 1.5'' neo, 4.0'' v.c
WOOFER: 15'' neo, 3.5'' v.c
Input/Output section
INPUT SIGNAL: bal/unbal
INPUT CONNECTORS: XLR, RDNet Ethercon
OUTPUT CONNECTORS: XLR, RDNet Ethercon
INPUT SENSITIVITY: -2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES: 750 Hz
PROTECTIONS: Thermal, HF
LIMITER: Fast Limiter
CONTROLS: Proces., 8 sel. presets
RDNET: Yes
Power section
TOTAL POWER: 2200 W Peak, 1100 W RMS
HIGH FREQUENCIES: 600 W Peak, 300 W RMS
LOW FREQUENCIES: 1600 W Peak, 800 W RMS
COOLING: Convection
CONNECTIONS: Powercon IN/OUT
Physical specifications
CABINET/CASE MATERIAL: Baltic birch plywood
HARDWARE: 6xfly track, quick lock, pole mount
HANDLES: 2 on side
POLE MOUNT/CAP: Yes
GRILLE: Steel
COLOR: Black
Size
HEIGHT: 670 mm / 26.38 inches
WIDTH: 425 mm / 16.73 inches
DEPTH: 425 mm / 16.73 inches
WEIGHT: 26 kg / 57.32 lbs
Shipping informations
PACKAGE HEIGHT: 715 mm / 28.15 inches
PACKAGE WIDTH: 470 mm / 18.5 inches
PACKAGE DEPTH: 470 mm / 18.5 inches
PACKAGE WEIGHT: 32.7 kg / 72.09 lbs
(RCF-TT25A-II)
| SKU | RCF-TT25A-II |
| Brand | RCF |
