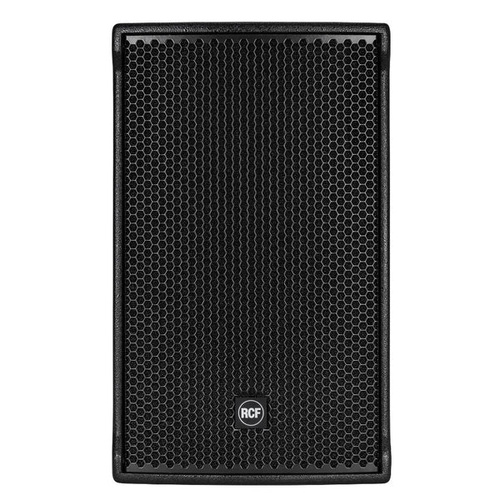

RCF NX32-A 12" ACTIVE TWO WAY MULTIPURPOSE SPEAKER

Description

FEATURES

• 1400 W 2-way class-D amplifier
• 131 dB SPL Max
• 50 – 20000 Hz Frequency Range
• 90° x 60° constant directivity coverage
• 12" woofer, 2.5" voice coil
• Horn loaded 3.0''neodymium c. driver
• Multiple rigging points

The NX 32-A is an active speaker specifically designed to be the everyday tool for rental companies and professional musicians. It’s one of the most flexible speaker for deploying high-quality sound as a stand-alone FOH system or as a satellite (with subwoofer) but either as a stage monitor or a or a front, down or side fill speaker.



Specification

ACOUSTICAL SPECIFICATIONS



FREQUENCY RESPONSE:50 HZ ÷ 20000 HZ

MAX SPL @ 1M:131 DB

HORIZONTAL COVERAGE ANGLE:90°

VERTICAL COVERAGE ANGLE:60°



TRANSDUCERS

COMPRESSION DRIVER:1.4'' NEO, 3.0'' V.C

WOOFER:12'', 2.5'' V.C



INPUT/OUTPUT SECTION

INPUT SIGNAL:BAL/UNBAL

INPUT CONNECTORS:XRL, JACK

OUTPUT CONNECTORS:XLR

INPUT SENSITIVITY:-2 DBU/+4 DBU

MIC. INPUT SENSITIVITY:-32 DBU



PROCESSOR SECTION

CROSSOVER FREQUENCIES:700 HZ

PROTECTIONS:THERMAL, RMS

LIMITER:SOFT LIMITER

CONTROLS:VOLUME, BOOST, MIC/LINE



POWER SECTION

TOTAL POWER:1400 W PEAK, 700 W RMS

HIGH FREQUENCIES:400 W PEAK, 200 W RMS

LOW FREQUENCIES:1000 W PEAK, 500 W RMS

COOLING:CONVECTION

CONNECTIONS:POWERCON IN/OUT



PHYSICAL SPECIFICATIONS

CABINET/CASE MATERIAL: BALTIC BIRCH PLYWOOD

HARDWARE: 5 X M10, 4 X QUICK LOCK

HANDLES: 2 SIDE

POLE MOUNT/CAP: YES

GRILLE: STEEL

COLOR: BLACK

SIZE

HEIGHT: 600 MM / 23.62 INCHES

WIDTH: 365 MM / 14.37 INCHES

DEPTH: 378 MM / 14.88 INCHES

WEIGHT: 20.6 KG / 45.42 LBS



SHIPPING INFORMATIONS

PACKAGE HEIGHT: 655 MM / 25.79 INCHES

PACKAGE WIDTH: 425 MM / 16.73 INCHES

PACKAGE DEPTH: 440 MM / 17.32 INCHES

PACKAGE WEIGHT: 23.6 KG / 52.03 LBS
