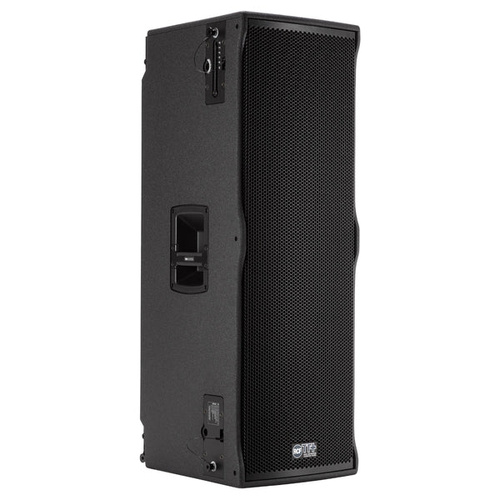

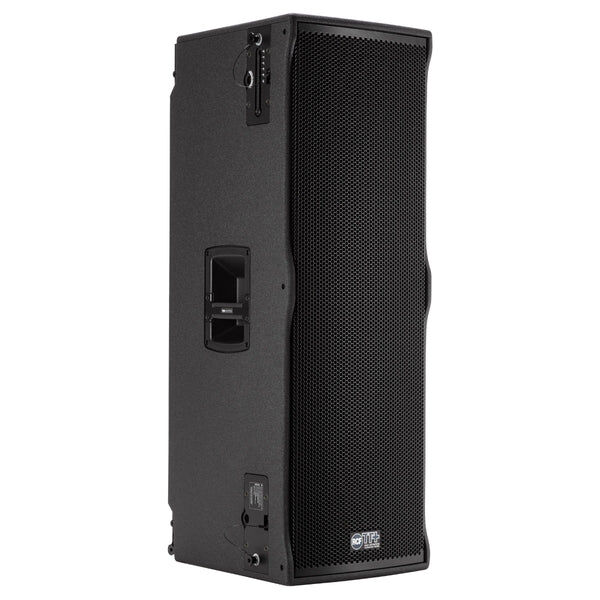

RCF TTL 6-A ACTIVE THREE-WAY LINE ARRAY MODULE
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
Description
The TTL6-A is a high power, three way, active line source engineered to deliver high fidelity output for use indoors and outdoors, for medium to large spaces. TTL6-A provides all the advantages of line array technology, such as high direct sound, increased range and a uniform level distribution, with additional ease of use. It is the preferred sound set-up for stacked systems and when a wider dispersion is required. The 3-way TTL6-A line source is equipped with 2 x 12” low frequencies woofers, 4 x 6.5” midranges and a 3.0” voice coil compression driver with wave-guide for distinctive homogenous directivity. The integration of four channels of digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency.
- RDNet remote control
- 4 x Class D amplifier, 2200 Watt total power
- Premium-quality DSP with optimized phase response
- 1.4" neo compression driver, 3.0" voice coil with a waveguide
- 4 x 6.0" neo midranges
- 2 x 12" neo woofers
- 139 dB max SPL
- Maximum output, perfect audio fidelity
- Tour grade cabinet and mechanics
RCF RDNet.
Specification
SPECIFICATIONS
FREQUENCY RESPONSE: 45 Hz ÷ 20000 Hz
MAX SPL @ 1M: 139 dB
HORIZONTAL COVERAGE ANGLE: 90°
VERTICAL COVERAGE ANGLE: 30°
Transducers
COMPRESSION DRIVER: 1.4'' neo, 3.0'' v.c
MIDRANGE: 4 x 6.0'' neo, 2.0'' v.c
WOOFER: 2 x 12'' neo, 3.0'' v.c

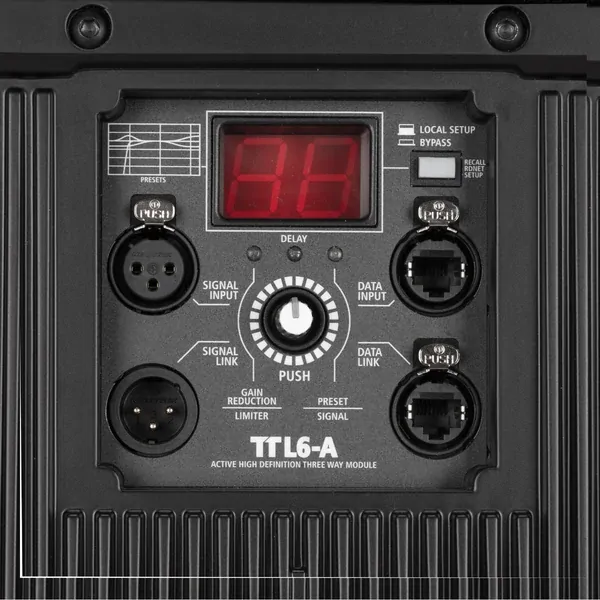

Input/Output section
INPUT SIGNAL: bal/unbal
INPUT CONNECTORS: XLR, RDNet Ethercon
OUTPUT CONNECTORS: XLR, RDNet Ethercon
INPUT SENSITIVITY: +4 dBu
Processor section
CROSSOVER FREQUENCIES: 200 Hz - 800 Hz
PROTECTIONS: Thermal, RMS
LIMITER: Soft Limiter
CONTROLS: Close, Linear, Far, 2x Presets
RDNET: Yes
Power section
TOTAL POWER: 4400 W Peak, 2200 W RMS
HIGH FREQUENCIES: 800 W Peak, 400 W RMS
MID FREQUENCIES: 1400 W Peak, 700 W RMS
LOW FREQUENCIES: 2200 W Peak, 1100 W RMS
COOLING: Convection

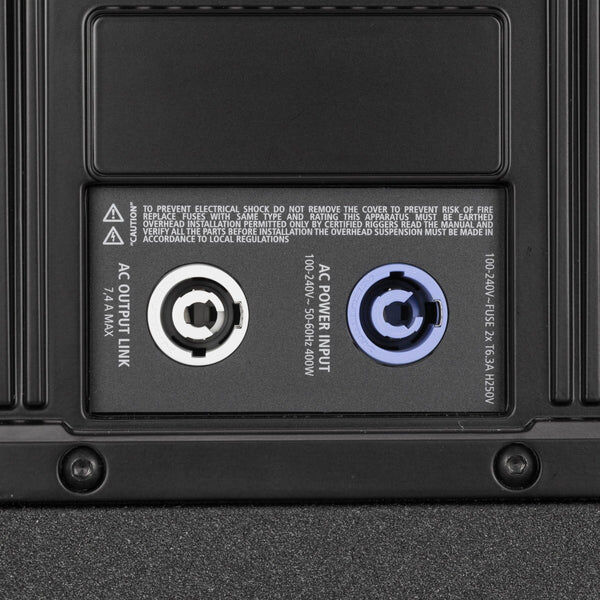

CONNECTIONS: Powercon IN/OUT
Physical specifications
CABINET/CASE MATERIAL: Baltic birch plywood
HARDWARE: Pole Mount, integrated

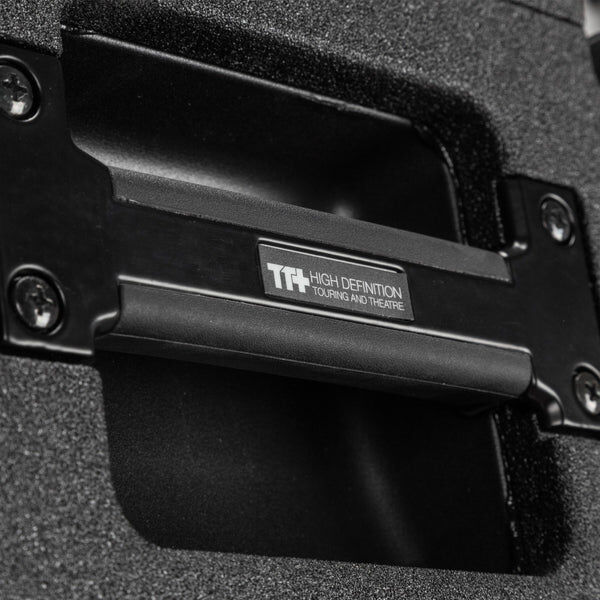

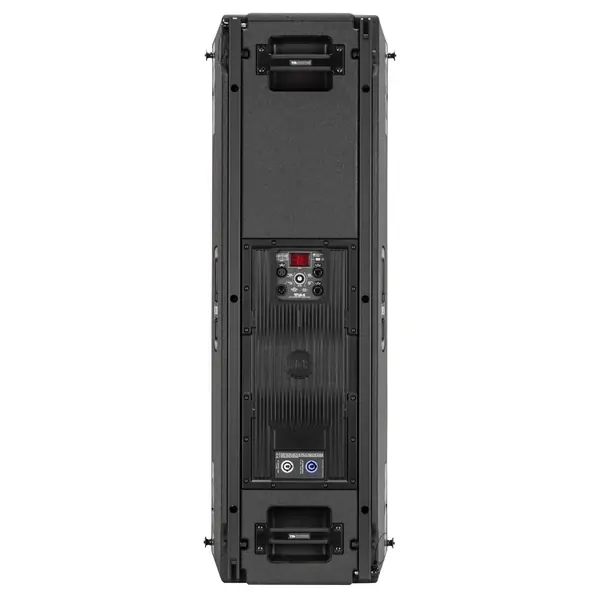

HANDLES: 2 side, 2 back
GRILLE: Steel
COLOR: Black
Size
HEIGHT: 1100 mm / 43.31 inches
WIDTH: 378 mm / 14.88 inches
DEPTH: 468 mm / 18.43 inches
WEIGHT: 53 kg / 116.84 lbs
Shipping informations
PACKAGE HEIGHT: 430 mm / 16.93 inches
PACKAGE WIDTH: 1140 mm / 44.88 inches
PACKAGE DEPTH: 520 mm / 20.47 inches
PACKAGE WEIGHT: 56 kg / 123.46 lbs
(RCF-TTL6-A)
| SKU | RCF-TTL6-A |
| Brand | RCF |
