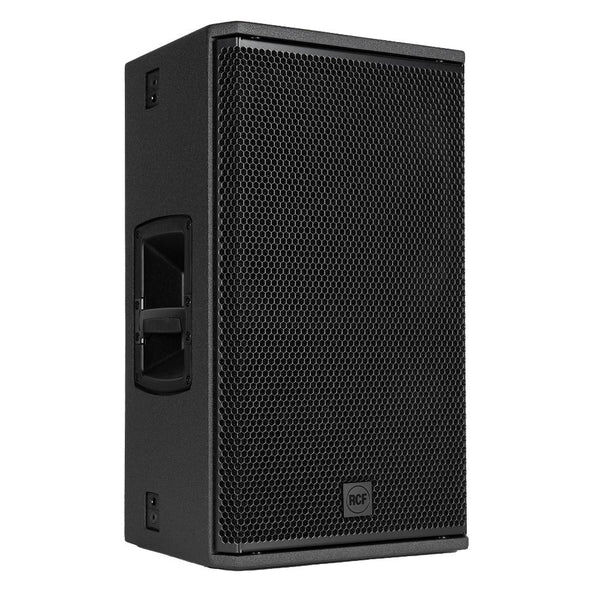

RCF NX 932-A 12" ACTIVE TWO WAY MULTIPURPOSE SPEAKER
SHIPPED DIRECTLY FROM SUPPLIERS MELBOURNE WAREHOUSE
$3,999.00
RRP $4,660.00
SAVE $661.00 (14%)
In Stock
Description
Features
- Up to 132 dB Sound Pressure Level
- 2100W Class-D Bi-Amplification
- 45-20000 Hz linear frequency response
- 3" Titanium/Neodymium Compression Driver
- 12" Woofer
- FiRPHASE zero degrees phase technology
- Bass Motion Control woofer excursion management
- Six M10 and four Quick Lock rigging points.
Specifications
| Category | Specification | Details |
|---|---|---|
| Acoustical Specifications | Frequency Response | 45 Hz ÷ 20000 Hz |
| Max SPL @ 1m | 132 dB | |
| Horizontal coverage angle | 100° | |
| Vertical coverage angle | 70° | |
| Transducers | Compression Driver | 1 x 1.4'' neo, 3.0'' v.c |
| Woofer | 1 x 12'', 2.5'' v.c | |
| Input/Output Section | Input signal | bal/unbal |
| Input connectors | Combo XLR/Jack | |
| Output connectors | XLR | |
| Input sensitivity | -2 dBu/+4 dBu | |
| Processor Section | Crossover Frequencies | 700 Hz |
| Protections | Thermal, RMS | |
| Limiter | Soft Limiter | |
| Controls | Linear, Boost, Stage, Volume | |
| Power Section | Total Power | 2100 W Peak |
| High frequencies | 700 W Peak | |
| Low frequencies | 1400 W Peak | |
| Cooling | Convection | |
| Connections | Power | Powercon TRUE1 TOP IN/OUT |
| Standard Compliance | Safety agency | CE compliant |
| Physical Specifications | Cabinet/Case Material | Plywood |
| Hardware | 2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear, 2 each side quick lock pin seat | |
| Handles | 1 x Side | |
| Pole mount/Cap | Yes | |
| Grille | Steel | |
| Color | Black, White | |
| Size | Height | 620 mm / 24.41 inches |
| Width | 362 mm / 14.25 inches | |
| Depth | 405 mm / 15.94 inches | |
| Weight | 22.9 kg / 50.49 lbs | |
| Shipping Information | Package Height | 666 mm / 26.22 inches |
| Package Width | 461 mm / 18.15 inches | |
| Package Depth | 416 mm / 16.38 inches | |
| Package Weight | 26 kg / 57.32 lbs |
(RCF-NX932-A)
| SKU | RCF-NX932-A |
| Brand | RCF |
